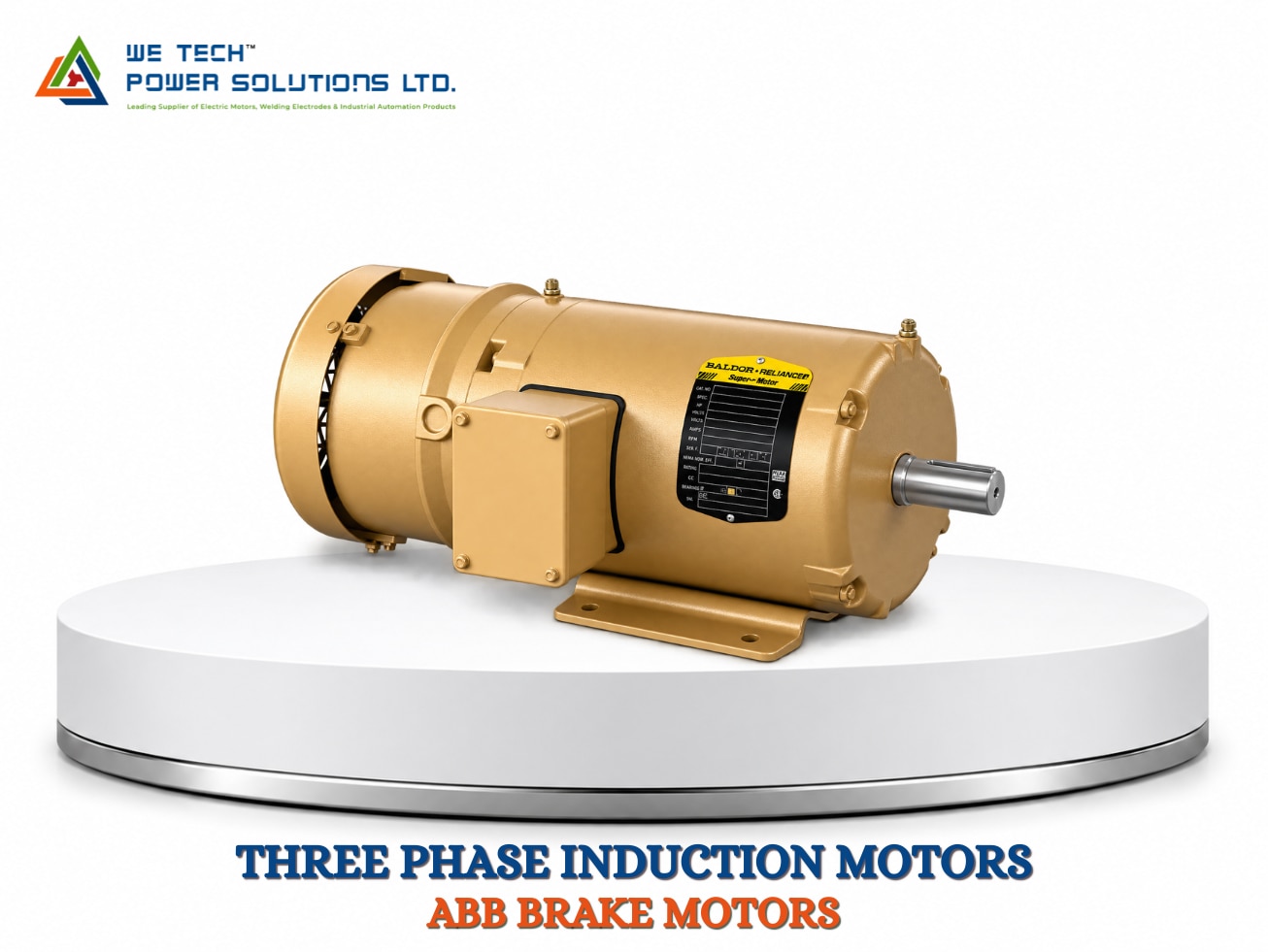

ABB BRAKE MOTORS

ABB Brake Motors Manufacturer in Ahmedabad.

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Brake Motors, supplying dependable three-phase brake motor solutions for industrial machinery, lifting systems, conveyors and material handling applications. ABB Brake Motors combine electric motor performance with an integrated braking arrangement, helping equipment achieve controlled stopping and improved operational safety.

The ABB Brake Motor range is available from 0.25 kW to 9.3 kW (0.33 HP to 12.5 HP). These motors operate on a 3-phase, 415 V, 50 Hz supply and are available in 4-pole, 6-pole and 8-pole configurations. Depending on the pole configuration, available speeds include 1500 RPM, 1000 RPM, and 750 RPM.

Designed with robust cast-iron construction, a TEFC enclosure, Class F insulation, and IP55 protection, these motors suit industrial applications that require reliable braking and frequent operational control.

ABB Brake Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified ABB Brake Motor range with the following characteristics:

• Power Range: 0.25 to 9.3 kW / 0.33 to 12.5 HP

• Motor Type: Three-Phase Brake Motor

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1500 / 1000 / 750 RPM

• Pole: 4 / 6 / 8 Pole

• Frame Size: 71 to 132

• Duty: S1 / S4

• Starts per Hour: 60 / 150 / 300

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Ambient Temperature: Up to 50°C

• Terminal Box Position: Top

• Mounting: B3 / B5 / B35

• Brake: DC Brake

• Manual Release: Available for motors above 2 HP

• Standard: IS:12615 / IEC:60034-1

ABB Brake Motor Features

ABB Brake Motors are designed for applications where controlled stopping is an important part of machine operation. Key features include:

• Integrated DC braking arrangement

• Manual brake release handle for motors above 2 HP

• Multiple speed options based on pole configuration

• Robust cast iron body

• TEFC enclosure

• Class F insulation

• IP55 protection

• B3, B5 and B35 mounting configurations

• Suitable for S1 and S4 duty

• Terminal box positioned on the top

• Suitable for industrial lifting and material-handling systems

Available Mounting Configurations

The ABB Brake Motor range can be supplied in different mounting arrangements to suit equipment design and installation requirements:

B3 Foot Mounted: Suitable for base-mounted industrial machinery.

B5 Flange Mounted: Used where the motor needs to be directly connected through a flange.

B35 Foot cum Flange Mounted: Combines foot and flange mounting for installations requiring additional mounting flexibility.

Applications of ABB Brake Motors

ABB Brake Motors are suitable for machinery where controlled motor stopping is required and are commonly used in:

• Lifts and Elevators

• Hoists

• Cranes

• Conveyors

• Material Handling Equipment

• Textile Machinery

• Rolling Mills

• Machine Tools

• Saws

• Heavy-Duty Industrial Machinery

• Lifting and Positioning Equipment

These motors are particularly useful in applications where the brake must hold or stop the driven equipment after motor operation.

ABB Brake Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Brake Motors in Ahmedabad, offering motor solutions for industrial machinery, lifting systems, automation equipment and material-handling applications.

Our team can help you select the right motor based on power, RPM, pole configuration, mounting, duty, and application requirements.

ABB Brake Motor Supplier in Gujarat

As an ABB Brake Motor supplier serving Gujarat, We Tech Power Solutions Ltd provides industrial customers with suitable ABB motor solutions for different machinery requirements.

Whether you need a 1500 RPM brake motor, 1000 RPM brake motor, or 750 RPM brake motor, you can select configurations to match your operating conditions.

ABB Brake Motor Supplier in India

We Tech Power Solutions Ltd supplies ABB Brake Motors for industrial applications across India. Customers can enquire about suitable power ratings, mounting arrangements, braking configurations,

and technical specifications.

ABB Brake Motor Manufacturer Information

ABB is the manufacturer and brand of the Brake Motors, while We Tech Power Solutions Ltd is an Authorised Dealer. We provide assistance with ABB Brake Motor selection and supply based on the customer's application and technical requirements.

Warranty

ABB Brake Motors are covered under warranty for faulty material or workmanship when operated under proper conditions. The warranty period is 12 months from the date of commissioning or 18 months from the date of dispatch, whichever occurs earlier, subject to applicable warranty terms and conditions.

Why Choose We Tech Power Solutions Ltd?

• Competitive Pricing

• Genuine ABB Products

• Fast Delivery

• Technical Support

• Application-Based Motor Selection

• Custom Motor Solutions

Get ABB Brake Motors in Ahmedabad

Looking for an ABB Brake Motor Dealer, Supplier, or Distributor in Ahmedabad?

Contact We Tech Power Solutions Ltd for ABB Brake Motor requirements, technical guidance, pricing and supply assistance.

Frequently Asked Questions

1. What is the power range of ABB Brake Motors?

The ABB Brake Motor range specified here is from 0.25 kW to 9.3 kW, or approximately 0.33 HP to 12.5 HP.

2. What speeds are available in ABB Brake Motors?

The range includes 1500 RPM for 4-pole motors, 1000 RPM for 6-pole motors, and 750 RPM for 8-pole motors.

3. Are ABB Brake Motors three-phase motors?

Yes. The specified ABB Brake Motors are three-phase motors designed for 415 V, 50 Hz operation.

4. What type of brake is used?

The specified range uses a DC brake arrangement.

5. Is a manual brake release available?

Yes. A manual release handle is available for motors above 2 HP.

6. Which mounting options are available?

B3 foot mounting, B5 flange mounting and B35 foot cum flange mounting are available.

7. What is the protection rating of ABB Brake Motors? The motors have an IP55 degree of protection.

8. Where are ABB Brake Motors commonly used?

They are used in lifts, elevators, cranes, hoists, conveyors, rolling mills, textile machinery, machine tools, and other material-handling applications.

9. What insulation class is provided?

ABB Brake Motors are available with Class F insulation, with temperature rise limited to Class B.

10. Who supplies ABB Brake Motors in Ahmedabad?

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Brake Motors in Ahmedabad and provides technical and supply assistance for industrial applications.ABB Brake Motors Trader in Ahmedabad
