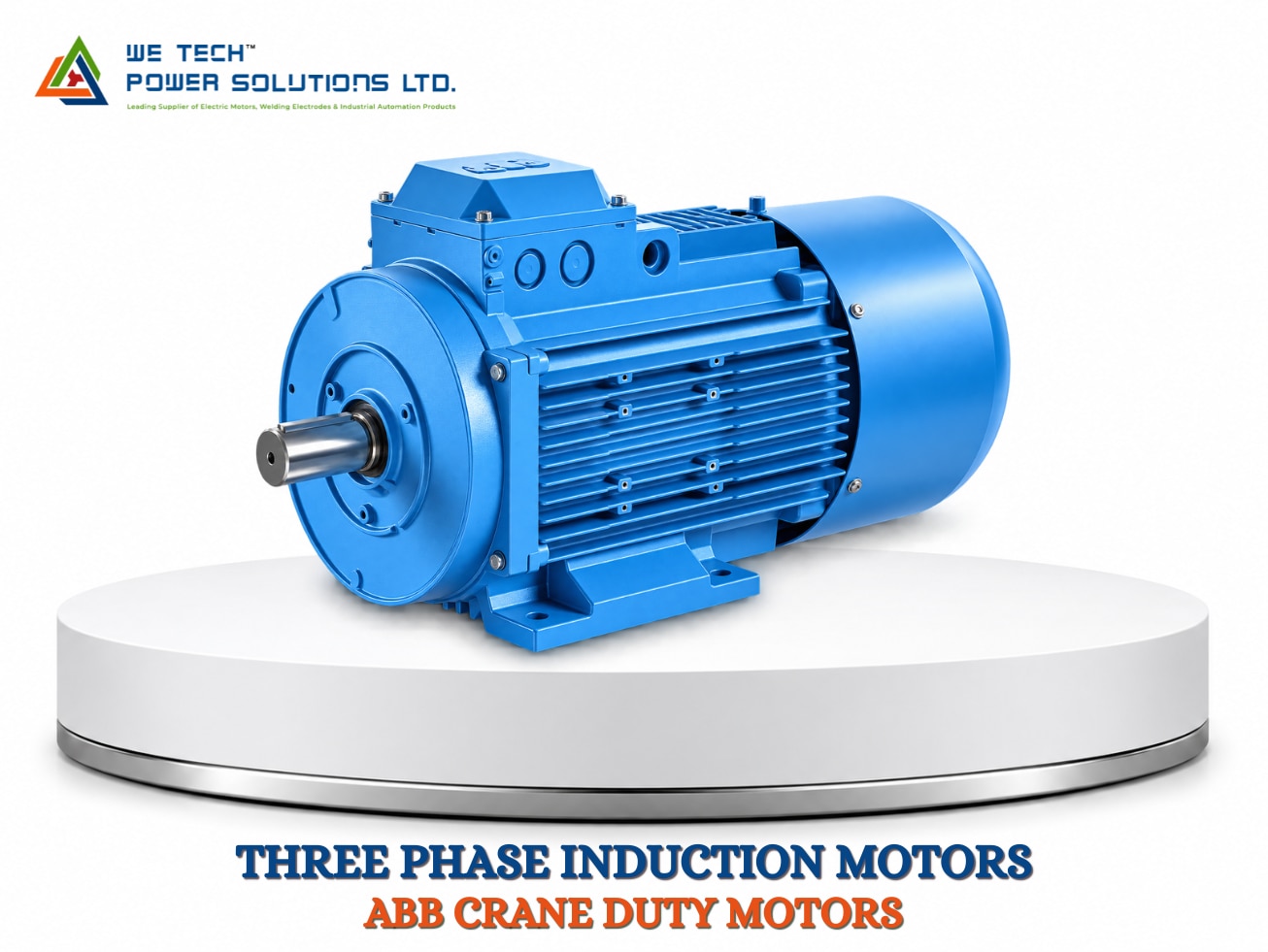

ABB CRANE DUTY MOTORS

ABB Crane Duty Motors Exporter in Ahmedabad.

Cranes, hoists, lifting systems, and material handling equipment require motors that can handle repeated starting, stopping, acceleration, and varying operating cycles. ABB Crane Duty Motors are designed for industrial applications where dependable motor operation and suitable intermittent-duty characteristics are important.

We Tech Power Solutions Ltd, are an Authorised Dealer of ABB Crane Duty Motors, offering the specified motor range from 1.1 kW to 10 kW and 1.5 HP to 13.4 HP. These three-phase motors are rated at 415 V and 50 Hz and are available in a 1000 RPM, 6-pole configuration with a robust cast iron body.

The motors are compatible with S3, S4, and S5 duty classifications and are available with different CDF and starting-frequency configurations. This makes them suitable for machinery where motors may experience frequent starts, stops, and intermittent operating cycles.

ABB Crane Duty Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified ABB Crane Duty Motor range with the following characteristics:

• Power Range: 1.1 to 10 kW / 1.5 to 13.4 HP

• Motor Type: Three-Phase Induction Motor

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1000 RPM

• Pole: 6 Pole

• Frame Size: 100 to 160L

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starts per Hour: 60 / 150 / 300

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Ambient Temperature: Up to 45°C

• Terminal Box Position: Top

• Mounting: B3 / B5 / B35

• Standard: IS:12615 / IEC:60034-1

Select the motor based on the lifting equipment, load characteristics, operating cycle, starting requirements, speed, and installation conditions.

Designed for Crane and Lifting Applications

Crane and hoist systems often operate with repetitive movement cycles and may require frequent motor starts. Selecting a suitable duty-rated motor is therefore important for reliable equipment operation.

ABB Crane Duty Motors are specified for applications involving:

• Frequent starting and stopping

• Intermittent operating cycles

• Material lifting and movement

• Crane traveling mechanisms

• Hoisting equipment

• Industrial material handling

• Heavy machinery movement

Always select the required motor configuration based on the equipment's actual load and operating cycle.

Features of ABB Crane Duty Motors

Depending on the selected configuration, ABB Crane Duty Motors can be supplied with features intended for specific industrial operating conditions.

Available features include:

• Crane-duty motor configuration

• S3 / S4 / S5 duty compatibility

• IE motor efficiency as per applicable configuration

• 1000 RPM / 6-pole construction

• Cast iron body

• TEFC enclosure

• IP55 protection

• Class F insulation

• Temperature rise limited to Class B

• VPI / VFD suitable option

• Thermistors

• Roller bearings

• Insulated bearings

• Space heater

• Forced cooling

• RHS / LHS terminal box arrangement

• Double shaft extension

CDF and Starts Per Hour

For crane and hoist applications, the Cyclic Duration Factor (CDF) and number of starts per hour are important parameters when selecting a motor.

The specified ABB Crane Duty Motor range includes:

• CDF: 25%

• CDF: 40%

• CDF: 60%

Depending on the applicable configuration, the motors can support 60, 150, or 300 starts per hour.

Select the correct CDF and starting frequency based on the crane or lifting equipment's actual operating cycle and load profile.

Mounting Arrangements

Different crane and material handling systems may require different motor installation arrangements. ABB Crane Duty Motors are available with the following mounting configurations:

B3 Foot Mounted

B3 mounting is suitable where the motor is installed on a base, frame, or equipment platform using its mounting feet.

B5 Flange Mounted

B5 mounting is used where the motor is mechanically connected to the driven equipment through a flange.

B35 Foot Cum Flange Mounted

B35 combines foot and flange mounting and can be selected where the equipment design requires both forms of mechanical support.

ABB Crane Duty Motor Applications

ABB Crane Duty Motors are suitable for various industrial lifting and material handling applications, including:

• Overhead Cranes

• EOT Cranes

• Hoists

• Gantry Cranes

• Industrial Lifting Systems

• Material Handling Equipment

• Weirs & Sluices

• Industrial Lifts

• Rolling Mills

• Crane traveling mechanisms

• Lifting and handling machinery

For every application, motor selection should consider the load, acceleration requirements, operating cycle, number of starts, speed, ambient conditions, and mechanical arrangement.

ABB Crane Duty Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Crane Duty Motors in Ahmedabad, supplying motors for crane, hoist, lifting, and material handling requirements.

Customers searching for an ABB Crane Duty Motor Dealer in Ahmedabad, ABB Crane Motor Supplier in Ahmedabad, or ABB Crane Duty Motor Trader in Ahmedabad can contact us for information about the available motor specifications and configurations.

ABB Crane Duty Motor Supplier in Gujarat

We Tech Power Solutions Ltd, support industrial requirements across Gujarat for crane and material handling motor applications.

If you are looking for an ABB Crane Duty Motor Supplier in Gujarat, ABB Crane Motor Dealer in Gujarat, or ABB Crane Duty Motor Trader in Gujarat, contact our team with your required motor power, RPM,

duty cycle, mounting arrangement, and application details.

ABB Crane Duty Motor Supplier in India

Crane and hoist applications across different industrial sectors require motor configurations based on their specific load and operating conditions.

We Tech Power Solutions Ltd provides information and supply support for customers searching for an ABB Crane Duty Motor Supplier in India, ABB Crane Motor Dealer in India, or ABB Crane Duty Motor Trader in India.

ABB Crane Duty Motor Manufacturer in Ahmedabad, Gujarat & India

Customers searching for an ABB Crane Duty Motor Manufacturer in Ahmedabad, ABB Crane Duty Motor Manufacturer in Gujarat, or ABB Crane Duty Motor Manufacturer in India should distinguish between the original ABB manufacturer and its authorised sales/distribution network.

ABB is the manufacturer/brand, while We Tech Power Solutions Ltd is an Authorized Dealer of ABB Crane-Duty Motors.

This distinction helps industrial buyers identify the appropriate source when enquiring about genuine ABB crane-duty motor products.

Why Select a Crane Duty Motor?

Unlike general-purpose motor applications, crane and hoist systems can involve repetitive acceleration, deceleration, starting, stopping, and intermittent operation.

A suitable crane-duty motor should therefore be evaluated according to:

• Required lifting load

• Duty classification

• CDF

• Number of starts per hour

• Motor speed

• Starting requirements

• Ambient temperature

• Mounting arrangement

• Gearbox or driven-equipment configuration

Selecting the correct specification helps ensure the motor matches the equipment's actual operating conditions.

Warranty

ABB Crane Duty Motors are covered against faulty material or workmanship under proper use for 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier, subject to the applicable warranty terms and conditions.

Get ABB Crane Duty Motors from We Tech Power Solutions Ltd Looking for an ABB Crane Duty Motor in Ahmedabad, Gujarat or India?

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Crane Duty Motors, offering the specified range for cranes, hoists, lifting equipment, and industrial material handling applications.

Share your motor power, HP/kW, RPM, duty type, CDF, starts per hour, mounting arrangement, and application with our team to identify the appropriate motor configuration.

Frequently Asked Questions

1. What are ABB Crane Duty Motors used for?

ABB Crane Duty Motors are intended for suitable industrial applications involving cranes, hoists, lifting equipment, material handling systems, weirs, sluices, industrial lifts, and rolling mills.

2. What power range is available?

The specified range is available from 1.1 kW to 10 kW, approximately 1.5 HP to 13.4 HP.

3. What is the speed of ABB Crane Duty Motors?

The specified range is available at 1000 RPM with a 6-pole configuration.

4. What duty classifications are available?

The motors are compatible with S3, S4 and S5 duties, depending on the selected configuration and application requirements.

5. What CDF options are available?

The specified CDF options are 25%, 40%, and 60%.

6. How many starts per hour are supported?

The specified configurations include 60, 150, and 300 starts per hour, depending on the motor and duty requirement.

7. What mounting options are available?

Available mounting arrangements include B3 foot mounting, B5 flange mounting, and B35 foot cum flange mounting.

8. What protection and insulation class are provided?

The specified motors have IP55 protection and Class F insulation, with temperature rise limited to Class B.

9. Are VFD-compatible options available?

Yes. VPI/VFD suitable options are available depending on the motor configuration and application.

10. Who is an ABB Crane Duty Motor Dealer in Ahmedabad?

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Crane Duty Motors for industrial

requirements in Ahmedabad.

11. What additional features can be provided?

Depending on the selected configuration, options include thermistors, roller bearings, insulated bearings, space heaters, forced cooling, RHS/LHS terminal box positioning, and double shaft extension.
