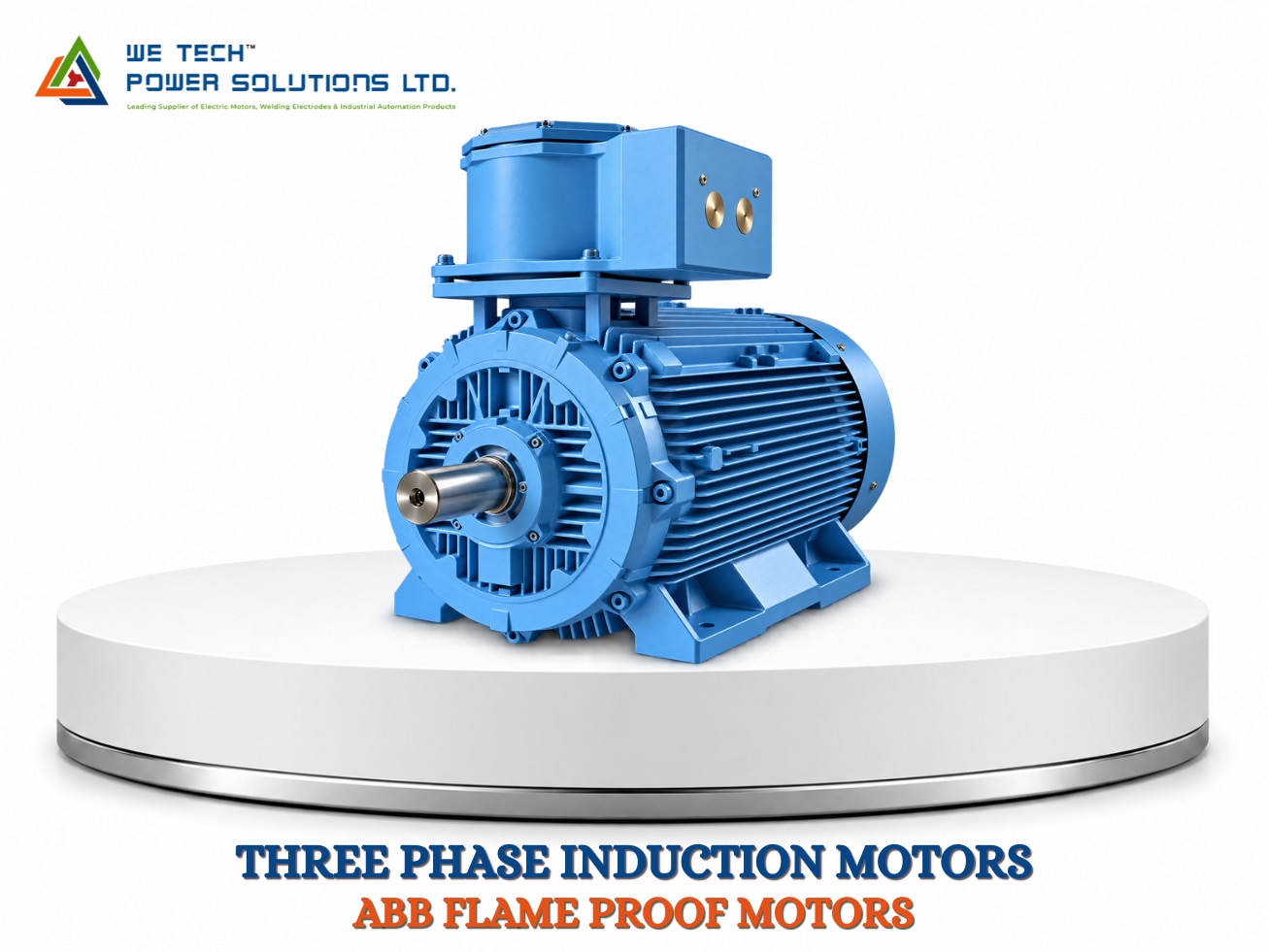

ABB FLAME PROOF MOTORS

ABB Flame Proof Motors Trader in Ahmedabad

We Tech Power Solutions Ltd, are an Authorised Dealer of ABB Flame Proof Motors, supplying reliable motor solutions for industrial environments where protection against hazardous or potentially explosive atmospheres is essential. ABB Flame Proof Motors are designed with robust construction, dependable performance and suitable protection for demanding industrial applications.

The available range covers 1.1 kW to 10 kW and 1.5 HP to 13.5 HP, with 3-phase operation at 415 V and 50 Hz. These motors are available at 1000 RPM in a 6-pole configuration, with a durable cast iron body and TEFC enclosure. Depending on the application, S3, S4, and S5 duty options are available, with different CDF and starting-per-hour ratings.

ABB Flame Proof Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified ABB Flame Proof Motor range with the following characteristics:

• Power Range: 1.1 to 10 kW / 1.5 to 13.4 HP

• Motor Type: Three-Phase Induction Motor

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1000 RPM

• Pole: 6 Pole

• Frame Size: 100 to 160L

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starts per Hour: 60 / 150 / 300

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Ambient Temperature: Up to 45°C

• Terminal Box Position: Top

• Mounting: B3 / B5 / B35

• Shaft Arrangement: Double Shaft Extension

• Standard: IS:12615 / IEC:60034-1

Key Features of ABB Flame Proof Motors

ABB Flame Proof Motors can be configured with features suitable for specific industrial operating requirements, including:

• VPI/VFD suitable construction

• Thermistors for temperature monitoring

• Roller bearing arrangement

• Insulated bearing option

• Space heater provision

• Forced cooling arrangement

• Terminal box location options – LHS / RHS

• Robust cast iron construction

• TEFC enclosure

• IP55 degree of protection

• Double shaft extension option

These features make the motors suitable for applications involving frequent starting, stopping, and demanding operating cycles.

Mounting Options

We Tech Power Solutions Ltd, offer ABB Flame Proof Motors with commonly required mounting arrangements:

B3 Foot Mounted: Suitable for conventional base-mounted installations.

B5 Flange Mounted: Designed for applications requiring direct flange mounting.

B35 Foot cum Flange Mounted: Provides both foot and flange mounting flexibility for specific machine configurations.

Industrial Applications

ABB Flame Proof Motors are suitable for a variety of industrial material-handling and heavy-duty applications, including:

• Crushers and Hoists

• Material Handling Equipment

• Weirs and Sluices

• Industrial Lifts

• Rolling Mills

• Heavy-Duty Machinery

• Industrial Drive Systems

S3, S4, and S5 duty compatibility lets users select a motor based on the required operating cycle and starting frequency.

ABB Flame Proof Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd, are an Authorised Dealer of ABB Flame Proof Motors in Ahmedabad, providing industrial motor solutions for different machinery and process requirements. Our team can assist with motor selection based on power, speed, mounting arrangement, duty cycle, and application requirements.

Whether you require a 6-pole flame proof motor, cast iron industrial motor, or a specific B3, B5, or B35 mounting arrangement, we can help identify the appropriate ABB motor configuration.

ABB Flame Proof Motor Supplier in Gujarat

We Tech Power Solutions Ltd supplies ABB Flameproof Motors across Gujarat, supporting industrial customers, OEMs, contractors, and machinery users with genuine ABB motor solutions.

We can assist customers in selecting motors based on:

• Required kW / HP

• RPM and pole configuration

• Duty cycle

• CDF requirements

• Mounting arrangement

• Voltage and frequency

• Application conditions

ABB Flame Proof Motor Supplier in India

For customers looking for an ABB Flame Proof Motor Supplier in India, We Tech Power Solutions Ltd provides access to ABB motor solutions for industrial applications. Availability and configuration can be selected according to the required technical specifications and operating environment.

ABB Flame Proof Motor Manufacturer Information

ABB is the manufacturer and brand of these Flame Proof Motors, while We Tech Power Solutions Ltd operates as an Authorised Dealer. Customers can therefore approach us for ABB Flame Proof Motor requirements, technical selection and supply assistance.

Warranty

ABB Flame Proof Motors are covered under warranty for faulty material or workmanship when operated under proper conditions. The warranty period is 12 months from commissioning or 18 months from dispatch, whichever occurs earlier, subject to the applicable warranty terms and conditions.

Why Choose ABB Flame Proof Motors?

ABB Flame Proof Motors combine robust mechanical construction with industrial-grade electrical performance and protection. Their cast iron body, TEFC enclosure, IP55 protection, Class F insulation and multiple duty-cycle configurations make them suitable for demanding industrial installations.

For applications involving frequent starts, material movement and heavy mechanical loads, selecting the correct motor based on duty, CDF, mounting and operating conditions is important.

Get ABB Flame Proof Motors in Ahmedabad

Looking for an ABB Flame Proof Motor Dealer, Supplier or Distributor in Ahmedabad?

Contact We Tech Power Solutions Ltd for ABB Flame Proof Motor requirements, technical specifications, mounting options and supply assistance.

Frequently Asked Questions

1. What is the power range of ABB Flame Proof Motors?

The available range is from 1.1 kW to 10 kW, corresponding approximately to 1.5 HP to 13.4/13.5 HP depending on the listed rating.

2. Are ABB Flame Proof Motors available in 3 phase?

Yes. The specified motors are 3-phase motors designed for 415 V, 50 Hz operation.

3. What speed is available in this ABB Flame Proof Motor range?

The specified range is available in 1000 RPM with a 6-pole configuration.

4. Which mounting options are available?

B3 foot mounting, B5 flange mounting and B35 foot cum flange mounting are available.

5. What is the insulation class of ABB Flame Proof Motors?

The motors feature Class F insulation, with temperature rise limited to Class B.

6. What is the protection rating?

The standard enclosure provides an IP55 degree of protection.

7. What type of body construction is used?

The motors are supplied with a robust cast iron body and TEFC enclosure.

8. Are these motors suitable for frequent starting applications?

Yes. S3, S4, and S5 duty configurations with CDF ratings of 25, 40, and 60,, and corresponding starts-per-hour ratings, are available depending on the motor configuration.

9. Who is the authorized dealer for ABB Flame Proof Motors in Ahmedabad?

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Flame Proof Motors and supplies ABB motor solutions for industrial applications.

10. What standards apply to these motors?

The specified motors comply with IS:12615 / IEC:60034-1.
