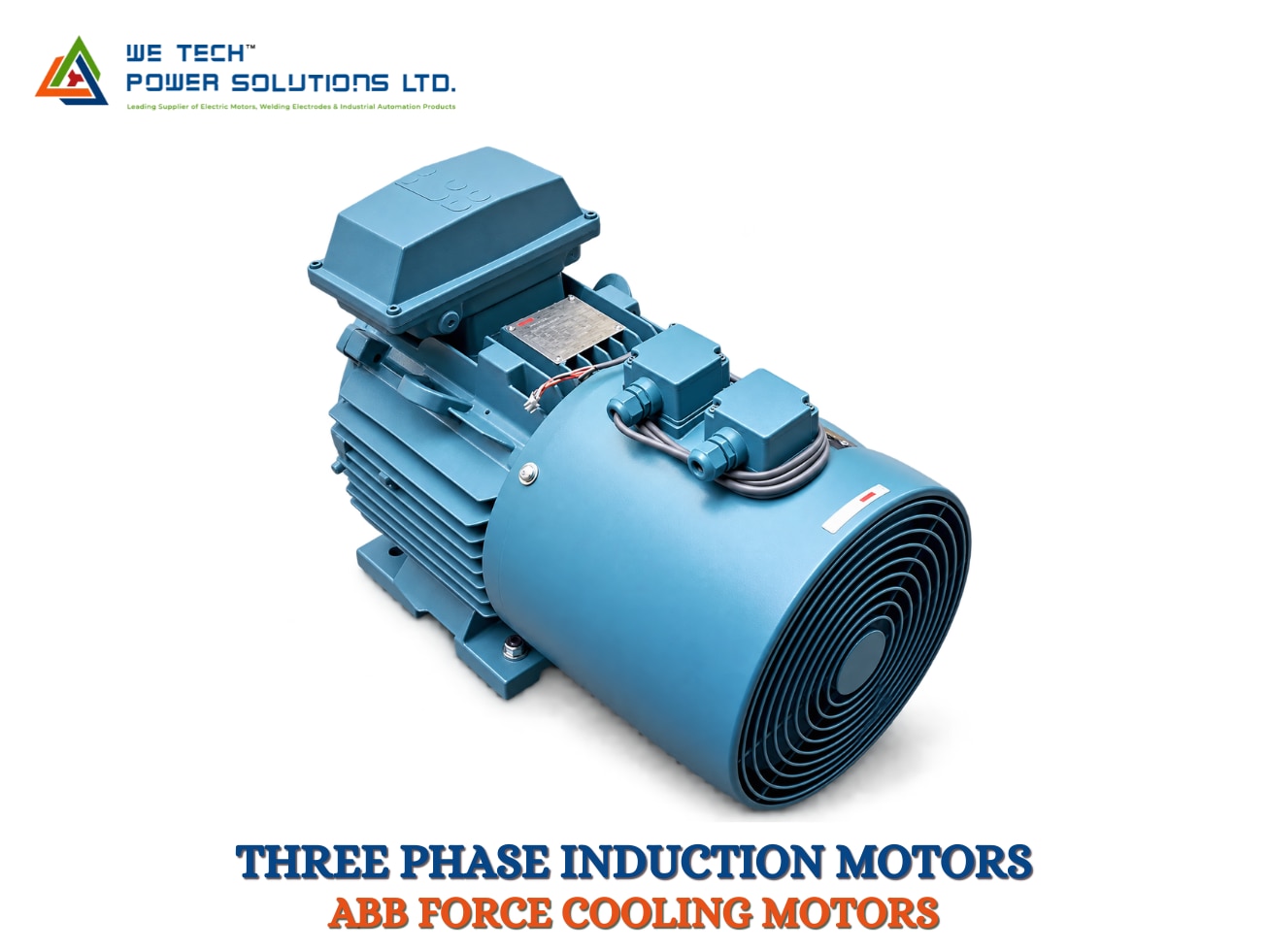

ABB FORCE COOLING MOTORS

ABB Force Cooling Motors Trader in Ahmedabad

We Tech Power Solutions Ltd, are an Authorised Dealer of ABB Force Cooling Motors, offering reliable motor solutions for industrial equipment that requires controlled heat dissipation and consistent performance under demanding operating conditions.

ABB Force Cooling Motors are available in a range of 1.1 kW to 10 kW / 1.5 HP to 13.4 HP. The specified range operates on a 3-phase, 415 V, 50 Hz supply and is available in a 1000 RPM, 6-pole configuration. With a robust cast-iron body, TEFC enclosure, Class F insulation, and IP55 protection, these motors suit various industrial drive and material-handling applications.

The motors support S3, S4, and S5 duty, with CDF ratings of 25, 40, and 60 and corresponding starting capabilities of 60, 150, and 300 starts per hour. Force cooling provisions help support reliable motor operation where additional cooling is required.

ABB Force Cooling Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified ABB Force Cooling Motor range with the following characteristics:

• Power Range: 1.1 to 10 kW / 1.5 to 13.4 HP

• Motor Type: Three-Phase Induction Motor

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1000 RPM

• Pole: 6 Pole

• Frame Size: 100 to 160L

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starts per Hour: 60 / 150 / 300

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Ambient Temperature: Up to 45°C

• Terminal Box Position: Top

• Mounting: B3 / B5 / B35

• Shaft Arrangement: Double Shaft Extension

• Standard: IS:12615 / IEC:60034-1

Force Cooling Motor Features

ABB Force Cooling Motors include features designed to support dependable operation in industrial environments. Depending on the required configuration, the available functionality includes:

• Force cooling arrangement

• VPI/VFD suitable construction

• Thermistors for temperature monitoring

• Roller bearing arrangement

• Insulated bearing option

• Space heater provision

• LHS / RHS terminal box location

• Double shaft extension

• Cast iron construction

• TEFC enclosure

• IP55 protection

• Class F insulation

The force cooling arrangement is particularly useful for applications where maintaining suitable motor temperature is important during continuous or demanding operating conditions.

ABB Force Cooling Motor Mounting Options

The motor range is available with multiple mounting arrangements to accommodate different machine designs:

B3 Foot Mounting: Suitable for standard base-mounted industrial machinery.

B5 Flange Mounting: Designed for applications requiring flange-based motor installation.

B35 Foot cum Flange Mounting: Provides both foot and flange mounting for greater installation flexibility.

Applications of ABB Force Cooling Motors

ABB Force Cooling Motors can be used in a range of industrial applications that require dependable motor operation and effective thermal management.

Typical applications include:

• Crushers and Hoists

• Material Handling Equipment

• Weirs and Sluices

• Industrial Lifts

• Rolling Mills

• Heavy-Duty Machinery

• Industrial Drive Systems

• Machinery requiring additional cooling support

The availability of S3, S4 and S5 duty configurations allows the motor to be selected according to the application's operating cycle and starting requirements.

ABB Force Cooling Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Force Cooling Motors in Ahmedabad, supplying industrial motor solutions for machinery, material handling systems and other demanding applications.

Our team can assist with motor selection based on power rating, speed, frame size, mounting arrangement, duty cycle, and cooling requirements.

ABB Force Cooling Motor Supplier in Gujarat

We Tech Power Solutions Ltd supplies ABB Force Cooling Motors to industrial customers across Gujarat. Customers can select motor configurations based on application requirements, installation

arrangement, and operating conditions.

Customers can enquire for ABB motors with:

• 1.1 to 10 kW power range

• 1000 RPM / 6-pole configuration

• S3 / S4 / S5 duty

• B3 / B5 / B35 mounting

• Cast iron construction

• Force cooling arrangement

• IP55 protection

ABB Force Cooling Motor Supplier in India

For businesses looking for an ABB Force Cooling Motor Supplier in India, We Tech Power Solutions Ltd provides ABB motor solutions for industrial applications.

We support customers with product selection and supply based on required kW/HP, RPM, duty, mounting, cooling arrangement, and operating conditions.

ABB Force Cooling Motor Manufacturer Information

ABB manufactures Force Cooling Motors, and We Tech Power Solutions Ltd is an Authorized Dealer. We provide ABB motor solutions and technical assistance according to the customer's industrial requirements.

Warranty

ABB Force Cooling Motors are covered under warranty against faulty material or workmanship under proper use. The applicable warranty period is 12 months from commissioning or 18 months from dispatch, whichever occurs earlier, subject to the manufacturer's applicable warranty terms and conditions.

Why Choose We Tech Power Solutions Ltd?

• Authorized ABB Motor Dealer

• Genuine ABB Motor Solutions

• Application-Based Motor Selection

• Competitive Pricing

• Fast Delivery Support

• Technical Assistance

• Industrial Motor Solutions

• Suitable Configurations for Different Mounting Requirements

Get ABB Force Cooling Motors in Ahmedabad

Looking for an ABB Force Cooling Motor Dealer, Supplier, or Distributor in Ahmedabad?

Contact We Tech Power Solutions Ltd for product specifications, motor selection, pricing, and supply assistance for your industrial application.

Frequently Asked Questions

1. What is an ABB Force Cooling Motor?

An ABB Force Cooling Motor is an industrial motor configuration that uses forced cooling to manage heat during demanding operating conditions.

2. What is the power range of these ABB Force Cooling Motors?

The specified range is from 1.1 kW to 10 kW, equivalent to approximately 1.5 HP to 13.4 HP.

3. What is the speed of the available motor?

The specified motor range operates at 1000 RPM with a 6-pole configuration.

4. Which duty types are available?

The motors are compatible with S3, S4, and S5 duty.

5. What CDF ratings are available?

The specified CDF ratings are 25, 40, and 60, with corresponding starting capabilities of 60, 150, and 300 starts per hour.

6. Which mounting arrangements are available?

B3 foot-mounted, B5 flange-mounted, and B35 foot cum flange mounted configurations are available.

7. What protection rating is provided?

The motors have an IP55 degree of protection.

8. What insulation class is used?

The motors are provided with Class F insulation, with temperature rise limited to Class B.

9. Where are ABB Force Cooling Motors used?

They are suitable for crushers, hoists, material handling equipment, lifts, rolling mills, weirs, sluices, and other industrial machinery requiring dependable motor operation.

10. Who is an ABB Force Cooling Motor Dealer in Ahmedabad?

We Tech Power Solutions Ltd is an Authorized Dealer of ABB Force Cooling Motors in Ahmedabad, providing products and technical support for industrial applications.
