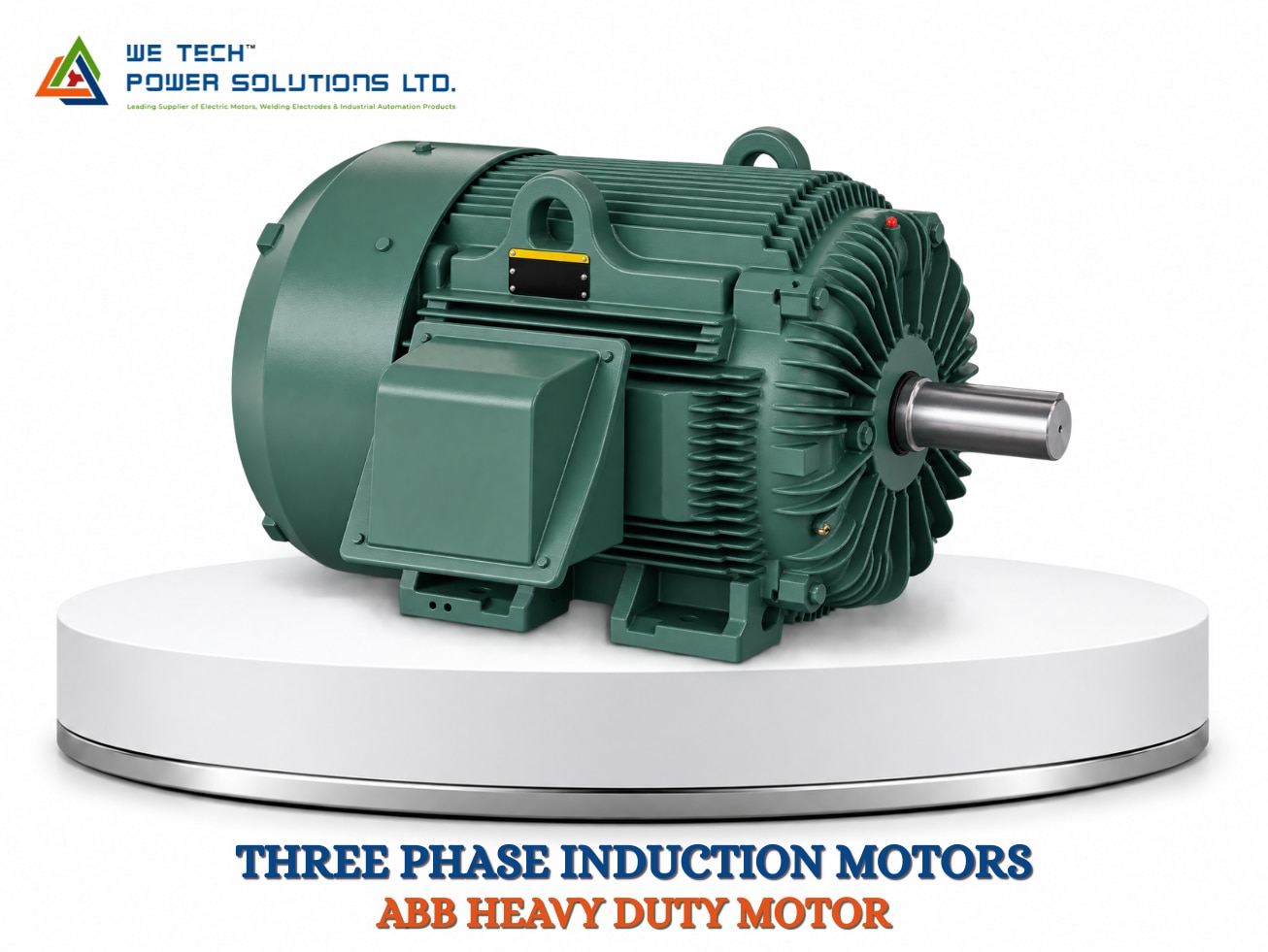

ABB HEAVY DUTY MOTOR

ABB Heavy Duty Motors Distributor in Ahmedabad.

We Tech Power Solutions Ltd, are an Authorized Dealer of ABB Heavy Duty Motors, supplying robust three-phase motor solutions for industrial machinery operating under demanding load conditions. ABB Heavy Duty Motors are designed for applications that require dependable torque delivery, durable construction, and consistent performance.

The specified range covers 1.1 kW to 10 kW / 1.5 HP to 13.4 HP and operates on a 415 V, 50 Hz,

three-phase supply. These motors are available in a 1000 RPM, 6-pole configuration with a sturdy cast iron body and TEFC enclosure.

With support for S3, S4, and S5 duty, CDF ratings of 25/40/60, and up to 60/150/300 starts per hour (depending on configuration), ABB Heavy Duty Motors can be selected for industrial equipment with demanding operating cycles and repeated starting.

ABB Heavy Duty Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified ABB Heavy Duty Motor range with the following characteristics:

• Power Range: 1.1 to 10 kW / 1.5 to 13.4 HP

• Motor Type: Three-Phase Induction Motor

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1000 RPM

• Pole: 6 Pole

• Frame Size: 100 to 160L

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starts per Hour: 60 / 150 / 300

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Ambient Temperature: Up to 45°C

• Terminal Box Position: Top

• Mounting: B3 / B5 / B35

• Shaft Arrangement: Double Shaft Extension

• Standard: IS:12615 / IEC:60034-1

Important Features of ABB Heavy Duty Motors

The ABB Heavy Duty Motor range includes features intended to support reliable operation in demanding industrial environments:

• Robust cast iron construction

• VPI/VFD suitable design

• Roller bearing arrangement

• Insulated bearing option

• Thermistors for motor temperature monitoring

• Space heater provision

• Forced cooling facility

• LHS / RHS terminal box location options

• Double shaft extension

• TEFC enclosure

• IP55 protection

• Class F insulation

These features allow the motor to be configured for applications where mechanical loading, frequent operation, and environmental conditions require a durable motor solution.

ABB Heavy Duty Motor Mounting Arrangements

Different mounting configurations are available to suit various industrial machine designs:

B3 Foot Mounted

A conventional foot-mounted arrangement suitable for motors installed on a rigid base or foundation.

B5 Flange Mounted

A flange-mounted configuration for equipment that requires direct motor-to-machine mounting.

B35 Foot cum Flange Mounted

Combines foot and flange mounting, offering additional flexibility for machinery installation.

Industrial Applications

ABB Heavy Duty Motors suit industrial machinery and equipment that require reliable motor operation under demanding conditions.

Typical applications include:

• Heavy-Duty Hoists

• Cranes

• Material Handling Equipment

• Weirs and Sluices

• Industrial Lifts

• Rolling Mills

• Crushers

• Heavy Machinery

• Industrial Drive Systems

The availability of different duty and CDF configurations makes the motor suitable for applications with varying operating cycles and starting frequencies.

ABB Heavy Duty Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd is an Authorised Dealer of ABB Heavy Duty Motors in Ahmedabad, providing industrial motor solutions for heavy machinery, material handling, and other demanding applications.

We can help customers identify a suitable motor based on power requirement, RPM, duty cycle, CDF, mounting arrangement, and application conditions.

ABB Heavy Duty Motor Supplier in Gujarat

We Tech Power Solutions Ltd supplies ABB Heavy-Duty Motors across Gujarat for industrial machinery and equipment.

Customers can enquire for motors with:

• 1.1 to 10 kW power range

• 1000 RPM / 6-pole configuration

• S3 / S4 / S5 duty

• 25 / 40 / 60 CDF

• B3 / B5 / B35 mounting

• Cast iron construction

• TEFC enclosure

• IP55 protection

ABB Heavy Duty Motor Supplier in India

For customers searching for an ABB Heavy Duty Motor Supplier in India, We Tech Power Solutions Ltd provides ABB motor solutions for various industrial applications.

Motor selection depends on required power, speed, frame size, mounting, duty cycle, and operating environment.

ABB Heavy Duty Motor Manufacturer Information

ABB is the manufacturer and brand of these Heavy Duty Motors, while We Tech Power Solutions Ltd is an Authorised Dealer. We provide ABB motor supply and technical assistance according to the application and required specifications.

Warranty

ABB Heavy Duty Motors are covered under warranty for faulty material or workmanship when used under proper operating conditions. The warranty period is 12 months from commissioning or 18 months from dispatch, whichever occurs earlier, subject to applicable warranty terms and conditions.

Why Choose We Tech Power Solutions Ltd?

• Authorized ABB Motor Dealer

• Genuine ABB Motor Solutions

• Technical Product Assistance

• Application-Based Motor Selection

• Competitive Pricing

• Fast Delivery Support

• Industrial Motor Expertise

• Multiple Mounting Options

Get ABB Heavy Duty Motors in Ahmedabad

Need a reliable ABB Heavy Duty Motor Dealer, Supplier or Distributor in Ahmedabad?

Contact We Tech Power Solutions Ltd for ABB Heavy Duty Motor specifications, selection assistance, pricing, and supply requirements.

Frequently Asked Questions

1. What is the power range of ABB Heavy Duty Motors?

The specified range is from 1.1 kW to 10 kW, or approximately 1.5 HP to 13.4 HP.

2. What is the speed of the ABB Heavy Duty Motor?

The specified range is available at 1000 RPM with a 6-pole configuration.

3. Are ABB Heavy Duty Motors three-phase?

Yes. The motors are three-phase induction motors designed for 415 V and 50 Hz operation.

4. Which duty configurations are available?

The specified motors support S3, S4, and S5 duty.

5. What CDF ratings are available?

CDF ratings of 25, 40, and 60 are specified, with corresponding starting capabilities of 60, 150, and 300 starts per hour.

6. What mounting options are available?

The motors are available in B3 foot, B5 flange, and B35 foot cum flange mounting configurations.

7. What type of construction is used?

The specified motors feature a robust cast iron body with a TEFC enclosure.

8. What is the protection rating?

ABB Heavy Duty Motors have an IP55 degree of protection.

9. Where can ABB Heavy Duty Motors be used?

They are suitable for cranes, hoists, material handling equipment, lifts, rolling mills, crushers, weirs, sluices, and other heavy industrial machinery.

10. Who is an ABB Heavy Duty Motor Dealer in Ahmedabad?

We Tech Power Solutions Ltd is an Authorized Dealer of ABB Heavy Duty Motors in Ahmedabad, providing motor selection and supply assistance.
