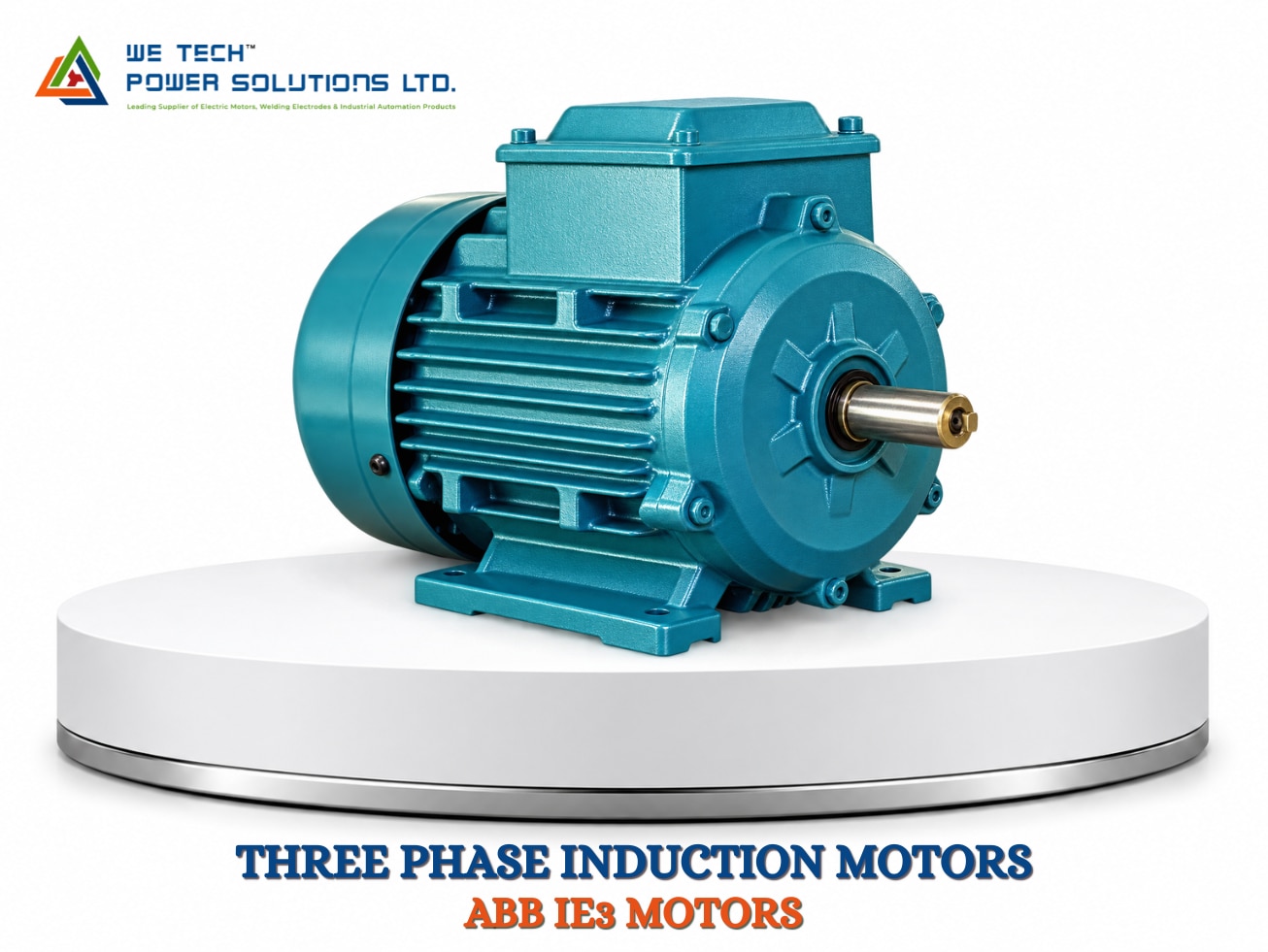

ABB IE3 MOTORS

ABB IE3 Motors Distributor in Ahmedabad.

Industrial operations depend on motors that can deliver consistent output while meeting the operating demands of modern machinery. ABB IE3 Motors are designed for applications that require improved motor efficiency, dependable operation, and durable construction.

We Tech Power Solution, are an Authorized Dealer of ABB IE3 Motors, supplying motors from 1.1 kW to 10 kW and 1.5 HP to 13.4 HP. These three-phase motors are available in 415 V, 50 Hz specifications and suit industrial equipment requiring a 1000 RPM, 6-pole configuration.

With suitable duty, mounting, protection, and application-specific options, ABB IE3 Motors can be selected to meet the equipment's mechanical and electrical requirements.

ABB IE3 Motors – Technical Specifications

We Tech Power Solution offers the specified ABB IE3 Motor range with the following technical characteristics:

• Motor Efficiency: IE3

• Power Output: 1.1 to 10 kW / 1.5 to 13.4 HP

• Motor Type: Three-Phase Induction Motor

• Rated Voltage: 415 V ±10%

• Operating Frequency: 50 Hz ±5%

• Rated Speed: 1000 RPM

• Pole Configuration: 6 Pole

• Frame Range: 100 to 160L

• Duty Categories: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starts per Hour: 60 / 150 / 300

• Construction: Cast Iron

• Enclosure: TEFC

• Insulation: Class F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Maximum Ambient Temperature: 45°C

• Terminal Box: Top Position

• Mounting: B3 / B5 / B35

• Applicable Standard: IS:12615 / IEC:60034-1

Specifications may vary according to the selected motor configuration and application requirements.

Advantages and Available Features

ABB IE3 Motors can be configured with additional features for applications that require specific operating or environmental characteristics.

Available features include:

• IE3 efficiency class

• Heavy-duty cast iron construction

• Three-phase operation

• 6-pole / 1000 RPM configuration

• S3, S4 and S5 duty compatibility

• VPI / VFD-suitable construction

• Thermistor protection

• Roller bearing arrangement

• Insulated bearing option

• Space heater provision

• Forced cooling arrangement

• Double shaft extension

• RHS / LHS terminal box positioning

• IP55 protection

• Class F insulation

These features can help accommodate different industrial installation and operating requirements. ABB IE3 Motor Mounting Arrangements

Select the motor mounting configuration based on the equipment design and shaft alignment requirements.

ABB IE3 Motors are available in:

B3 Foot Mounted

The B3 arrangement suits machinery where the motor is installed on a base or mounting platform using its feet.

B5 Flange Mounted

The B5 configuration is designed for flange-based installation where the motor is directly coupled with compatible equipment.

B35 Foot Cum Flange Mounted

The B35 arrangement combines foot and flange mounting, providing flexibility for equipment that requires both mounting methods.

ABB IE3 Motors for Industrial Applications

ABB IE3 Motors can be used in industrial equipment where the required motor speed, duty cycle, starting frequency, and mounting arrangement match the application.

Typical applications include:

• Cranes

• Hoists

• Material Handling Systems

• Industrial Lifting Equipment

• Rolling Mills

• Weirs

• Sluices

• Industrial Machinery

• Heavy Material Handling Equipment

For correct motor selection, evaluate factors such as load torque, starting conditions, operating cycle, speed requirements, ambient temperature, and installation arrangement.

ABB IE3 Motor Dealer in Ahmedabad

We Tech Power Solution supplies ABB IE3 Motors for industrial requirements in Ahmedabad. Contact us for information on available motor ratings, mounting arrangements, technical specifications, and application suitability.

If you are searching for an ABB IE3 Motor Dealer in Ahmedabad, ABB IE3 Motor Supplier in Ahmedabad, or an ABB IE3 Motor Trader in Ahmedabad, We Tech Power Solution can assist with the specified ABB IE3 Motor range.

ABB IE3 Motor Supplier in Gujarat

Industrial customers across Gujarat can enquire about ABB IE3 Motors based on their required power

rating, speed, duty, frame size, and mounting configuration.

We Tech Power Solution provides ABB IE3 Motor solutions for customers searching for an ABB IE3 Motor Supplier in Gujarat, ABB IE3 Motor Dealer in Gujarat, or ABB IE3 Motor Trader in Gujarat.

ABB IE3 Motor Supplier in India

ABB IE3 Motors are used in various industrial environments that require three-phase motor operation and IE3 efficiency.

We Tech Power Solution can assist customers looking for an ABB IE3 Motor Supplier in India, ABB IE3 Motor Dealer in India, or ABB IE3 Motor Trader in India with product information and

application-specific requirements.

Note: ABB is the motor manufacturer/brand. We Tech Power Solution, are an authorised dealer. Manufacturer-related searches should be understood in this context.

Warranty

ABB IE3 Motors are covered against faulty material or workmanship under proper use for 12 months from the date of commissioning or 18 months from the date of dispatch, whichever occurs earlier, subject to the applicable warranty terms and conditions.

Why Choose We Tech Power Solution?

We Tech Power Solution helps industrial customers identify suitable ABB IE3 Motor configurations according to their equipment requirements.

Our assistance includes:

• ABB IE3 Motor product information

• Technical specification guidance

• Mounting configuration selection

• Application-based motor requirements

• Industrial motor enquiries

• Ahmedabad and Gujarat supply support

Get ABB IE3 Motors for Your Industrial Requirement Need an ABB IE3 Motor in Ahmedabad, Gujarat or India?

Contact We Tech Power Solution for ABB IE3 Motors suitable for cranes, hoists, material handling equipment, rolling mills, lifts, and other industrial applications.

Discuss your required kW/HP, RPM, frame size, mounting type, duty cycle, and application with our team to identify the appropriate motor configuration.

Frequently Asked Questions

1. What is the power range of ABB IE3 Motors?

The specified ABB IE3 Motor range is available from 1.1 kW to 10 kW, equivalent to approximately 1.5 HP to 13.4 HP.

2. What speed is available in this ABB IE3 Motor range?

The specified range is available at 1000 RPM with a 6-pole configuration.

3. What voltage and frequency are used?

These motors are designed for 415 V ±10% and 50 Hz ±5% three-phase electrical supply.

4. Which mounting arrangements are available?

The specified ABB IE3 Motor range supports B3 foot mounting, B5 flange mounting, and B35 foot cum flange mounting.

5. What protection rating does the motor have?

The motors have an IP55 degree of protection and Class F insulation.

6. Can ABB IE3 Motors be used with VFD systems?

VPI/VFD suitable options are available depending on the required motor configuration and application.

7. What duty types are supported?

The specified ABB IE3 Motors are suitable for S3, S4, and S5 duty applications, with applicable CDF and starts-per-hour configurations.

8. Where are ABB IE3 Motors commonly used?

They can be used for cranes, hoists, lifts, material handling equipment, rolling mills, weirs, sluices, and other suitable industrial machinery.

9. Who supplies ABB IE3 Motors in Ahmedabad?

We Tech Power Solution is an Authorised Dealer of ABB IE3 Motors serving industrial motor requirements in Ahmedabad.

10. What additional features are available?

Depending on the motor configuration, features such as thermistors, roller bearings, insulated bearings, space heaters, forced cooling, VPI/VFD suitability, and double shaft extension are available.
