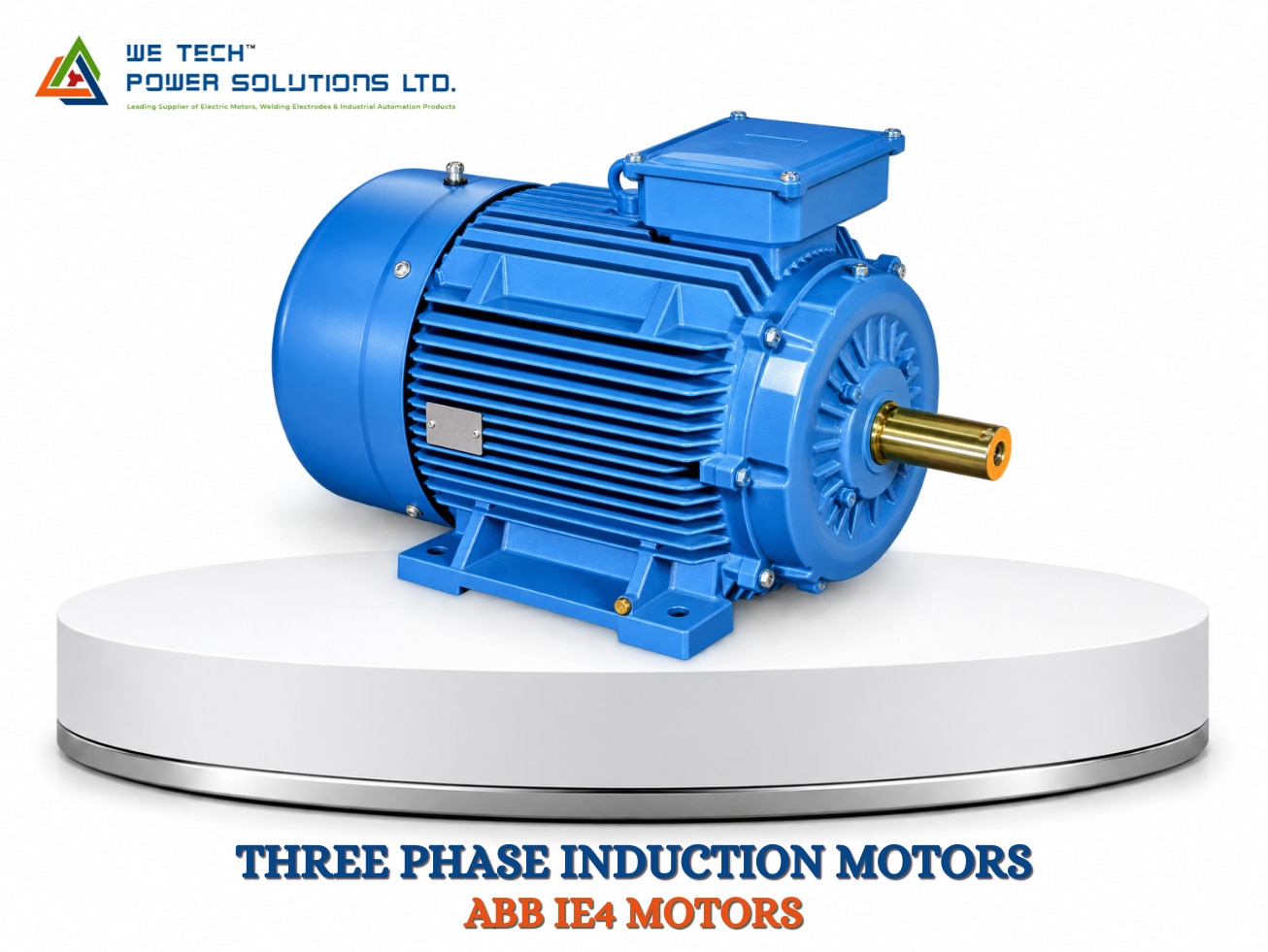

ABB IE4 MOTORS

ABB IE4 Motors Supplier in Ahmedabad.

For industrial equipment operating under demanding load conditions, selecting the right motor can directly affect operating efficiency, machine performance, and long-term reliability. ABB IE4 Motors are designed for applications that require higher motor efficiency and dependable three-phase operation.

We Tech Power Solutions Ltd, are an Authorized Dealer of ABB IE4 Motors, offering the specified range from 1.1 kW to 10 kW and 1.5 HP to 13.4 HP. These motors are available in three-phase, 415 V, 50 Hz

configurations and feature a 1000 RPM, 6-pole arrangement and robust cast iron construction.

The ABB IE4 Motor range suits applications requiring S3, S4, and S5 operating duties, with different CDF and starting-frequency requirements. Multiple mounting arrangements and application-specific features are also available to accommodate different industrial machinery designs.

ABB IE4 Motor Specifications

We Tech Power Solutions Ltd, provide the specified ABB IE4 Motor range with the following technical characteristics:

• Efficiency Class: IE4

• Power Range: 1.1 to 10 kW / 1.5 to 13.4 HP

• Motor Type: Three-Phase Induction Motor

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1000 RPM

• Pole: 6 Pole

• Frame Size: 100 to 160L

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starts per Hour: 60 / 150 / 300

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation: Class F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Ambient Temperature: Up to 45°C

• Terminal Box: Top

• Mounting: B3 / B5 / B35

• Standard: IS:12615 / IEC:60034-1

Motor selection should be based on the actual machine load, duty cycle, starting conditions, installation arrangement, environmental conditions, and required operating characteristics.

Important Features of ABB IE4 Motors

ABB IE4 Motors are intended for industrial environments where motor efficiency and dependable operation are important considerations. Depending on the required configuration, the following features are available:

• IE4 efficiency class

• Three-phase motor design

• Cast iron construction

• 1000 RPM / 6-pole configuration

• S3 / S4 / S5 duty compatibility

• CDF options of 25 / 40 / 60

• 60 / 150 / 300 starts per hour

• IP55 protection

• Class F insulation

• Temperature rise limited to Class B

• TEFC enclosure

• VPI / VFD suitable option

• Thermistors

• Roller bearing option

• Insulated bearing option

• Space heater

• Forced cooling

• RHS / LHS terminal box arrangement

• Double shaft extension

ABB IE4 Motors for Industrial Machinery

Different machines require different motor mounting and mechanical arrangements. The ABB IE4 Motor range provides mounting options that can be selected according to the equipment design.

B3 – Foot Mounted

The B3 configuration is suitable for equipment where the motor is secured to a base or foundation through mounting feet.

B5 – Flange Mounted

B5 mounting is designed for applications where the motor is installed through a flange and directly coupled with compatible machinery.

B35 – Foot Cum Flange Mounted

B35 combines foot and flange mounting, making it suitable for machinery requiring a combined mechanical mounting arrangement.

Applications of ABB IE4 Motors

ABB IE4 Motors can be considered for industrial applications where the motor must operate according to defined duty cycles, starting frequencies, speed requirements, and mechanical installation conditions.

Typical applications include:

• Cranes and Hoists

• Material Handling Equipment

• Industrial Lifting Systems

• Weirs and Sluices

• Rolling Mills

• Heavy-duty material handling machinery

• Industrial equipment requiring S3, S4 or S5 operation

The appropriate motor rating should be determined according to the machine load, starting torque, running conditions, operating cycle, speed, ambient temperature, and mounting requirements.

ABB IE4 Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd supplies ABB IE4 Motors for industrial requirements in Ahmedabad. Our product range is intended for customers looking for specific motor ratings, mounting configurations, duty characteristics, and application-related options.

If you are searching for an ABB IE4 Motor Dealer in Ahmedabad, ABB IE4 Motor Supplier in Ahmedabad, or ABB IE4 Motor Trader in Ahmedabad, contact We Tech Power Solutions Ltd to discuss your technical requirements.

ABB IE4 Motor Supplier in Gujarat

Industrial businesses across Gujarat can enquire about ABB IE4 Motors based on their required kW/HP, RPM, frame size, duty, CDF, mounting arrangement, and operating environment.

We Tech Power Solutions Ltd supports customers searching for an ABB IE4 Motor Supplier in Gujarat, ABB IE4 Motor Dealer in Gujarat, or ABB IE4 Motor Trader in Gujarat.

ABB IE4 Motor Supplier in India

ABB IE4 Motors can be used in industrial machinery where a high-efficiency motor class and suitable

three-phase operating characteristics are required.

For businesses searching for an ABB IE4 Motor Supplier in India, ABB IE4 Motor Dealer in India, or ABB IE4 Motor Trader in India, We Tech Power Solutions Ltd can provide information regarding the specified ABB IE4 Motor range and available configurations.

Looking for an ABB IE4 Motor Manufacturer?

Customers searching for an ABB IE4 Motor Manufacturer in Ahmedabad, ABB IE4 Motor Manufacturer in Gujarat, or ABB IE4 Motor Manufacturer in India should distinguish between the original motor manufacturer and the authorised distribution channel.

ABB is the motor manufacturer/brand, while We Tech Power Solutions Ltd is an Authorised Dealer of ABB IE4 Motors.

This distinction helps customers identify the appropriate source when looking for ABB IE4 Motors and related industrial motor requirements.

Why Choose the IE4 Motor Range?

IE4 represents a higher efficiency classification within the IEC motor efficiency framework. For suitable industrial applications, selecting the correct efficiency class can form part of an overall approach to managing motor-related energy consumption.

However, motor efficiency is only one part of motor selection. Load profile, operating hours, duty cycle, starting frequency, speed, drive system, installation conditions, and correct motor sizing should also be considered.

Warranty

ABB IE4 Motors are covered against faulty material or workmanship under proper use for 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier, subject to the applicable warranty terms and conditions.

Get ABB IE4 Motors from We Tech Power Solutions Ltd

Need an ABB IE4 Motor in Ahmedabad, Gujarat or anywhere in India?

We Tech Power Solutions Ltd is an Authorised Dealer of ABB IE4 Motors, offering the specified range for industrial applications.

Share your required motor power, HP/kW, RPM, duty, mounting type, application, and operating conditions with our team to identify the appropriate ABB IE4 Motor configuration.

Frequently Asked Questions

1. What is the power range of ABB IE4 Motors?

The specified ABB IE4 Motor range is available from 1.1 kW to 10 kW, corresponding approximately to

1.5 HP to 13.4 HP.

2. What speed is available in this ABB IE4 Motor range?

The specified range is available at 1000 RPM with a 6-pole configuration.

3. What electrical supply is required?

The motors are specified for 415 V ±10% and 50 Hz ±5%, three-phase operation.

4. Which mounting arrangements are available?

The available mounting configurations include B3 foot mounting, B5 flange mounting, and B35 foot cum flange mounting.

5. What protection rating is provided?

The specified ABB IE4 Motors have an IP55 degree of protection and Class F insulation.

6. What duty types can ABB IE4 Motors support?

The specified range is compatible with S3, S4 and S5 duties, with applicable CDF values of 25 / 40 / 60 and starting frequencies of 60 / 150 / 300 starts per hour.

7. Are VFD-compatible options available?

Yes. VPI/VFD suitable options are available depending on the motor configuration and application

requirements.

8. What additional motor features are available?

Depending on the selected configuration, options include thermistors, roller bearings, insulated bearings, space heaters, forced cooling, RHS/LHS terminal box arrangements, and double shaft extension.

9. Where are ABB IE4 Motors commonly used?

The specified applications include cranes, hoists, material handling equipment, weirs, sluices, industrial lifts, and rolling mills.

10. Who is an ABB IE4 Motor Dealer in Ahmedabad?

We Tech Power Solutions Ltd is an Authorised Dealer of ABB IE4 Motors for industrial motor requirements in Ahmedabad.

11. What is the ambient temperature range?

The specified ABB IE4 Motor range is suitable for ambient temperatures of up to 45°C.
