BHARAT BIJLEE IE2 MOTORS

Bharat Bijlee IE2 Motors Trader in Ahmedabad.

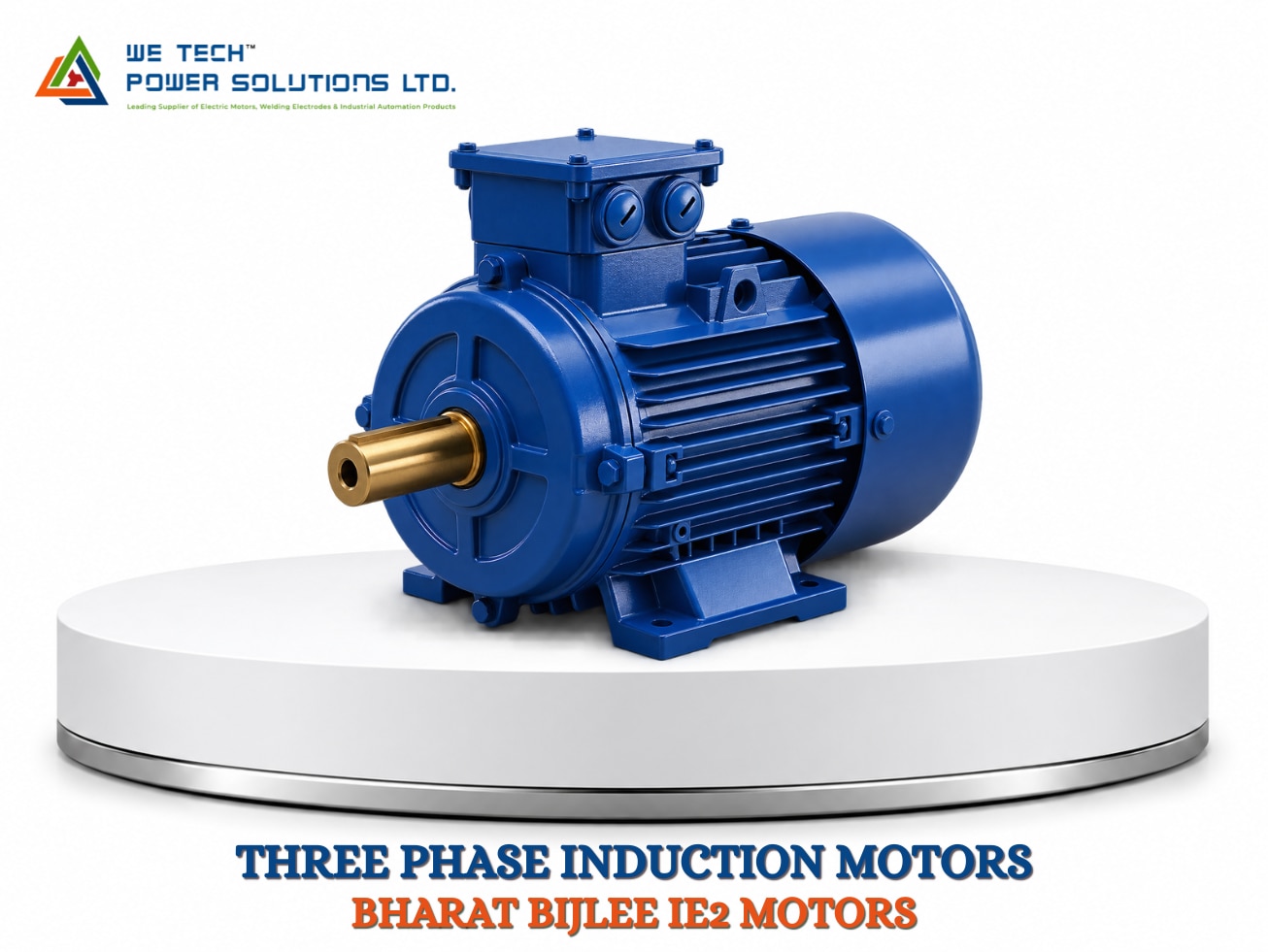

When industrial equipment runs for long hours, motor efficiency, reliability, and suitable operating characteristics directly affect productivity and energy consumption. Bharat Bijlee IE2 Motors are three-phase induction motors designed for dependable continuous-duty operation across a wide range of industrial applications.

We Tech Power Solutions Ltd is an Authorized Dealer of Bharat Bijlee IE2 Motors, offering motors from 0.37 kW to 315 kW (0.5 HP to 425 HP). These motors are available in 415 V, 50 Hz configurations with different speeds, frame sizes, and mounting arrangements to suit diverse machinery requirements.

Key Features of Bharat Bijlee IE2 Motors

Bharat Bijlee IE2 motors are engineered for industrial environments where consistent performance and robust construction are important. Depending on the requirement, available features include:

• IE2 efficiency class

• Three-phase construction

• Cast iron body and aluminum body options

• S1 continuous duty

• IP55 degree of protection

• Class F insulation

• Temperature rise limited to Class B

• VPI / VFD suitable options

• Thermistors

• Roller bearings

• Insulated bearings

• Space heater

• Forced cooling

• Terminal box location options: RHS / LHS

• B14 face-mounted configuration

• Aluminum enclosure available on request

Mounting Options for Different Machinery

Choosing the right mounting arrangement is important for proper motor installation and alignment. Bharat Bijlee IE2 motors are available with:

• B3: Foot mounting

• B5: Flange mounting

• B35: Foot cum flange mounting

• B14: Face mounting

• B34: Foot cum face mounting

This range allows industries to select a motor configuration according to the mechanical design of their equipment.

Industrial Applications

Bharat Bijlee IE2 Motors are suitable for a wide range of industrial and process applications, including pumps, fans, packing machinery, coiler/de-coiler systems, agro equipment, food processing machinery, agitators, milling and drilling machines, cranes and hoists, conveyors, machine tools, material handling equipment, crushers, VSI systems, roller tables, hammers and presses, ball mills, hot dryers, heavy-duty conveyors, mixers, reactors, expellers, jaw crushers, and disintegrators. Select the appropriate motor specification based on load, operating conditions, starting requirements, speed, and installation arrangement to ensure reliable, efficient performance.

Warranty

The motors are covered under warranty against faulty material or artistry under proper use for 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier, subject to the applicable warranty terms and conditions.

Contact We Tech Power Solutions Ltd today for Bharat Bijlee IE2 Motors and discuss your industrial motor requirement.

Frequently Asked Questions

1. What power range is available in Bharat Bijlee IE2 Motors?

Bharat Bijlee IE2 motors are available from 0.37 kW to 315 kW, corresponding approximately to 0.5 HP to 425 HP, depending on the motor configuration.

2. What mounting options are available for Bharat Bijlee IE2 Motors?

Available mounting arrangements include B3 foot mounting, B5 flange mounting, B35 foot cum flange, B14 face mounting, and B34 foot cum face mounting.

3. Where can Bharat Bijlee IE2 Motors be used?

These motors suit various industrial applications, including pumps, fans, conveyors, crushers, mixers, reactors, machine tools, material handling equipment, cranes, and hoists.
