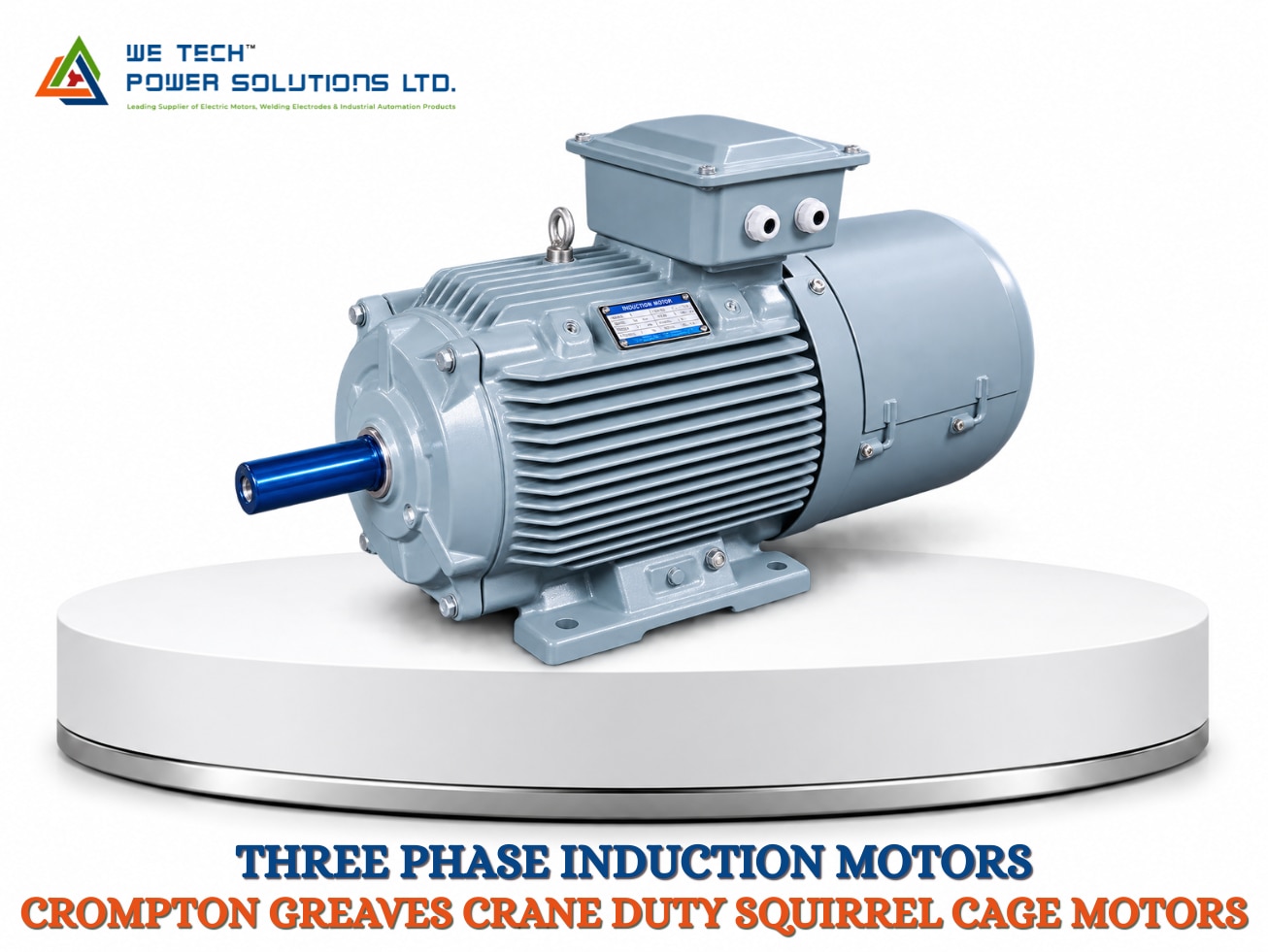

CROMPTON GREAVES CRANE DUTY SQUIRREL CAGE MOTORS

Crompton Greaves Crane Duty Motor in India.

We Tech Power Solutions Ltd is an Authorised Dealer of CG Power (Crompton Greaves) Crane Duty Squirrel Cage Motors, offering dependable motor solutions for lifting, hoisting and demanding material-handling applications.

The Crompton Greaves Crane Duty Motor is available from 0.25 KW to 45 KW (0.33 HP to 60 HP) in a 3-phase, 415 V, 50 Hz configuration. Depending on the application, motors are available at 1500 RPM, 1000 RPM and 750 RPM, with 4, 6 and 8 pole options. The cast iron construction, S3/S4 duty compatibility and TEFC enclosure make these motors suitable for equipment that experiences frequent starting and stopping.

For businesses sourcing a Crompton Greaves Crane Duty Motor in India, the range provides multiple mounting and configuration choices. Customers requiring supply in Nepal or Gujarat can also discuss the required motor rating, duty cycle and mounting arrangement with our team before final selection.

Where Is This Motor Used?

Crane duty motors are selected where machinery needs controlled starting, frequent operation and reliable torque delivery. Typical applications include:

• Cranes and Hoists

• Material Handling Equipment

• All Types of Lifts

• Rolling Mills

• Weirs and Sluices

For example, in a crane or hoist system, the motor may be required to start and stop repeatedly throughout a working cycle. The S3/S4 duty configuration and selectable CDF ratings allow the motor to be specified according to the operating pattern rather than simply selecting a motor by horsepower.

Why Choose We Tech Power Solutions Ltd?

Choosing the right crane motor involves more than matching KW or HP. Duty cycle, starts per hour, RPM, mounting, shaft arrangement and operating conditions all influence the selection.

We Tech Power Solutions Ltd helps customers identify the appropriate CG Power motor configuration based on their machinery requirements. As an authorised CG Power dealer, we can support requirements for customers searching for a Crompton Greaves Crane Duty Motor in Gujarat, as well as those looking for a Crompton Greaves Crane Duty Motor in Nepal.

The available configurations also make it easier to specify motors for new installations or replacement requirements without unnecessary modifications to existing equipment.

Warranty

The motors are covered against faulty material or workmanship under proper use for 12 months from commissioning or 18 months from dispatch, whichever is earlier.

Frequently Asked Questions

1. What duty ratings are available in Crompton crane motors?

These squirrel cage motors are available for S3 and S4 duty, with CDF options of 25, 40 and 60 and starting frequencies of 60, 150 and 300 starts per hour.

2. Can the motor be supplied with special configurations?

Yes. Depending on the requirement, options include VPI/VFD suitability, double shaft extension and terminal box positioning on the LHS or TOP.

Get the Right Crane Duty Motor for Your Application

Share your required KW/HP, RPM, duty cycle, starts per hour and mounting arrangement with We Tech Power Solutions Ltd to select the suitable Crompton Greaves crane duty motor for your equipment.
