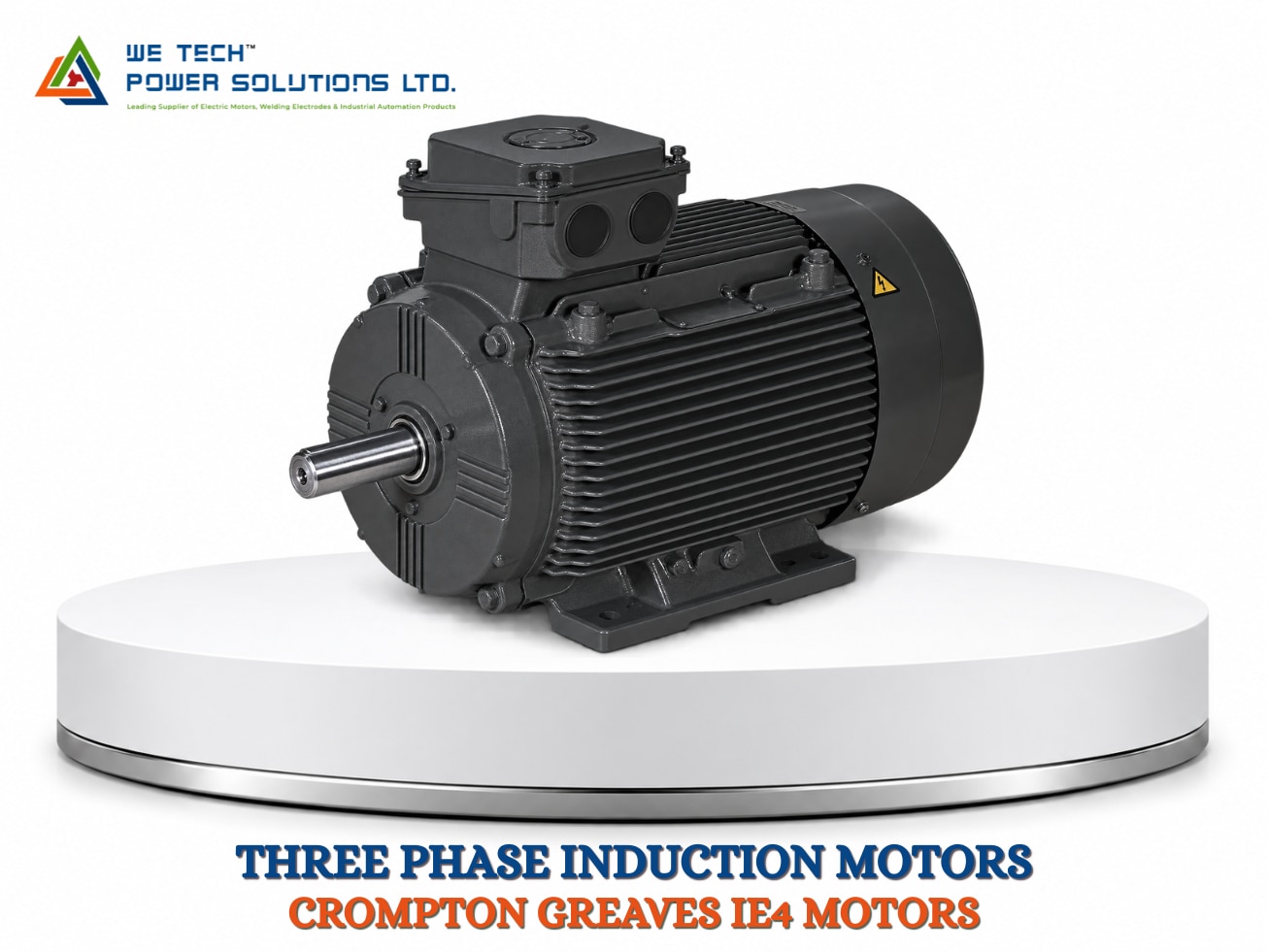

CROMPTON GREAVES IE4 MOTORS

Crompton Greaves IE4 Motors Supplier in Ahmedabad.

Choosing an industrial motor is not simply about matching a power rating. The motor must also suit the machine, operating hours, speed, mounting arrangement and working environment. Crompton Greaves IE4 Motors are designed for industrial users looking for high-efficiency motor solutions combined with robust construction and flexible configuration options.

We Tech Power Solutions Ltd are an Authorised Dealer of Crompton Greaves (CG) IE4 Motors, offering a range from 0.55 KW to 600 KW (0.75 HP to 800 HP). The motors are available in three-phase, 415 V, 50 Hz configurations and can be selected in different speeds, pole configurations and mounting arrangements.

About Crompton Greaves IE4 Motors

The IE4 motor range is suitable for applications where equipment operates for extended periods and efficient electrical performance is an important consideration. Depending on the model and requirement, customers can select from different frame sizes, speeds, bearings, cooling arrangements and mounting options.

The motors are available in 1500 RPM, 1000 RPM, 750 RPM and 600 RPM configurations corresponding to 4, 6, 8 and 10 poles. Eight-pole motors can also be supplied on request.

Technical Specifications

Important Crompton Greaves IE4 Motors Specifications include:

• Power range: 0.55 KW to 600 KW / 0.75 HP to 800 HP

• Phase: 3-phase

• Voltage: 415 V

• Frequency: 50 Hz

• Speed: 1500, 1000, 750 and 600 RPM

• Pole options: 4, 6, 8 and 10 poles

• Mounting: B3 foot, B5 flange and B14 face mounting

• Frame range: IEC 80 to IEC 450, depending on configuration

• Cooling: IC411 standard; IC410 available as an option

• Bearings: Ball bearings for Frames 80–250; roller bearings for Frames 280–450

• Insulation: Class F

• Temperature rise: Class B

• Enclosure: TEFC

• Protection: IP55

• Duty: S1

• Body: Cast iron

• Ambient temperature: Up to 50°C

• Terminal box: Top, LHS or RHS

• Voltage tolerance: 415 V ±10%

• Frequency tolerance: 50 Hz ±5%

VPI/VFD suitability is available as specified, while steel fan covers help protect the cooling fan. Gel coating is applied to the winding overhang for the specified frame range. The standard finish is Light Gray (631 IS-5), with other colours available on request.

Where Are These Motors Used?

Crompton Greaves IE4 Motors can be used in machinery and systems where reliable three-phase motor operation is required. Typical applications include:

• Industrial fans and ventilation systems

• Water and process pumps

• Compressors and air compressors

• Air-conditioning equipment

• Textile machinery

• Textile processing plants

• General manufacturing equipment

• Industrial material-handling systems

Industries such as textiles, manufacturing, HVAC, water management, process engineering and general industrial production can benefit from selecting a motor that matches the application's actual load and operating conditions.

Why Choose We Tech Power Solutions Ltd?

Businesses searching for Crompton Greaves Motor Exporters in India can approach We Tech Power Solutions Ltd for a broad range of industrial motor requirements. As an authorised dealer, we can assist customers in identifying suitable configurations based on power, speed, mounting and application requirements.

We also cater to customers looking for Crompton Greaves Suppliers in UAE and support industrial requirements beyond the local market. For customers within the region, our position as Crompton Greaves Suppliers in Gujarat provides a convenient source for discussing motor specifications and sourcing requirements.

Our team can also help customers compare relevant motor configurations rather than selecting a model based only on horsepower.

Frequently Asked Questions

1. What applications are suitable for IE4 motors?

IE4 motors can be used for equipment such as fans, pumps, compressors, air-conditioning systems and textile machinery. The appropriate motor should be selected according to the actual load, speed and operating conditions.

2. What warranty is provided?

Under proper use, the motors are covered against faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever occurs earlier, subject to the applicable warranty terms.

Get the Right Crompton Greaves IE4 Motor

Need help selecting the correct power, speed, frame or mounting arrangement? Contact We Tech Power Solutions Ltd today to discuss your application and source a suitable Crompton Greaves IE4 Motor.
