HAVELLS BRAKE MOTORS

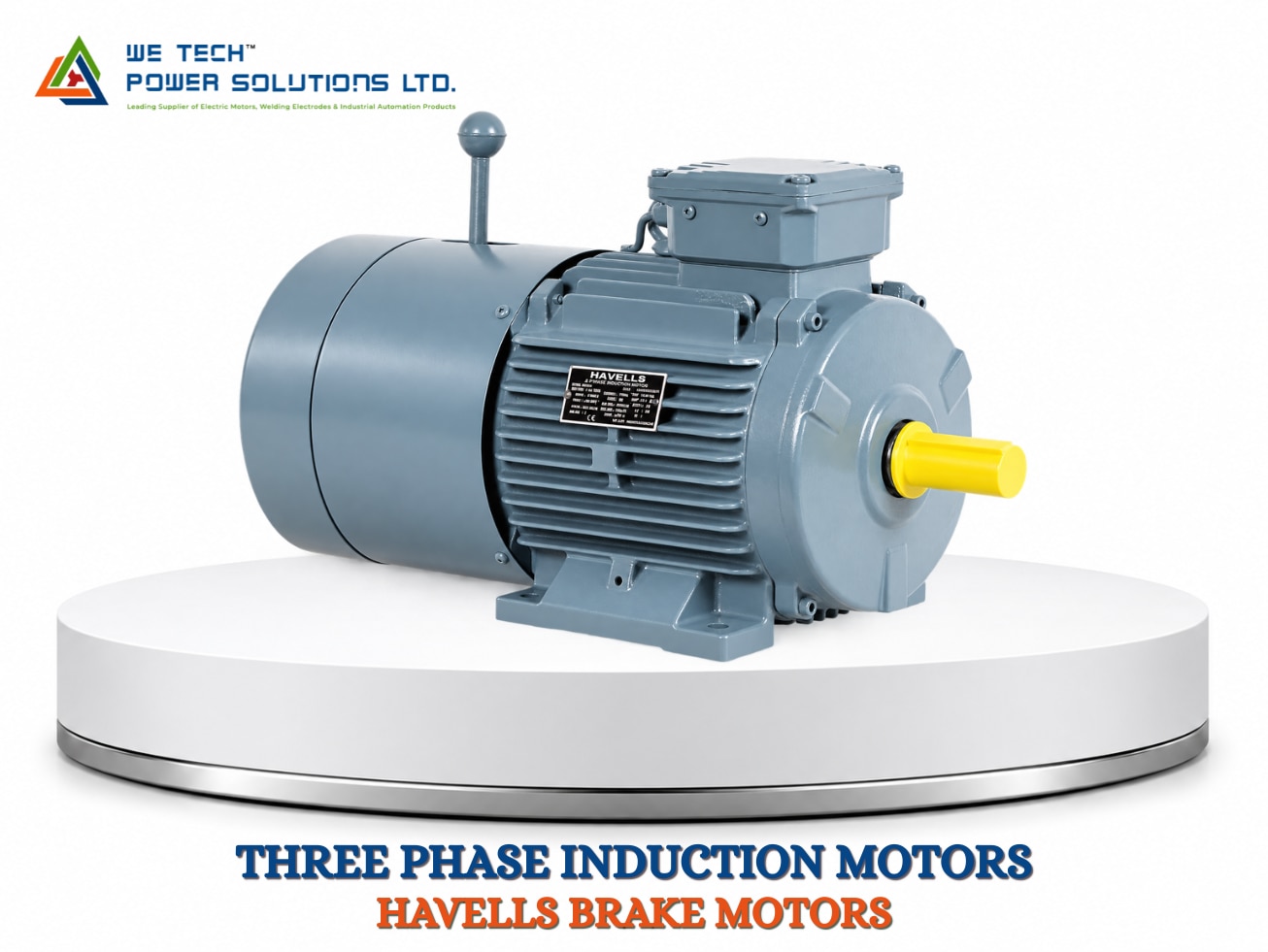

Havells Brake Motors

Reliable Motor Performance with Controlled & Rapid Braking

We Tech Power Solutions Ltd supplies Havells Brake Motors for industrial machinery where controlled stopping, quick response and dependable motor operation are important. These motors combine a robust industrial motor design with a braking arrangement suitable for applications requiring frequent starts, stops, positioning and controlled motion.

Havells Brake Motors are suitable for applications such as conveyors, material handling equipment, machine tools, packaging machinery, cranes and hoists, presses and other industrial systems where stopping performance is an important part of machine operation.

With options such as VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters and forced cooling available depending on configuration, the motor can be selected according to the operating environment and application requirements.

What Are Havells Brake Motors?

A brake motor is an electric motor equipped with a braking mechanism that helps stop the driven equipment quickly and hold the shaft when required.

Unlike a standard motor that primarily provides rotational power, a brake motor is selected when the machine also needs controlled stopping or holding. This makes brake motors particularly useful for equipment involving frequent start-stop cycles, positioning or load control.

The exact brake arrangement, braking characteristics and available options should be confirmed against the required Havells motor configuration before ordering.

Why Choose Havells Brake Motors?

Fast & Controlled Stopping

Designed for machinery where stopping response is an important part of the operating cycle.

Reliable Industrial Construction

Cast iron construction and TEFC enclosure provide a robust platform for demanding industrial environments.

Multiple Mounting Options

Available with B3 foot, B5 flange and B35 foot-cum-flange mounting configurations, depending on the selected motor.

Flexible Configuration

Special options such as thermistors, insulated bearings, roller bearings, space heaters and forced cooling can be specified where required.

Suitable for Industrial Automation

Brake motors can be integrated into automated machinery where controlled stopping and repeatable machine movement are required.

Key Features of Havells Brake Motors

• Brake motor configuration for controlled stopping applications

• 415 V, 3-phase industrial motor configuration

• IE2 standard listed for the WTPSL range

• 0.18–355 kW / 0.25–470 HP range listed

• 2, 4, 6 and 8 pole options

• Cast iron construction

• TEFC enclosure

• IP55 protection

• Class F insulation

• S1 continuous-duty rating

• 50 Hz operating frequency

• B3, B5 and B35 mounting options

• Top-mounted terminal box

• Ambient temperature rating up to 50°C

• VPI/VFD suitability available for applicable configurations

• Thermistor and bearing options

• Space heater and forced-cooling options

The WTPSL listing specifies IEC 60034-30-2008 and dimensions according to IS 1231 and IS 2223.

Technical Specifications

Parameter Havells Brake Motor

Brand Havells

Motor Type Brake Motor

Standard IE2

Voltage 415 V

Frequency 50 Hz

Phase 3 Phase

Power Range 0.18–355 kW / 0.25–470 HP

Poles 2 / 4 / 6 / 8 Pole

Approx. Synchronous Speed* 3000 / 1500 / 1000 / 750 RPM

Ambient Temperature Up to 50°C

Frame Size 71–355L

Body Cast Iron

Enclosure TEFC

Protection IP55

Insulation Class F

Duty S1

Terminal Box Top

Mounting B3 / B5 / B35

Standard Reference IEC 60034-30-2008

Dimension Standards IS 1231 / IS 2223

*Approximate synchronous speeds at 50 Hz. Actual rated speed varies according to the motor design and selected model.

Exact motor and brake specifications can vary according to frame size, power rating, pole configuration and order-specific construction. Confirm the complete model/configuration before purchase.

Available Specialities & Options

Havells Brake Motors can be specified with additional features according to application requirements.

VPI / VFD Suitable

Applicable configurations can be selected for applications involving variable-frequency drive operation.

Thermistors

Thermal protection options can help monitor winding temperature in demanding operating conditions.

Insulated Bearings

Useful for applications where bearing-current protection is required.

Roller Bearings

Available where the application requires a different bearing arrangement or higher mechanical load capability.

Space Heater

Helps reduce condensation-related risks during motor shutdown in suitable environments.

Forced Cooling

External forced ventilation can be selected for applications where additional cooling is required.

Terminal Box Position

LHS/RHS terminal-box configurations may be available depending on the selected motor.

These are configuration-dependent options and should be confirmed with the motor model before ordering.

Where Are Havells Brake Motors Used?

Brake motors are particularly useful when the driven machine needs controlled stopping, positioning or holding.

Material Handling

• Belt conveyors

• Roller conveyors

• Transfer systems

• Material handling equipment

• Loader/unloader systems

Machine Tools

• Drilling machines

• Milling machines

• Machine tools

• Automated machining equipment

Packaging & Processing

• Packaging machinery

• Filling and handling systems

• Food processing machinery

• Processing equipment

Heavy Industrial Machinery

• Crushers

• VSI systems

• Ball mills

• Mixers

• Reactors

• Expellers

• Disintegrators

Motion & Handling Equipment

• Crane and hoist systems

• Coiler/de-coiler equipment

• Presses and hammers

• Roller tables

• Industrial positioning systems

The current WTPSL page also lists these categories among its applications, while other Havells brake-motor listings show the same core specifications and application range.

________________________________________

Havells Brake Motor vs Standard Motor

Feature Havells Brake Motor Standard Motor

Motor Function Provides motor power + braking function Primarily provides motor power

Controlled Stopping Suitable Requires separate braking arrangement where needed

Holding Requirement Suitable for applicable applications Additional system may be required

Frequent Start/Stop Suitable for selected applications Application dependent

Machine Positioning Helpful Additional braking/control may be needed

Integration Motor + braking arrangement Motor only

A brake motor should be selected based on the motor duty, brake requirement, load inertia, stopping time, speed, mounting and control method, rather than choosing only by motor kW.

________________________________________

How to Select the Right Havells Brake Motor?

Before ordering a brake motor, evaluate:

1. Motor Power

Select the required kW/HP based on the driven load.

2. Speed / Pole Configuration

Choose 2, 4, 6 or 8 pole configuration according to the required operating speed.

3. Brake Requirement

Determine the required stopping behaviour, holding requirement and machine duty.

4. Load Characteristics

Consider load inertia, acceleration, deceleration and frequency of starts/stops.

5. Mounting

Select B3, B5 or B35 mounting according to the machine arrangement.

6. Operating Environment

Check ambient temperature, dust, moisture and enclosure requirements.

7. Additional Options

Consider thermistors, insulated bearings, roller bearings, space heaters, forced cooling and VFD suitability where applicable.

8. Complete Model Verification

Always confirm the complete motor and brake configuration before placing the order.

Popular Havells Brake Motor Ratings

WTPSL currently highlights popular 1500 RPM, 415 V, 50 Hz, 3-phase, foot-mounted Havells Brake Motor ratings including:

• 0.37 kW / 0.5 HP

• 0.55 kW / 0.75 HP

• 0.75 kW / 1 HP

• 1.1 kW / 1.5 HP

• 1.5 kW / 2 HP

• 2.2 kW / 3 HP

• 3.7 kW / 5 HP

• 5.5 kW / 7.5 HP

• 7.5 kW / 10 HP

Availability and pricing depend on the required configuration.

Havells Brake Motors Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Havells Brake Motors for industrial applications across Ahmedabad, Gujarat and India.

We can assist with selecting the appropriate motor based on:

• Required kW / HP

• RPM and pole configuration

• Mounting arrangement

• Brake application

• VFD requirement

• Bearing requirements

• Cooling requirements

• Environmental conditions

• Replacement requirements

For projects requiring industrial motors for export or overseas applications, enquiry support can also be provided for customers in the UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain, subject to product availability and configuration.

Why Choose We Tech Power Solutions Ltd?

Application-Based Selection

We help identify the appropriate motor configuration according to the machine and operating conditions.

Industrial Motor Expertise

Our portfolio covers industrial motors, special-purpose motors, drives and automation products.

Genuine Product Sourcing

We support customers in sourcing Havells industrial motors according to required specifications.

Replacement Support

Share your existing motor details or nameplate information and our team can help identify a suitable replacement configuration.

Ahmedabad-Based Support

Our office is located in Vastral, Ahmedabad, Gujarat, with supply support for customers across India.

Havells Brake Motor Warranty

The WTPSL product listing states that the motors are covered for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to proper use and applicable warranty conditions.

Frequently Asked Questions

What is a Havells Brake Motor?

A Havells Brake Motor is an industrial motor configuration designed for applications where motor-driven equipment also requires controlled stopping or holding.

What is the power range of Havells Brake Motors?

The WTPSL listing specifies a range of 0.18 to 355 kW / 0.25 to 470 HP, subject to the available motor configuration.

What voltage do Havells Brake Motors use?

The listed standard configuration is 415 V, 3-phase, 50 Hz. Other configurations should be confirmed according to the required model.

Which mounting options are available?

The listed mounting options are B3 foot mounted, B5 flange mounted and B35 foot-cum-flange mounted.

Can Havells Brake Motors be used with a VFD?

Applicable configurations can be specified as VPI/VFD suitable. VFD compatibility should be confirmed for the exact motor and brake configuration before purchase.

Where are brake motors commonly used?

They are suitable for machinery where controlled stopping or holding is important, including conveyors, material handling systems, machine tools, packaging machinery, presses and selected crane/hoist applications.

How can I select the correct Havells Brake Motor?

Provide the required motor power, RPM, voltage, mounting, load characteristics, braking requirement, operating duty and any VFD or environmental requirements. WTPSL can assist with configuration selection.
