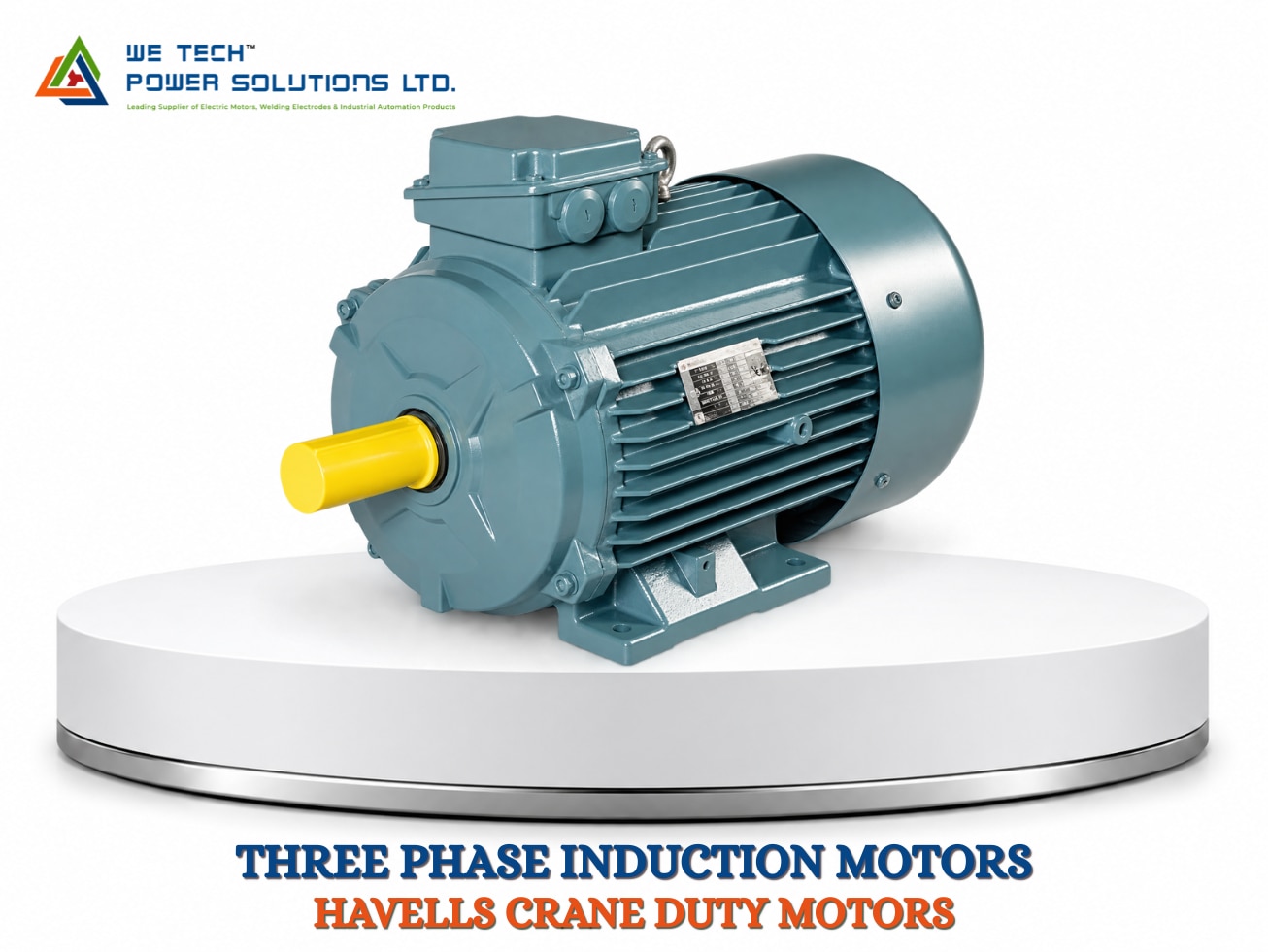

HAVELLS CRANE DUTY MOTORS

Havells Crane Duty Motor Supplier in Ahmedabad

Havells Crane Duty Motors are designed for lifting, hoisting, and material-handling applications where high starting torque, frequent starting and stopping, and reliable performance are essential. These motors are engineered to withstand demanding duty cycles, repeated reversals, and high mechanical stresses while maintaining dependable operation.

With a robust cast iron construction, TEFC enclosure, Class F insulation, and IP55 protection, Havells Crane Duty Motors are suitable for industrial environments requiring durable and consistent motor performance. Their high pull-out torque and controlled acceleration characteristics make them suitable for cranes, hoists, conveyors, winches, and other heavy-duty material-handling equipment.

Havells Crane Duty Motor – Technical Specifications

Specifications may vary according to the motor model and rating. The standard Havells Crane Duty Motor range is available with the following characteristics:

• Motor Type: Three Phase Crane Duty Induction Motor

• Voltage: 415 V

• Ambient Temperature: Up to 50°C

• Frequency: 50 Hz

• RPM / Pole: 3000 RPM – 2 Pole / 1500 RPM – 4 Pole / 1000 RPM – 6 Pole / 750 RPM – 8 Pole

• Efficiency Standard: EFF2

• Power Range: 0.37–22 kW / 0.5–30 HP

• Body Material: Cast Iron

• Duty: S4

• Enclosure: TEFC (Totally Enclosed Fan Cooled)

• Frame Size: 71–180

• Protection: IP55

• Insulation: Class F

• Terminal Box Location: Top

• Mounting: B3 Foot Mounted / B5 Flange Mounted / B35 Foot Cum Flange Mounted

• Special Duty: Suitable for frequent starts, stops, reversals, and demanding duty-cycle perations

• Standard: IEC 60034-30-2008

• Dimensions: As per IS 1231 & IS 2223

Key Features of Havells Crane Duty Motors

Havells Crane Duty Motors are developed for applications where motors need to repeatedly accelerate, stop, reverse, and restart under load. Key features include:

• VPI/VFD suitable construction

• Thermistors for temperature monitoring

• Insulated bearing arrangement

• Roller bearing options

• Space heater provision

• Forced cooling arrangement

• Terminal box options for LHS/RHS requirements

• High starting torque characteristics

• Suitable for frequent start-stop operations

• Robust cast iron construction

• TEFC cooling system

• IP55 protection

• Class F insulation

Designed for High Starting Torque & Frequent Operations

Crane and hoist systems require motors that can deliver reliable starting performance under load. Havells Crane Duty Motors are duty-rated to develop high starting torque with controlled starting current.

Their design supports frequent starts, stops, and reversals while handling the mechanical stresses associated with lifting and material movement. A favourable pull-out torque-to-rotor-inertia ratio also supports rapid acceleration, making these motors suitable for demanding crane and hoisting operations.

Applications of Havells Crane Duty Motors

These motors are suitable for a wide range of industrial lifting and material-handling applications, including:

Crane Duty and Hoist Duty Applications LT & CT Crane Drives

Material Handling Systems Material Handling Equipment Conveyors

Winches

Weirs and Sluices

Lift Duty Applications Loaders and Unloaders

Auxiliary Motors in Rolling Mills Industrial Lifting Equipment

Havells Crane Duty Motor Supplier in Ahmedabad

We Tech Power Solutions Ltd supplies Havells Crane Duty Motors in Ahmedabad for industrial lifting, crane, hoist, and material-handling requirements. Customers can select suitable motor ratings, frame sizes, mounting configurations, and duty specifications according to their equipment requirements.

For businesses searching for a Havells Crane Duty Motor Supplier in Ahmedabad, our team can assist with motor selection and application-specific requirements.

Havells Crane Duty Motor Supplier in Gujarat

We Tech Power Solutions Ltd also serves customers across Gujarat with Havells industrial motors for manufacturing, engineering, material handling, infrastructure, and other industrial applications.

The Crane Duty range can be selected based on power, RPM, pole configuration, mounting arrangement, duty cycle, and application requirements.

Warranty

Havells Crane Duty Motors are covered under warranty against faulty material or workmanship when used under proper operating conditions.

Warranty: 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier.

Why Choose Havells Crane Duty Motors?

• Designed for demanding crane and hoist operations

• High starting torque capability

• Suitable for frequent starts and stops

• Supports reversing duty applications

• Robust cast iron construction

• TEFC cooling arrangement

• IP55 protection

• Class F insulation

• Multiple mounting configurations

• Suitable for industrial material handling

Frequently Asked Questions

1. What is a Havells Crane Duty Motor?

A Havells Crane Duty Motor is an industrial induction motor designed for cranes, hoists, lifting equipment, conveyors, winches, and applications requiring frequent starting, stopping, and reversing.

2. What is the power range of Havells Crane Duty Motors?

The standard range mentioned is approximately 0.37 kW to 22 kW, equivalent to around 0.5 HP to 30 HP.

3. What voltage is used for Havells Crane Duty Motors? The standard motor specification is 415 V, 50 Hz.

4. What duty class is used for these crane motors?

The specified Crane Duty Motors are rated for S4 duty, which is suitable for intermittent periodic operation involving frequent starting.

5. What are the available motor speeds?

Depending on the number of poles, typical speeds include 3000 RPM, 1500 RPM, 1000 RPM, and 750 RPM.

6. Are Havells Crane Duty Motors suitable for hoists?

Yes. These motors are designed for crane and hoist applications where high starting torque and frequent start-stop operations are required.

7. What mounting options are available?

The motors are available in B3 foot-mounted, B5 flange-mounted, and B35 foot-cum-flange-mounted configurations, depending on the model.

8. What is the protection rating?

The standard enclosure is IP55, providing protection suitable for many industrial operating environments.

9. What insulation class is used?

The motors feature Class F insulation.

10. Does We Tech Power Solutions Ltd supply Havells Crane Duty Motors in Ahmedabad?

Yes. We Tech Power Solutions Ltd supplies Havells Crane Duty Motors in Ahmedabad and serves industrial customers across Gujarat.
