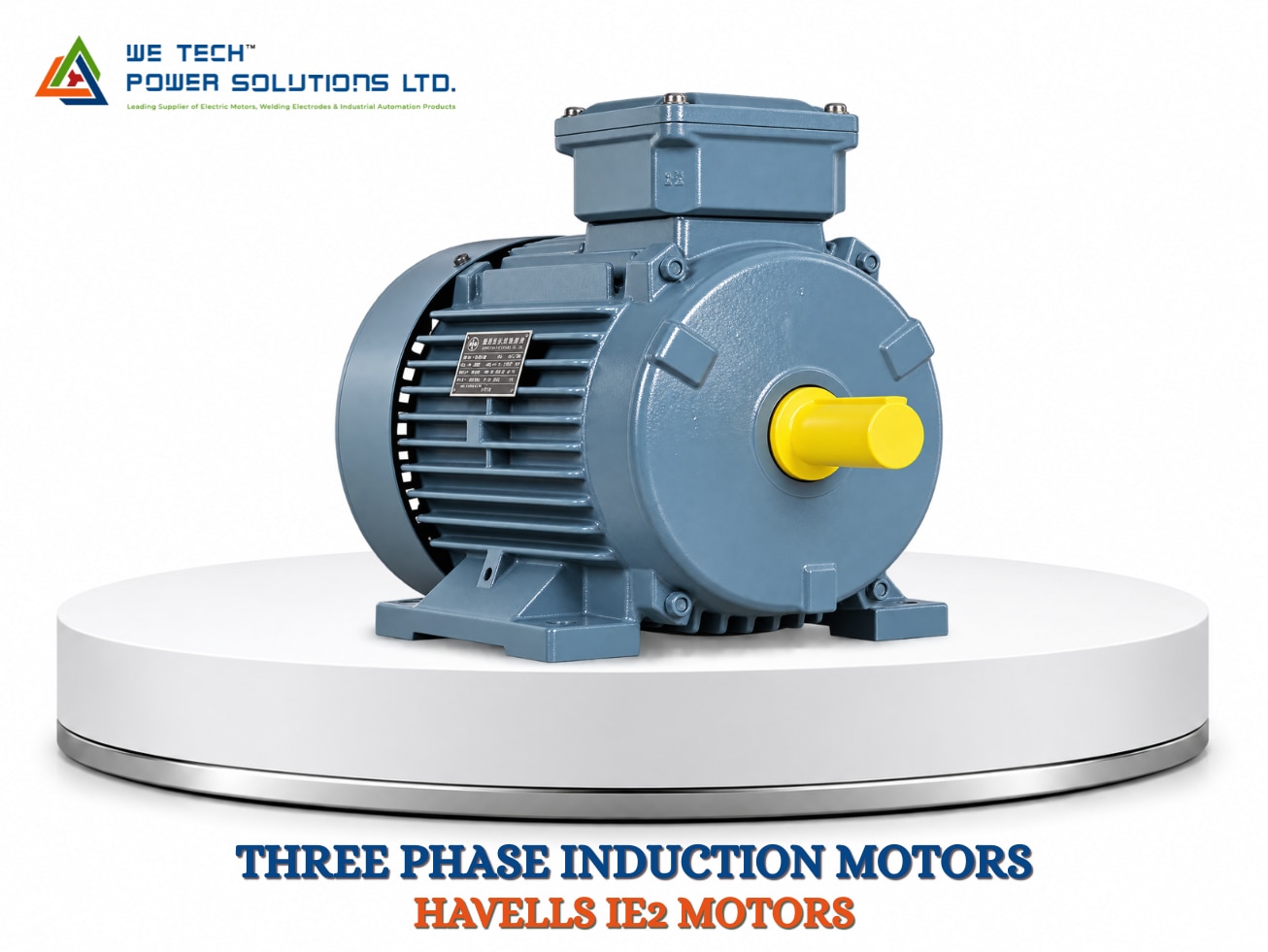

HAVELLS IE2 MOTORS

Havells IE2 Motors Trader in Ahmedabad

We Tech Power Solutions Ltd., offer Havells IE2 Motors for industrial applications that require dependable performance, efficient operation, and long-term durability. Designed for a wide range of industrial machinery, Havells IE2 motors combine robust construction with multiple speed, power, and mounting configurations to meet different drive requirements.

These three-phase IE2 motors are available from 0.18 kW to 355 kW (0.25 HP to 470 HP), with 2-pole, 4-pole, and 6-pole options. Operating at 415 V and 50 Hz, the motors feature a durable cast iron body, TEFC enclosure, Class F insulation, and IP55 protection.

This range suits applications from pumps and fans to conveyors, crushers, food-processing machinery, material-handling equipment, and other industrial systems.

Havells IE2 Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified Havells IE2 Motor range with the following characteristics:

• Motor Type: Three-Phase Induction Motor

• Power Range: 0.18 to 355 kW / 0.25 to 470 HP

• Voltage: 415 V

• Frequency: 50 Hz

• Efficiency Class: IE2

• Speed / Pole: 3000 RPM (2 Pole) / 1500 RPM (4 Pole) / 1000 RPM (6 Pole)

• Frame Size: 71 to 355L

• Duty: S1

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Protection: IP55

• Ambient Temperature: Up to 50°C

• Terminal Box Position: Top

• Mounting: B3 Foot Mounted / B5 Flange Mounted / B35 Foot cum Flange Mounted

• Standard: IEC 60034-30-2008

• Dimensions: As per IS:1231 & IS:2223

Havells IE2 Motor Features

Havells IE2 Motors are available with a range of features that can support different industrial operating requirements:

• IE2 energy efficiency classification

• VPI/VFD suitable construction

• Roller bearing option

• Insulated bearing option

• Thermistors

• Space heater provision

• Forced cooling arrangement

• LHS / RHS terminal box options

• Cast iron body construction

• TEFC enclosure

• IP55 protection

• Class F insulation

• S1 continuous-duty operation

The range's availability in different pole configurations and frame sizes makes it suitable for both standard and application-specific industrial machinery.

Havells IE2 Motor Mounting Options

Havells IE2 Motors are available in three commonly used mounting configurations: B3 Foot Mounted

Suitable for conventional base-mounted installations where the motor is secured to a foundation or machine base.

B5 Flange Mounted

Designed for machinery requiring flange-based motor installation and direct coupling arrangements.

B35 Foot cum Flange Mounted

Combines foot and flange mounting to provide additional flexibility for industrial equipment installation.

Industrial Applications of Havells IE2 Motors

The broad power and speed range of Havells IE2 Motors makes them suitable for numerous industrial applications, including:

• Pumps

• Fans

• Packing Machinery

• Coilers and De-Coilers

• Agro Equipment

• Food Processing Equipment

• Agitators

• Milling Machines

• Drilling Machines

• Cranes and Hoists

• Conveyors

• Machine Tools

• Material Handling Equipment

• Crushers

• VSI Machines

• Roller Tables

• Hammers and Presses

• Ball Mills

• Hot Dryers

• Heavy-Duty Conveyors

• Mixers

• Reactors

• Expellers

• Jaw Crushers

• Disintegrators

Havells IE2 Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd, supply Havells IE2 Motors in Ahmedabad for industrial machinery, OEM equipment, and process applications.

Our team can help customers select an appropriate motor based on power, RPM, pole configuration, frame size, mounting arrangement, duty, and application requirements.

Whether you require a compact motor for a pump or fan or a higher-capacity motor for heavy industrial machinery, the Havells IE2 range offers multiple configurations.

Havells IE2 Motor Supplier in Gujarat

We Tech Power Solutions Ltd supplies Havells IE2 Motors across Gujarat, supporting industrial customers with different motor ratings and mounting arrangements.

The range covers:

• 0.18 to 355 kW

• 0.25 to 470 HP

• 2 / 4 / 6 Pole configurations

• 3000 / 1500 / 1000 RPM

• Frame sizes 71 to 355L

• B3 / B5 / B35 mounting

• S1 duty

• IP55 protection

Havells IE2 Motor Supplier in India

For customers looking for a Havells IE2 Motor Supplier in India, We Tech Power Solutions Ltd provides industrial motor solutions across different power and speed requirements.

The wide operating range makes these motors suitable for applications in manufacturing, engineering, process industries, material handling, food processing and other industrial sectors.

Havells IE2 Motor Manufacturer Information

Havells is the manufacturer and brand of these IE2 Motors, while We Tech Power Solutions Ltd supplies Havells motor solutions to industrial customers. Customers can contact us for product selection, specifications and supply requirements.

Warranty

Havells IE2 Motors are covered under warranty for faulty material or workmanship when operated under proper conditions. The applicable warranty period is 12 months from commissioning or 18 months from dispatch, whichever occurs earlier, subject to the applicable warranty terms and conditions.

Why Choose Havells IE2 Motors?

Havells IE2 Motors provide a combination of efficient motor operation, robust construction and application flexibility. Their wide power range, multiple speed options, cast iron construction and industrial-grade protection make them suitable for a broad variety of machinery.

Key advantages include:

• Wide 0.18 to 355 kW range

• Multiple RPM and pole configurations

• IE2 efficiency classification

• Durable cast iron construction

• S1 continuous-duty operation

• IP55 protection

• Class F insulation

• Multiple mounting options

• Suitable for VFD applications

• Wide range of industrial applications

Get Havells IE2 Motors in Ahmedabad

Looking for a Havells IE2 Motor Dealer, Supplier or Distributor in Ahmedabad?

Contact We Tech Power Solutions Ltd for Havells IE2 Motor specifications, application guidance, pricing, and supply assistance.

Frequently Asked Questions

1. What is the power range of Havells IE2 Motors?

The specified range is from 0.18 kW to 355 kW, covering approximately 0.25 HP to 470 HP.

2. Which speeds are available?

The range includes 3000 RPM for 2-pole, 1500 RPM for 4-pole, and 1000 RPM for 6-pole motors.

3. What efficiency class do these motors have? These are IE2 efficiency-class motors.

4. What voltage and frequency are required?

The motors are specified for 415 V and 50 Hz operation.

5. What is the frame size range?

The available frame sizes range from 71 to 355L.

6. Which mounting options are available?

B3 foot mounting, B5 flange mounting and B35 foot cum flange mounting are available.

7. What is the protection rating? The motors feature IP55 protection.

8. What insulation class is provided? The motors use Class F insulation.

9. Are Havells IE2 Motors suitable for VFD applications?

The supplied specifications indicate VPI/VFD suitability, provided you select the appropriate motor configuration for the application.

10. What applications use Havells IE2 Motors?

They are used in pumps, fans, conveyors, crushers, food-processing machinery, agro equipment, cranes, hoists, mixers, reactors, machine tools, material handling systems, and many other industrial applications.

11. Who supplies Havells IE2 Motors in Ahmedabad?

We Tech Power Solutions Ltd supplies Havells IE2 Motors in Ahmedabad and provides assistance with motor selection and industrial requirements.
