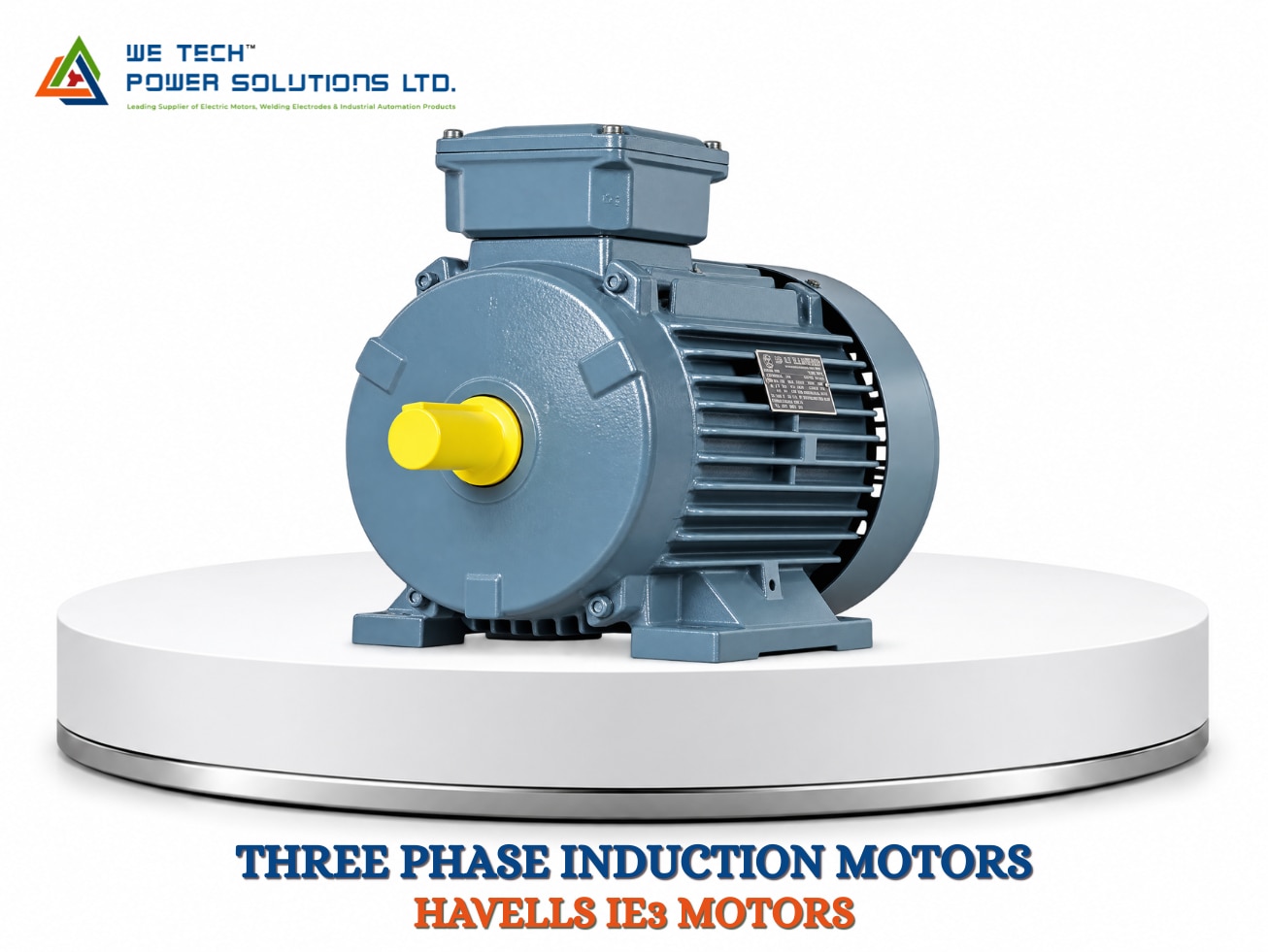

HAVELLS IE3 MOTORS

Havells IE3 Motors Distributor in Ahmedabad

We Tech Power Solutions Ltd, offer Havells IE3 Motors for industries looking for improved motor efficiency, dependable performance, and reduced energy consumption. Designed according to the IE3 efficiency class, these motors are suitable for industrial equipment where efficient power utilization and reliable continuous operation are important.

Havells IE3 Motors are available across a broad range of 0.18 kW to 355 kW / 0.25 HP to 470 HP, with 2-pole, 4-pole, 6-pole and 8-pole configurations. This provides speed options of 3000 RPM, 1500 RPM, 1000 RPM, and 750 RPM.

With a robust cast iron body, TEFC enclosure, Class F insulation and IP55 protection, the motors are designed for demanding industrial environments. Their wide application range includes pumps, fans, compressors, HVAC equipment, paper machinery, dairy equipment, chilling plants, textile machinery, and various process machines.

Havells IE3 Motor Technical Specifications

We Tech Power Solutions Ltd, offer the specified Havells IE3 Motor range with the following characteristics:

• Motor Type: Three-Phase Induction Motor

• Power Range: 0.18 to 355 kW / 0.25 to 470 HP

• Efficiency Class: IE3

• Voltage: 415 V

• Frequency: 50 Hz

• Speed / Pole: 3000 RPM (2 Pole) / 1500 RPM (4 Pole) / 1000 RPM (6 Pole) / 750 RPM (8 Pole)

• Frame Size: 63 to 355

• Duty: S1

• Body Construction: Cast Iron

• Enclosure: TEFC

• Insulation Class: F

• Protection: IP55

• Ambient Temperature: Up to 50°C

• Terminal Box Position: Top

• Mounting: B3 Foot Mounted / B5 Flange Mounted / B35 Foot cum Flange Mounted

• Standard: IEC 60034-30-2008

• Dimensions: As per IS:1231 & IS:2223

Key Features of Havells IE3 Motors

Havells IE3 Motors are designed to operate efficiently and reliably across a variety of industrial environments. Available features include:

• IE3 high-efficiency motor design

• Roller bearing arrangement

• Insulated bearing option

• Thermistors

• Space heater provision

• Forced cooling arrangement

• LHS / RHS terminal box options

• Robust cast iron construction

• TEFC enclosure

• IP55 protection

• Class F insulation

• S1 continuous-duty operation

The combination of efficiency, durable construction and multiple configurations makes the range suitable for equipment operating for extended periods.

Havells IE3 Motor Mounting Options

Motors can be supplied in different mounting configurations to suit machine and installation requirements.

B3 Foot Mounted

Suitable for standard foundation or base-mounted machinery.

B5 Flange Mounted

Used where the motor is installed through a flange connection to the driven equipment.

B35 Foot cum Flange Mounted

Provides both foot and flange mounting arrangements for applications requiring greater installation flexibility.

Industrial Applications of Havells IE3 Motors

Havells IE3 Motors can be used across a wide range of industrial and process applications, including:

• Pumps

• Fans

• Compressors

• Paper Machinery

• Dairy Equipment

• Hydraulic Presses

• HVAC Systems

• Grinding Machines

• Vertical Boring Machines

• Milk Pumps

• Chilling Plants

• Blenders

• Pulverizers

• Condensers

• Agitators

• Air Compressors

• Centrifuges

• ID & FD Fans

• Cooling Towers

• Cold Storage Systems

• Plastic Machinery

• Machine Tools

• Air Conditioning Equipment

• Textile Machinery

Havells IE3 Motor Dealer in Ahmedabad

We Tech Power Solutions Ltd supplies Havells IE3 Motors in Ahmedabad for industrial machinery, process equipment, OEM requirements, and energy-conscious applications.

Our team can help you select the right motor based on power rating, RPM, pole configuration, frame size, mounting arrangement,, and application requirements.

Havells IE3 Motor Supplier in Gujarat

We Tech Power Solutions Ltd supplies Havells IE3 Motors across Gujarat, supporting industries that require efficient three-phase motor solutions.

The range covers multiple:

• Power ratings

• RPM configurations

• Pole configurations

• Frame sizes

• Mounting arrangements

• Industrial applications

This makes the IE3 range suitable for both standard machinery and specialized industrial equipment.

Havells IE3 Motor Supplier in India

For businesses searching for a Havells IE3 Motor Supplier in India, We Tech Power Solutions Ltd offers industrial motor solutions across different power and speed requirements.

Motors can be selected based on the machine's load, operating speed, mounting arrangement, and continuous-duty requirements.

Havells IE3 Motor Manufacturer Information

Havells is the manufacturer and brand of these IE3 Motors, while We Tech Power Solutions Ltd supplies Havells motor solutions to industrial customers. Customers can contact us for product specifications, motor selection and supply assistance.

Warranty

Havells IE3 Motors are covered under warranty against faulty material or workmanship under proper use. The warranty period is 12 months from commissioning or 18 months from dispatch, whichever occurs earlier, subject to the applicable warranty terms and conditions.

Why Choose Havells IE3 Motors?

IE3 motors are designed for applications where improved motor efficiency and energy-conscious operation are important. Havells IE3 Motors combine an efficient motor design with robust construction and multiple speed configurations.

Key benefits include:

• IE3 efficiency classification

• Wide 0.18 to 355 kW range

• 2, 4, 6 and 8-pole options

• Multiple operating speeds

• Cast iron construction

• S1 continuous duty

• IP55 protection

• Class F insulation

• Multiple mounting configurations

• Suitable for a wide range of industrial machinery

Get Havells IE3 Motors in Ahmedabad

Looking for a Havells IE3 Motor Dealer, Supplier or Distributor in Ahmedabad?

Contact We Tech Power Solutions Ltd for Havells IE3 Motor specifications, application-based selection, pricing, and supply assistance.

Frequently Asked Questions

1. What is the power range of Havells IE3 Motors?

The specified range is from 0.18 kW to 355 kW, covering approximately 0.25 HP to 470 HP.

2. What does IE3 mean in an electric motor?

IE3 refers to the motor's international efficiency classification, indicating higher efficiency than lower-efficiency classes.

3. Which RPM options are available?

The specified range includes 3000 RPM, 1500 RPM, 1000 RPM, and 750 RPM, corresponding to 2, 4, 6, and 8 poles, respectively.

4. What voltage do Havells IE3 Motors operate at? The specified motors operate at 415 V and 50 Hz.

5. What is the frame size range?

The available frame sizes range from 63 to 355.

6. What mounting options are available?

B3 foot-mounted, B5 flange-mounted, and B35 foot cum flange mounted configurations are available.

7. What protection rating is provided? Havells IE3 Motors feature IP55 protection.

8. What insulation class is used? The motors use Class F insulation.

9. Where are Havells IE3 Motors used?

They are used in pumps, fans, compressors, HVAC systems, chilling plants, dairy equipment, paper machinery, textile machinery, cooling towers, plastic machinery, and other industrial applications.

10. Are Havells IE3 Motors suitable for continuous operation?

Yes. The specified motors are designed for S1 continuous-duty operation.

11. Who supplies Havells IE3 Motors in Ahmedabad?

We Tech Power Solutions Ltd supplies Havells IE3 Motors in Ahmedabad and assists customers with motor selection and industrial supply requirements.
