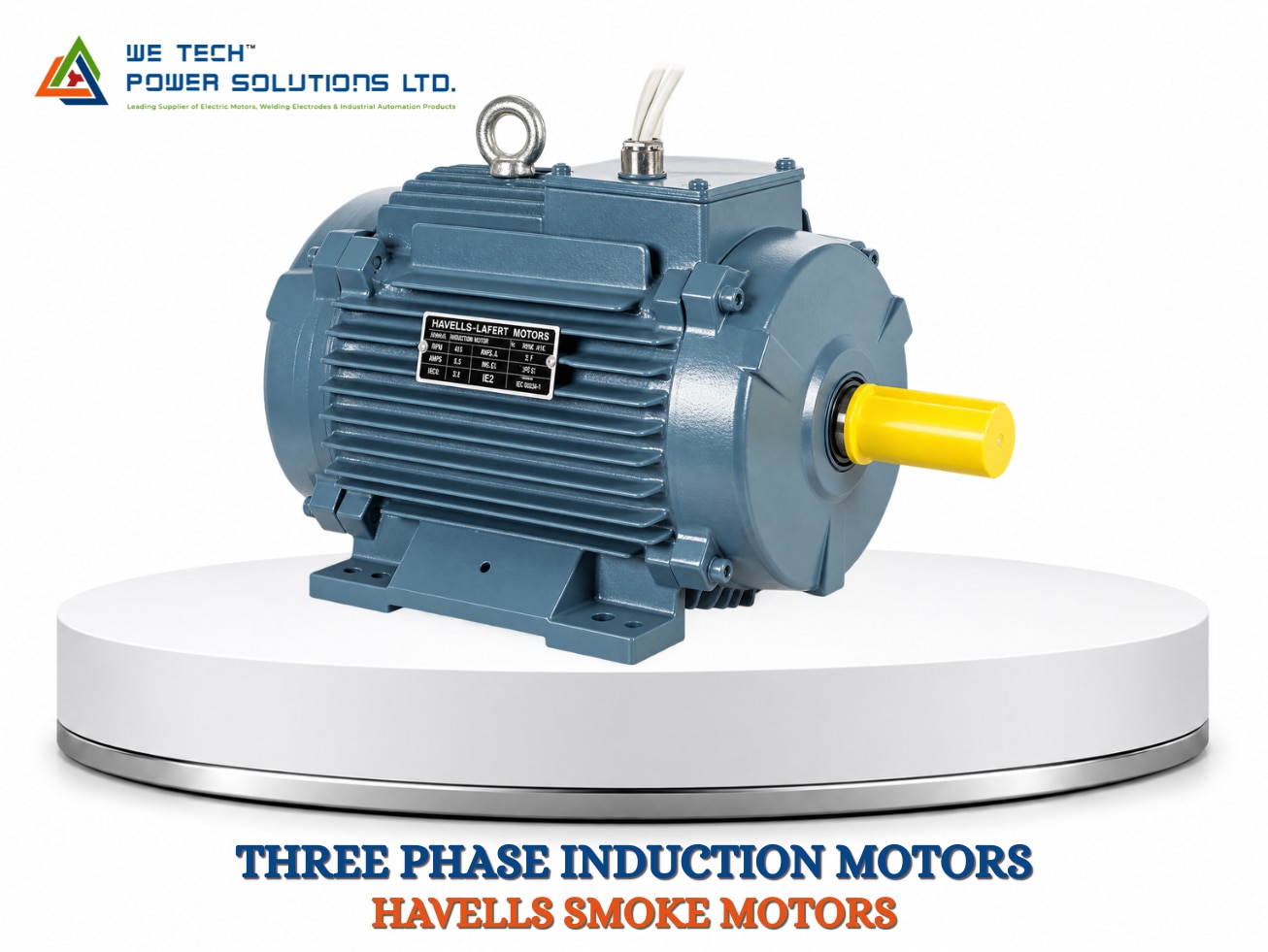

HAVELLS SMOKE MOTORS

Havells Smoke Motors Dealer in Ahmedabad

Havells Smoke Motors are designed for applications where motors may be exposed to elevated temperatures, smoke, and demanding industrial operating conditions. With robust construction, efficient cooling, and suitable insulation, these motors are developed to support dependable performance in environments where conventional motor operation may be challenging.

The combination of cast iron construction, TEFC enclosure, Class F insulation, and IP55 protection makes Havells Smoke Motors suitable for a range of industrial applications requiring reliable and continuous motor operation. Additional provisions such as thermistors, insulated bearings, roller bearings, space heaters, and forced cooling can be selected depending on the motor configuration and application.

Havells Smoke Motor – Technical Specifications

The specifications can vary according to the selected model and rating. A standard Havells Smoke Motor range may include the following:

• Motor Type: Three Phase Industrial Induction Motor

• Voltage: 415 V

• Frequency: 50 Hz

• Ambient Temperature: Up to 50°C

• Speed / Pole Options: 3000 RPM – 2 Pole / 1500 RPM – 4 Pole / 1000 RPM – 6 Pole / 750 RPM – 8 Pole

• Power Range: 0.37–22 kW / 0.5–30 HP

• Body Material: Cast Iron

• Duty: S4

• Cooling: TEFC (Totally Enclosed Fan Cooled)

• Frame Size: 71–180

• Protection: IP55

• Insulation: Class F

• Terminal Box: Top

• Mounting Options: B3 Foot Mounted / B5 Flange Mounted / B35 Foot-Cum-Flange Mounted

• Duty-Cycle Capability: Suitable for applications involving frequent operational cycles and repeated starting/stopping

• Applicable Standards: IEC 60034-30-2008

• Dimensions: As per IS 1231 & IS 2223

Special Features of Havells Smoke Motors

Havells Smoke Motors can be configured with several features intended to support dependable industrial operation and thermal management:

• VPI/VFD Suitable

• Thermistors for temperature monitoring

• Insulated Bearings

• Roller Bearings

• Space Heater Provision

• Forced Cooling Arrangement

• LHS/RHS Terminal Box Configuration

• Robust cast iron body

• TEFC cooling arrangement

• Class F insulation system

• IP55 protection

Built for Demanding Temperature Conditions

Smoke and high-temperature operating environments can place additional thermal stress on electric motors. Havells Smoke Motors are designed with suitable insulation and cooling provisions to help maintain reliable operation under demanding conditions.

Depending on the application, features such as forced cooling, thermistors, and space heaters can provide additional support for thermal management, motor monitoring, and reliable starting after periods of shutdown.

Havells Smoke Motor Applications

These motors can be considered for industrial systems where dependable operation is required in challenging environmental and thermal conditions, including:

• Industrial ventilation systems

• Smoke extraction systems

• Exhaust and air-handling equipment

• High-temperature industrial machinery

• Material handling equipment

• Conveyor systems

• Process machinery

• Industrial fans and blowers

• Heating and thermal-processing environments

• Heavy-duty industrial equipment

The exact motor selection should be based on operating temperature, duty cycle, load characteristics, installation environment, and the equipment manufacturer's requirements.

Havells Smoke Motor Supplier in Ahmedabad

We Tech Power Solutions Ltd supplies Havells Smoke Motors in Ahmedabad for industrial and engineering applications. Customers can select suitable motor configurations based on power, speed, mounting arrangement, duty cycle, operating conditions, and equipment requirements.

If you are searching for a Havells Smoke Motor Supplier in Ahmedabad, our team can assist in identifying a suitable motor specification for your application.

Havells Smoke Motor Supplier in Gujarat

We Tech Power Solutions Ltd serves industrial customers across Gujarat with Havells motors and electrical solutions. The Smoke Motor range can be considered for applications requiring dependable motor performance in demanding environmental conditions.

We can support requirements involving different kW/HP ratings, RPM, pole configurations, frame sizes, mounting arrangements, and terminal box configurations.

Mounting Options

Depending on the model, Havells Smoke Motors can be supplied in different mounting configurations:

• B3: Foot Mounted

• B5: Flange Mounted

• B35: Foot-Cum-Flange Mounted

The appropriate mounting arrangement can be selected according to the equipment design and installation requirements.

Warranty

Havells Smoke Motors are covered under warranty against faulty material or workmanship when operated under proper conditions.

Warranty: 12 months from the date of commissioning or 18 months from the date of dispatch, whichever is earlier.

Why Consider Havells Smoke Motors?

• Designed for demanding industrial environments

• Suitable for elevated-temperature operating conditions

• Robust cast iron construction

• TEFC cooling system

• Class F insulation

• IP55 protection

• Multiple speed and pole configurations

• B3, B5 and B35 mounting options

• Optional thermal monitoring and cooling provisions

• Suitable for industrial ventilation and process applications

Frequently Asked Questions

1. What are Havells Smoke Motors?

Havells Smoke Motors are industrial motors designed for applications where elevated temperatures, smoke, ventilation, and demanding operating conditions need to be considered during motor selection.

2. What is the power range of Havells Smoke Motors?

The specified range is 0.37 kW to 22 kW, equivalent to approximately 0.5 HP to 30 HP.

3. What voltage do Havells Smoke Motors operate at? The standard specification provided is 415 V at 50 Hz.

4. What speeds are available?

Depending on the pole configuration, typical speeds include 3000 RPM, 1500 RPM, 1000 RPM, and 750 RPM.

5. What type of enclosure is used?

The standard enclosure is TEFC (Totally Enclosed Fan Cooled) with IP55 protection.

6. What insulation class is provided?

The specified insulation system is Class F.

7. Which mounting options are available?

Havells Smoke Motors are available in B3 foot mounting, B5 flange mounting, and B35 foot-cum-flange mounting, depending on the model.

8. Do these motors support thermal monitoring?

Selected configurations can include thermistors for monitoring motor temperature and additional thermal protection requirements.

9. Can Havells Smoke Motors be used with VFD systems?

The supplied specifications indicate that the motors are VPI/VFD suitable. Final VFD compatibility should be confirmed for the particular model and application.

10. Who supplies Havells Smoke Motors in Ahmedabad?

We Tech Power Solutions Ltd supplies Havells Smoke Motors in Ahmedabad for industrial and engineering applications.
