INNOMOTICS BRAKE MOTORS

5.2 Innomotics Brake Motors

Innomotics Brake Motors for Controlled Industrial Operation

Meta Title: Innomotics Brake Motors | We Tech Power Solutions

Meta Description: Explore Innomotics Brake Motors from 0.18–45 kW for cranes, hoists, conveyors, lifts and material handling with reliable braking performance.

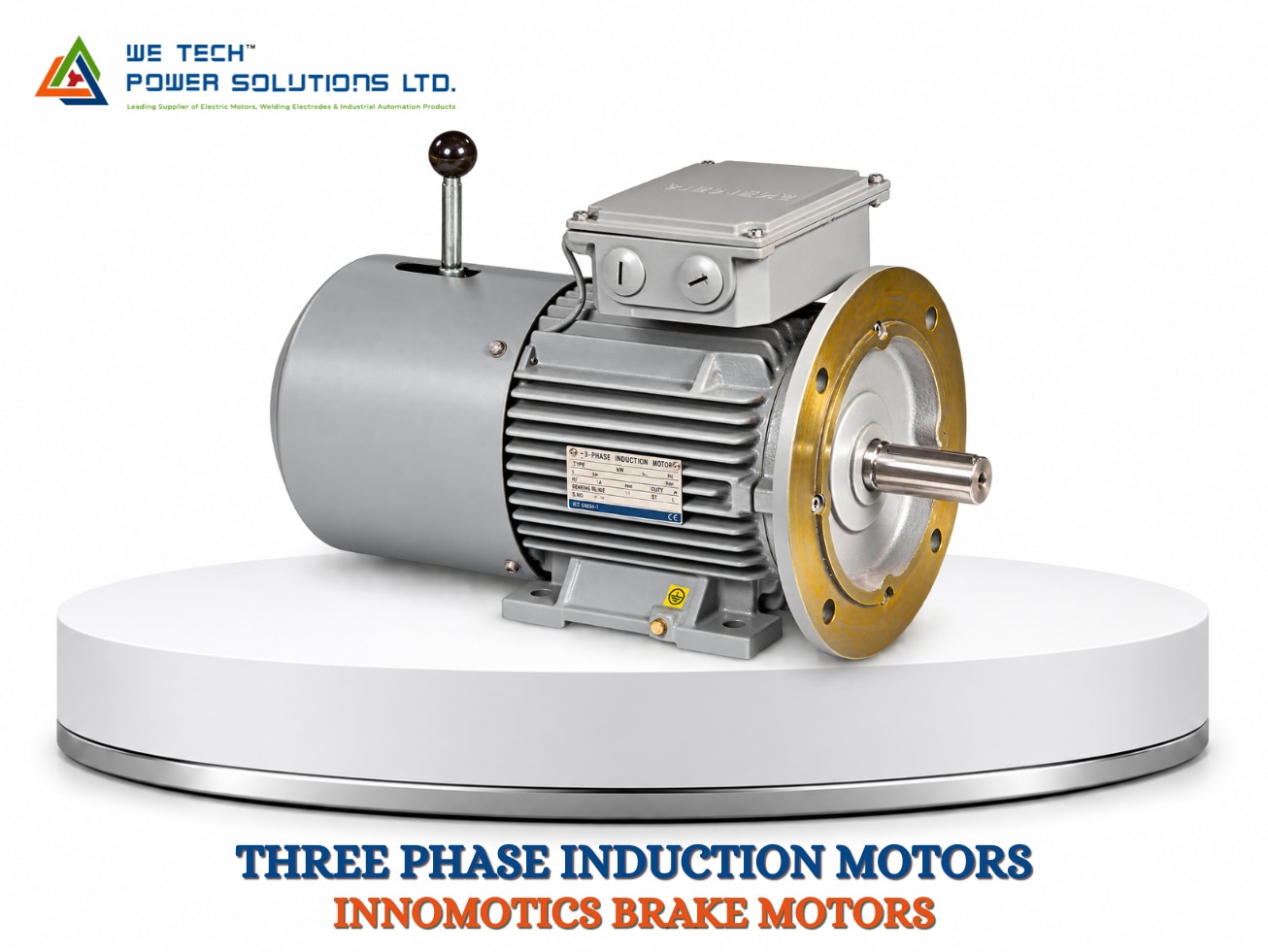

About Innomotics Brake Motors

We Tech Power Solutions Ltd. is an authorised dealer of Innomotics Brake Motors, offering a range from 0.18 kW to 45 kW and 0.25 HP to 60 HP. These three-phase motors operate at 415V and 50Hz and are designed for machinery where dependable motor operation and controlled stopping are important.

The motors are equipped with EMCO DC brakes rated at 190V and are available in 3000, 1500 and 1000 RPM configurations. Cast iron construction provides the mechanical strength required for demanding industrial environments, while frame sizes from 63 to 225 allow flexibility across different equipment designs.

Customers looking for a Siemens (Innomotics) Brake Motors dealer in Ahmedabad can contact We Tech Power Solutions Ltd. for application-based motor selection and supply support.

Technical Specifications

Key specifications of Innomotics Brake Motors include:

• Power Range: 0.18–45 kW / 0.25–60 HP

• Motor Type: Three-phase AC brake motor

• Voltage: 415V ±10%

• Frequency: 50Hz ±5%

• Speed: 3000 / 1500 / 1000 RPM

• Poles: 2 / 4 / 6 pole configurations

• Brake: EMCO DC Brake, 190V

• Frame Size: 63–225

• Body: Cast iron

• Duty: S1 / S4, with crane-duty configurations available

• Mounting: B3 foot, B5 flange, B35 foot-cum-flange

• Enclosure: TEFC

• Insulation: Class F

• Temperature Rise: Limited to Class B

• Protection: IP55

• Terminal Box: TOP position

• Special Features: VPI/VFD suitable and manual release handle

The brake configuration should be selected according to the load, stopping requirements, operating cycle and frequency of switching.

Where Are Innomotics Brake Motors Used?

These motors are suited to applications where controlled braking is required, particularly in equipment that performs lifting, movement or repeated positioning.

Common applications include:

• Cranes and hoists

• Lifts and elevators

• Conveyors

• Material-handling equipment

• Textile machinery

• Rolling mills

• Machine tools

• Industrial saws

• Lifting bridges

• Heavy-duty handling systems

They are particularly useful where braking is required but the frequency of brake ON/OFF switching remains relatively low.

Industries Using Innomotics Brake Motors

Innomotics Brake Motors can be applied across material handling, manufacturing, textile, metal processing, lifting equipment, machine tools and industrial automation. Crane and hoist applications can also benefit from S4-duty configurations where the operating cycle demands suitable intermittent-duty performance.

For customers seeking Siemens (Innomotics) Brake Motors Suppliers in Gujarat, We Tech Power Solutions Ltd. provides product selection support based on motor rating, speed, mounting, duty and application conditions.

Why Choose We Tech Power Solutions Ltd.?

Selecting a brake motor requires more than simply matching the kW rating. The braking requirement, duty cycle, mounting arrangement, speed, load characteristics and operating environment all influence the correct selection.

We Tech Power Solutions Ltd. helps customers identify suitable Innomotics motor configurations for their equipment and provides support for industrial motor requirements. The motors are covered under warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to proper use and applicable warranty conditions.

Our supply capabilities also support customers searching for Siemens (Innomotics) Motors Exporters in Nepal and industrial motor requirements across different markets.

Frequently Asked Questions

1. What applications are suitable for Innomotics Brake Motors?

They are commonly used for cranes, hoists, lifts, conveyors, textile machinery, rolling mills, machine tools and material-handling equipment where controlled stopping is required.

2. What should be considered when selecting a brake motor?

Consider power, RPM, load, braking requirement, duty cycle, starts/stops, mounting arrangement and operating environment. These factors help determine the appropriate motor and brake configuration.

Get the Right Innomotics Brake Motor

Contact We Tech Power Solutions Ltd. today for the right Innomotics Brake Motor configuration for your industrial application.
