8.1 Innomotics Champion Series Motors

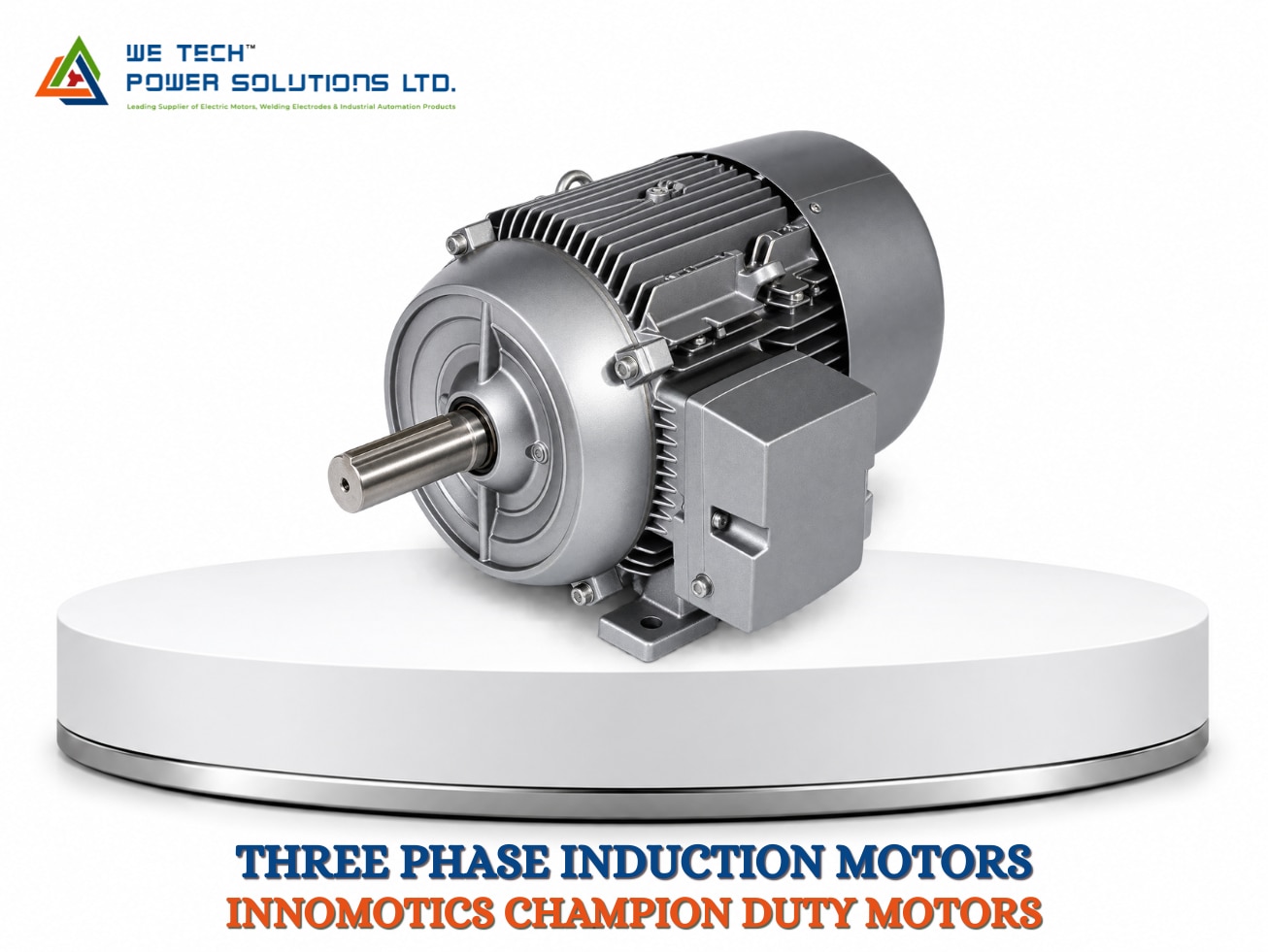

Innomotics Champion Series Motors for Industrial Applications

Meta Title: Innomotics Champion Series Motors | 250–315 kW

Meta Description: Explore Innomotics Champion Series Motors from 250–315 kW for pumps, fans, compressors and demanding industrial applications.

About Innomotics Champion Series Motors

Industrial equipment needs a motor that can deliver consistent performance without becoming complicated to operate or maintain. Innomotics Champion Series Motors are designed for industrial applications where dependable three-phase motor operation, efficiency and robust construction are essential.

We Tech Power Solutions Ltd is an authorised dealer for Innomotics Champion Series Motors, with a specified power range of 250 kW to 315 kW (335 HP to 425 HP). These motors are available for 415 V, 50 Hz applications and can be selected according to the required speed, mounting arrangement and operating conditions.

With a cast iron body, S1 continuous-duty design, TEFC enclosure and IP55 protection, the Champion Series is suitable for a wide range of demanding industrial environments.

Technical Specifications at a Glance

Key specifications of Innomotics Champion Series Motors include:

• Power range: 250 kW to 315 kW

• Power equivalent: 335 HP to 425 HP

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Phase: Three phase

• Speed options: 3000 RPM and 1500 RPM

• Frame: 355L

• Mounting: B3 foot, B5 flange and B35 foot-cum-flange

• Efficiency: IE2 / IE3

• Duty: S1 continuous duty

• Body: Cast iron

• Enclosure: TEFC

• Protection: IP55

• Insulation: Class F

• Ambient temperature: Up to 50°C

• Terminal box: TOP position as standard

For specialized requirements, configurations can include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, forced cooling and alternative terminal box locations.

Applications and Industries

The Champion Series can be used wherever industrial machinery requires a reliable motor with continuous-duty capability. Typical applications include pumps, fans, compressors, paper machinery, dairy equipment, hydraulic presses, HVAC systems, grinding machines, vertical boring machines, chilling plants, blenders, pulverizers, condensers, agitators, air compressors, centrifuges, ID and FD fans, cooling towers, cold-storage equipment, plastic machinery and machine tools.

Industries such as manufacturing, paper, dairy, textiles, plastics, HVAC, process engineering, refrigeration and heavy machinery can use these motors across different equipment configurations.

For example, a large process pump operating for extended hours needs more than adequate motor power. Correct speed, mounting, protection, efficiency and duty selection can directly affect operating reliability. This is where application-based motor selection becomes important.

Why Choose We Tech Power Solutions Ltd?

Selecting an industrial motor should begin with the application rather than the catalogue number. Load characteristics, required RPM, installation method, environmental conditions, voltage and operating cycle should all be considered before final selection.

We Tech Power Solutions Ltd assists customers with product selection and application-related requirements. This makes the company a useful source for businesses looking for Siemens (Innomotics) Motors Exporters in India, a Siemens (Innomotics) Champion Series Motors dealer in Ahmedabad, or Siemens (Innomotics) Champion Series Motors Suppliers in Gujarat.

The motors are covered under the stated warranty terms when used properly: 12 months from commissioning or 18 months from dispatch, whichever occurs earlier.

Frequently Asked Questions

1. What is the power range of Innomotics Champion Series Motors?

The specified Champion Series range covers 250 kW to 315 kW, equivalent to approximately 335 HP to 425 HP.

2. Which mounting options are available?

The motors are available in B3 foot-mounted, B5 flange-mounted and B35 foot-cum-flange-mounted configurations, allowing selection according to the equipment and installation arrangement.

Get the Right Innomotics Champion Series Motor

Contact We Tech Power Solutions Ltd today for Innomotics Champion Series Motors and get professional assistance in selecting the right motor for your industrial application.
