INNOMOTICS CRANE DUTY MOTORS

4.1 Innomotics Crane Duty Motors

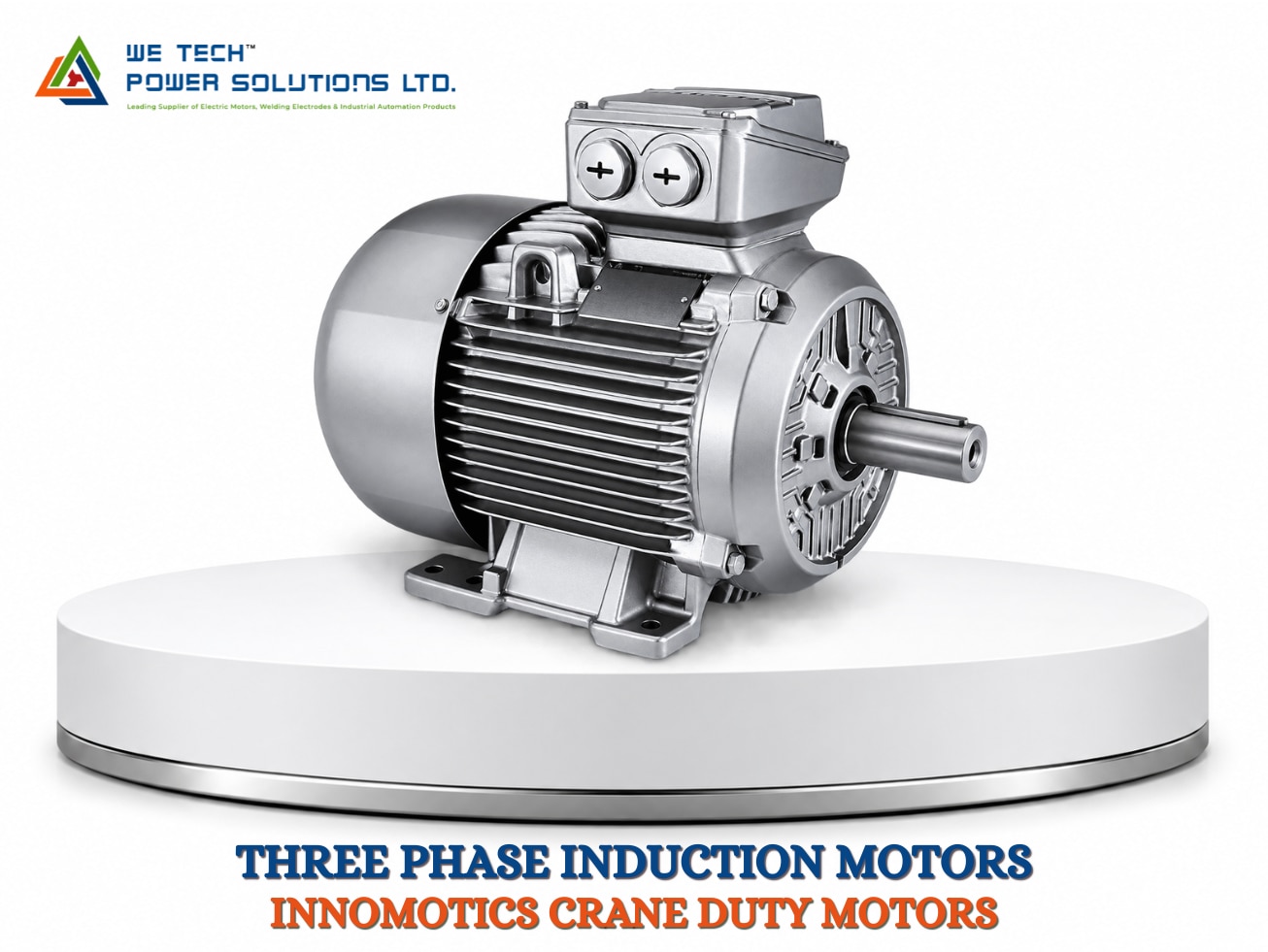

Innomotics Crane Duty Motors for Heavy-Duty Handling

Meta Title: Innomotics Crane Duty Motors | Industrial Motors

Meta Description: Explore Innomotics Crane Duty Motors from 0.18–200 kW for cranes, hoists and material handling, with S3/S4/S5 duty and multiple mounting options.

About Innomotics Crane Duty Motors

Crane and material-handling equipment demands more from a motor than ordinary continuous-duty machinery. Frequent starting, stopping, reversing, acceleration, and lifting operations require a motor designed to handle repeated mechanical and electrical stresses.

Innomotics Crane Duty Motors are designed for such demanding operating conditions. We Tech Power Solutions Ltd is an authorised dealer of Innomotics Crane Duty Squirrel Cage Motors, offering a range from 0.18 kW to 200 kW, equivalent to 0.25 HP to 270 HP.

These three-phase motors operate at 415 V and 50 Hz and are available in 1500 RPM and 1000 RPM configurations. Depending on the application, 4-pole and 6-pole options can be selected. The cast-iron construction, IP55 protection, and multiple mounting arrangements make the motors suitable for a broad range of industrial handling equipment.

Technical Specifications

Key specifications of the Innomotics Crane Duty Squirrel Cage Motors include:

• Power range: 0.18 to 200 kW / 0.25 to 270 HP

• Phase: Three phase

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1500 RPM and 1000 RPM

• Poles: 4 Pole and 6 Pole

• Frame size: 71 to 355

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Starting frequency: Up to 300 starts per hour, according to configuration

• Mounting: B3, B5, B35, B14, and B34

• Body: Cast iron

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Terminal box: TOP position

• Ambient temperature: Up to 50°C

Special configurations include VPI/VFD suitability, IGT, double shaft extension, and alternative terminal-box locations.

Designed for Frequent Starts and Reversals

Crane-duty motors need to respond quickly while managing repeated operating cycles. These motors are designed for high starting torque with controlled starting current and are suitable for applications involving frequent starts, stops, and reversals.

The available S3, S4, and S5 duty configurations allow the motor to be selected according to the application's operating cycle. CDF options and starting-per-hour requirements should be matched with the actual crane or hoist duty before selection.

Where Are Innomotics Crane Duty Motors Used?

These motors are suitable for a wide range of lifting and material-handling equipment, including:

• Crane and hoist drives

• LT and CT crane drives

• Material-handling systems

• Conveyors

• Winches

• Loaders and unloaders

• Lift-duty equipment

• Weirs and sluices

• Rolling-mill auxiliary drives

• Industrial material-handling machinery

They can be used across industries such as steel and metal processing, manufacturing, warehouses, infrastructure projects, ports, engineering plants, and material-handling facilities.

Why Choose We Tech Power Solutions Ltd?

Crane motor selection requires attention to more than horsepower. Starting frequency, duty cycle, CDF, speed, load characteristics, mounting, and mechanical arrangement all affect the appropriate motor configuration.

Customers searching for Siemens (Innomotics) IE2 Motors dealer in Maharashtra can contact We Tech Power Solutions Ltd for Innomotics motor requirements and application assistance. Customers looking for Siemens (Innomotics) IE2 Motors Suppliers in Gujarat can also discuss their crane-duty motor specifications with the company.

For international industrial requirements, the company supports enquiries from customers searching for Siemens (Innomotics) Motors Exporters in Oman.

Motors are covered by warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to applicable warranty conditions.

Frequently Asked Questions

1. What duty types are available for Innomotics Crane Duty Motors?

The motors are available for S3, S4, and S5 duty applications, with CDF configurations of 25, 40, and 60 depending on the required operating cycle.

2. Can these motors be used for VFD applications?

Yes. VPI/VFD-suitable configurations are available. Additional options such as IGT, double shaft extension, and alternative terminal-box locations can also be considered according to application requirements.

Get the Right Innomotics Crane Duty Motor

Contact We Tech Power Solutions Ltd today for Innomotics Crane Duty Motor specifications, application guidance, pricing, and supply support for your crane or material-handling requirement.
