7.2 Innomotics Force Cooling Motors

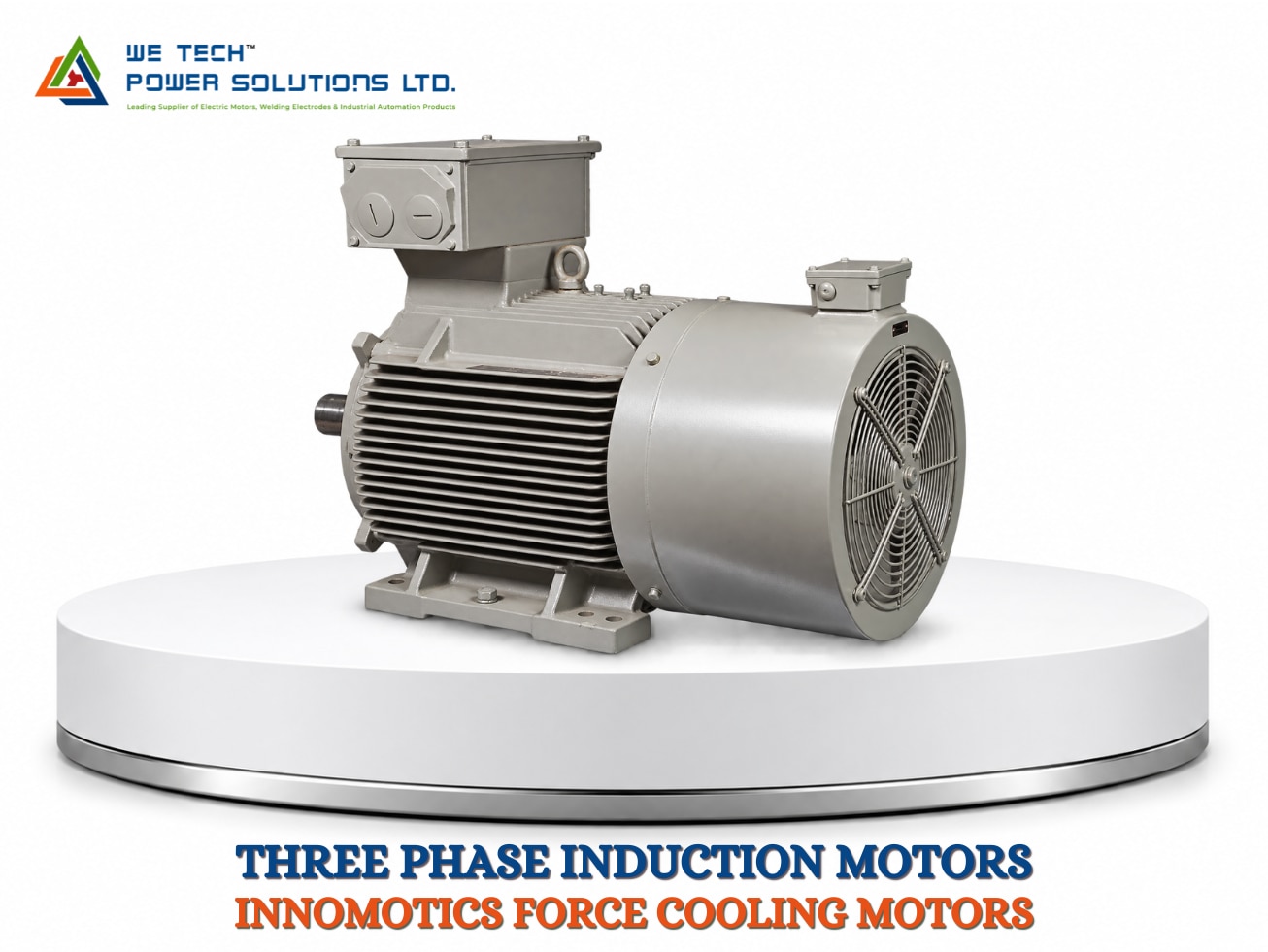

Innomotics Force Cooling Motors for Industrial Applications
Meta Title: Innomotics Force Cooling Motors | 355–1250 kW
Meta Description: Explore Innomotics Force Cooling Motors from 355–1250 kW for compressors, conveyors, pumps and heavy-duty industrial applications.
About Innomotics Force Cooling Motors
In demanding industrial environments, a motor may need to operate reliably under continuous load, variable-speed conditions and challenging operating cycles. Innomotics Force Cooling Motors are designed for applications where controlled ventilation and dependable motor performance are important.
We Tech Power Solutions Ltd is an authorised dealer for Innomotics 1PQ8 Force Cooling Converter Duty Motors, offering high-power solutions from 355 kW to 1250 kW (475 HP to 1675 HP). These three-phase motors are available in 415 V, 50 Hz configurations and can be selected in different speeds and pole arrangements according to the application.
Key Technical Specifications
The important specifications of Innomotics Force Cooling Motors include:
• Power range: 355 kW to 1250 kW
• Equivalent power: 475 HP to 1675 HP
• Voltage: 415 V
• Frequency: 50 Hz
• Phase: Three phase
• Speed: 3000, 1500, 1000 and 750 RPM
• Pole options: 2, 4, 6 and 8 pole
• Frame size: 355 to 500
• Body: Cast iron
• Duty: S1 continuous duty
• Efficiency: IE2 and IE3
• Insulation: Class F
• Temperature rise: Limited to Class B
• Protection: IP55
• Enclosure: TEFC
• Mounting: B3 foot, B5 flange and B35 foot-cum-flange
• Ambient temperature: Up to 45°C
• Terminal box: Available in RHS, LHS or TOP configurations
Depending on project requirements, options include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, double-shaft arrangements, forced cooling and 690 V grid-supplied configurations.
Where Are Innomotics Force Cooling Motors Used?
These motors are suitable for equipment that requires consistent performance and effective heat management. Typical applications include compressors, conveyors, positive displacement pumps, mixers and hoists.
They can also be considered for heavy-duty operations across industries such as cement, steel, chemicals, manufacturing, material handling, process plants, mining, power generation, water treatment and infrastructure. For example, a compressor operating continuously under demanding conditions may benefit from a motor configuration selected specifically for its load, speed and cooling requirements.
Why Choose We Tech Power Solutions Ltd?
Selecting a high-power motor is not simply about matching the required kW. Factors such as load characteristics, RPM, mounting arrangement, cooling method, voltage, starting conditions and operating environment should also be evaluated.
We Tech Power Solutions Ltd provides application-oriented assistance to help customers identify an appropriate motor configuration. Businesses searching for Siemens (Innomotics) Motors Exporters in India, a Siemens (Innomotics) Force Cooling Motors dealer in Ahmedabad, or Siemens (Innomotics) Force Cooling Motors Suppliers in Gujarat can approach the company for product and selection support.
The motors are also covered by the stated warranty terms when operated under proper conditions: 12 months from commissioning or 18 months from dispatch, whichever occurs earlier.
Frequently Asked Questions
1. What is the power range of Innomotics Force Cooling Motors?
The 1PQ8 Force Cooling Converter Duty Motor range specified for this application is available from 355 kW to 1250 kW, or approximately 475 HP to 1675 HP.
2. Which mounting arrangements are available?
The motors can be supplied in B3 foot-mounted, B5 flange-mounted and B35 foot-cum-flange-mounted configurations, depending on installation requirements.
Get the Right Innomotics Force Cooling Motor
Contact We Tech Power Solutions Ltd today for Innomotics Force Cooling Motors and get application-based guidance for selecting the right motor for your industrial equipment.
