INNOMOTICS IE2 MOTORS

INNOMOTICS IE2 MOTORS

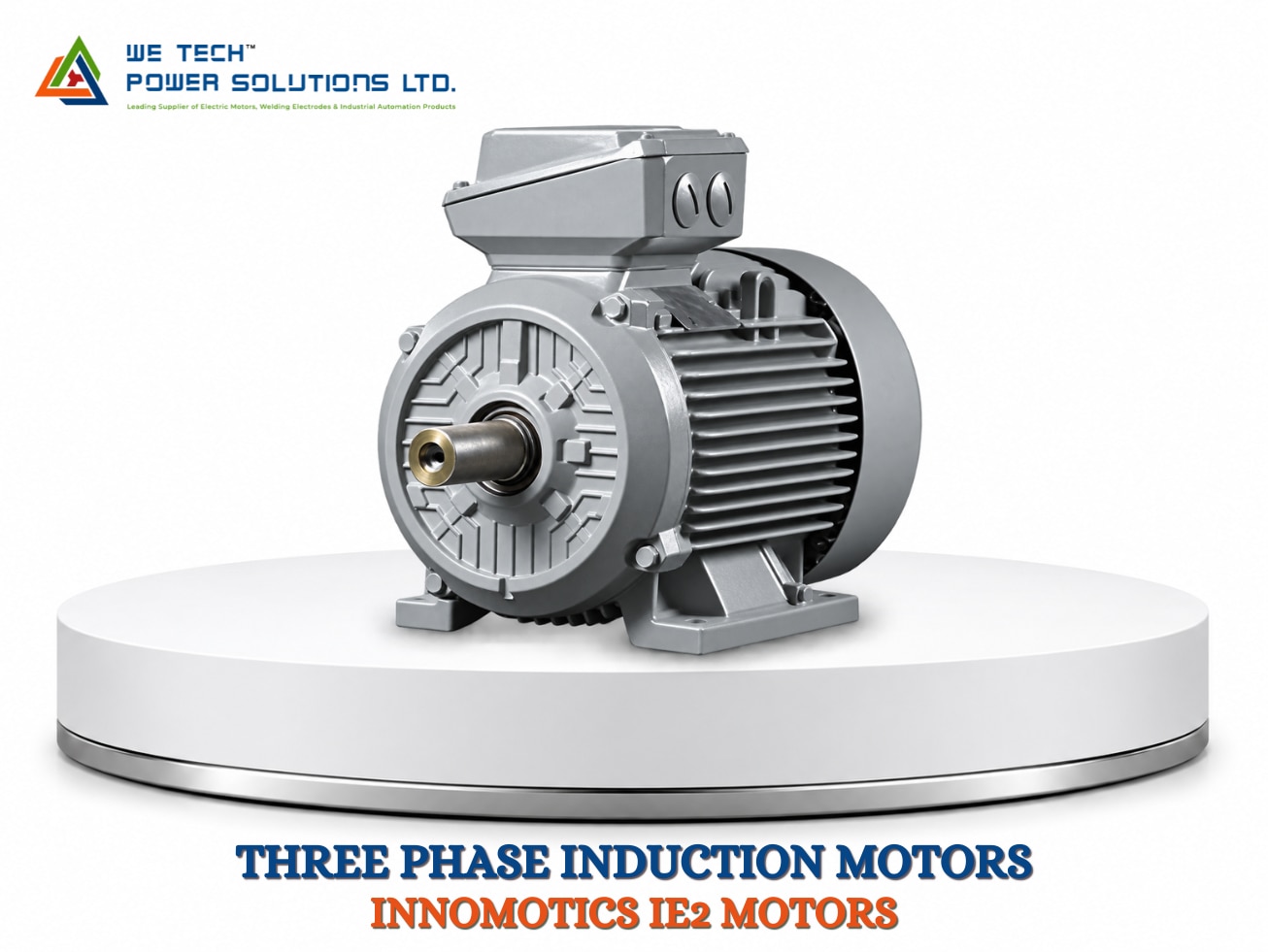

Innomotics IE2 Motors – Description

We Tech Power Solutions Ltd. is a trusted supplier of Innomotics IE2 Motors, offering a wide range of energy-efficient three-phase motors from 0.18 kW to 315 kW and 0.25 HP to 425 HP. These motors are available in 415 V, 50 Hz configurations with standard speeds of 3000 RPM, 1500 RPM and 1000 RPM, suitable for various industrial requirements.

Innomotics IE2 Motors are designed with a robust cast iron construction and are available in frame sizes from 71 to 355. They are suitable for continuous S1 duty and offer multiple mounting configurations, including B3, B5, B35, B14 and B34.

With Class F insulation, IP55 protection and Class B temperature rise, these motors are designed to provide reliable performance in demanding industrial environments. Optional configurations such as thermistors, insulated bearings, roller bearings, space heaters and forced cooling are also available depending on application requirements.

Key Features

• IE2 energy-efficient motor design

• Robust cast iron construction

• VFD / inverter suitable

• Class F insulation

• IP55 protection

• S1 continuous duty

• Thermistor option

• Insulated bearing option

• Roller bearing option

• Space heater option

• Forced cooling option

• RHS / LHS terminal box arrangement

• B14 face-mounted option

• Aluminium body enclosure available on request

Applications

Innomotics IE2 Motors are suitable for a wide range of industrial applications, including:

• Pumps

• Fans

• Conveyors

• Cranes & Hoists

• Machine Tools

• Packing Machinery

• Material Handling Equipment

• Agro Equipment

• Food Processing Equipment

• Agitators

• Mixers

• Reactors

• Milling Machines

• Drilling Machines

• Crushers

• VSI Machines

• Jaw Crushers

• Ball Mills

• Roller Tables

• Hot Dryers

• Heavy-Duty Conveyors

• Hammers & Presses

• Expellers

• Disintegrators

Innomotics IE2 Motor Specifications

• Power Range: 0.18 to 315 kW

• HP Range: 0.25 to 425 HP

• Speed: 3000 / 1500 / 1000 RPM

• Poles: 2 / 4 / 6 Pole

• Frame Size: 71 to 355

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Phase: 3 Phase

• Duty: S1

• Body: Cast Iron

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Temperature Rise: Class B

• Ambient Temperature: Up to 50°C

• Mounting: B3, B5, B35, B14, B34

Why Choose Innomotics IE2 Motors?

Innomotics IE2 Motors provide a practical combination of energy efficiency, durability and dependable industrial performance. Their flexible mounting options, robust construction and application-specific configurations make them suitable for machinery and equipment across multiple industrial sectors.
