INNOMOTICS IE3 MOTORS

2.1 Innomotics IE3 Motors

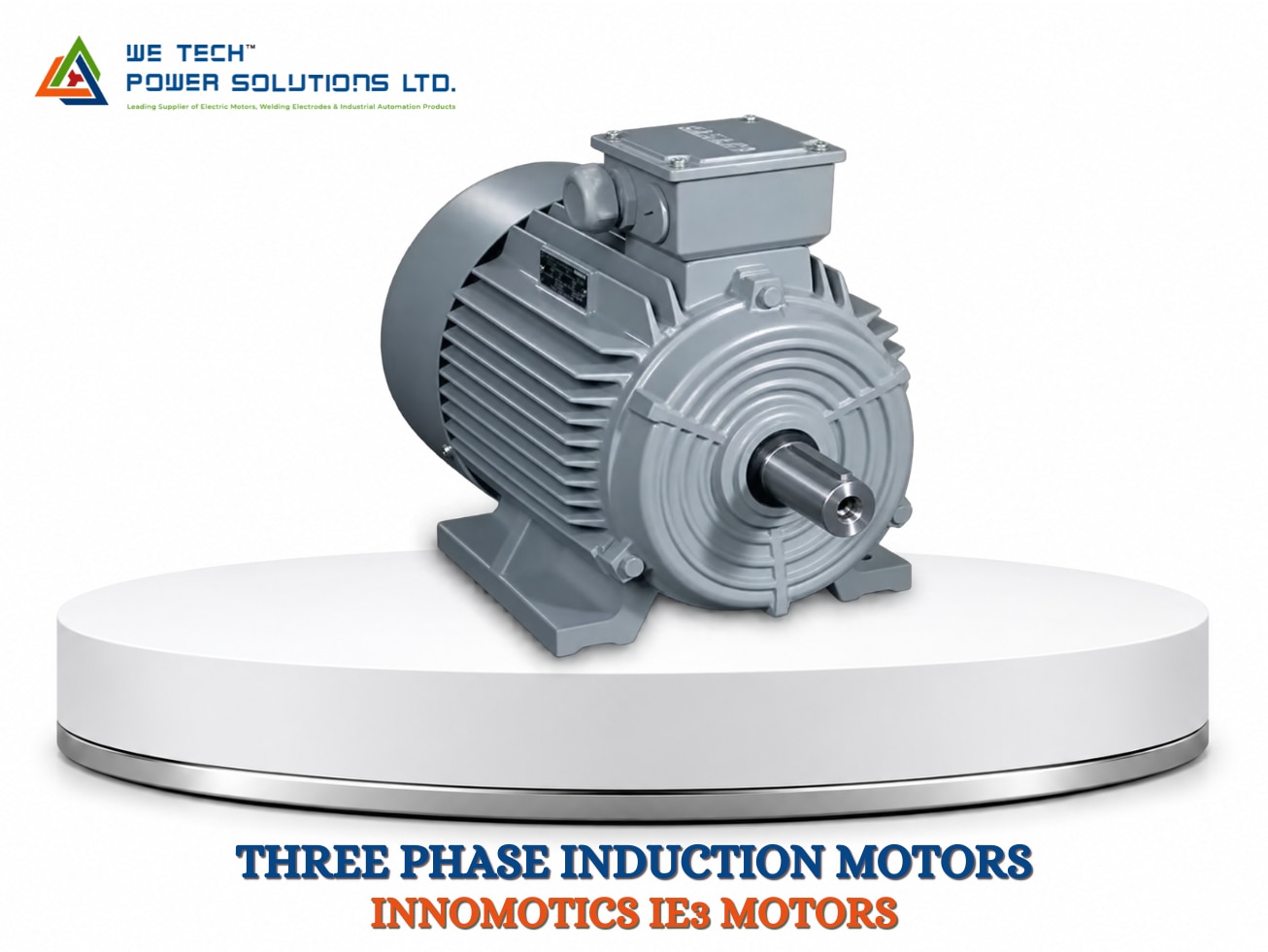

Innomotics IE3 Motors for Industrial Applications

Meta Title: Innomotics IE3 Motors | Premium Efficiency Motors

Meta Description: Discover Innomotics IE3 Motors from 0.37–200 kW with premium efficiency, IP55 protection, VFD suitability, and flexible mounting options.

About Innomotics IE3 Motors

For industrial equipment that operates continuously, motor efficiency can have a direct impact on energy consumption and overall operating costs. Innomotics IE3 Motors are designed for applications that require dependable three-phase performance, efficient operation, and flexibility across different industrial systems.

We Tech Power Solutions Ltd is an authorised dealer of Innomotics IE3 Motors, offering a range from 0.37 kW to 200 kW, equivalent to 0.5 HP to 270 HP. These motors are available in 415 V, 50 Hz configurations and can be selected in 3000 RPM, 1500 RPM, and 1000 RPM versions.

With a cast-iron body, S1 duty, Class F insulation, and IP55 protection, the motors are designed for demanding industrial environments. B3 foot, B5 flange, and B35 foot-cum-flange mounting options provide practical flexibility when replacing an existing motor or integrating one into new machinery.

Innomotics IE3 Motors – Technical Specifications

The key specifications include:

• Power range: 0.37 to 200 kW / 0.5 to 270 HP

• Motor type: Three-phase induction motor

• Efficiency: IE3

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 3000, 1500, and 1000 RPM

• Poles: 2 Pole, 4 Pole, and 6 Pole

• Frame size: 71 to 315

• Mounting: B3, B5, and B35

• Body: Cast iron

• Duty: S1

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Terminal box: TOP position as standard

• Ambient temperature: Up to 50°C

Depending on the application, additional configurations can include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, forced cooling, RHS/LHS terminal-box arrangements, aluminium-body options, and inverter-operation suitability.

Where Are Innomotics IE3 Motors Used?

The right motor depends on the equipment it drives, operating hours, load profile, speed requirements, and environmental conditions. Innomotics IE3 Motors can be used across a variety of industrial applications, including:

• Industrial fans and blowers

• Water and process pumps

• Compressors

• Air compressors

• Air-conditioning equipment

• Textile machinery

• Textile processing systems

• General industrial machinery

They are particularly relevant for applications where motors operate for extended periods and consistent performance is important.

Industries Using Innomotics IE3 Motors

These motors can be applied in manufacturing plants, textile facilities, HVAC installations, process industries, pumping systems, and other industrial environments requiring reliable three-phase motor operation.

For VFD-driven equipment, selecting a motor with suitable inverter-operation characteristics can help match motor performance with the control system. Depending on the installation, features such as thermistors, insulated bearings, and forced cooling may also be considered.

Why Choose We Tech Power Solutions Ltd?

Choosing an industrial motor involves more than comparing HP or kW. Correct selection should account for speed, mounting, frame size, duty cycle, voltage, operating temperature, driven load, and control method.

Customers searching for a Siemens (Innomotics) IE4 Motors dealer in Ahmedabad can contact We Tech Power Solutions Ltd for Innomotics motor requirements. The company also assists customers looking for Siemens (Innomotics) IE4 Motors Suppliers in Gujarat, with application-based motor selection support.

For international enquiries, the company also handles requirements associated with CG Crusher Duty Motors Exporters in Dubai.

The motors are covered by warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to applicable warranty conditions.

Frequently Asked Questions

1. What power range is available in Innomotics IE3 Motors?

The range extends from 0.37 kW to 200 kW, or approximately 0.5 HP to 270 HP, with multiple frame sizes, speeds, and mounting arrangements.

2. Are Innomotics IE3 Motors suitable for VFD applications?

Yes. VFD-suitable and inverter-operation configurations are available. Depending on the application, options such as thermistors, insulated bearings, and forced cooling can also be considered.

Get the Right Innomotics IE3 Motor

Contact We Tech Power Solutions Ltd today for Innomotics IE3 Motor specifications, selection assistance, pricing, and supply support for your industrial application.
