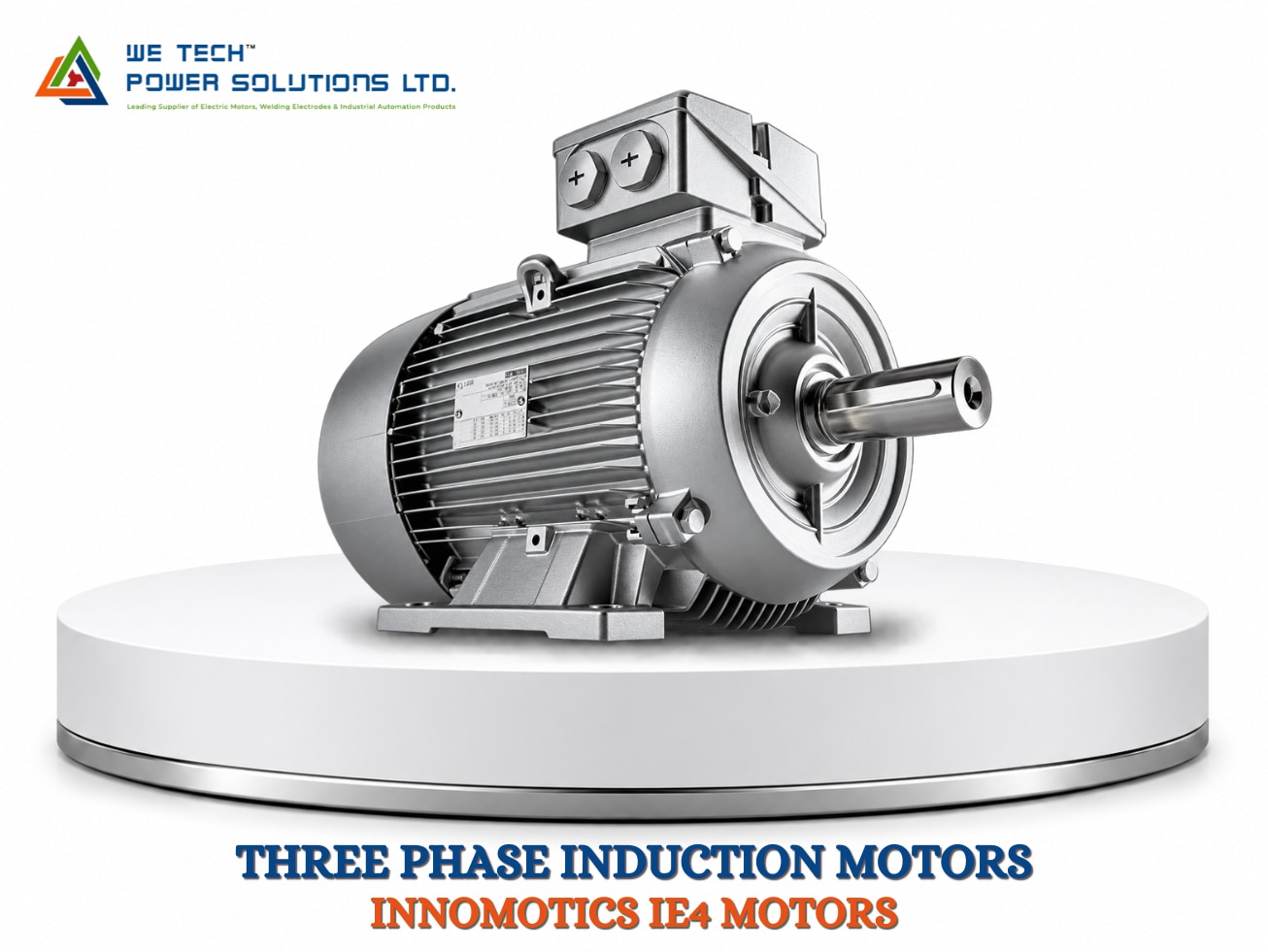

INNOMOTICS IE4 MOTORS

1.2 Innomotics IE4 Motors

Innomotics IE4 Motors for Energy-Efficient Applications

Meta Title: Innomotics IE4 Motors | High-Efficiency Motors

Meta Description: Explore Innomotics IE4 Motors from 0.37–200 kW with high efficiency, IP55 protection, multiple mounting options, and VFD-ready configurations.

About Innomotics IE4 Motors

When an industrial motor operates for thousands of hours every year, even a small improvement in efficiency can make a meaningful difference to energy consumption and operating costs. Innomotics IE4 Motors are designed for applications where high motor efficiency, dependable performance, and long-term operation are important.

We Tech Power Solutions Ltd is an authorised dealer of Innomotics IE4 Motors, offering a range from 0.37 kW to 200 kW, equivalent to 0.5 HP to 270 HP. These three-phase motors are available for 415 V, 50 Hz applications and come in 3000 RPM, 1500 RPM, and 1000 RPM configurations.

The motors feature a robust cast-iron body, S1 duty, Class F insulation, and IP55 protection. B3 foot, B5 flange, and B35 foot-cum-flange mounting arrangements provide flexibility when integrating the motor with different types of industrial equipment.

Technical Specifications

Key specifications of the Innomotics IE4 motor range include:

• Power range: 0.37 to 200 kW / 0.5 to 270 HP

• Motor type: Three-phase induction motor

• Efficiency class: IE4

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 3000 RPM, 1500 RPM, and 1000 RPM

• Poles: 2 Pole, 4 Pole, and 6 Pole

• Frame size: 71 to 315

• Mounting: B3, B5, and B35

• Body: Cast iron

• Duty: S1

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Terminal box: TOP position as standard

• Ambient temperature: Up to 50°C

Special configurations can include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, forced cooling, RHS/LHS terminal-box locations, and B14 face mounting.

Where Are Innomotics IE4 Motors Used?

High-efficiency motors are particularly useful in equipment that runs for long periods or operates continuously. Typical applications include:

• Industrial fans and blowers

• Water and process pumps

• Air compressors

• Compressors

• Air-conditioning systems

• Textile machinery

• Textile processing equipment

• General industrial machinery

For example, a continuously running pump or fan can benefit from a high-efficiency motor because energy consumption becomes a significant part of the equipment's operating cost over its service life.

Industries That Use Innomotics IE4 Motors

These motors can be considered across manufacturing, textile, HVAC, process industries, pumping installations, and other sectors where reliable continuous-duty motor operation is required.

For VFD-controlled applications, selecting a suitable configuration is important. Options such as insulated bearings, forced cooling, thermistors, and VFD suitability can be considered according to the operating conditions.

Why Choose We Tech Power Solutions Ltd?

Finding the correct motor requires more than matching kW or HP. Speed, frame size, mounting, duty, ambient conditions, starting method, and driven equipment should all be considered before final selection.

Customers looking for an Siemens (Innomotics) IE4 Motors dealer in Ahmedabad can approach We Tech Power Solutions Ltd for Innomotics motor requirements. The company also supports customers searching for Siemens (Innomotics) IE4 Motors Suppliers in Gujarat, with application-oriented motor selection assistance.

For international industrial requirements, the company also caters to enquiries related to CG Crusher Duty Motors Exporters in Dubai.

Motors are covered by warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to applicable warranty conditions.

Frequently Asked Questions

1. What power range is available in Innomotics IE4 Motors?

The available range is from 0.37 kW to 200 kW, or approximately 0.5 HP to 270 HP, with different frame sizes, speeds, and mounting configurations.

2. Can Innomotics IE4 Motors be used with VFD systems?

Yes. VFD-suitable configurations are available, along with options such as insulated bearings, thermistors, and forced cooling where the application requires them.

Get the Right Innomotics IE4 Motor

Contact We Tech Power Solutions Ltd today for Innomotics IE4 Motor specifications, selection assistance, pricing, and supply support for your industrial application.
