SCHNEIDER ALTIVAR 12

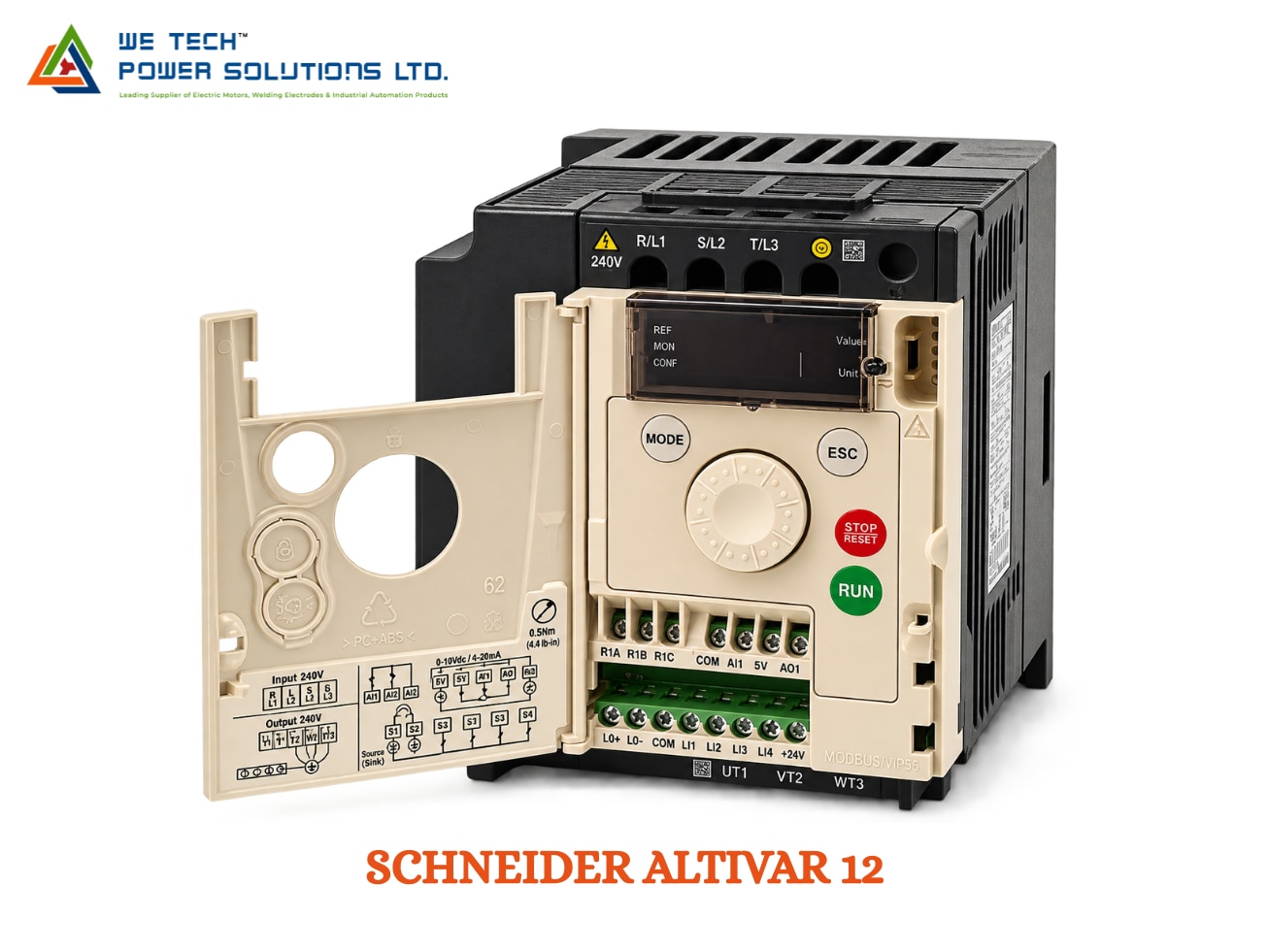

Schneider Altivar 12 AC Drive

Compact Variable Speed Control for Small Machines & Commercial Equipment

The Schneider Altivar 12 AC Drive is a compact variable speed drive designed for small machines and commercial equipment where simple, reliable and space-efficient motor control is required.

Schneider Electric currently positions Altivar 12 (ATV12) for asynchronous motors and applications requiring straightforward speed control, with the range covering 0.18 kW to 4 kW. Selected configurations are designed for 3-phase 240 V applications and can meet EMC requirements up to Class C1 for applicable residential-area environments.

We Tech Power Solutions Ltd supplies Schneider Electric automation products and Altivar drives from Ahmedabad, Gujarat, supporting OEMs, panel builders, machine manufacturers and industrial customers across India.

What Is Schneider Altivar 12?

The Altivar Machine ATV12 is intended for applications where a full-featured high-power drive is unnecessary but controlled motor speed is still important.

Its compact design and dedicated functions make it suitable for:

• Small industrial machines

• Commercial equipment

• Conveyors

• Fans and blowers

• Small pumps

• Material-handling equipment

• Packaging equipment

• Ventilation systems

• OEM machinery

Schneider describes ATV12 as a variable speed drive for commercial equipment and small machines, with dedicated application functions for simple environments.

Why Choose ATV12 for Small Machines?

Small machines often need a drive that is easy to install, configure and maintain without adding unnecessary complexity to the control panel.

ATV12 focuses on exactly these requirements.

Compact Installation

Selected ATV12 references are designed for cabinet-friendly installation, helping machine builders make better use of limited control-panel space. Schneider describes the product as an electrical-cabinet-friendly solution.

Simple Commissioning

The drive is designed as a practical plug-and-play-oriented solution for applicable small-machine applications, helping reduce commissioning effort.

Multiple Application Functions

ATV12 includes dedicated application functions for speed control, Start/Stop and PID-based applications, allowing one drive family to address different simple machine requirements.

Reduced Maintenance Requirements

Schneider highlights features intended to reduce downtime and maintenance costs, while applicable models include transient overtorque functionality.

Built-In PID for Process Regulation

One of the useful features of the ATV12 is its integrated PID functionality.

This can be useful when motor speed needs to respond automatically to a process variable such as:

• Pressure

• Flow

• Temperature

• Airflow

• Other feedback signals

Schneider lists PID, PID feedback supervision and PID predictive speed among ATV12 functions.

For example, a small pumping or ventilation system can use feedback from the process to adjust motor speed rather than operating continuously at one fixed speed.

Preset Speeds for Simple Machine Control

ATV12 also supports 8 preset speeds, which can be useful when a machine needs several predefined operating speeds.

Typical examples include:

• Low-speed operation

• Normal production speed

• High-speed operation

• Setup speed

• Cleaning speed

• Maintenance speed

• Jogging speed

The exact implementation depends on the machine's control circuit and configuration. Schneider lists 8 preset speeds and Jog functionality within the ATV12 feature set.

Useful Functions for Machine Operation

Depending on the configuration and application, ATV12 provides functions such as:

• Start/Stop control

• PID control

• PID feedback supervision

• PID predictive speed

• Jog function

• Catch on the fly

• 8 preset speeds

• Transient overtorque function

• Energy-saving operation

These functions allow the same compact drive platform to be adapted to different machine requirements.

Energy-Efficient Motor Speed Control

Running a motor continuously at full speed is not always necessary.

With variable-speed control, the motor can operate at a speed more appropriate to the machine's actual requirement. This can be particularly useful for ventilation and pumping applications.

Schneider states that applicable ATV12 configurations optimized for ventilation and pumping can provide up to 30% energy savings, depending on the application and operating conditions.

Actual savings depend on factors such as motor characteristics, load profile, operating hours and system design.

Compact Drive for Limited Panel Space

For OEM machine builders, the control cabinet is often one of the most space-sensitive parts of the machine.

ATV12's compact format can help with:

• Smaller control panels

• Easier component arrangement

• Reduced installation complexity

• Simplified machine design

• Easier drive replacement

• Standardized OEM designs

Selected ATV12 references are available in different mounting configurations, so dimensions and mounting requirements should always be checked against the exact order number.

ATV12 Voltage & Power Options

The ATV12 range covers 0.18 kW to 4 kW, with different voltage and phase configurations depending on the selected reference.

Examples include:

• ATV12H018M2 – 0.18 kW / 0.25 HP, 200–240 V, single-phase

• ATV12H075M2 – 0.75 kW / 1 HP, 200–240 V, single-phase

• ATV12HU15M2 – 1.5 kW / 2 HP, 200–240 V, single-phase

• ATV12HU22M3 – 2.2 kW / 3 HP, 200–240 V, three-phase

• ATV12HU40M3 – 4 kW / 5 HP, 200–240 V, three-phase

Schneider also lists selected ATV12 configurations for 100–120 V single-phase supplies.

EMC Considerations

EMC requirements can be important when a drive is installed close to sensitive electrical or electronic equipment.

Schneider specifically positions ATV12 for applications requiring EMC standards up to C1 in applicable residential-area environments. However, the exact EMC characteristics depend on the selected drive reference and installation arrangement.

Always verify the complete model and installation requirements when EMC compliance is part of the project specification.

Applications of Schneider Altivar 12

Small Conveyors

ATV12 can provide controlled motor speed for compact conveyor and material-transfer systems.

Fans & Blowers

Suitable for selected ventilation and air-moving applications where variable speed is required.

Small Pumping Systems

PID functionality can be useful in pump applications requiring feedback-based speed regulation.

Packaging Equipment

Can be used for small packaging machines, feeders and machine mechanisms requiring controlled motor operation.

Material Handling

Suitable for small handling equipment and machine modules where simple variable-speed control is required.

Commercial Equipment

Schneider specifically positions ATV12 for commercial equipment as well as small machines.

OEM Machinery

Its compact format and simple commissioning approach make it suitable for machine manufacturers looking for a standardized small-drive solution.

Technical Specifications at a Glance

Parameter Schneider Altivar 12

Brand Schneider Electric

Product Family Altivar 12 / ATV12

Product Type Variable Speed Drive / AC Drive

Primary Application Small machines & commercial equipment

Power Range 0.18–4 kW

Motor Type Asynchronous motors

Supply Model dependent

Common Voltage 200–240 V

Phase Single-phase / three-phase depending on model

Control Functions Speed, Start/Stop, PID and application-specific functions

Preset Speeds Up to 8

PID Integrated on applicable configurations

Jog Supported

Catch on Fly Supported

EMC Model and installation dependent; C1 capability for applicable configurations

Applications Conveyors, fans, pumps, packaging, material handling, commercial equipment

Installation Panel/machine installation according to selected model

Specifications vary by exact order number. Confirm the complete Schneider reference before purchase or replacement.

How to Select the Correct Altivar 12

Selecting the correct ATV12 should begin with the motor and application rather than only the required horsepower.

1. Check Motor Power

Provide the motor's:

• kW

• HP

• Rated current

• Rated voltage

• Frequency

• RPM

2. Check Incoming Supply

Confirm whether the available supply is:

• Single-phase

• Three-phase

• 100–120 V

• 200–240 V

The exact ATV12 model must match the available electrical supply.

3. Identify the Application

Tell us whether the drive will operate:

• Conveyor

• Fan

• Pump

• Packaging machine

• Blower

• Material-handling equipment

• Other small machinery

4. Determine Control Requirements

Check whether you need:

• Fixed speed control

• Multiple preset speeds

• PID control

• Jog operation

• Catch on the fly

• External control terminals

5. Check EMC Requirements

If the machine will operate in a sensitive electrical environment or residential-area installation, confirm the required EMC class and the exact ATV12 configuration.

6. For Replacement Applications

Provide the existing ATV12 order number whenever possible. This helps verify the correct replacement rather than selecting a drive only by kW.

Schneider Altivar 12 Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Schneider Electric Altivar 12 AC Drives for small-machine, OEM and commercial-equipment applications.

Our team can assist with:

• ATV12 model selection

• Motor-to-drive matching

• Single-phase and three-phase selection

• PID application requirements

• Replacement identification

• Drive quotation

• Automation integration requirements

• Industrial product sourcing

We support customers across Ahmedabad, Gujarat and India, with enquiry support for industrial projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric automation product sourcing

• Application-based drive selection

• VFD quotation support

• OEM machine automation assistance

• Replacement and retrofit guidance

• Motor-to-drive selection

• Ahmedabad-based industrial automation support

• Pan-India supply assistance

Frequently Asked Questions

What is Schneider Altivar 12 used for?

Altivar 12 is designed for small machines and commercial equipment requiring variable-speed control of asynchronous motors. Typical applications include small conveyors, fans, pumps and other simple machine applications.

What is the power range of Altivar 12?

Schneider Electric currently lists the Altivar 12 range from 0.18 kW to 4 kW. Different references provide different supply voltage and phase configurations.

Does ATV12 have PID control?

Yes. Schneider lists integrated PID, PID feedback supervision and PID predictive speed functions in the ATV12 range.

Can Altivar 12 be used for pumping and ventilation?

Yes. Selected ATV12 configurations are optimized for ventilation and pumping applications, and Schneider states that these applications can achieve up to 30% energy savings depending on operating conditions.

Request a Schneider Altivar 12 Quote

Looking for a Schneider Altivar 12 AC Drive in Ahmedabad, Gujarat or India?

Send your motor nameplate details, application requirements or existing drive part number to We Tech Power Solutions Ltd. Our team can help identify the suitable ATV12 configuration.
