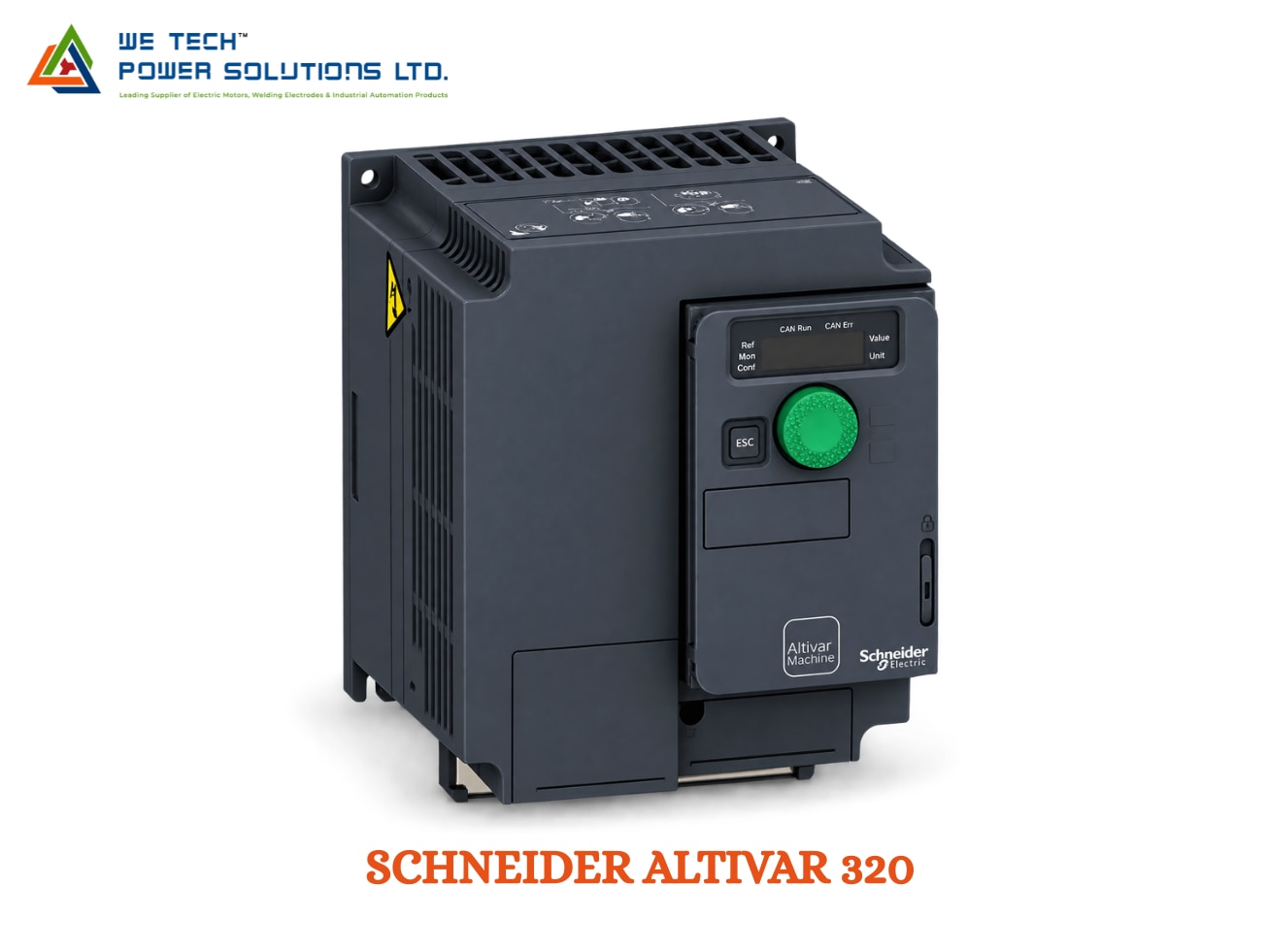

Schneider Altivar 320 AC Drive

Compact & Smart Motor Control for Industrial Machines

The Schneider Altivar 320 AC Drive is a compact variable speed drive designed for OEMs, machine builders and industrial automation applications where reliable motor control, space efficiency and flexible machine integration are important.

The Altivar Machine ATV320 range supports simple as well as advanced machine applications and is available across a broad range of power and supply configurations. Schneider's current catalog covers ATV320 products from 0.18 kW to 22 kW, including single-phase and three-phase options depending on the model.

We Tech Power Solutions Ltd supplies Schneider Electric automation products and AC drives from Ahmedabad, Gujarat, supporting OEMs, system integrators and industrial customers across India.

Why ATV320 Is Suitable for Machine Builders

Machine builders often need a drive that can fit inside a compact control panel without compromising motor-control capability.

The ATV320 addresses these requirements through:

• Compact and book-format drive options

• Advanced motor control

• Synchronous and asynchronous motor compatibility

• Integrated safety functions

• Industrial communication capabilities

• Flexible installation options

• Support for simple and advanced machines

• Reduced panel space requirements

Schneider specifically positions ATV320 as a smart variable speed drive for OEMs and machine applications.

Designed Around the Machine — Not Just the Motor

The right VFD selection depends on the complete machine architecture.

With ATV320, the drive can be incorporated into applications involving:

Machine Control

Control motor speed and acceleration as part of an automated production sequence.

Conveying Systems

Provide controlled motor operation for conveyors, feeders and material-transfer equipment.

Packaging Equipment

Support speed control for packaging, filling, wrapping and handling mechanisms.

Material Handling

Suitable for controlled movement in machine modules and automated handling equipment.

Process Equipment

Can be integrated into selected industrial equipment where variable-speed motor control is required.

OEM Machinery

Designed with machine builders in mind, particularly where compact dimensions and automation connectivity are important.

Advanced Motor Control

ATV320 is not limited to conventional asynchronous motor applications. Schneider specifies compatibility with asynchronous and synchronous motors, including IE2, IE3 and permanent-magnet motor technologies for applicable configurations.

This gives machine manufacturers greater flexibility when selecting the motor technology for their equipment.

The appropriate drive configuration should always be confirmed against:

• Motor rated current

• Motor power

• Motor voltage

• Motor technology

• Required speed range

• Load characteristics

• Overload requirement

Compact Design for Smaller Control Panels

Panel space is often a major concern in OEM machinery.

Selected ATV320 references use a compact design intended to save cabinet space. Schneider highlights the drive's compact format, while the product range also includes book-style references for applicable applications.

A compact drive can help machine builders:

• Reduce control-panel footprint

• Simplify cabinet layout

• Improve component arrangement

• Build smaller machine control systems

• Make better use of available cabinet space

The actual mounting dimensions and clearance requirements must be checked against the selected order number.

Safety Functions for Machine Automation

Machine safety is an important part of modern automation design.

Applicable ATV320 configurations include integrated safety functions. Schneider's product information highlights safety functionality within the ATV320 range.

Depending on the exact model and configuration, safety-related functions can support machine architectures requiring controlled motor stopping and other safety measures.

Safety note: The presence of safety functions in a drive does not by itself make an entire machine safety compliant. The complete safety system must be engineered, validated and maintained according to the applicable standards and risk assessment.

Connectivity for Modern Automation Systems

ATV320 can be integrated into wider machine-control architectures through its communication capabilities and optional network solutions.

Depending on the selected configuration, the drive can be integrated with:

• PLC systems

• HMI panels

• Motion controllers

• Industrial Ethernet networks

• Machine communication networks

• Remote monitoring systems

Schneider's ATV320 catalog documents communication and connectivity options alongside the drive's automation functions.

This makes ATV320 suitable for machines where the drive needs to exchange operating commands, status information, diagnostics and parameters with the main control system.

Ventilation & Pumping Applications

Although ATV320 is strongly positioned for machine automation, selected configurations are also optimized for ventilation and pumping applications.

Schneider states that applicable ATV320 references can provide up to 30% energy savings in ventilation and pumping applications, depending on the application and operating conditions.

Typical applications include:

• Industrial ventilation

• Pumping systems

• Cooling equipment

• Air-handling equipment

• Industrial utility systems

Actual energy savings depend on the motor, load profile, operating schedule and system design.

Multiple Voltage & Installation Options

The ATV320 range is available in different electrical configurations.

The current Schneider catalog covers:

• Single-phase 200–240 V configurations

• Three-phase 200–240 V configurations

• Three-phase 380–500 V configurations

• 525–600 V configurations for selected references

The range also includes compact, book and higher-protection formats depending on the application and reference.

Therefore, the complete order number is important when selecting an ATV320.

Where Is Schneider ATV320 Used?

Packaging Machines

For automated packaging equipment, feeders, conveyors and machine modules requiring controlled motor speed.

Material Handling

For conveyors, transfer systems and automated material movement.

Textile Machinery

For selected textile machines requiring variable-speed motor operation.

Printing & Converting

For machine sections where controlled motor speed and coordinated operation are required.

Food & Beverage Machinery

For pumps, conveyors, mixers and machine modules subject to the application's electrical and environmental requirements.

Assembly Machines

For automated assembly systems requiring compact drives and PLC/HMI integration.

Machine Tools

For selected machine-tool applications where variable-speed motor control is required.

OEM Equipment

ATV320 is specifically designed for OEM machine builders handling both straightforward and advanced machine applications.

Schneider Altivar 320 Technical Overview

Parameter Specification

Brand Schneider Electric

Product Family Altivar Machine ATV320

Product Type Variable Speed Drive / AC Drive

Primary Application Industrial machine automation

Power Range 0.18–22 kW

Motor Types Asynchronous and synchronous motors

Supply Model dependent

Voltage Options 200–240 V, 380–500 V and selected 525–600 V configurations

Installation Formats Compact, book and selected higher-protection versions

Motor Control Advanced motor control

Safety Integrated safety functions on applicable configurations

Communication Model/configuration dependent

Applications Packaging, conveyors, material handling, ventilation, pumping, OEM machinery

Manufacturer Schneider Electric

Specifications vary according to the exact ATV320 reference. Confirm the complete order number before purchase, replacement or quotation.

Popular ATV320 Configurations

Some Schneider ATV320 references include:

• ATV320U02M2W – 0.18 kW, 200–240 V, single-phase, enclosed

• ATV320U02M3C – 0.18 kW, 200–240 V, three-phase, compact

• ATV320U04N4C – 0.37 kW, 380–500 V, three-phase, compact

• ATV320U40N4C – 4 kW, 380–500 V, three-phase, compact

• ATV320U75M3C – 7.5 kW, 200–240 V, three-phase, compact

• ATV320D15N4C – 15 kW, 380–500 V, three-phase, compact

• ATV320D15M3C – 15 kW, 200–240 V, three-phase, compact

• ATV320D15S6C – 15 kW, 525–600 V, three-phase, compact

These are examples rather than a complete product list. Exact availability, electrical characteristics and options depend on the selected reference.

How to Select the Correct ATV320

Before ordering a Schneider ATV320, provide the following information:

Motor Details

• Motor kW / HP

• Rated voltage

• Full-load current

• Frequency

• Motor type

• Rated RPM

Machine Requirements

• Application/load type

• Required speed range

• Acceleration/deceleration requirements

• Starting torque

• Duty cycle

• Braking requirements

Electrical Requirements

• Incoming supply

• Number of phases

• Required protection

• Installation environment

Automation Requirements

• PLC make/model

• HMI requirement

• Communication protocol

• Motion-control requirement

• Safety requirements

Existing Drive Replacement

For replacement projects, provide the complete existing ATV320 order number. This helps verify power, voltage, enclosure, communication and other configuration differences.

Schneider Altivar 320 Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Schneider Electric Altivar drives for OEM, industrial automation and machine-control applications.

We can support you with:

• ATV320 model identification

• Motor-to-drive selection

• Replacement and retrofit requirements

• Drive configuration support

• Communication requirements

• Industrial automation integration

• Product quotation

• Sourcing support

We serve customers across Ahmedabad, Gujarat and India, with enquiry support for industrial projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric automation product sourcing

• Application-based VFD selection

• OEM machine automation support

• Industrial AC drive quotation assistance

• Replacement and retrofit guidance

• PLC, HMI and drive integration support

• Ahmedabad-based automation support

• Pan-India supply assistance

Frequently Asked Questions

What is Schneider Altivar 320 used for?

Schneider Altivar Machine ATV320 is designed for variable-speed control in simple and advanced machines, including applications such as packaging, material handling, conveyors and other OEM machinery. Selected configurations are also optimized for ventilation and pumping.

What is the power range of ATV320?

The current Schneider ATV320 catalog covers 0.18 kW to 22 kW, with different voltage and phase configurations available across the range.

Can ATV320 control synchronous motors?

Yes. Schneider specifies ATV320 for both synchronous and asynchronous motors, including applicable IE2, IE3 and permanent-magnet motor technologies.

Is ATV320 suitable for OEM machines?

Yes. Schneider specifically positions the Altivar Machine ATV320 for OEMs and both simple and advanced machine applications.

Get a Quote for Schneider Altivar 320 AC Drive

Looking for a Schneider Altivar 320 AC Drive in Ahmedabad, Gujarat or India?

Send your motor nameplate details, application requirements or existing drive part number to We Tech Power Solutions Ltd. Our team can help identify the suitable ATV320 configuration for your machine.
