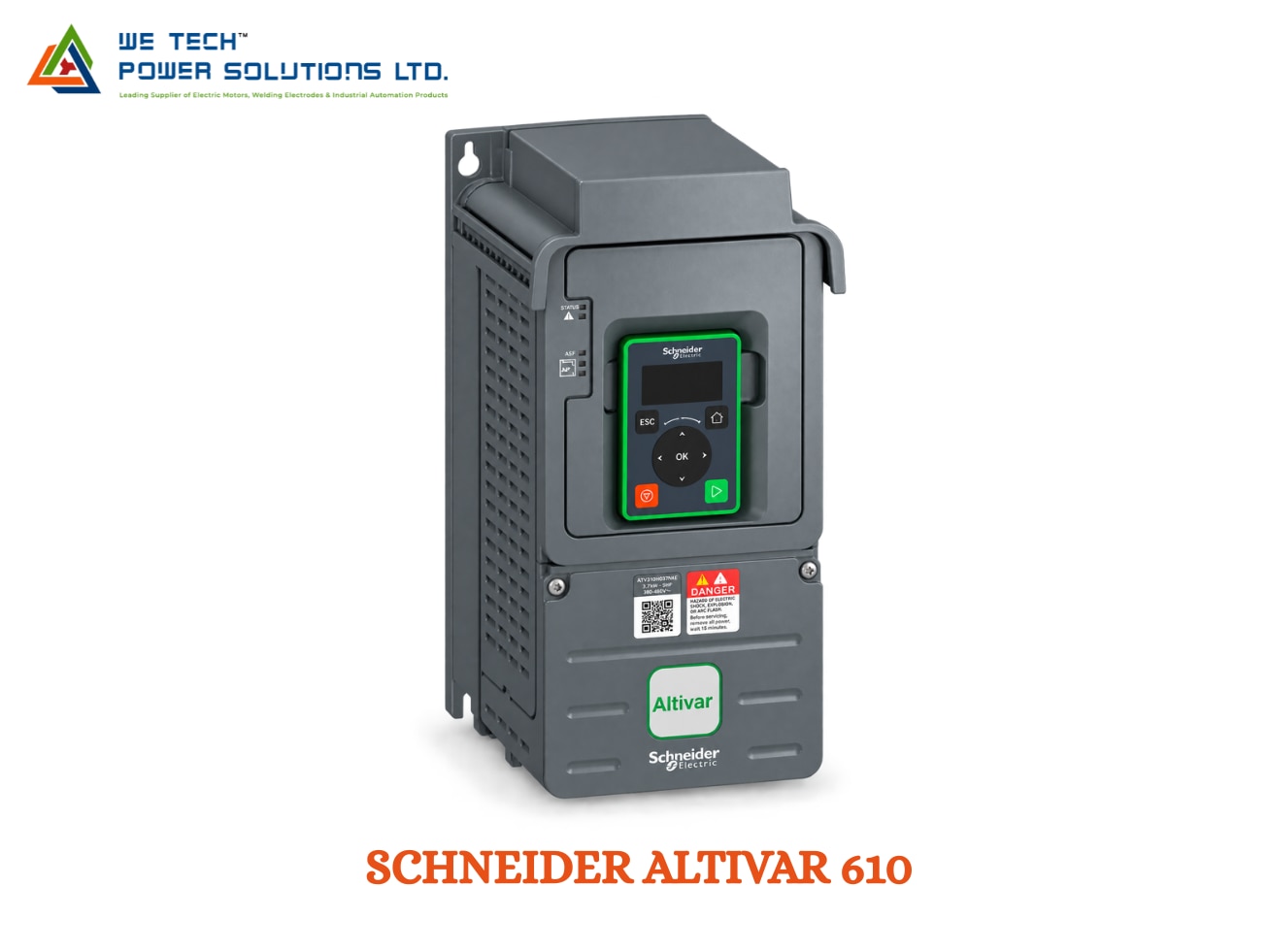

Schneider Altivar 610 AC Drive

Easy Altivar 610 for Efficient Pump & Fan Motor Control

The Schneider Altivar 610 AC Drive is a variable speed drive designed primarily for controlling three-phase motors used in pumps and fans. It is part of Schneider Electric's Easy Altivar range and is particularly suited to applications in water and wastewater, oil & gas, building management and energy plants. Schneider currently lists the Easy Altivar 610 range for power ratings from 0.75 kW to 315 kW, with IP20 frequency-inverter configurations.

We Tech Power Solutions Ltd supplies Schneider automation and drive solutions for industrial applications across Ahmedabad, Gujarat and India, with selection and quotation support based on the required motor rating, supply voltage, duty and application.

Why Choose the Altivar 610 for Pump & Fan Applications?

Pump and fan systems frequently operate under changing flow, pressure or ventilation requirements. Running a motor continuously at full speed can result in unnecessary energy consumption. A variable speed drive allows the motor speed to be adjusted according to the operating requirement.

The Altivar 610 is specifically developed around these types of applications, making it suitable for:

• Water pumping systems

• Wastewater treatment equipment

• Industrial ventilation

• Cooling and circulation systems

• Building HVAC-related applications

• Process pumps

• Industrial fans

• Compressors and selected process equipment

Schneider's 2026 ATV610 catalog also covers pump and fan applications involving synchronous and asynchronous motors, with Normal Duty and Heavy Duty operating configurations depending on the selected reference.

Built for Straightforward Industrial Installation

The ATV610 range focuses on practical installation and integration. Schneider product references highlight a compact design, quick installation, a user-friendly graphic display terminal, enclosure-door integration and colour-coded control terminals intended to reduce wiring mistakes.

This makes the drive suitable for OEM panels, pump control panels and industrial electrical cabinets where space and installation time are important considerations.

Power Ratings for Different Motor Requirements

The Easy Altivar 610 range covers a broad motor-power range. Depending on the exact reference, Schneider lists models from 0.75 kW up to 315 kW in the current India range.

Examples include:

• ATV610U07N4 – 0.75 kW / 1 HP

• ATV610U15N4 – 1.5 kW / 2 HP

• ATV610U40N4 – 4 kW / 5 HP

• ATV610U55N4 – 5.5 kW / 7.5 HP

• ATV610U75N4 – 7.5 kW / 10 HP

• ATV610D11N4 – 11 kW / 15 HP

• ATV610D15N4 – 15 kW / 20 HP

• ATV610D22N4 – 22 kW / 30 HP

• ATV610D30N4 – 30 kW / 40 HP

• ATV610C11N4 – 110 kW / 150 HP

• ATV610C22N4 – 220 kW / 350 HP

• ATV610C31N4 – 315 kW

The exact electrical characteristics, enclosure type and duty rating depend on the selected order number.

Normal Duty & Heavy Duty Selection

One important consideration when selecting an Altivar 610 VFD is the motor's actual operating duty.

The ATV610 catalog provides both Normal Duty (ND) and Heavy Duty (HD) configurations for applicable references. For example, the ATV610D22N4 is rated for 22 kW / 30 HP under Normal Duty and 18.5 kW / 25 HP under Heavy Duty.

Therefore, selecting a drive only by the motor's kW value may not always be sufficient. The load profile, starting requirements and required overload capability should also be considered.

Communication & Automation Integration

The Altivar 610 can be incorporated into industrial control architectures through its communication capabilities. Schneider documentation provides ATV610-specific Modbus documentation, while Schneider's ATV600 communication guidance covers serial communication and available optional communication modules for wider industrial networks.

Depending on the exact configuration, communication and networking requirements may include:

• Modbus communication

• Industrial HMI connection

• PLC-based drive control

• Drive monitoring and parameter access

• Optional fieldbus communication

• Remote configuration and diagnostics

Always verify the exact communication module and compatibility before placing an order.

Where Is Schneider Altivar 610 Used?

Water & Wastewater

Suitable for pump applications used in water distribution, treatment and wastewater systems where motor speed needs to follow changing process requirements.

Building Management

Can be used for pumps, ventilation and other motor-driven systems within building infrastructure.

Oil & Gas

Applicable to selected pump and fan requirements in oil & gas environments, subject to the site's electrical, environmental and certification requirements.

Energy Plants

Suitable for auxiliary pumping, ventilation and related motor-control applications.

Industrial Manufacturing

Can be integrated into production equipment, utility systems and process-support machinery where variable-speed motor control is required.

Schneider specifically identifies water & wastewater, oil & gas, building management and energy plants as target segments for Easy Altivar 610.

Technical Specifications at a Glance

Parameter Altivar 610

Brand Schneider Electric

Product Family Easy Altivar 610

Product Type Variable Speed Drive / AC Drive

Primary Applications Pumps and fans

Motor Type Three-phase asynchronous motors; applicable configurations also support synchronous motors

Power Range 0.75 to 315 kW in Schneider India's Easy Altivar 610 range

Typical Supply 380–460 V three-phase for common N4 references

Protection IP20 for standard range; exact enclosure varies by reference

Duty Normal Duty / Heavy Duty depending on model

Display User-friendly graphic display terminal

Communication Model/configuration dependent

Mounting Cabinet/panel installation depending on reference

Applications Pumps, fans, water systems, wastewater, building management, energy plants

Engineering/Setup Drive parameterisation and commissioning according to Schneider documentation

Specifications vary by order number. Confirm the complete reference before purchase or replacement.

How to Select the Correct ATV610 Model

Before requesting a quotation, keep these details ready:

1. Motor Power

Provide the motor kW or HP rating.

2. Motor Voltage

Confirm the motor's rated voltage and available incoming supply.

3. Motor Current

The motor nameplate current is important for correct drive sizing.

4. Duty Requirement

Identify whether the application requires Normal Duty or Heavy Duty operation.

5. Application

Specify whether the drive will operate a pump, fan, compressor or another type of load.

6. Environment

Check ambient temperature, cabinet conditions, humidity, dust and installation location.

7. Communication

Mention whether the drive must communicate with a PLC, HMI, SCADA or building-management system.

8. Exact Order Number

For replacement applications, provide the existing ATV610 reference so compatibility can be checked.

Schneider's current documentation also recommends following the installation requirements for mounting position, cooling clearance and environmental conditions.

Schneider Altivar 610 Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd provides Schneider Electric automation products and AC drive solutions for customers in Ahmedabad, Gujarat and across India.

We can assist with:

• Schneider Altivar 610 model selection

• Motor and drive rating verification

• Replacement and retrofit requirements

• Communication and integration requirements

• Drive accessories and installation requirements

• Product quotation and availability

• Industrial automation application support

For projects outside India, enquiries can also be supported for customers in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain, subject to product configuration and supply requirements.

Why Work With We Tech Power Solutions Ltd?

• Industrial automation product sourcing

• Application-based product selection

• Schneider drive quotation support

• Replacement and retrofit assistance

• Support for OEM and industrial projects

• Supply support from Ahmedabad, Gujarat

• Pan-India customer support

Frequently Asked Questions

What is Schneider Altivar 610 used for?

The Easy Altivar 610 is primarily designed for variable-speed control of motors used in pump and fan applications, particularly in water and wastewater, oil & gas, building management and energy-plant applications.

What is the power range of Altivar 610?

Schneider Electric India currently lists the Easy Altivar 610 range from 0.75 kW to 315 kW. The exact available rating depends on the product reference and electrical configuration.

Is ATV610 suitable for both Normal Duty and Heavy Duty applications?

Applicable ATV610 configurations provide Normal Duty and Heavy Duty ratings. The motor power rating can differ between these duty classes, so the actual load and operating conditions should be checked before selection.

What information is required to select an Altivar 610?

Motor kW/HP, voltage, current, duty requirement, application type, incoming supply, environmental conditions and communication requirements are useful for selecting the correct ATV610 reference.
