SCHNEIDER ALTIVAR 930

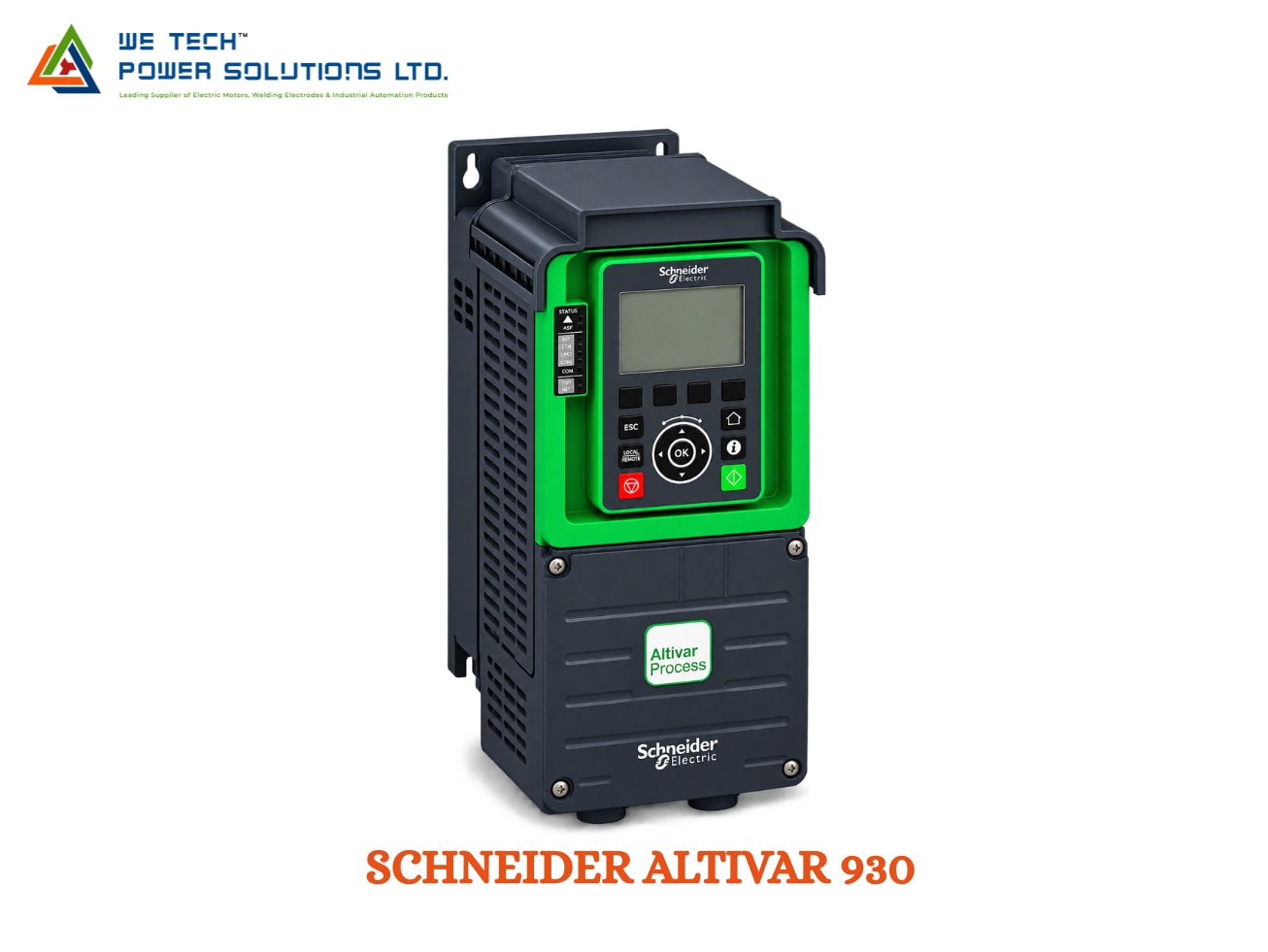

Schneider Altivar 930 AC Drive

Schneider Altivar 930 AC Drive for High-Performance Motor & Process Control

Industrial motor applications often require precise speed control, reliable torque performance, energy visibility and seamless integration with automation systems. The Schneider Altivar 930 AC Drive is part of the Altivar Process ATV900 family, developed for demanding industrial applications where motor control and process performance need to work together.

Schneider's ATV930 range covers a broad selection of power and voltage configurations. Depending on the model, the drive can provide embedded power measurement, energy monitoring, process monitoring, asset protection, diagnostics and industrial communication capabilities.

We Tech Power Solutions Ltd supplies Schneider Electric Altivar drives for OEMs, machine builders, system integrators, panel builders and industrial users across Ahmedabad, Gujarat, India and Gulf markets.

What Is Schneider Altivar 930?

The Altivar 930 (ATV930) is an industrial variable speed drive designed to control asynchronous and synchronous motors in demanding applications.

It is more than a basic motor-speed controller. The ATV930 can become part of the wider automation architecture by providing motor control, process information, diagnostics and communication with PLCs, SCADA systems and other industrial equipment.

Depending on the selected configuration, applications can benefit from:

• Variable motor-speed control

• Controlled acceleration and deceleration

• Process monitoring

• Energy measurement

• Asset monitoring

• Equipment protection

• Drive diagnostics

• Communication with automation systems

• Application-specific control functions

• Maintenance information

Designed for Demanding Industrial Applications

Schneider positions the Altivar Process ATV900 family for demanding applications, with the range covering approximately 0.75 kW to 800 kW.

Within this family, ATV930 configurations are available across different voltage and power classes.

Examples include:

• 0.75 kW, 200–240 V

• 1.5 kW, 200–240 V

• 1.5 kW, 400–480 V

• 3 kW, 200–240 V

• 2.2 kW, 500–690 V

• 90 kW, 400–480 V

• 132 kW, 380–480 V

• 250 kW, 400–480 V

These examples demonstrate the breadth of the ATV930 family; the exact available rating depends on the model, voltage class and configuration.

Motor Control Meets Process Information

A conventional drive primarily focuses on controlling motor speed and torque. The Altivar 930 adds process-oriented capabilities that can provide operators and maintenance teams with more information about the motor-driven equipment.

Energy Measurement

Applicable ATV930 models provide embedded power measurement and an energy dashboard.

This can provide visibility into electrical consumption and help users analyse motor-driven equipment.

Process Monitoring

Schneider identifies embedded process monitoring and control as a feature of applicable ATV930 products.

This makes the drive relevant for applications where motor behaviour is directly connected to process performance.

Asset Monitoring

ATV930 models also include functions for asset monitoring and protection, helping users monitor the operation of connected equipment.

Drift Monitoring

Applicable configurations provide drift-monitoring functions that can support maintenance and process supervision.

Stop & Go Function for Energy-Conscious Operation

Selected ATV930 configurations include a Stop and Go function designed to reduce energy consumption when the motor does not need to remain continuously active.

This can be useful in processes where equipment operation changes according to production demand or process conditions.

The actual energy-saving result depends on the application, load profile, motor, operating cycle and control strategy.

Communication with Industrial Automation Systems

The Altivar 930 can be integrated into industrial automation networks through built-in communication interfaces and optional communication modules.

A referenced ATV930D90N4 configuration supports:

• Ethernet/IP

• Modbus Serial

• Modbus TCP

Optional communication modules can support architectures involving:

• PROFINET

• PROFIBUS DP

• EtherCAT

• DeviceNet

• CANopen

• Ethernet Powerlink

Additional I/O and encoder modules are also available for supported configurations.

This enables the drive to exchange operating information with:

• PLCs

• HMIs

• SCADA systems

• Industrial controllers

• Process-control systems

• Remote monitoring platforms

The exact communication capability depends on the selected drive and option modules.

Useful for Schneider PLC-Based Automation

The ATV930 can be integrated into automation systems where the PLC manages the overall process and the drive handles motor control.

A typical architecture may include:

PLC → Industrial Network → Altivar 930 → Motor

The PLC can manage process logic while the ATV930 provides controlled motor operation and returns drive/process information to the automation system.

This approach can be useful for:

• Pumping systems

• Fans and blowers

• Compressors

• Conveyors

• Process machinery

• Industrial production equipment

Built-In DC Choke

Schneider states that Altivar Process drives come standard with DC chokes. For 400/480 V ATV...N4 configurations, the standard DC-choke arrangement depends on the frame size.

This is an important consideration when planning the incoming power arrangement.

However, the complete electrical installation should still be designed according to Schneider's installation documentation and the specific drive model.

Braking Unit on Applicable Configurations

Braking requirements vary according to the machine and load.

Some ATV930 configurations include a braking unit. For example, Schneider lists the ATV930D90N4 as a 90 kW, 400–480 V drive with a braking unit and IP21 enclosure.

Braking selection should consider:

• Motor power

• Load inertia

• Required stopping time

• Acceleration/deceleration cycle

• Regenerative energy

• Mechanical load characteristics

Do not assume that every ATV930 reference includes the same braking arrangement.

Applications of Altivar 930 AC Drive

Pumps

ATV930 can be used in industrial pumping applications where controlled motor speed and process monitoring are required.

Typical applications include:

• Industrial water pumps

• Process pumps

• Circulation systems

• Utility pumping

• Water-transfer equipment

Fans & Blowers

Variable-speed operation can help match motor operation with process demand.

Applications include:

• Industrial ventilation

• Cooling systems

• Process fans

• Air-handling equipment

Compressors

ATV930 can be specified for compressor applications when the motor, load profile and drive rating are correctly matched.

Conveyors

The drive can provide controlled acceleration, deceleration and speed regulation for conveyor systems.

Process Machinery

The combination of motor control, process information and communication makes ATV930 suitable for selected process-equipment applications.

________________________________________

Industries Using Schneider Altivar 930

Manufacturing

For production equipment, conveyors, pumps, fans and other motor-driven machinery.

Water & Wastewater

For pumping, water movement and treatment-related equipment.

Chemical & Process Industries

For pumps, fans, compressors and other process-driven machinery.

Food & Beverage

For motor-driven process and material-handling equipment where the selected drive configuration meets site requirements.

Mining & Heavy Industry

For demanding motor applications requiring controlled operation and industrial communication.

Oil & Gas

For applicable industrial motor-control applications, subject to the project's environmental and certification requirements.

Infrastructure & Utilities

For pumping, ventilation and other industrial utility equipment.

________________________________________

Altivar 930 Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Altivar Process ATV900

Product Altivar 930 / ATV930

Product Type Industrial AC Variable Speed Drive

Motor Type Asynchronous and synchronous motors on supported configurations

Power Range Multiple configurations within ATV900 family

Example Voltage Classes 200–240 V, 380–480 V, 400–480 V, 500–690 V

Example ATV930 Ratings 0.75 kW to 250 kW+ references

Energy Monitoring Embedded power measurement on applicable models

Process Functions Embedded process monitoring and control

Asset Functions Asset monitoring and protection

Diagnostics Model/configuration dependent

Braking Available/integrated on selected references

DC Choke Standard on Altivar Process drives according to configuration

Communication Ethernet/IP, Modbus TCP/Serial and optional network modules

Mounting Model dependent

Enclosure IP00/IP21 and other configurations depending on reference

Applications Pumps, fans, compressors, conveyors and process machinery

Technical specifications vary by exact ATV930 order number. Always confirm the motor rating, input voltage, continuous current, overload duty, enclosure, braking arrangement and communication options before purchasing.

________________________________________

Example ATV930 Configurations

ATV930U07N4

• 0.75 kW

• 400–480 V

• Braking unit

• IP21

• Altivar Process ATV900 family

Schneider lists embedded power measurement, process monitoring, asset monitoring and other process-oriented functions for this configuration.

ATV930D90N4

• 90 kW

• 400–480 V

• Braking unit

• IP21

• Industrial process application

Schneider lists Ethernet/IP, Modbus TCP and Modbus Serial communication on the referenced configuration, with optional communication modules available.

ATV930C13N4

• 132 kW

• 380–480 V

• Braking unit

• IP20

This configuration is intended for higher-power industrial motor-control applications.

ATV930C25N4C

• 250 kW

• 400–480 V

• IP00

• Without braking unit

The C suffix is important because Schneider identifies this configuration as being supplied without a braking unit.

________________________________________

How to Select the Correct ATV930 Drive

Choosing an Altivar 930 should start with the motor and application data.

Motor Information

Provide:

• Motor power

• Rated voltage

• Full-load current

• Frequency

• Rated speed

• Motor type

• Power factor where required

Application Information

Identify whether the application is:

• Pump

• Fan

• Compressor

• Conveyor

• Hoist

• Process machine

• High-inertia equipment

• Other industrial load

Duty Requirement

Check whether the drive requires:

• Normal duty

• Heavy duty

• High starting torque

• Frequent acceleration

• Frequent braking

• Continuous operation

Electrical Supply

Confirm:

• Input voltage

• Number of phases

• Frequency

• Available short-circuit level

• Power-system arrangement

Communication

Identify whether the system needs:

• Modbus TCP

• Modbus Serial

• Ethernet/IP

• PROFINET

• PROFIBUS

• EtherCAT

• CANopen

• Other supported networks

Environment

Consider:

• Ambient temperature

• Dust

• Humidity

• Vibration

• Installation altitude

• Required enclosure protection

Exact Order Number

Always select the complete ATV930 order number rather than specifying only “Altivar 930.”

Altivar 930 for Retrofit & Replacement Projects

Replacing an existing AC drive requires checking both electrical and application compatibility.

Before selecting a replacement, collect:

• Existing drive model

• Motor nameplate

• Input voltage

• Motor current

• Motor power

• Application/load type

• Existing communication network

• Braking arrangement

• Enclosure requirement

• Control-panel dimensions

• PLC/HMI integration details

For Schneider drive replacement projects, parameters and communication settings should be reviewed rather than copied blindly from the old installation.

We Tech Power Solutions Ltd can assist with identifying an appropriate ATV930 configuration from the existing drive and motor information.

Maintenance & Diagnostics

Drive maintenance should consider the complete motor-drive installation.

Recommended checks include:

• Cooling airflow

• Electrical terminals

• Motor cables

• Drive alarms

• Operating temperature

• Motor current

• Load behaviour

• Communication status

• Environmental conditions

• Drive fault history

Selected ATV930 references provide dynamic QR-code access for maintenance support, which can help technicians access relevant product information.

Always follow Schneider Electric's installation, commissioning and maintenance instructions for the exact drive reference.

Schneider Altivar 930 AC Drive Supplier in Ahmedabad, Gujarat & India

Looking for a Schneider Altivar 930 AC Drive supplier in Ahmedabad?

We Tech Power Solutions Ltd supplies Schneider Electric industrial automation products and supports customers with AC drive selection for machine and process applications.

We can assist with:

• ATV930 model identification

• Motor-drive selection

• Power-rating selection

• Braking requirements

• Communication options

• Drive replacement

• PLC-drive integration

• Industrial automation sourcing

• Product quotation

We support industrial automation enquiries across:

Ahmedabad | Gujarat | India | UAE | Dubai | Abu Dhabi | Saudi Arabia | Qatar | Oman | Kuwait | Bahrain

Why Choose We Tech Power Solutions Ltd?

An industrial AC drive should be selected according to the motor, load, process and electrical system.

We Tech Power Solutions Ltd can help evaluate:

• Motor nameplate information

• Application type

• Required drive rating

• Input supply

• Duty requirement

• Braking requirement

• Communication network

• Environmental conditions

• Existing drive model

• Replacement requirements

For a faster product enquiry, share the existing drive model or motor nameplate details.

Frequently Asked Questions

1. What is Schneider Altivar 930 AC Drive?

Schneider Altivar 930 is an industrial variable speed drive in the Altivar Process ATV900 family. It is designed for demanding motor-control and process applications with features such as energy measurement, process monitoring and asset protection on applicable configurations.

2. What is the power range of Altivar 930?

ATV930 is available in multiple power and voltage configurations. Schneider's current references include models from sub-kilowatt ratings through high-power configurations such as 132 kW and 250 kW.

3. Does Altivar 930 support Ethernet communication?

Yes. Depending on the model and installed options, ATV930 can support Ethernet/IP, Modbus TCP and other industrial communication networks. Schneider also lists optional modules for PROFINET, PROFIBUS, EtherCAT, CANopen and other networks.

4. Does Altivar 930 have a braking unit?

Some ATV930 references include a braking unit, while others are supplied without one. For example, ATV930D90N4 includes a braking unit, while ATV930C25N4C is specifically listed without a braking unit.

5. Does Altivar 930 provide energy monitoring?

Applicable ATV930 configurations provide embedded power measurement and an energy dashboard. The available functions should be confirmed against the exact product reference.

Get Schneider Altivar 930 AC Drive for Your Automation Project

Need a Schneider Altivar 930 AC Drive in Ahmedabad, Gujarat or India?

Share your motor kW/HP, voltage, rated current, application, duty requirement, braking requirement, communication protocol and existing drive model with We Tech Power Solutions Ltd.

Our team can help identify the appropriate ATV930 configuration for your industrial motor-control or process-automation requirement.

Contact We Tech Power Solutions Ltd for Schneider Altivar 930 product selection and quotation support.
