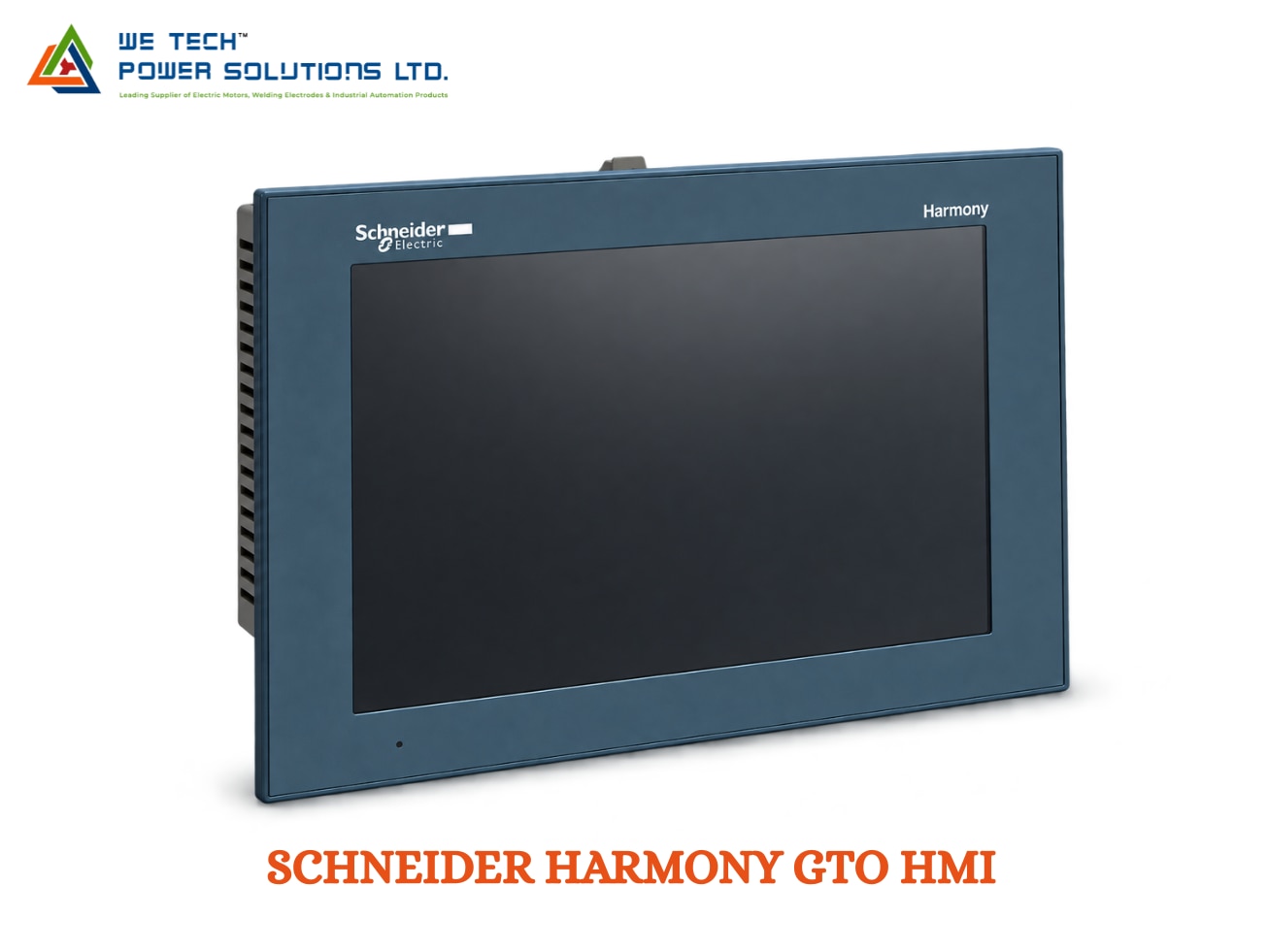

SCHNEIDER HARMONY GTO HMI

Schneider Harmony GTO HMI

Schneider Harmony GTO HMI for Practical Machine Monitoring & Operator Control

A reliable HMI should make machine operation simple for the operator while providing clear access to process information, alarms, settings and control functions. The Schneider Harmony GTO HMI is a touchscreen operator-panel range designed for machine automation and industrial visualization.

Previously associated with the Magelis GTO name, Harmony GTO provides standard and stainless-steel HMI panels with screen sizes ranging from 3.5 inches to 12.1 inches. The range is designed for use with Vijeo Designerconfiguration software.

We Tech Power Solutions Ltd supplies Schneider Electric HMI and automation products for OEMs, machine builders, panel manufacturers and industrial users across Ahmedabad, Gujarat, India and Gulf markets.

What Is Schneider Harmony GTO HMI?

Harmony GTO is a family of industrial touchscreen HMIs used to create an operator interface between a machine and the person operating it.

Instead of relying on separate control indicators, switches and meters, the HMI can bring important machine information onto configurable graphical screens.

Operators can use the interface to:

• Start and stop machine functions

• View operating conditions

• Monitor alarms

• Change machine parameters

• Display production information

• Navigate different process screens

• View trends and status information

• Manage recipes on supported configurations

• Diagnose machine conditions

The exact capabilities depend on the selected GTO model and its configuration.

A Straightforward HMI Solution for Machine Builders

Harmony GTO is particularly relevant when the application requires a standard touchscreen HMI without the additional modular architecture of the Harmony GTU range.

This makes the GTO family suitable for:

Compact Machines

Choose smaller display configurations where panel space is limited.

Production Equipment

Use larger touchscreen models when operators need more information on a single screen.

OEM Machines

Integrate a configurable operator panel into specialized machinery.

Industrial Control Panels

Provide operators with a centralized interface for machine settings, status and alarms.

Choose the Display According to the Machine

One of the practical advantages of the Harmony GTO family is its range of display sizes.

Schneider's current GTO documentation covers touchscreen panels from 3.5' through 12.1'.

3.5-Inch Models

Compact HMIs for machines where space is restricted and only essential information needs to be displayed.

Examples include:

• HMIGTO1300

• HMIGTO1310

The HMIGTO1310 provides Ethernet communication, while HMIGTO1300 is a non-Ethernet configuration.

5.7-Inch Models

A practical middle-size option for machine operation, including references such as:

• HMIGTO2300

• HMIGTO2310

• HMIGTO2315

The exact communication and feature set varies by reference.

Larger GTO Panels

Larger configurations are available for applications requiring more detailed visualization, dashboards, process graphics and operator information.

The range extends up to 12.1 inches, depending on the selected model.

Touchscreen Interface for Everyday Machine Operation

Harmony GTO provides a graphical touchscreen interface where the HMI project determines the operator screens and functions.

Typical screen elements can include:

• Push buttons

• Numeric input fields

• Status indicators

• Alarm displays

• Bar graphs

• Trend curves

• Recipe screens

• Navigation menus

• Machine diagnostics

• Production counters

This allows machine builders to organize information according to the actual operating sequence rather than relying on a fixed hardware layout.

Communication with PLCs and Automation Equipment

The HMI becomes more useful when it can exchange information with the machine controller.

Depending on the selected Harmony GTO model, communication options include:

• Ethernet TCP/IP

• Serial communication

• USB

• Schneider Electric protocols

• Third-party PLC communication through supported drivers

Schneider's GTO catalog includes communication and compatibility information for Modicon controllers and other automation equipment.

Vijeo Designer also supports communication between Harmony/Magelis HMIs and PLCs through Schneider Electric and third-party protocols.

Vijeo Designer for HMI Configuration

Vijeo Designer is Schneider Electric's classic HMI configuration software and is compatible with Harmony and Magelis HMI families.

For Harmony GTO, Vijeo Designer can be used to create and configure:

• HMI screens

• Buttons and graphical objects

• PLC variables

• Alarms

• Trends

• Recipes

• Scripts

• Communication settings

• User-interface navigation

Schneider's HMIGTO user manual specifically documents the use of HMIGTO panels with Vijeo Designer.

Important Software Compatibility Check

For GTO replacement or retrofit work, do not select the HMI only by screen size.

Schneider notes that newer HMIGTO hardware revisions require specific Vijeo Designer versions. For example, HMIGTO units marked SV4.0 or later require Vijeo Designer 6.2 SP12 or newer, while units marked SV5.0 or later require Vijeo Designer 6.3 or newer.

Therefore, before replacing an existing GTO panel, verify:

• Complete HMI part number

• Hardware/software version

• Existing Vijeo Designer project

• PLC communication driver

• Firmware requirements

• Required accessories

Standard & Stainless-Steel Options

The Harmony GTO family includes standard and stainless-steel HMI panels.

The stainless-steel versions can be considered for applications where the panel construction and installation environment require a different enclosure material.

Potential application areas include:

• Food processing equipment

• Packaging machinery

• Production machines

• Industrial equipment

• OEM machinery

• Process-related equipment

The suitability of a particular model should always be checked against the required environmental conditions, certifications and installation requirements.

Where Can Harmony GTO HMI Be Used?

Harmony GTO can be integrated into many machine-level automation applications.

Machine Automation

Monitor machine status, operating parameters, alarms and control commands from one touchscreen interface.

Packaging Machinery

Display recipes, production settings, machine status, counters and alarm information.

Assembly Equipment

Provide operators with step-by-step machine controls, status information and diagnostics.

Material Handling

Monitor conveyor systems, transfer equipment and machine conditions.

Food & Beverage Machinery

Use suitable GTO configurations for operator visualization and machine control where environmental requirements are met.

Pump & Utility Equipment

Display operating values, alarms and equipment status for selected automation systems.

________________________________________

Industries & Applications

Harmony GTO can be considered for:

• Manufacturing

• Packaging

• Food & Beverage

• Material Handling

• Assembly

• Machine Building

• Industrial Equipment

• OEM Automation

• Process Equipment

• Utility Systems

________________________________________

Technical Overview of Schneider Harmony GTO

Parameter Details

Brand Schneider Electric

Product Family Harmony GTO

Former / Related Name Magelis GTO

Product Type Industrial Touchscreen HMI

Display Range 3.5' to 12.1'

Display Colour TFT LCD, model dependent

Interface Touchscreen

Communication Ethernet / Serial / USB, model dependent

Configuration Software Vijeo Designer

PLC Connectivity Schneider and supported third-party protocols

Construction Standard and stainless-steel versions

Application Machine operation, monitoring and visualization

Typical Users OEMs, machine builders, panel builders and industrial plants

Exact resolution, memory, ports, power requirements, protection rating and communication features vary by model. Always confirm the complete Schneider order number before purchase.

Popular Harmony GTO References

HMIGTO1310

A compact 3.5-inch touchscreen HMI with Ethernet communication, suitable for applications requiring a small operator interface and network connectivity.

HMIGTO2310

A 5.7-inch touchscreen HMI with Ethernet communication, providing a larger operator interface for machine-level visualization.

HMIGTO5310

A larger GTO configuration within the Harmony range, intended for applications requiring additional display area for machine visualization and operator controls. Schneider's GTO catalog includes this reference among the range.

Note: Availability and lifecycle status can vary by exact reference and market. Confirm the current order number before quotation.

Harmony GTO for HMI Replacement Projects

Harmony GTO can also be relevant when replacing older Schneider operator panels.

Schneider provides substitution information for previous HMI families, and the GTO range can be considered for certain older Magelis/XBT and Harmony HMI replacement situations.

Before replacing an existing HMI, compare:

Existing HMI

→ Model number

→ Screen size

→ Panel cut-out

→ PLC protocol

→ Communication ports

→ Vijeo Designer project

→ Firmware/software version

Replacement HMI

→ New model number

→ Display dimensions

→ Mounting requirements

→ Communication compatibility

→ Software compatibility

→ Project migration requirements

This helps reduce unexpected changes during machine upgrades.

How to Select the Right Harmony GTO HMI

Step 1 — Identify the Screen Requirement

Determine whether a 3.5', 5.7', 7.5', 10.4', 12.1' or another supported configuration is appropriate for the machine.

Step 2 — Check Communication

Confirm whether the application requires Ethernet, serial communication, USB or another supported interface.

Step 3 — Check PLC Compatibility

Identify the PLC brand, model and communication protocol before selecting the HMI.

Step 4 — Review Software

Confirm the compatible Vijeo Designer version, particularly for newer HMIGTO hardware revisions.

Step 5 — Verify Installation

Check panel cut-out, mounting arrangement, power supply and environmental requirements.

Step 6 — Confirm the Exact Part Number

Do not order only by the term “Harmony GTO.” The complete order number determines the actual display, communication interfaces and specifications.

Schneider Harmony GTO HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Schneider Electric Harmony HMI products for industrial automation applications.

We support enquiries from:

• Ahmedabad

• Gujarat

• India

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

Our team can assist with HMI identification, product selection, PLC-HMI compatibility and replacement requirements.

Why Choose We Tech Power Solutions Ltd?

Choosing the correct HMI requires more than matching a display size.

We Tech Power Solutions Ltd can help you evaluate:

• Application requirements

• Display size

• PLC compatibility

• Communication protocol

• Existing HMI model

• Software compatibility

• Replacement requirements

• Panel installation requirements

You can share your existing HMI part number or machine details for product-selection assistance.

Frequently Asked Questions

1. What is Schneider Harmony GTO HMI?

Harmony GTO is a Schneider Electric industrial touchscreen HMI family designed for machine visualization and operator control. The range includes standard and stainless-steel panels from 3.5' to 12.1'.

2. Which software is used for Harmony GTO?

Harmony GTO panels are designed to operate with Vijeo Designer. Schneider identifies Vijeo Designer as classic HMI configuration software compatible with Harmony and Magelis HMI products.

3. Does Harmony GTO support Ethernet?

Selected GTO models support Ethernet communication. For example, Schneider identifies HMIGTO1310 and HMIGTO2310 as Ethernet-equipped alternatives within the GTO range.

4. Can an older HMI project be used with a new Harmony GTO?

It may be possible depending on the original HMI, project version and replacement model. Hardware/software compatibility must be checked, and newer GTO hardware revisions may require newer Vijeo Designer versions.
