Schneider Harmony GTU HMI

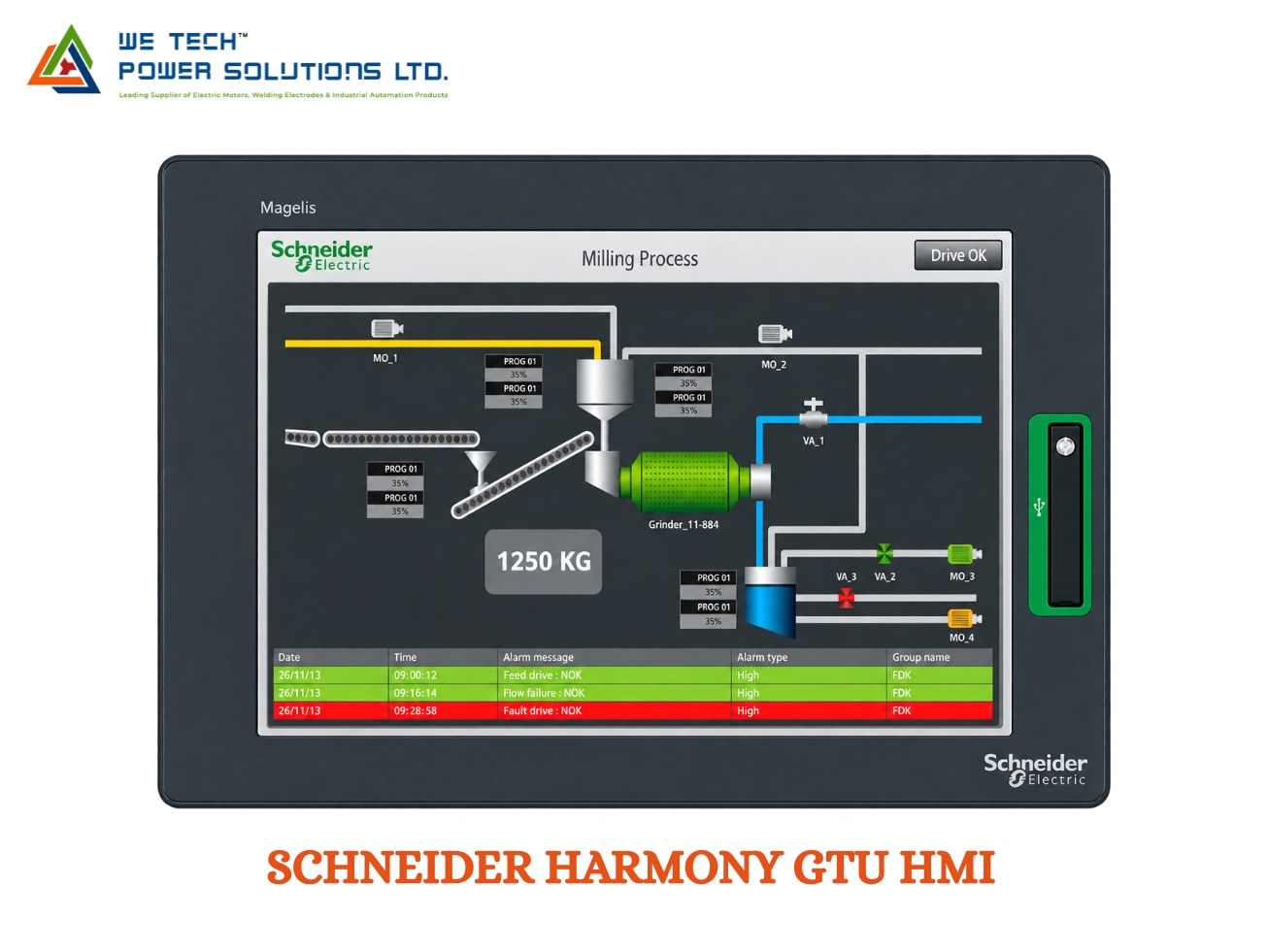

Schneider Harmony GTU HMI for Advanced Machine Visualization & Industrial Control

Modern machines need more than a basic operator screen. Operators need clear process information, responsive controls, alarm visibility and reliable communication with PLCs, drives and other automation devices.

The Schneider Harmony GTU HMI is a high-performance modular touchscreen HMI designed for industrial machine and system automation. Formerly known as Magelis GTU, the Harmony GTU range combines different display modules with processing/box modules, allowing the HMI configuration to be selected according to the application's performance and communication requirements.

We Tech Power Solutions Ltd supplies Schneider Electric Harmony HMI solutions for machine builders, OEMs, panel builders and industrial users across Ahmedabad, Gujarat, India and selected Gulf markets.

What Makes Harmony GTU Different?

The main advantage of Harmony GTU is its modular architecture.

Instead of being limited to one fixed HMI configuration, users can select a compatible display and box module according to the required application. Schneider describes the range as offering flexibility in combining CPU/box modules with different display options.

This approach can be useful when:

• A machine requires a larger display

• Processing requirements differ between applications

• Communication interfaces need to be expanded

• An existing HMI configuration needs upgrading

• Different machines require different screen sizes

• Future maintenance and replacement flexibility are important

A Modular HMI Built Around the Application

Harmony GTU separates the display function from the processing/box function.

Display Module

The display provides the operator interface and is available in different sizes and resolutions depending on the selected model.

Schneider's current range covers display options from approximately 7 inches to 19 inches wide.

Examples include:

• 7-inch wide display

• 10.4-inch display

• 12.1-inch display

• Larger wide-screen configurations

• Model-specific display and touch technologies

Box Module

The box module provides the processing and communication capabilities required by the HMI.

Depending on the selected configuration, features can include:

• Ethernet communication

• Serial communication

• USB interfaces

• SD card storage

• Processing resources

• Remote-access functions

• Industrial communication capabilities

For example, Schneider's Premium Box configuration includes Ethernet, serial and USB interfaces, SD-card storage and an ARM Cortex-A9 processor.

Clear Visualization with Multi-Touch Operation

Harmony GTU is designed around a modern operator experience, with touchscreen interaction and multi-touch capability on applicable display modules.

A 10.4-inch GTU display such as the HMIDT542 provides:

• 10.4-inch colour TFT LCD

• 800 × 600 SVGA resolution

• 16 million colours

• Multi-touch analogue resistive touchscreen

• 12–24 V DC supply

• Natural-convection cooling

The 12.1-inch HMIDT642 provides a 1024 × 768 XGA display and multi-touch interface.

This makes the platform suitable for dashboards containing:

• Machine status

• Production values

• Alarm messages

• Trend information

• Process graphics

• Parameter settings

• Diagnostic screens

• Operator controls

Communication for Connected Automation Systems

A modern HMI often acts as the operator's window into the complete automation system.

Harmony GTU supports communication architectures designed to connect the HMI with controllers and industrial equipment. Schneider highlights combinations including dual Ethernet, dual serial communication and wireless Ethernet on applicable configurations.

Depending on the selected model, application architecture can include communication with:

• Schneider Modicon PLCs

• Industrial drives

• Remote I/O

• Automation equipment

• Industrial networks

• Other compatible third-party devices

This allows the GTU to be used as a central operator interface for machine control and monitoring.

IIoT-Ready HMI for Connected Machines

Harmony GTU is positioned by Schneider as a high-performance, IoT-ready HMI platform.

For connected industrial applications, selected GTU configurations support features such as:

• Remote machine access

• Web-based visualization functions

• Data transfer

• Ethernet connectivity

• Wireless connectivity on applicable models

• Data storage

• Communication with connected automation devices

Schneider also describes remote-access and Web Viewer/Web Gate capabilities across applicable GTU configurations and software environments.

HMI Software & Configuration

The software environment depends on the specific Harmony GTU display/box combination and product generation.

Schneider documentation associates GTU configurations with Vijeo Designer, while newer GTU configurations are also positioned with EcoStruxure Operator Terminal Expert. Schneider specifically identifies the GTU range as being powered by EcoStruxure Operator Terminal Expert, while certain wireless GTU configurations use Vijeo Designer.

Therefore, for a replacement or new project, the exact GTU model number and software compatibility should be confirmed before selecting the configuration.

Where Is Schneider Harmony GTU HMI Used?

Harmony GTU can be integrated into applications where operators need detailed visualization, machine controls and communication with industrial automation equipment.

Common Applications

• Machine control panels

• Production-line monitoring

• Packaging machines

• Process monitoring

• Manufacturing equipment

• Material handling systems

• Food and beverage machinery

• Water and utility systems

• Industrial equipment

• OEM machines

• Plant-floor operator stations

Schneider specifically identifies food & beverage, water and machine control among the GTU application areas.

Industries That Can Benefit from Harmony GTU

Manufacturing

Display production information, machine conditions, alarms and operating parameters from a centralized touchscreen.

Packaging

Provide operators with recipe settings, machine status, production data and alarm information.

Food & Beverage

Support process visualization and machine operation in appropriately specified industrial environments.

Water & Utilities

Monitor equipment conditions, operating values, alarms and system status.

Material Handling

Connect operator screens with conveyors, handling equipment and automation controllers.

OEM & Machine Building

Use the modular display and box architecture to build HMI configurations around different machine requirements.

________________________________________

Harmony GTU Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Harmony GTU

Former Name Magelis GTU

Product Type Modular touchscreen HMI

Architecture Separate display + box module

Display Range Approx. 7' to 19' wide, model dependent

Touch Interface Multi-touch on applicable models

Supply Model dependent; 12–24 V DC on referenced displays

Communication Ethernet, serial and model-specific interfaces

Storage SD card support on applicable configurations

Software EcoStruxure Operator Terminal Expert / Vijeo Designer, model dependent

Cooling Natural convection on referenced models

Applications Machine control, visualization, monitoring and industrial automation

Connectivity Ethernet and wireless options on applicable configurations

Exact specifications, communication ports, display resolution and software compatibility vary according to the selected display and box reference. Always verify the complete Schneider order number before purchasing.

Example Harmony GTU Configurations

HMIDT542 – 10.4-inch Display

The HMIDT542 is a 10.4-inch Harmony GTU display featuring an 800 × 600 SVGA resolution, 16 million colours and multi-touch analogue resistive technology. It operates from a 12–24 V DC supply.

HMIDT642 – 12.1-inch Display

The HMIDT642 provides a 12.1-inch XGA display with 1024 × 768 resolution, multi-touch functionality and 12–24 V DC supply.

Premium Box

The GTU Premium Box provides the processing side of the modular architecture. A referenced configuration includes an ARM Cortex-A9 processor, 256 MB RAM, 1 GB SD card, Ethernet, RS232C/RS422/RS485 and USB interfaces.

How to Select the Right Harmony GTU

Selecting a GTU should be based on the complete automation requirement rather than only the screen size.

1. Determine the Display Size

Choose the screen according to viewing distance, dashboard complexity and available panel space.

2. Check the Processing Requirement

Select the appropriate box module according to application complexity and required performance.

3. Verify Communication

Confirm Ethernet, serial, wireless or other communication requirements before ordering.

4. Check Software Compatibility

Verify whether the selected hardware uses Vijeo Designer or EcoStruxure Operator Terminal Expert.

5. Consider Environmental Conditions

Review temperature, humidity, dust, vibration and required certifications for the installation environment.

6. Confirm Panel Dimensions

For replacement projects, compare the existing panel cut-out and mounting arrangement with the new GTU display.

7. Confirm the Complete Order Number

Harmony GTU is a modular family, so the exact display and box references are essential for correct selection.

Harmony GTU for HMI Replacement & Retrofit

For industrial retrofit projects, replacing an older Magelis HMI is not simply a matter of selecting the same screen size.

The existing system should be checked for:

• Original HMI model

• PLC model

• Communication protocol

• Existing HMI project

• Software version

• Panel cut-out

• Display dimensions

• Power supply

• Required accessories

• Environmental conditions

Schneider continues to provide Harmony GTU documentation, including product catalogs, user manuals and configuration information.

We Tech Power Solutions Ltd can assist in identifying a suitable Schneider HMI configuration for new installations and retrofit requirements.

Schneider Harmony GTU HMI Supplier in Ahmedabad, Gujarat & India

Looking for a Schneider Harmony GTU HMI supplier in Ahmedabad?

We Tech Power Solutions Ltd supplies Schneider Electric automation products for industrial users, OEMs, machine builders and panel manufacturers.

Our support can include:

• Harmony GTU HMI selection

• Display and box configuration guidance

• PLC-HMI compatibility checking

• HMI replacement support

• Industrial automation product sourcing

• Technical product identification

• Quotation assistance

We support enquiries across Ahmedabad, Gujarat, India, UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

With experience across Schneider Electric automation products, We Tech Power Solutions Ltd helps customers select industrial HMI products according to the actual machine and automation requirements.

You can share your:

• Existing HMI model

• PLC model

• Required display size

• Communication protocol

• Machine application

• Replacement requirement

Our team can then help identify the appropriate Harmony GTU configuration.

Frequently Asked Questions

1. What is Schneider Harmony GTU HMI?

Harmony GTU is a modular touchscreen HMI platform from Schneider Electric, formerly known as Magelis GTU. It combines separate display and box modules to provide flexible operator-interface configurations for industrial automation.

2. What display sizes are available in Harmony GTU?

The Harmony GTU family covers display options from approximately 7 inches to 19 inches wide, depending on the specific model.

3. Is Harmony GTU suitable for industrial automation?

Yes. Schneider positions Harmony GTU for applications including machine control, food and beverage and water systems, with communication and visualization capabilities for industrial automation architectures.

4. Which software is used for Harmony GTU?

The software depends on the exact GTU configuration and generation. Schneider documentation references EcoStruxure Operator Terminal Expert and Vijeo Designer across the GTU range. The exact HMI reference should be checked before project development or migration.

Get Schneider Harmony GTU HMI for Your Automation Project

Need a Schneider Harmony GTU HMI in Ahmedabad, Gujarat or India?

Share your required screen size, PLC model, existing HMI part number or machine application with We Tech Power Solutions Ltd.

We can help you identify the suitable Harmony GTU display and processing configuration for your industrial automation requirement.

Contact We Tech Power Solutions Ltd for Schneider Harmony GTU HMI product selection and quotation support.
