SCHNEIDER HARMONY GTUX HMI

Schneider Harmony GTUX HMI

Schneider Harmony GTUX HMI for Harsh Outdoor & Industrial Environments

Industrial HMI requirements can become more demanding when equipment is installed outdoors or exposed to dust, temperature variations, vibration, moisture and other challenging environmental conditions.

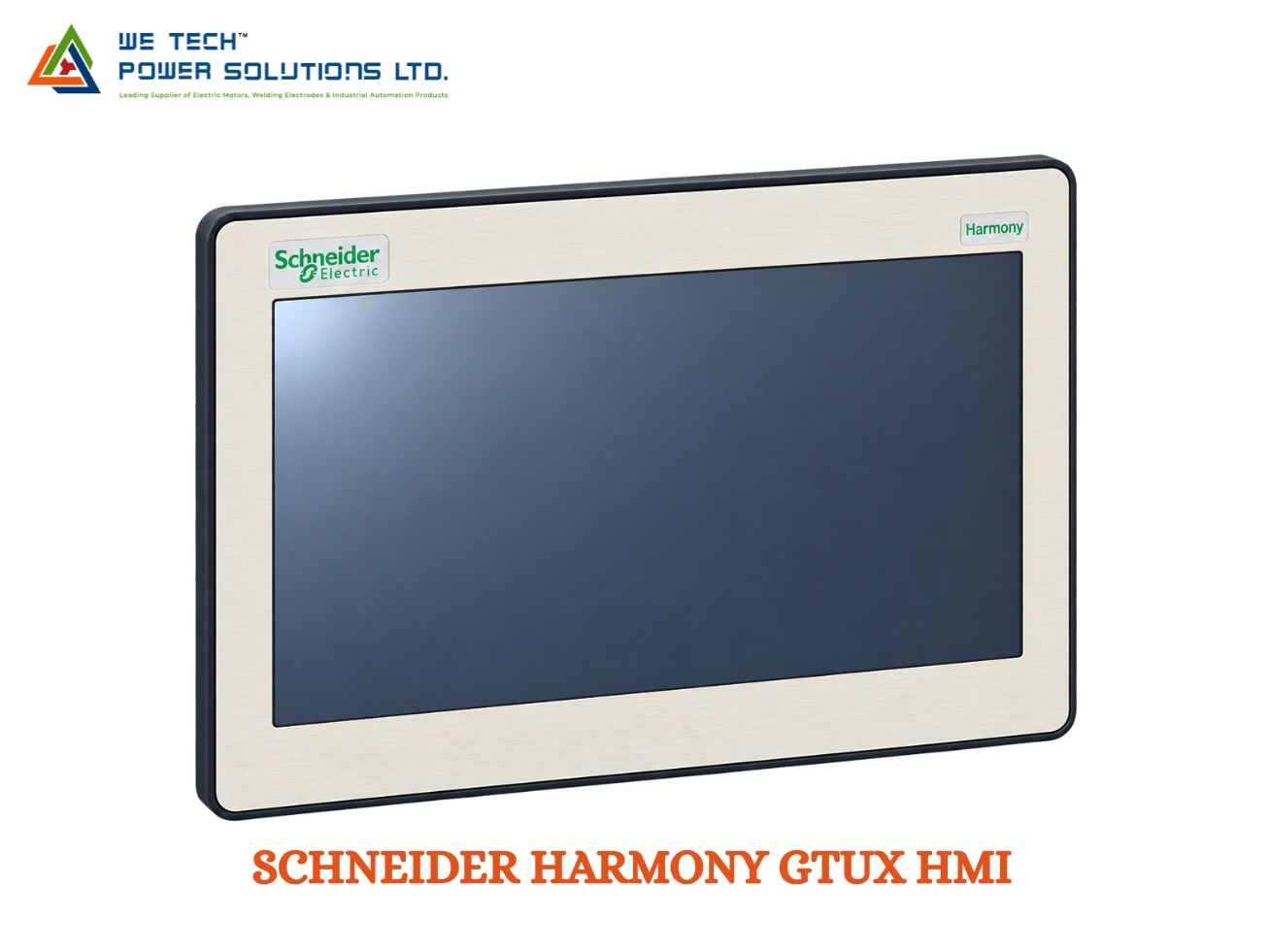

The Schneider Harmony GTUX HMI is an eXtreme HMI designed for demanding industrial and outdoor applications where a conventional operator panel may not provide the required environmental performance.

Previously known as Magelis GTUX, the Harmony GTUX uses a modular architecture consisting of a processing box and display module. Schneider provides 7-inch, 12.1-inch and 15.6-inch wide display options with high-brightness screens and industrial protection features.

We Tech Power Solutions Ltd supplies Schneider Electric HMI and industrial automation products for OEMs, machine builders, panel builders and system integrators across Ahmedabad, Gujarat and India.

What Is Schneider Harmony GTUX HMI?

The Harmony GTUX is a rugged industrial touchscreen HMI designed to provide machine visualization and operator control in demanding environments.

Unlike a standard indoor HMI, GTUX is designed with environmental resistance in mind. Its display modules provide front-panel protection ratings including IP66F, IP67F, Type 4X, Type 12 and Type 13 when properly installed in an enclosure.

The GTUX can be used for:

• Machine visualization

• Process monitoring

• Operator control

• Alarm display

• Equipment diagnostics

• Parameter adjustment

• Production monitoring

• Outdoor equipment operation

• Industrial data visualization

Why Choose GTUX for Demanding Applications?

The main advantage of GTUX is its combination of industrial visualization and environmental durability.

Rugged HMI Design

GTUX display modules are designed for demanding environments and provide high levels of front-panel protection when correctly installed.

High-Brightness Display

The GTUX display range uses high-brightness TFT colour LCD technology, with a specified brightness of approximately 1000 cd/m², helping improve visibility in bright environments.

Wide Temperature Capability

Depending on the display model, specified operating ambient temperatures extend to approximately -30°C to +65°C, -30°C to +70°C, or -20°C to +60°C.

Modular Construction

The system separates the display and processing box, allowing the HMI architecture to be configured around the application requirements.

Multiple Communication Interfaces

The box module provides Ethernet, serial and USB connectivity, with additional interfaces and fieldbus expansion supported according to configuration.

A Modular HMI Architecture

One of the defining characteristics of Harmony GTUX is its separate display and box-module design.

Display Module

The display module provides the operator-facing touchscreen interface.

Available models include:

• HMIDT35X – 7-inch wide

• HMIDT65X – 12.1-inch wide

• HMIDT75X – 15.6-inch wide

The displays provide 262,144 colours and high-brightness LED backlighting.

Box Module

The HMIG3X box module provides the processing and communication functions.

It includes interfaces such as:

• 2 × Ethernet

• 2 × USB Type-A

• 1 × USB mini-B

• 2 × serial interfaces

• SD-card interfaces

• Fieldbus expansion interface

• Auxiliary/alarm output

• Speaker/line output

The Ethernet interfaces support 10BASE-T, 100BASE-TX and 1000BASE-T communication.

GTUX Display Options

Different machine and process applications require different screen sizes.

7-Inch GTUX

The 7-inch wide display provides 800 × 480 WVGA resolution and is suitable for compact operator interfaces and equipment where panel space is limited.

12.1-Inch GTUX

The 12.1-inch wide model provides 1280 × 800 WXGA resolution, making it suitable for applications requiring more information on a single screen.

15.6-Inch GTUX

The 15.6-inch wide display provides 1366 × 768 FWXGA resolution and is suited to larger machine and process visualization requirements.

Designed for Outdoor Visibility

Outdoor HMI installations can face a major challenge: screen visibility under bright ambient light.

GTUX addresses this requirement with a high-brightness display design. Schneider specifies approximately 1000 cd/m² typical LCD brightness for the listed display modules.

This makes GTUX suitable for applications where the operator may need to view the HMI in:

• Outdoor equipment

• Utility installations

• Infrastructure facilities

• Industrial yards

• Remote equipment stations

• Brightly lit production areas

Actual visibility also depends on installation position, direct sunlight, viewing angle and environmental conditions.

Protection Against Harsh Conditions

The GTUX display front is designed for demanding environments.

When correctly installed in an enclosure, Schneider specifies:

• IP66F

• IP67F

• Type 4X

• Type 12

• Type 13

for the front panel.

This makes the platform relevant to equipment exposed to:

• Dust

• Water

• Outdoor conditions

• Industrial contaminants

• Temperature variation

• Vibration

• Harsh operating environments

For applications involving oils, chemicals or corrosive environments, Schneider's environmental guidance should be reviewed carefully because resistance depends on the specific substance and installation conditions.

Communication & Connectivity

GTUX provides multiple communication interfaces for integration with industrial automation equipment.

The HMIG3X box module provides:

Ethernet

Two RJ-45 Ethernet interfaces support communication standards including:

• 10BASE-T

• 100BASE-TX

• 1000BASE-T

For Gigabit Ethernet, Schneider specifies Category 5e or higher twisted-pair Ethernet cabling.

Serial Communication

The box module includes:

• RS-485 isolated serial interface

• RS-232C / RS-422 / RS-485 interface

Communication speeds vary according to the interface and protocol.

USB

The GTUX box provides:

• 2 × USB 2.0 Type-A

• 1 × USB 2.0 mini-B

for compatible peripherals, engineering and data-transfer requirements.

Storage

The system includes separate SD-card interfaces for system and storage functions.

________________________________________

GTUX for Machine & Process Visualization

The HMI can provide operators with a centralized visual interface for automated equipment.

Typical screens can include:

Machine Overview

A graphical representation of the equipment and its current operating condition.

Process Monitoring

Display temperatures, pressures, speeds, levels, counters and other process values.

Alarm Management

Present faults, warnings and abnormal conditions.

Parameter Settings

Allow authorized operators to adjust machine or process parameters.

Diagnostics

Provide information that can help maintenance personnel identify equipment conditions.

Production Monitoring

Display production information and operating statistics.

________________________________________

HMI Software

The Harmony GTUX is designed to operate with Vijeo Designer software. Schneider's current Harmony GTUX product page specifically identifies Vijeo Designer as the software environment for the platform.

Vijeo Designer can be used to develop HMI applications containing:

• Graphical screens

• Push buttons

• Status indicators

• Alarm displays

• Numeric values

• Parameter fields

• Trends

• Diagnostic screens

• Navigation menus

• Process information

For existing or replacement projects, the exact GTUX hardware reference and Vijeo Designer project version should be checked before implementation.

________________________________________

Where Is Harmony GTUX HMI Used?

GTUX is particularly relevant where standard HMI equipment needs to operate in challenging conditions.

Outdoor Industrial Equipment

Provide operator visualization for equipment installed outside conventional control rooms.

Water & Wastewater

Monitor pumps, treatment systems, process parameters and equipment status.

Oil & Gas Applications

Provide operator interfaces for equipment operating in demanding industrial environments, subject to the required certifications and site conditions.

Energy & Utilities

Support visualization for power, utility and infrastructure equipment.

Manufacturing

Use high-brightness and rugged HMI panels in demanding production environments.

Material Handling

Monitor conveyors, loading systems and handling equipment.

Mining & Heavy Industry

Provide machine and process visualization where dust, vibration and environmental conditions can be challenging.

Infrastructure Equipment

Support operator interaction with outdoor and remote automation systems.

________________________________________

Industries for Schneider Harmony GTUX HMI

Typical application sectors include:

• Manufacturing

• Water & wastewater

• Energy

• Utilities

• Oil & gas

• Mining

• Material handling

• Infrastructure

• Process industries

• Outdoor industrial equipment

• OEM machinery

The exact suitability depends on the environmental conditions, required certifications and the selected GTUX configuration.

________________________________________

Schneider Harmony GTUX HMI – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Harmony GTUX

Former Name Magelis GTUX

Product Type Rugged / eXtreme Industrial HMI

Architecture Display Module + Box Module

Display Options 7', 12.1', 15.6' wide

Display Technology High-brightness TFT colour LCD

Display Brightness Approx. 1000 cd/m² typical

7' Resolution 800 × 480 WVGA

12.1' Resolution 1280 × 800 WXGA

15.6' Resolution 1366 × 768 FWXGA

Touchscreen Yes

Box Module HMIG3X

Ethernet 2 × Ethernet

Serial RS-485 + RS-232C/RS-422/RS-485

USB 2 × USB Type-A + 1 × mini-B

Storage SD-card interfaces

Fieldbus Expansion interface available

Software Vijeo Designer

Front Protection IP66F, IP67F, Type 4X, Type 12, Type 13

Supply 12–24 V DC display input

Application Outdoor and harsh industrial environments

Technical specifications vary by display module and configuration. Confirm the exact HMIDT / HMIG3X referencebefore ordering.

________________________________________

GTUX Power Requirements

The GTUX display modules operate from a 12–24 V DC rated supply, with an input range of 10.8–28.8 V DC. Maximum combined power consumption is specified at:

• 29 W for HMIDT35X

• 37 W for HMIDT65X

• 48 W for HMIDT75X

These values include the box module according to Schneider's electrical specifications.

This information should be considered when designing the control-panel power supply and selecting associated protection equipment.

GTUX Environmental Performance

Environmental conditions are a major reason to consider the GTUX platform.

Depending on the display model, Schneider specifies operating ambient temperature ranges extending down to -30°Con the 7-inch and 12.1-inch versions, with the 12.1-inch model extending up to 70°C and the 7-inch model up to 65°C. The 15.6-inch version is specified from -20°C to 60°C.

The platform also includes specifications covering:

• Vibration resistance

• Shock resistance

• Humidity

• Dust conditions

• Electrical noise immunity

• UV resistance

• Corrosive-gas considerations on selected versions

Products with part numbers ending in FH have additional conformal-coating provisions for specified corrosive-gas environments.

How to Select the Right GTUX HMI?

Selecting GTUX should begin with the environment and visualization requirement.

1. Define the Installation Environment

Determine whether the HMI will be installed indoors, outdoors, in a dusty area, near water or in another demanding environment.

2. Select the Display Size

Choose between the 7-inch, 12.1-inch and 15.6-inch display options according to viewing distance and information requirements.

3. Check Brightness Requirements

For outdoor installations, evaluate sunlight exposure and operator viewing conditions.

4. Review Communication

Check the required Ethernet, serial, USB and fieldbus interfaces.

5. Confirm Panel Dimensions

Review the display dimensions and panel cut-out before designing or modifying the control panel.

6. Check Temperature

Compare the expected site temperature with the specified operating range of the selected display.

7. Review Chemical Exposure

If the HMI will be exposed to oils, chemicals or corrosive gases, verify compatibility against Schneider's environmental specifications.

8. Confirm the Complete Product Configuration

GTUX consists of a display module and box module. Confirm both required references before ordering.

Schneider Harmony GTUX HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Schneider Electric HMI and industrial automation products for OEMs, machine builders, control-panel manufacturers and system integrators.

If you are looking for a Schneider Harmony GTUX HMI supplier in Ahmedabad, we can assist with:

• GTUX display selection

• Box-module selection

• Screen-size selection

• Environmental requirement review

• Communication-interface selection

• HMI application requirements

• PLC/HMI integration

• Industrial automation product sourcing

We support automation requirements across Ahmedabad, Gujarat and India.

Schneider Harmony GTUX HMI for Gulf Countries

GTUX can be relevant for automation projects where industrial equipment operates in demanding outdoor or high-temperature environments.

We Tech Power Solutions Ltd supports industrial automation enquiries for:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For Gulf projects, provide the complete GTUX display and box-module references, quantity, application, environmental conditions and delivery location for accurate product evaluation.

Why Choose We Tech Power Solutions Ltd?

Choosing a rugged HMI requires more than selecting a display size. Environmental conditions, communication, panel dimensions, software and the box/display combination all need to be considered.

We Tech Power Solutions Ltd supports customers with:

• Schneider Harmony HMI sourcing

• GTUX model identification

• Display and box-module selection

• Environmental requirement review

• PLC-HMI compatibility

• Communication requirement analysis

• Industrial automation product sourcing

• India and Gulf project support

Frequently Asked Questions

1. What is Schneider Harmony GTUX HMI?

Harmony GTUX is Schneider Electric's eXtreme HMI range designed for demanding and harsh outdoor environments. Schneider identifies the product as formerly known as Magelis GTUX.

2. What display sizes are available for Harmony GTUX?

The current GTUX display modules include 7-inch, 12.1-inch and 15.6-inch wide-screen options.

3. Is Harmony GTUX suitable for outdoor applications?

Yes. Schneider specifically positions GTUX for harsh outdoor environments, and the display front is specified with protection ratings including IP66F, IP67F and Type 4X when properly installed.

4. Which software is used for Harmony GTUX?

The GTUX product range is designed to operate with Vijeo Designer.

Get the Right Schneider Harmony GTUX HMI

Looking for a Schneider Harmony GTUX HMI supplier in Ahmedabad, Gujarat or India?

Share your required screen size, complete GTUX part number, PLC/controller model, communication requirements, environmental conditions and quantity with We Tech Power Solutions Ltd.

Our team can help evaluate the appropriate GTUX display and box-module configuration for your industrial automation project.

Contact We Tech Power Solutions Ltd for Schneider Harmony GTUX HMI enquiry and quotation support.
