SCHNEIDER HARMONY SCU HMI

Schneider Harmony SCU HMI

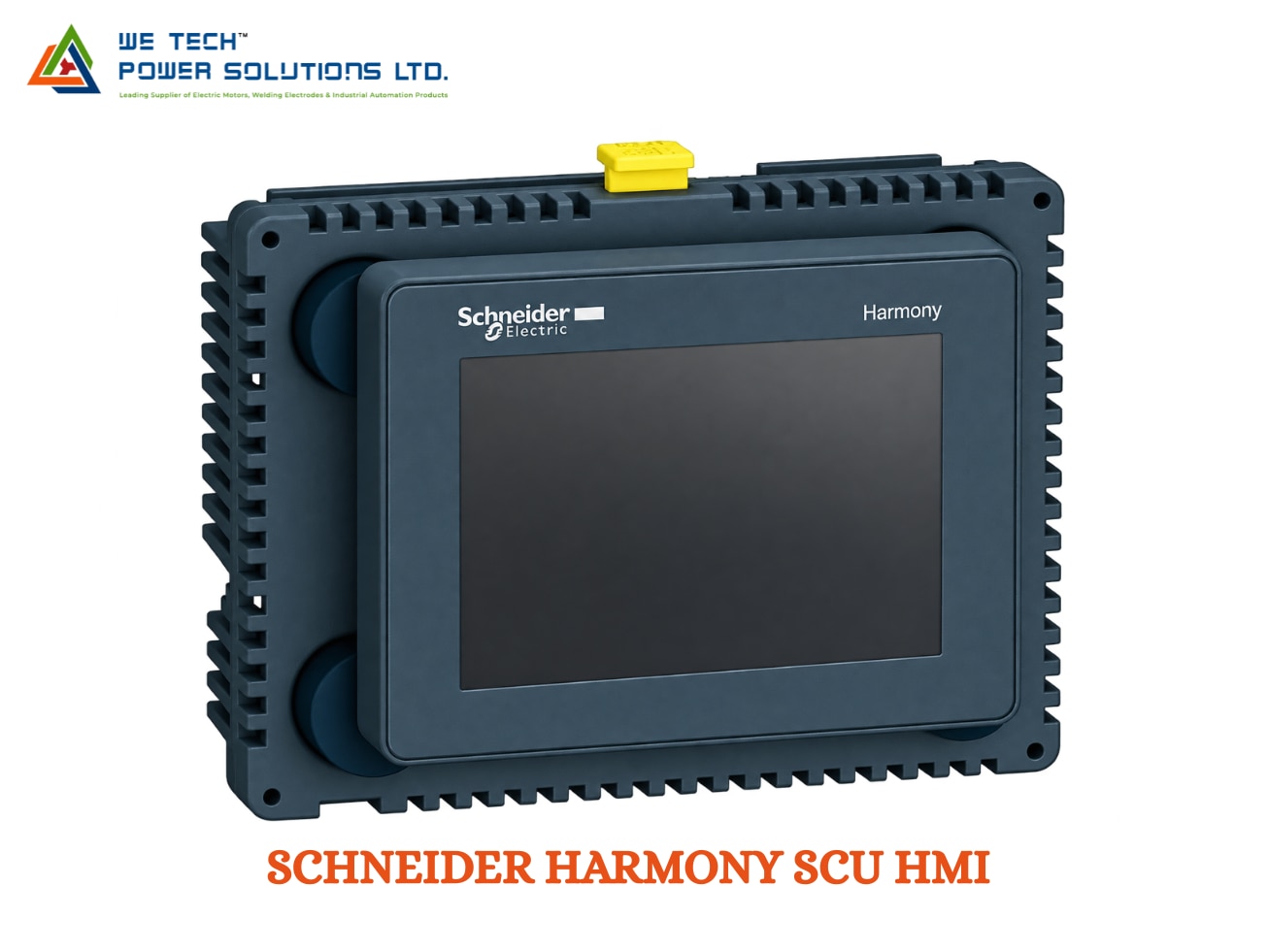

Schneider Harmony SCU HMI Controller for Compact Machine Automation

When a compact machine needs both an operator interface and local control, using separate HMI and PLC hardware can increase panel space, wiring and system complexity. The Schneider Harmony SCU HMI addresses this requirement by combining Human Machine Interface and controller functions in a single compact device.

Formerly known as Magelis SCU, the Harmony SCU is designed for simple machines and processes. Schneider specifies the range for applications with up to 16 inputs and 10 outputs, while its compact mounting concept helps reduce installation requirements.

We Tech Power Solutions Ltd supplies Schneider Electric HMI controllers and automation products for OEMs, machine builders, panel builders and system integrators across Ahmedabad, Gujarat and India.

What Is Schneider Harmony SCU HMI?

The Harmony SCU is an HMI controller that combines two functions in one product:

HMI + Controller

The HMI section provides the graphical operator interface, while the controller section handles machine-control logic.

A conventional automation arrangement may use:

HMI → PLC → I/O → Field Devices

With Harmony SCU, suitable compact applications can use:

Operator → Harmony SCU → Machine I/O / Devices

This integrated architecture can reduce the number of separate components required for simple machines and can simplify the control-panel design. Schneider specifically positions SCU as an HMI controller for simple machines and small processes.

Why Use Harmony SCU Instead of Separate HMI & PLC Hardware?

The SCU is designed for applications where machine control and visualization can be combined into one compact platform.

Combined Control & Visualization

The same device can provide the operator interface and execute the control application.

Compact Installation

The integrated design can save control-panel space compared with separate HMI and PLC components.

Reduced Hardware Count

Combining functions can reduce the number of devices, associated wiring and installation work.

Simple Machine Control

SCU is intended for small machines and simple processes where the control requirements do not justify a larger PLC architecture.

Integrated Engineering Environment

The controller is programmed using EcoStruxure Machine Expert, while the HMI design uses the integrated Vijeo Designer environment.

Harmony SCU Product Architecture

The SCU range brings together several machine-control functions in one compact platform.

HMI Section

The touchscreen interface can be configured to display:

• Machine status

• Process values

• Alarm information

• Operator commands

• Machine parameters

• Diagnostic information

• Production data

Controller Section

The integrated control application can handle suitable machine logic and interact with connected inputs, outputs and automation devices.

Communication Section

The SCU supports communication with compatible automation equipment through its available Ethernet, serial and CANopen capabilities, depending on configuration. Schneider documentation identifies Modbus TCP/IP, serial protocols and CANopen connectivity within the SCU architecture.

Harmony SCU I/O Capability

One of the main selection criteria for an SCU is the required number of machine inputs and outputs.

Schneider positions the Harmony SCU for simple machines with up to 16 inputs and 10 outputs.

The currently documented SCU family includes:

• HMISCU6A5

• HMISCU8A5

• HMISCU6B5

• HMISCU8B5

The exact I/O configuration, display characteristics and communication capabilities should be verified against the selected order number.

Communication & Device Integration

A compact machine may still need to communicate with several external devices. Harmony SCU provides communication capabilities for integrating the HMI controller into the machine architecture.

Depending on the application and configuration, communication can include:

Ethernet

SCU controllers can connect to Ethernet TCP/IP networks, including Modbus TCP and supported third-party protocols.

Serial Communication

The SCU architecture includes an integrated serial communication interface supporting applicable Schneider and third-party protocols.

CANopen

The SCU can operate as a CANopen client for compatible peripherals connected to the CANopen network.

Modbus

Modbus communication can be used for connecting suitable PLCs, drives and other automation equipment.

Schneider also documents a Modbus TCP Server capability for the HMISCU control application through the applicable Modbus TCP library.

PLC, Drive & HMI Integration

Harmony SCU can be incorporated into compact automation architectures containing:

• Sensors

• Actuators

• Drives

• HMIs

• Remote automation devices

• CANopen peripherals

• Modbus devices

• Ethernet devices

This makes the SCU particularly useful where the machine requires a centralized control point without the hardware footprint of a larger PLC and separate HMI.

Programming Harmony SCU

The Harmony SCU is programmed using EcoStruxure Machine Expert, Schneider Electric's engineering environment for machine automation. Schneider confirms that SCU programming is supported by EcoStruxure Machine Expert.

The HMI portion is designed using Vijeo Designer, which is integrated with the Machine Expert installation for SCU projects.

The engineering environment can be used for:

• Controller programming

• HMI screen development

• I/O configuration

• Communication setup

• Alarm configuration

• Machine parameter management

• Diagnostics

• Commissioning

What Can Operators Do Through Harmony SCU?

The SCU provides the operator with a graphical interface while the controller executes the machine logic.

Monitor

View machine conditions, process values and equipment status.

Control

Start, stop, reset or control configured machine functions.

Adjust

Modify permitted operating parameters.

Diagnose

View alarms and machine-status information.

Manage

Access machine settings and operating modes through configured screens.

Maintain

Use diagnostic information to support machine servicing and troubleshooting.

________________________________________

Applications of Schneider Harmony SCU HMI

Harmony SCU is intended for simple machines and compact processes where integrated control and visualization are useful.

Packaging Machines

Control machine sequences while displaying operator settings, alarms and production information.

Conveyor Systems

Manage compact conveyor systems with sensors, motors and operator controls.

Assembly Machines

Combine local machine logic and operator visualization in one control device.

Pumping Equipment

Monitor pump status, operating conditions and alarm information.

Material Handling

Control compact handling equipment and display machine status.

OEM Machines

Provide a standardized HMI-controller architecture for small machine designs.

Compact Production Equipment

Use the integrated controller for machine logic and the touchscreen for operator interaction.

________________________________________

Industries & Application Areas

Harmony SCU can be considered for:

• Machine building

• Packaging

• Manufacturing

• Assembly automation

• Material handling

• Food & beverage machinery

• Pumping systems

• OEM equipment

• Compact production systems

• Simple process applications

The platform is specifically positioned by Schneider for small machines and simple processes.

________________________________________

Schneider Harmony SCU HMI – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Harmony SCU

Former Name Magelis SCU

Product Type HMI Controller

Architecture HMI + Controller

Application Level Simple machines / compact processes

Maximum I/O Up to 16 inputs / 10 outputs

Programming EcoStruxure Machine Expert

HMI Design Vijeo Designer

Ethernet Supported

Modbus TCP Supported

Serial Communication Supported

CANopen Supported

HMI Function Touchscreen visualization and operator control

Controller Function Integrated machine control

Mounting Compact / Ø22 mm mounting concept

Models HMISCU6A5, HMISCU8A5, HMISCU6B5, HMISCU8B5

The exact display, I/O, communication and electrical specifications depend on the selected HMISCU reference. Confirm the complete order number before quotation or purchase.

How to Select the Right Harmony SCU HMI?

The correct SCU should be selected according to the complete machine architecture.

1. Calculate I/O Requirements

Determine the number of digital inputs and outputs required by sensors, switches, valves, motors and actuators.

2. Check Communication

Identify whether the machine requires Ethernet, Modbus TCP, serial communication or CANopen.

3. Review HMI Requirements

Determine the amount of operator information that needs to be displayed and the required screen functionality.

4. Check Controller Requirements

Confirm that the integrated controller has sufficient functionality for the machine sequence and control logic.

5. Consider External Devices

Identify drives, sensors, actuators, remote devices and other equipment that must communicate with the SCU.

6. Review Panel Installation

The compact mounting concept can be useful where panel space is limited. Schneider identifies the SCU with a Ø22 mm mounting system.

7. Confirm the Exact HMISCU Model

Different HMISCU references have different configurations. Always verify the complete part number before ordering.

Harmony SCU for Compact Machine Design

One of the strongest use cases for SCU is when the machine builder wants to keep the control architecture compact.

Instead of separately installing:

• PLC

• HMI

• Associated communication hardware

a suitable SCU application can integrate the primary HMI and controller functions into one unit.

This can help simplify the panel layout and reduce the number of separate components that need to be installed and maintained. Schneider states that the integrated HMI-controller concept can reduce equipment and lifecycle costs.

Schneider Harmony SCU HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Schneider Electric automation products for OEMs, machine builders, control-panel manufacturers and industrial automation customers.

If you are looking for a Schneider Harmony SCU HMI supplier in Ahmedabad, we can assist with:

• HMISCU model identification

• HMI-controller selection

• I/O requirement review

• PLC and device communication

• Ethernet and Modbus requirements

• CANopen integration

• Machine application evaluation

• Industrial automation product sourcing

We support Schneider automation requirements across Ahmedabad, Gujarat and India.

Schneider Harmony SCU HMI for Gulf Countries

We Tech Power Solutions Ltd can also support industrial automation enquiries for customers and projects across the Gulf region.

Our target markets include:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For Gulf enquiries, share the complete HMISCU part number, required quantity, I/O requirement, communication protocol and application details for product evaluation and quotation.

Why Choose We Tech Power Solutions Ltd?

Selecting an HMI controller requires both HMI and PLC requirements to be considered together.

We Tech Power Solutions Ltd supports customers with:

• Schneider HMI controller sourcing

• Harmony SCU identification

• HMISCU model selection

• I/O requirement analysis

• Communication requirement review

• PLC/HMI integration support

• Machine automation product sourcing

• Replacement and upgrade enquiries

• India and Gulf project support

Frequently Asked Questions

1. What is Schneider Harmony SCU HMI?

Harmony SCU is an HMI controller that combines HMI and control functions in one compact product. Schneider positions it for simple machines and processes with up to 16 inputs and 10 outputs.

2. Which software is used to program Harmony SCU?

The SCU controller is programmed using EcoStruxure Machine Expert. The HMI portion is designed using the integrated Vijeo Designer environment.

3. Can Harmony SCU communicate through Modbus TCP?

Yes. Schneider documents Modbus TCP communication for the SCU architecture and also documents the HMISCU control application operating as a Modbus TCP Server through the applicable library.

4. What is the difference between Harmony SCU and a standard HMI?

A standard HMI primarily provides visualization and operator interaction. Harmony SCU combines HMI functionality with controller functionality, allowing suitable compact machines to use one integrated device for both functions.

Get the Right Schneider Harmony SCU HMI

Looking for a Schneider Harmony SCU HMI supplier in Ahmedabad, Gujarat or India?

Share your complete HMISCU part number, required I/O, PLC/device communication requirements, machine application and quantity with We Tech Power Solutions Ltd.

Our team can help identify the appropriate Harmony SCU configuration for your compact machine automation project.

Contact We Tech Power Solutions Ltd for Schneider Harmony SCU HMI enquiry and quotation support.
