SCHNEIDER HARMONY ST6 HMI

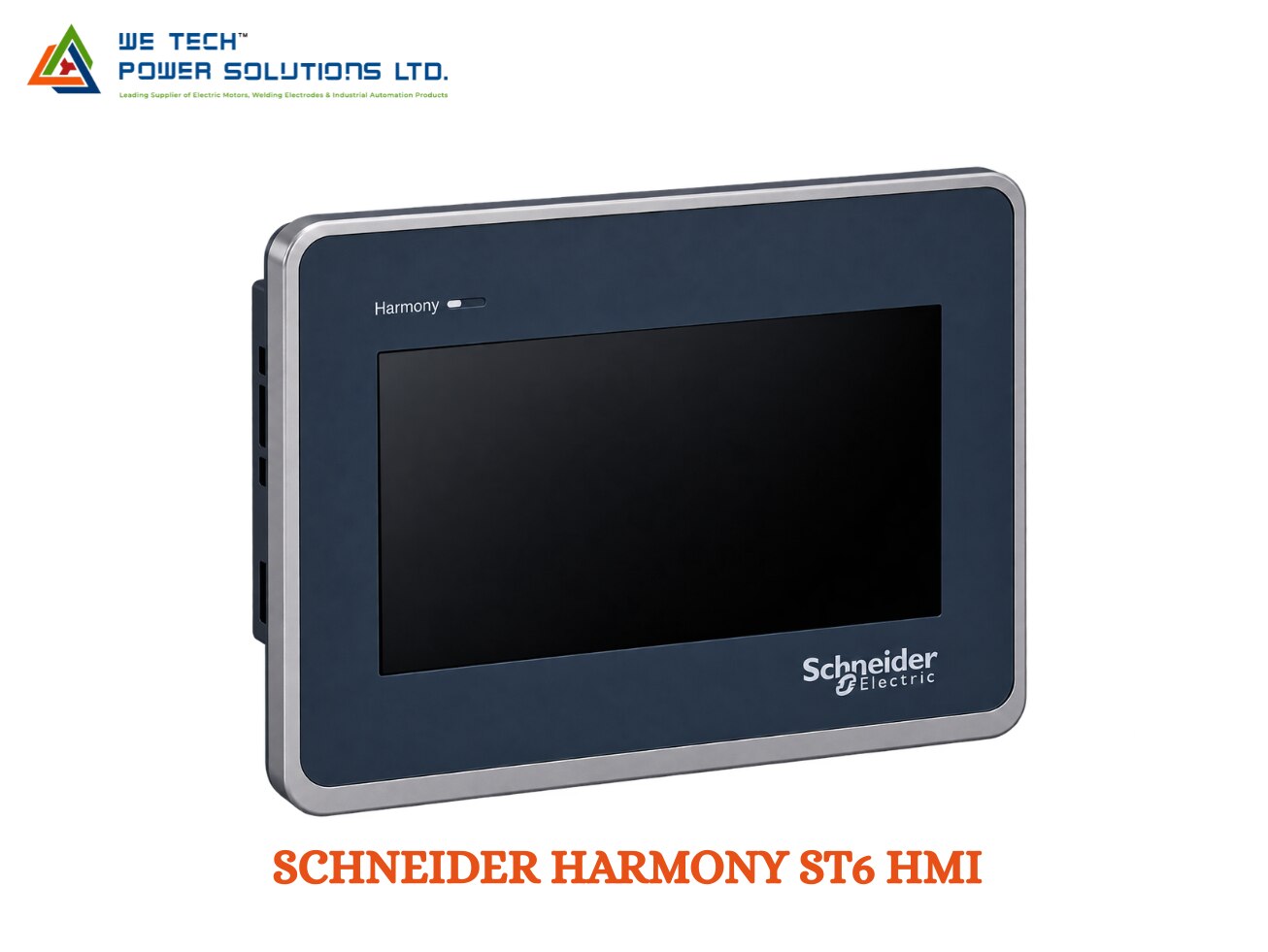

Schneider Harmony ST6 HMI

Schneider Harmony ST6 HMI for Modern, High-Resolution Machine Visualization

A machine HMI needs to make important information easy to understand while keeping operator interaction simple. The Schneider Harmony ST6 HMI is a high-resolution, cost-effective touchscreen HMI designed for machine builders and industrial automation applications that require modern visualization without moving to a high-end HMI platform.

Harmony ST6 is the current Schneider Electric name for the product family formerly associated with Magelis ST6. Schneider positions ST6 as a basic HMI using the latest visualization capabilities of EcoStruxure Operator Terminal Expert.

We Tech Power Solutions Ltd supplies Schneider Electric Harmony HMI products for OEMs, machine builders, panel builders and industrial users across Ahmedabad, Gujarat, India and Gulf markets.

Why Harmony ST6 for Machine Automation?

Not every automation application requires a premium or highly specialized HMI. Many machines need a dependable touchscreen with clear visualization, practical connectivity and an easy engineering environment.

Harmony ST6 addresses these requirements with:

• High-resolution wide displays

• Touchscreen operator interaction

• Modern HMI screen design

• Ethernet connectivity on applicable models

• Serial communication on applicable models

• USB connectivity

• EcoStruxure Operator Terminal Expert

• Compact panel installation

• Options for different machine sizes

This makes ST6 suitable for OEM equipment and industrial machines where visualization, communication and ease of use are important.

Select the Screen Size Around Your Machine

One of the useful features of the Harmony ST6 family is its range of wide-format display sizes.

Schneider currently documents the following ST6 references: HMIST6200, HMIST6400, HMIST6500, HMIST6600 and HMIST6700, corresponding to 4.3', 7', 10.1', 12.1' and 15.6' wide displays.

4.3-Inch ST6

HMIST6200

A compact option for machines where panel space is limited and the operator only needs essential machine information.

Suitable for:

• Compact machinery

• Small packaging equipment

• Simple operator stations

• Basic machine monitoring

7-Inch ST6

HMIST6400

Provides more screen area for machine controls, alarms, status indicators and process information.

10.1-Inch ST6

HMIST6500

A practical size for applications requiring multiple machine parameters, process graphics, alarms and operator controls on a larger interface.

12.1-Inch ST6

HMIST6600

Provides additional visualization area for detailed machine dashboards and process monitoring.

15.6-Inch ST6

HMIST6700

Suitable for applications where operators need a larger screen for complex visualization, trends, production information and machine overview screens.

High-Resolution Touchscreen for Clear Visualization

Harmony ST6 is designed around wide-format touchscreen visualization.

The display can be configured with graphical objects such as:

• Machine status indicators

• Push buttons

• Numeric displays

• Alarm lists

• Trend graphs

• Production counters

• Parameter fields

• Diagnostic screens

• Navigation menus

• Process graphics

This allows machine builders to organize the operator interface around the actual workflow of the equipment.

For example, a packaging machine can use separate screens for production settings, machine status, alarms, maintenance and diagnostics.

EcoStruxure Operator Terminal Expert

A major advantage of the Harmony ST6 platform is its modern engineering environment.

EcoStruxure Operator Terminal Expert is the configuration software used to program the Harmony ST6 range. Schneider identifies it as the software for creating and editing ST6 HMI applications.

The software provides features for:

• HMI screen development

• Touchscreen configuration

• Reusable objects

• Templates

• Graphic libraries

• Alarm management

• Data visualization

• PLC communication

• User interface design

• Remote visualization features

Schneider currently highlights more than 650 customizable objects, templates and reusable libraries in EcoStruxure Operator Terminal Expert.

This can help reduce repetitive engineering work when creating similar HMI applications across multiple machines.

Connectivity for Industrial Automation

Harmony ST6 is designed to connect the operator interface with the machine's automation architecture.

Depending on the selected model, interfaces can include:

• Ethernet

• RS-232C

• RS-485

• USB Type-A

• USB Micro-B

• Industrial communication protocols

Schneider's 10.1-inch HMIST6500 configuration, for example, provides 2 Ethernet ports, RS-232C, RS-485, USB Type-A and USB Micro-B.

This enables the HMI to communicate with compatible:

• Schneider Modicon PLCs

• Machine controllers

• Drives

• Automation devices

• Industrial networks

• Other supported PLC systems

The exact interfaces and supported protocols must be checked against the selected ST6 reference.

Designed for Connected & Modern Machines

Harmony ST6 is not limited to displaying basic machine values.

With EcoStruxure Operator Terminal Expert, Schneider supports modern HMI functions such as remote visualization and connected-device communication. The software ecosystem supports technologies including OPC UA and Modbus TCP/RTU, while Ethernet-based industrial protocols can be used depending on the system architecture.

The Web Viewer capability can also allow the HMI screen to be visualized remotely through standard browsers on devices such as PCs, tablets and smartphones when the applicable hardware, software and license requirements are met.

This can be useful for:

• Maintenance teams

• Remote diagnostics

• Machine monitoring

• Service support

• Connected equipment

• Industrial data access

Compact Hardware with Practical Industrial Protection

The ST6 is designed for machine-panel installation rather than office environments.

A referenced 10.1-inch HMIST6500 configuration features an aluminium alloy front panel with IP65F protection, along with a 24 V DC supply.

Depending on the exact model, the HMI can provide:

• Compact panel mounting

• Industrial touchscreen

• Front-side environmental protection

• Status indication

• Fanless/natural cooling architecture on applicable configurations

Always verify the exact protection rating and installation requirements for the selected model before specifying it for a particular industrial environment.

Applications Where Harmony ST6 Fits

Harmony ST6 can be used where an operator needs a modern touchscreen interface for machine control and monitoring.

Packaging Machinery

Display recipes, production counters, machine status, alarms and operating parameters.

Food & Beverage Equipment

Provide operators with process information and machine controls where the selected HMI configuration meets the environmental requirements.

Textile Machinery

Monitor production parameters, machine status and operating conditions.

HVAC Equipment

Provide visualization and control for HVAC-related machinery and equipment.

Compressor Systems

Display operating values, alarms and equipment status from a centralized operator interface.

Manufacturing Machines

Create machine overview, control, diagnostics and maintenance screens.

Schneider's HMIST6500 product information specifically identifies applications such as packaging, food & beverage, textile, HVAC equipment and compressors.

Industries & Automation Applications

Harmony ST6 can be considered for:

• General Manufacturing

• Packaging

• Food & Beverage

• Textile Machinery

• HVAC

• Compressor Systems

• Material Handling

• Assembly Machines

• OEM Equipment

• Industrial Machinery

• Production Equipment

• Machine Retrofit Projects

Technical Overview of Schneider Harmony ST6

Parameter Details

Brand Schneider Electric

Product Family Harmony ST6

Former Name Magelis ST6

Product Type Basic Industrial HMI

Display Sizes 4.3', 7', 10.1', 12.1', 15.6' wide

Known References HMIST6200, HMIST6400, HMIST6500, HMIST6600, HMIST6700

Display Colour touchscreen

Touch Technology Model dependent

Software EcoStruxure Operator Terminal Expert

Ethernet Available on applicable models

Serial Communication RS-232C / RS-485 on applicable models

USB Type-A / Micro-B on applicable models

Supply Model dependent; 24 V DC on referenced configuration

Protection Model dependent; IP65F on referenced HMIST6500 configuration

Application Machine control, visualization and monitoring

Typical Users OEMs, machine builders, panel builders and industrial users

Specifications such as resolution, memory, communication ports, dimensions, protection and power consumption can vary by exact order number. Confirm the complete Schneider reference before purchase.

Harmony ST6 vs Harmony STO

Although both are compact Schneider HMI families, their product positioning and software environment are different.

Feature Harmony ST6 Harmony STO

Product Positioning High-resolution basic HMI Compact HMI

Display Options 4.3' to 15.6' wide Compact STO range

Software EcoStruxure Operator Terminal Expert EcoStruxure Operator Terminal Expert

Visualization Modern wide-screen interface Compact touchscreen interface

Application Machine visualization & control Compact machine operation

Current Product Family Harmony ST6 Harmony STO/STO7

Schneider specifically lists ST6, STO7 and STM6 as hardware supported by EcoStruxure Operator Terminal Expert.

For a new machine, the correct choice should be based on required display size, panel dimensions, communication, application complexity and budget.

Harmony ST6 for OEM Machine Builders

For OEMs, standardizing HMI hardware across multiple machine models can simplify engineering and maintenance.

The ST6 range provides multiple screen sizes while keeping the same general HMI engineering environment.

For example:

Small machine → 4.3' ST6

Standard machine → 7' or 10.1' ST6

Detailed machine visualization → 12.1' or 15.6' ST6

This gives machine builders flexibility to match the display with the machine's physical dimensions and operator requirements.

Remote Monitoring with Web Viewer

For applications requiring remote access, selected Harmony ST6 configurations can support Web Viewer through EcoStruxure Operator Terminal Expert.

Schneider documents Web Viewer support for HMIST6200, HMIST6400, HMIST6500, HMIST6600 and HMIST6700, with applicable software and license requirements.

The feature can allow users to view and operate the HMI screen remotely through a browser when the required configuration is implemented.

Potential uses include:

• Remote maintenance

• Service diagnostics

• Machine monitoring

• Engineering support

• Production supervision

The exact Web Viewer requirements depend on the software version, HMI hardware and licensing arrangement.

HMI Software & Licensing

EcoStruxure Operator Terminal Expert is the primary configuration software for Harmony ST6.

Schneider's licensing documentation distinguishes between Basic and Professional licenses. The Basic license is intended for programming ST6/STO7/STM6 hardware, while Professional adds advanced capabilities such as Web Server API and OPC UA Server.

For projects involving remote access, OPC UA or advanced web functionality, the required software license should therefore be confirmed before project development.

Selecting the Right Harmony ST6 Model

1. Select the Display Size

Consider the viewing distance, amount of information and available panel space.

2. Check the Communication

Identify whether the machine requires Ethernet, RS-232C, RS-485 or other communication interfaces.

3. Review the PLC

Confirm the PLC model and communication protocol before choosing the HMI.

4. Consider Remote Access

If remote monitoring is required, verify Web Viewer compatibility, software version and licensing.

5. Check Panel Dimensions

Confirm the mounting cut-out and physical dimensions before finalizing the HMI.

6. Confirm Environmental Requirements

Check IP protection, temperature, humidity, vibration and other site conditions.

7. Verify the Exact Order Number

Do not select the HMI only by screen size. The complete Schneider reference determines the actual hardware configuration.

Schneider Harmony ST6 HMI Supplier in Ahmedabad, Gujarat & India

Looking for a Schneider Harmony ST6 HMI supplier in Ahmedabad?

We Tech Power Solutions Ltd supplies Schneider Electric Harmony HMI products for:

• OEM machine builders

• Industrial automation companies

• Panel builders

• Manufacturing plants

• System integrators

• Maintenance and retrofit teams

We can assist with:

• Harmony ST6 HMI selection

• HMIST6200 enquiries

• HMIST6400 enquiries

• HMIST6500 enquiries

• HMIST6600 enquiries

• HMIST6700 enquiries

• PLC-HMI compatibility

• Communication selection

• HMI replacement

• EcoStruxure Operator Terminal Expert requirements

• Product sourcing and quotation

We support industrial automation enquiries across:

Ahmedabad | Gujarat | India | UAE | Dubai | Abu Dhabi | Saudi Arabia | Qatar | Oman | Kuwait | Bahrain

Why Choose We Tech Power Solutions Ltd?

The right HMI depends on the complete machine architecture.

We Tech Power Solutions Ltd can help you evaluate:

• Required screen size

• PLC compatibility

• Communication interface

• Panel dimensions

• Environmental conditions

• Software requirements

• Remote monitoring requirements

• New-machine or retrofit application

Share your machine details, PLC model or required ST6 part number to identify the appropriate configuration.

Frequently Asked Questions

1. What is Schneider Harmony ST6 HMI?

Harmony ST6 is a high-resolution, cost-effective basic HMI from Schneider Electric designed for machine visualization and operator interaction. It is part of the Harmony HMI family and uses EcoStruxure Operator Terminal Expert.

2. What screen sizes are available in Harmony ST6?

Schneider documents five main ST6 references: 4.3-inch HMIST6200, 7-inch HMIST6400, 10.1-inch HMIST6500, 12.1-inch HMIST6600 and 15.6-inch HMIST6700.

3. Which software is used to program Harmony ST6?

Harmony ST6 is programmed using EcoStruxure Operator Terminal Expert, formerly known as Vijeo XD.

4. Does Harmony ST6 support Ethernet?

Yes. Ethernet is available on applicable ST6 configurations. For example, the HMIST6500 has two Ethernet ports along with RS-232C, RS-485 and USB interfaces.

5. Can Harmony ST6 support remote HMI viewing?

Yes, applicable ST6 models can support Web Viewer functionality when the required EcoStruxure Operator Terminal Expert version, hardware and licensing requirements are met.

Get Schneider Harmony ST6 HMI for Your Automation Project

Need a Schneider Harmony ST6 HMI in Ahmedabad, Gujarat or India?

Share your required screen size, PLC model, communication protocol or machine application with We Tech Power Solutions Ltd.

Our team can help identify the appropriate Harmony ST6 configuration for your machine visualization, operator control, remote monitoring or industrial automation requirement.

Contact We Tech Power Solutions Ltd for Schneider Harmony ST6 HMI product selection and quotation support.
