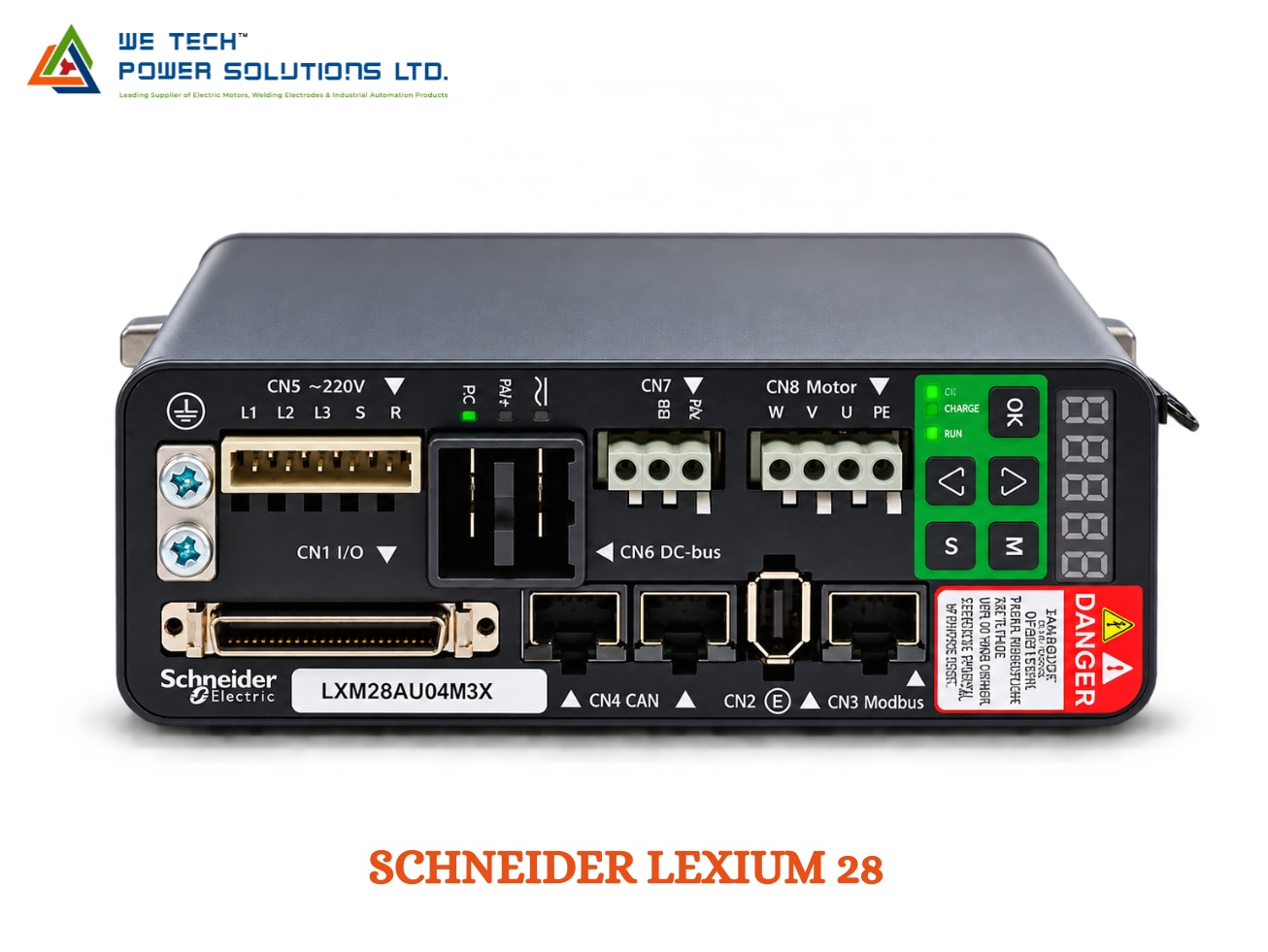

Schneider Lexium 28 Servo Drive

Compact Servo Motion Control for High-Precision Machines

The Schneider Lexium 28 Servo Drive is a compact motion-control solution designed for machine builders requiring accurate positioning, controlled speed, dynamic motion and coordinated servo operation.

The Lexium 28 range is designed to work with Schneider BCH2 servo motors, providing an optimized servo combination for compact machines. Schneider currently lists the Lexium 28 and motors portfolio from 0.05 kW to 4.5 kW.

We Tech Power Solutions Ltd supplies Schneider Electric motion-control products for OEM machinery, automation systems and industrial applications across Ahmedabad, Gujarat and India.

Why Use a Servo Drive Instead of a Standard VFD?

A conventional AC drive is generally selected when the primary requirement is variable motor speed. A servo system is used when the machine also needs accurate positioning, controlled acceleration/deceleration, repeatable motion and dynamic response.

The Lexium 28 can therefore be considered for machines where:

• Position accuracy is important

• Rapid acceleration and deceleration are required

• Repeatable movements are required

• Motor speed must be precisely controlled

• Multiple machine movements need coordination

• Compact motion-control hardware is preferred

Schneider's servo-drive portfolio describes servo systems as closed-loop motion solutions for applications requiring precise position and speed control.

Lexium 28 + BCH2 Servo Motor

Lexium 28 is intended to be used as part of a servo system rather than as an isolated drive.

The Lexium 28 servo drive works with compatible BCH2 servo motors to provide a coordinated motor-and-drive solution for compact machines. Schneider specifically describes the combination as optimized servo bundles for compact machines.

A typical servo system includes:

Controller / PLC

Provides the machine sequence and motion commands.

Lexium 28 Servo Drive

Processes the motion command and controls the servo motor.

BCH2 Servo Motor

Converts the electrical command into controlled mechanical movement.

Feedback System

Provides motor-position information for closed-loop motion control.

This architecture allows the machine controller and servo system to work together for accurate movement.

Designed for Precise Machine Movement

The Lexium 28 is particularly useful where a machine needs controlled positioning rather than simple continuous rotation.

Typical motion requirements include:

• Point-to-point positioning

• Repetitive indexing

• Controlled acceleration

• Controlled deceleration

• Speed regulation

• Position correction

• Coordinated machine movements

• High-repeatability operations

These characteristics make the drive suitable for compact automated machines where accuracy and repeatability directly affect production quality.

Automatic Tuning & Motor Identification

One of the practical features highlighted by Schneider on Lexium 28 references is automatic tuning and motor identification.

This can simplify the commissioning process by helping configure the servo system for the connected motor and machine. Schneider also highlights the Lexium 28 as optimized for easy integration and commissioning in machines.

This can be particularly useful for OEMs developing machines that need a repeatable servo commissioning process.

PLCopen Motion Library

Lexium 28 references are associated with PLCopen motion libraries, supporting standardized motion-control programming concepts within compatible automation architectures.

This can help machine developers implement functions such as:

• Positioning

• Homing

• Velocity control

• Motion sequencing

• Acceleration/deceleration

• Axis commands

The exact controller, software environment and supported motion functions should be verified for the selected system configuration.

Compact Solution for OEM Machines

Machine builders often need to achieve precise motion without significantly increasing cabinet size.

Lexium 28 is designed around compact-machine applications and is available in a relatively broad low-power servo range.

This makes it suitable for equipment such as:

• Compact packaging machines

• Pick-and-place systems

• Labelling machines

• Small assembly machines

• Indexing systems

• Material handling equipment

• Printing machinery

• Textile machines

• Electronic assembly equipment

• OEM special-purpose machines

Schneider's Lexium portfolio specifically identifies packaging, material handling, material working, electronics and food & beverage among motion-centric machine applications.

Available Power Range

The current Schneider Lexium 28 portfolio covers servo-drive and motor combinations from 0.05 kW to 4.5 kW.

Examples of Schneider Lexium 28 references include:

• LXM28AUA5M3X – 50 W

• LXM28AU01M3X – 100 W

• LXM28AU02M3X – 200 W

• LXM28AU04M3X – 400 W

• LXM28AU10M3X – 1 kW

• LXM28AU20M3X – 2 kW

• LXM28AU45M3X – 4.5 kW

The 50 W, 100 W, 400 W, 1 kW, 2 kW and 4.5 kW references are currently documented by Schneider Electric India.

Exact electrical characteristics, motor compatibility and required accessories depend on the complete order number.

Typical Lexium 28 Applications

Packaging Machinery

Servo control can be used for indexing, feeding, positioning and synchronized machine movements.

Pick-and-Place Systems

Precise positioning and repeatable motion make servo technology suitable for automated pick-and-place equipment.

Labelling Machines

Servo systems can control accurate product positioning and label-feed mechanisms.

Assembly Machines

Useful for automated insertion, indexing, positioning and other repetitive assembly operations.

Material Handling

Can be used where conveyors or handling mechanisms require precise indexing or synchronized movement.

Printing & Converting

Servo control can support controlled movement of rollers, feeders and machine sections.

Electronics Manufacturing

Suitable for compact equipment requiring repeatable and precise mechanical movement.

Food & Beverage Machinery

Can be integrated into selected packaging, filling and handling equipment where servo positioning is required.

Technical Product Overview

Parameter Schneider Lexium 28

Brand Schneider Electric

Product Family Lexium 28

Product Type Servo Drive / Motion Drive

Compatible Motor Family BCH2 servo motors

Power Range 0.05–4.5 kW portfolio

Supply Model dependent

Motion Type Servo / closed-loop motion control

Primary Focus Speed and position control

Commissioning Automatic tuning and motor identification on applicable references

Motion Programming PLCopen motion library support on applicable configurations

Application Compact machine automation

Typical Industries Packaging, material handling, electronics, food & beverage, assembly

Installation Machine/control-panel installation according to model

Technical specifications must be confirmed against the exact Lexium 28 drive and BCH2 motor order numbers before selection.

How to Select the Correct Lexium 28 Servo System

Servo selection should be based on the complete mechanical and electrical requirements of the machine.

1. Define the Motor Power

Determine the required servo motor power from the machine's:

• Load

• Speed

• Torque

• Acceleration

• Duty cycle

2. Calculate Required Torque

The servo motor needs sufficient torque to overcome:

• Load inertia

• Friction

• External forces

• Acceleration requirements

• Gravity where applicable

Schneider's servo-drive guidance also emphasizes torque estimation based on acceleration/inertia, friction and external forces.

3. Determine Maximum Speed

Check the required:

• Continuous speed

• Maximum speed

• Acceleration time

• Deceleration time

4. Check Positioning Accuracy

Identify the required:

• Position resolution

• Repeatability

• Indexing accuracy

• Motion profile

5. Select the Compatible Motor

Select a BCH2 servo motor that matches the Lexium 28 drive and the machine's torque/speed requirements.

6. Check Controller Compatibility

Verify the PLC or motion controller, communication architecture and required motion-control functions.

7. Confirm Accessories

Depending on the system, also verify:

• Motor cables

• Encoder/feedback connections

• Braking requirements

• Communication accessories

• Mounting requirements

• Protection components

8. Provide the Complete Order Number

For replacement applications, the complete existing Lexium 28 drive and motor references are the safest starting point for compatibility verification.

Schneider Lexium 28 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Schneider Electric Lexium motion-control products for OEMs, machine builders and industrial automation projects.

We can assist with:

• Lexium 28 servo drive selection

• BCH2 servo motor selection

• Servo sizing requirements

• Drive-and-motor matching

• Motion-control applications

• Replacement and retrofit requirements

• Product quotation

• Automation integration support

We support customers across Ahmedabad, Gujarat and India, with enquiry support for projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric motion-control product sourcing

• Servo drive and motor selection support

• Application-based sizing assistance

• OEM machine automation support

• Replacement and retrofit guidance

• Motion-control product quotation

• Ahmedabad-based automation support

• Pan-India supply assistance

Frequently Asked Questions

What is Schneider Lexium 28 used for?

Lexium 28 is a servo-drive platform designed for motion-centric compact machines requiring controlled speed and precise positioning. Schneider highlights applications including packaging, material handling, material working, electronics and food & beverage machinery.

What is the power range of Lexium 28?

Schneider currently lists the Lexium 28 servo-drive and BCH2 motor portfolio from 0.05 kW to 4.5 kW.

Which motors are used with Lexium 28?

Lexium 28 is designed to work with compatible BCH2 servo motors, forming an optimized servo combination for compact machines.

Does Lexium 28 support automatic tuning?

Yes. Schneider highlights automatic tuning and motor identification on applicable Lexium 28 references to assist with servo commissioning.

Request a Schneider Lexium 28 Servo Drive Quote

Looking for a Schneider Lexium 28 Servo Drive in Ahmedabad, Gujarat or India?

Share your machine application, required torque/speed, motor details or existing Lexium 28 part number with We Tech Power Solutions Ltd. Our team can help identify the appropriate drive-and-motor configuration.
