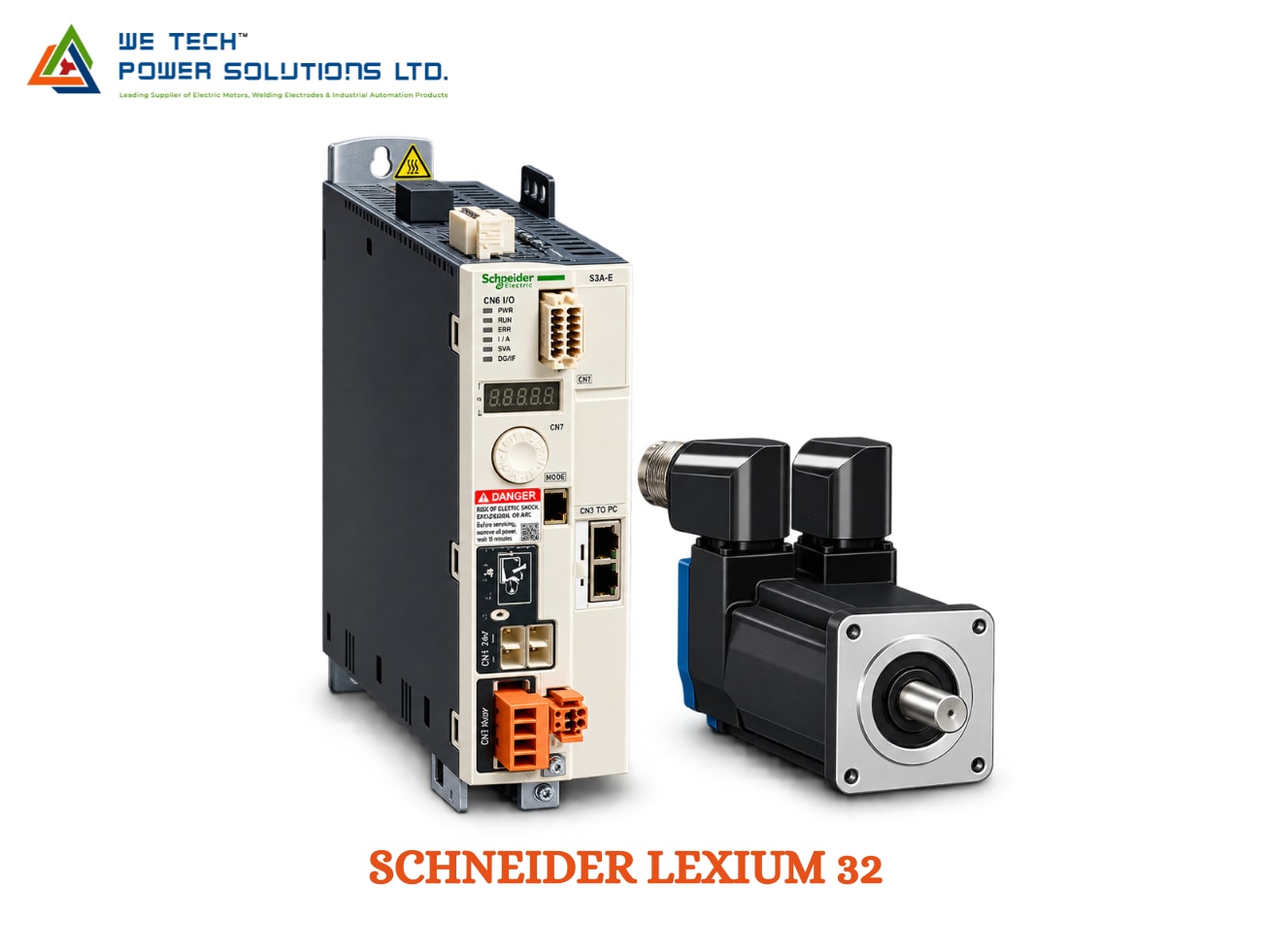

Schneider Lexium 32 Servo Drive

High-Performance Servo Motion Control for Industrial Machines

The Schneider Lexium 32 Servo Drive is a high-performance servo solution designed for machines that require accurate positioning, fast dynamic response, controlled torque and reliable motion coordination.

Schneider Electric's current Lexium 32 portfolio covers servo drives and servo motors from 0.15 kW to 7 kW. The range is designed for motion-centric machines and combines compact book-size servo drives with compatible motor families and intelligent options.

We Tech Power Solutions Ltd supplies Schneider Electric servo drives and motion-control products for OEM machinery, machine builders, system integrators and industrial automation applications across Ahmedabad, Gujarat and India.

When Do You Need a Lexium 32 Servo Drive?

A standard AC drive is generally selected for variable-speed motor operation. A servo drive becomes more relevant when the machine needs controlled position, high-speed response, repeatability and dynamic motion.

Lexium 32 can be considered for machines involving:

• Precise positioning

• High-speed motion

• Repetitive indexing

• Controlled acceleration and deceleration

• Torque-sensitive applications

• Coordinated machine movements

• Electronic gearing and synchronization

• Single-axis or multi-axis machine architectures

Schneider positions the wider Lexium family for motion-centric applications such as packaging, material handling, material working, electronics and food & beverage machinery.

Built for Dynamic Servo Performance

One of the key characteristics of Lexium 32 is its high dynamic response.

Schneider specifies a 1,600 Hz speed bandwidth on Lexium 32 references, supporting rapid response in demanding motion applications.

This can be valuable when a machine requires:

• Fast acceleration

• Rapid deceleration

• Quick position correction

• Precise speed regulation

• Short machine cycles

• Repeatable movement

Actual machine performance depends on motor selection, mechanical design, load inertia, tuning and the overall motion-control architecture.

Compact Book-Size Servo Drive

Control-panel space is an important consideration for OEM machine builders.

Lexium 32 includes book-size servo drive models, allowing drives to be arranged efficiently in machine control cabinets. Schneider's current product information identifies three book-size servo-drive models within the range.

The compact architecture can help machine manufacturers:

• Optimize cabinet space

• Build smaller control panels

• Arrange multiple drive axes efficiently

• Simplify machine layouts

• Standardize servo installations

Exact dimensions, mounting arrangements and clearance requirements depend on the selected Lexium 32 reference.

Servo Drive & Motor Combination

Lexium 32 is designed as part of a complete servo system rather than simply as a standalone motor controller.

A typical motion system includes:

Motion Controller / PLC

Generates the machine sequence and motion commands.

Lexium 32 Servo Drive

Processes the command and regulates motor torque, speed and position.

Compatible Servo Motor

Converts the electrical control signal into controlled mechanical movement.

Feedback System

Provides position and speed information for closed-loop operation.

Schneider's Lexium 32 portfolio includes compatible servo motor families and intelligent options to build the required drive-and-motor combination.

Fast Installation & Maintenance

Servo systems are often used in production machines where downtime directly affects output.

Schneider highlights Lexium 32 features intended to simplify installation and maintenance, including removable, colour-coded connectors.

This can help with:

• Faster wiring

• Easier commissioning

• Simplified maintenance

• Reduced wiring errors

• Easier replacement of components

The exact connectors, accessories and wiring arrangement depend on the selected model.

Motion Control for Different Machine Requirements

Lexium 32 can be integrated into machine architectures where different types of motion need to be coordinated.

Typical requirements may include:

Positioning

Move an axis to defined positions with repeatable motion.

Speed Control

Maintain a controlled motor speed during production.

Torque Control

Regulate motor torque for applications where force or tension is important.

Indexing

Perform repeated movements between predefined positions.

Synchronization

Coordinate one motor or axis with another part of the machine.

Multi-Axis Motion

Integrate multiple servo axes into a coordinated machine architecture, depending on the controller and communication configuration.

Communication & Machine Integration

A servo drive needs to communicate with the machine controller to receive commands and provide status and diagnostic information.

Lexium 32 references are available with different communication and control configurations. Schneider's product portfolio includes models supporting industrial communication options such as Modbus, with other network solutions depending on the selected drive architecture and option.

Before ordering, confirm:

• PLC or motion controller

• Communication protocol

• Number of axes

• Required synchronization

• Feedback requirements

• I/O requirements

• Network architecture

Lexium 32 Power Range

Schneider Electric currently lists the Lexium 32 servo-drive and motor portfolio from 0.15 kW to 7 kW.

Representative drive references include:

• LXM32MU60N4 – 0.4 kW, three-phase, 208–480 V

• LXM32SD18N4 – 1.8 kW, three-phase, 208–480 V

• LXM32AD18N4 – 1.8 kW, three-phase, 208–480 V, IP20

• LXM32MD30N4 – 3 kW, three-phase, 208–480 V

• LXM32MD72N4 – 7 kW, three-phase, 208–480 V

Schneider also lists single-phase Lexium 32 references, such as the LXM32CD30M2, with a 115–230 V supply and 0.8–1.6 kW power range.

These are representative configurations rather than a complete product list. Always confirm the exact order number.

Where Is Schneider Lexium 32 Used?

Packaging Machinery

Servo control can provide accurate indexing, feeding, cutting and synchronized machine movement.

Material Handling

Suitable for positioning and controlled movement in automated handling equipment.

Printing & Converting

Can be used for applications requiring coordinated speed, position and tension control.

Electronics Manufacturing

Suitable for compact machines requiring repeatable, high-speed positioning.

Assembly Automation

Useful for insertion, indexing, pick-and-place and other repetitive machine movements.

Material Working

Servo systems can provide controlled motion for selected cutting, forming and processing equipment.

Food & Beverage Machinery

Can be integrated into packaging, filling, handling and processing equipment where precise motion is required.

Schneider identifies these types of motion-centric industries within its Lexium portfolio.

Technical Product Overview

Parameter Schneider Lexium 32

Brand Schneider Electric

Product Family Lexium 32

Product Type Servo Drive / Motion Drive

Portfolio Power Range 0.15–7 kW

Servo Motor Integration Compatible Lexium servo motor families

Supply Model dependent

Control Closed-loop servo motion

Speed Bandwidth Up to 1,600 Hz on specified references

Drive Format Book-size models available

Communication Model/configuration dependent

Installation Machine/control-panel installation

Connectors Removable, colour-coded connectors on applicable models

Applications Packaging, material handling, electronics, assembly, printing, food & beverage

Typical Use Position, speed, torque and coordinated machine motion

Specifications vary by exact drive and motor order number. Confirm the complete configuration before purchase, replacement or quotation.

How to Select the Correct Lexium 32

Servo selection should be based on the complete mechanical and electrical requirements of the machine.

1. Determine Motor Power

Identify the required servo motor power based on the machine's load, speed and duty cycle.

2. Calculate Required Torque

Consider:

• Load torque

• Acceleration torque

• Friction

• Inertia

• External forces

• Vertical-load requirements

3. Define Maximum Speed

Check the required continuous and peak motor speed.

4. Determine Motion Profile

Identify whether the machine requires:

• Point-to-point positioning

• Continuous motion

• Indexing

• Synchronization

• Electronic gearing

• Torque control

5. Select the Compatible Servo Motor

The servo motor should be matched with the Lexium 32 drive according to the Schneider compatibility documentation.

6. Check Controller & Communication

Confirm the PLC/motion controller, network protocol and number of required axes.

7. Verify Mechanical Requirements

Check:

• Mounting arrangement

• Shaft configuration

• Brake requirement

• Encoder/feedback configuration

• Cable length

• Environmental conditions

8. Confirm the Exact Order Number

For replacement applications, always provide the complete existing Lexium 32 drive and motor part numbers. Similar-looking references can have different electrical ratings and communication configurations.

Schneider Lexium 32 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Schneider Electric Lexium 32 servo drives and motion-control products for OEM and industrial automation applications.

We can assist with:

• Lexium 32 drive selection

• Servo motor matching

• Torque and power requirements

• Motion-control applications

• PLC and communication integration

• Replacement and retrofit requirements

• Product quotation

• Industrial automation sourcing

We support customers across Ahmedabad, Gujarat and India, with enquiry support for industrial projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric motion-control product sourcing

• Servo drive and motor selection support

• Application-based product guidance

• OEM automation support

• Replacement and retrofit assistance

• Motion-control quotation support

• Ahmedabad-based automation support

• Pan-India supply assistance

Frequently Asked Questions

What is Schneider Lexium 32 used for?

Lexium 32 is a servo-drive and motor platform designed for motion-centric machines requiring precise and dynamic control. Typical applications include packaging, material handling, electronics, material working and food & beverage machinery.

What is the power range of Lexium 32?

Schneider Electric currently lists the Lexium 32 servo-drive and motor portfolio from 0.15 kW to 7 kW.

Does Lexium 32 support high-speed motion?

Yes. Schneider specifies a 1,600 Hz speed bandwidth on Lexium 32 references, supporting high dynamic response in suitable applications.

Is Lexium 32 available with different supply configurations?

Yes. Schneider lists both single-phase and three-phase Lexium 32 references, with electrical ratings varying by model. For example, LXM32CD30M2 is a single-phase 115–230 V model, while several LXM32 references are three-phase 208–480 V.
