SCHNEIDER LEXIUM 52

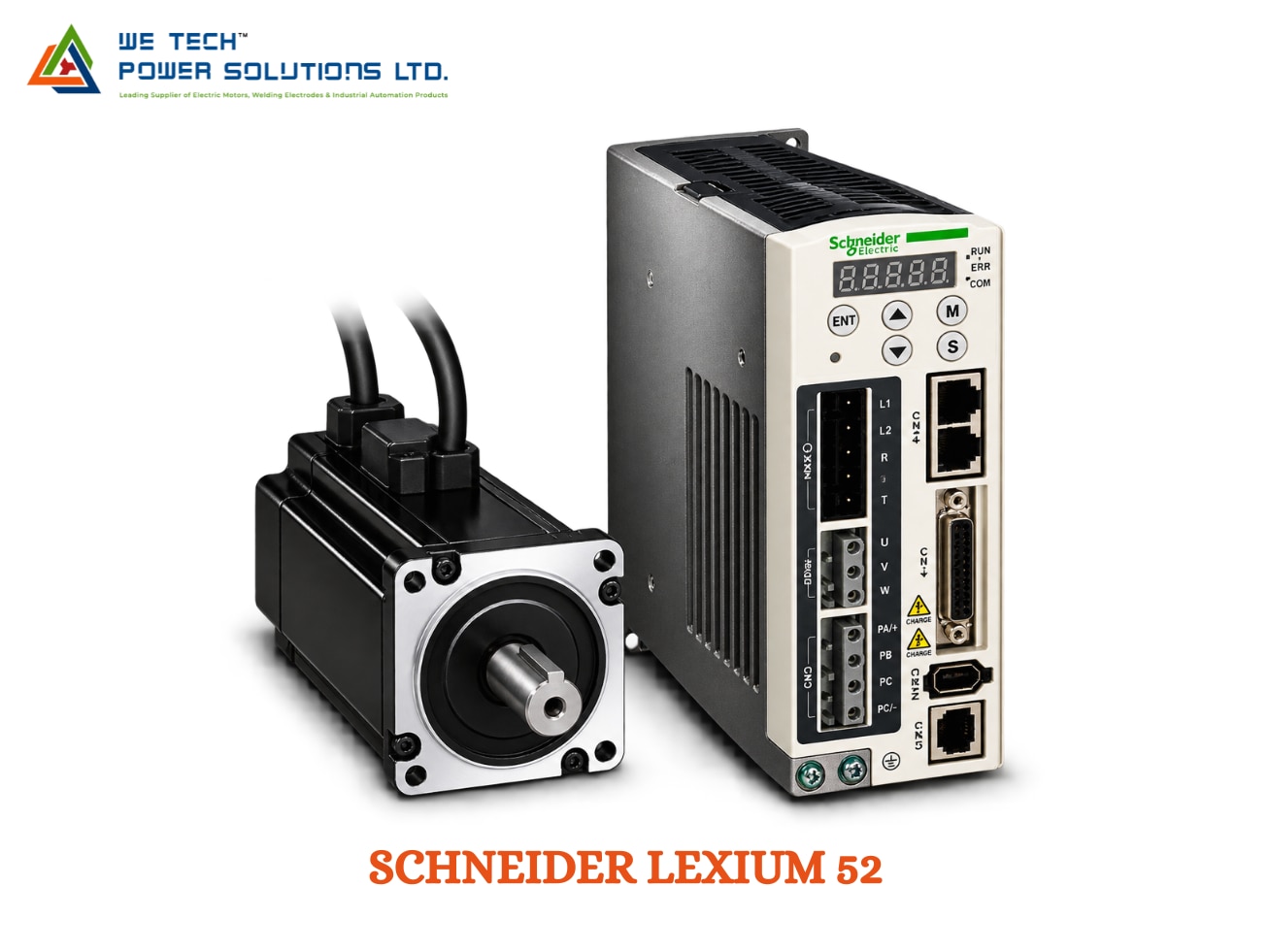

Schneider Lexium 52 Servo Drive

Stand-Alone Servo Drive for PacDrive 3 Machine Automation

The Schneider Lexium 52 Servo Drive is a stand-alone servo drive designed for PacDrive 3 automation solutions, particularly machines requiring economical single-axis servo control with coordinated motion through a PacDrive controller.

Schneider Electric currently describes Lexium 52 as a range of stand-alone servo drives and compatible servo motors covering 0.4 kW to 7 kW. The platform is designed for PacDrive-based automation architectures and provides a practical solution where a machine requires a limited number of servo axes.

We Tech Power Solutions Ltd supplies Schneider Electric motion-control products for OEMs, machine builders, system integrators and industrial automation projects across Ahmedabad, Gujarat and India.

What Is Schneider Lexium 52?

Unlike a general-purpose variable frequency drive, Lexium 52 is designed specifically for servo motion control.

The drive is particularly suited to PacDrive 3 architectures where individual servo axes need dedicated stand-alone drives.

Schneider describes Lexium 52 as an economical solution for self-contained single-axis servo applications, with integrated three-phase power supply and embedded digital I/O.

This makes the platform useful when a machine needs:

• Precise servo positioning

• Controlled speed and torque

• Individual axis control

• Coordinated machine motion

• Compact control cabinets

• PacDrive 3 integration

• A scalable servo architecture

Lexium 52 Within the PacDrive 3 Architecture

One of the most important aspects of Lexium 52 is its relationship with PacDrive 3.

A typical architecture can include:

PacDrive Controller

Provides the overall machine and motion-control logic.

Lexium 52 Servo Drive

Controls an individual servo axis.

Lexium SH3 / MH3 / SHS Servo Motor

Converts the drive command into mechanical movement.

Sercos Communication

Provides the motion-control communication between the PacDrive controller and servo drive.

Schneider specifically states that Lexium 52 can be controlled through Sercos by PacDrive 3 LMC Eco and Pro controllers.

A Practical Solution for Machines with Few Servo Axes

Not every machine needs a large multi-axis servo system.

For machines with a relatively small number of servo axes, Lexium 52 can provide a more economical architecture while retaining PacDrive-based motion control.

Schneider positions Lexium 52 as a complementary solution to the Lexium 62 multi-axis servo system: Lexium 52 is intended for economical configurations with fewer axes, while Lexium 62 addresses multi-axis PacDrive applications.

This makes Lexium 52 useful when machine builders need to balance:

• Servo performance

• Axis count

• Cabinet space

• System architecture

• Project cost

• Future scalability

Integrated Three-Phase Power Supply

Lexium 52 uses an integrated three-phase power supply architecture.

The range includes five drive power levels, with current Schneider documentation describing ratings from approximately 6 A to 72 A and power coverage from 0.4 kW to 7 kW depending on the selected model.

This provides machine builders with multiple drive options for different servo-axis requirements.

Side-by-Side Installation for Better Cabinet Utilization

Control-panel space is an important consideration in machine design.

Schneider describes Lexium 52 as a high-power-density servo drive designed for side-by-side mounting, helping provide high power in a relatively compact cabinet arrangement.

This can help OEMs with:

• Efficient cabinet layouts

• Reduced panel footprint

• Cleaner servo-axis arrangements

• Easier expansion of selected architectures

• Better utilization of available cabinet space

Exact clearances and mounting requirements should always be checked against the selected drive reference and current hardware documentation.

Embedded Digital I/O

Lexium 52 includes embedded digital I/O, reducing the need for separate components for certain local machine signals.

Depending on the application, this can be useful for connecting local control or status signals associated with the servo axis.

The exact I/O capabilities should be confirmed against the specific LXM52 order number and current hardware guide. Schneider published an updated Lexium 52 Hardware Guide in February 2026, covering technical characteristics, installation and maintenance of the LXM52 servo-drive family.

Sercos-Based Motion Communication

For PacDrive 3 applications, communication between the controller and servo drives is an important part of the architecture.

Lexium 52 uses Sercos for motion communication within compatible PacDrive 3 systems. Schneider's documentation specifically identifies Sercos communication with PacDrive 3 controllers as part of the Lexium 52 solution.

This allows the servo drive to participate in coordinated machine-motion architectures.

Before selecting the drive, confirm:

• PacDrive controller model

• Number of servo axes

• Sercos architecture

• Required motor

• Drive rating

• Machine cycle requirements

• Safety architecture

Compatible Servo Motors

Lexium 52 is supported by dedicated Schneider servo motor families.

Schneider's current documentation identifies SH3, MH3 and SHS servo motors for Lexium 52 and Lexium 62 servo-drive ranges.

Selecting the motor and drive as a matched system is important because the correct combination depends on:

• Required torque

• Continuous speed

• Peak speed

• Acceleration

• Load inertia

• Mechanical transmission

• Duty cycle

• Brake requirements

• Feedback configuration

For replacement applications, the existing drive and motor order numbers should be checked together.

Safety Functions

Lexium 52 documentation includes integrated safety functionality as part of the PacDrive servo solution. Schneider's product documentation identifies integrated safety functions within the LXM52 platform.

Safety requirements should be evaluated as part of the complete machine safety architecture rather than treating the servo drive as a standalone safety system.

The final machine safety design should be engineered and validated according to the applicable standards, risk assessment and system architecture.

Lexium 52 Power Range

Schneider currently lists Lexium 52 stand-alone servo drives from 0.4 kW to 7 kW.

Documented LXM52 drive references include:

• LXM52DU60C41000

• LXM52DD12C41000

• LXM52DD18C41000

• LXM52DD30C41000

• LXM52DD72C41000

The original Schneider catalog identifies five principal Lexium 52 servo-drive models corresponding to the range's different power/current levels.

The exact electrical ratings and motor compatibility must be confirmed from the complete order number.

Typical Applications

Packaging Machinery

Lexium 52 can be used for servo-controlled axes involved in indexing, feeding, positioning and synchronized packaging operations.

Material Handling

Suitable for machine axes requiring controlled movement, positioning and coordination.

Pick-and-Place Equipment

Servo control can provide repeatable movement for automated handling mechanisms.

Assembly Machines

Useful for precise positioning and repetitive machine movements.

Printing & Converting

Servo systems can be applied where coordinated movement and speed synchronization are required.

Food & Beverage Machinery

Can be integrated into selected packaging, filling and handling equipment using PacDrive 3 architectures.

Electronics Manufacturing

Suitable for compact automated equipment requiring controlled servo movement.

OEM Special-Purpose Machines

Lexium 52 is particularly relevant to OEM machines using PacDrive 3 where only a limited number of dedicated servo axes are required.

Lexium 52 vs Lexium 62

Both products belong to the PacDrive 3 servo ecosystem, but their architecture is different.

Feature Lexium 52 Lexium 62

Architecture Stand-alone servo drive Multi-axis servo system

Primary use Economical single-axis/few-axis solutions Multi-axis machine architectures

PacDrive 3 Yes Yes

Communication Sercos PacDrive/Sercos architecture

Power Range 0.4–7 kW Broader multi-axis range

Cabinet Concept Individual drives, side-by-side Multi-axis servo system

Typical Selection Few servo axes Larger coordinated servo systems

Schneider positions Lexium 52 as the economical solution for PacDrive-based machines with few axes, while Lexium 62 is the multi-axis alternative.

Technical Product Overview

Parameter Schneider Lexium 52

Brand Schneider Electric

Product Family Lexium 52

Product Type Stand-alone Servo Drive

Automation Platform PacDrive 3

Power Range 0.4–7 kW

Drive Levels Five principal power/current levels

Communication Sercos

Controller Compatibility PacDrive 3 LMC Eco and Pro controllers

Motor Families SH3, MH3 and SHS

Power Supply Integrated three-phase power supply

I/O Embedded digital I/O

Mounting Side-by-side mounting supported by design

Safety Integrated safety functions on applicable configurations

Typical Application Single-axis / few-axis servo automation

Installation Industrial control cabinet

Specifications vary according to the exact LXM52 order number. Confirm the complete drive, motor, communication and accessory configuration before ordering.

How to Select the Correct Lexium 52

Servo selection should begin with the mechanical requirements of the machine.

1. Determine the Required Motor Power

Calculate the motor power based on:

• Load

• Speed

• Acceleration

• Duty cycle

• Mechanical transmission

2. Calculate Torque Requirements

Consider:

• Continuous torque

• Peak torque

• Acceleration torque

• Load inertia

• Friction

• External forces

3. Define the Servo Motor

Select a compatible SH3, MH3 or SHS motor according to the application's torque, speed and mechanical requirements. Schneider provides dedicated motor documentation for Lexium 52.

4. Confirm PacDrive Controller

Verify that the selected controller and Lexium 52 architecture are compatible with the required number of axes and motion functions.

5. Check Sercos Communication

Confirm the required communication architecture and network configuration.

6. Review Cabinet Requirements

Check:

• Mounting

• Cooling

• Clearance

• Power distribution

• Cable routing

• EMC requirements

7. Verify Safety Requirements

Identify the safety functions required by the machine risk assessment and verify the complete safety architecture.

8. Provide the Exact Order Number

For replacement applications, provide the existing LXM52 reference and compatible motor part number. This is the most reliable way to verify replacement compatibility.

Schneider Lexium 52 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Schneider Electric Lexium 52 servo drives and motion-control products for OEM and industrial automation applications.

We can assist with:

• Lexium 52 model selection

• Servo motor matching

• PacDrive 3 application requirements

• Drive and motor sizing

• Sercos communication requirements

• Replacement and retrofit applications

• Product quotation

• Motion-control sourcing

We support customers across Ahmedabad, Gujarat and India, with enquiry support for industrial projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric motion-control product sourcing

• Lexium servo-drive selection support

• Servo motor matching assistance

• PacDrive-based automation support

• Replacement and retrofit guidance

• Industrial automation quotation support

• Ahmedabad-based customer support

• Pan-India supply assistance

Frequently Asked Questions

What is Schneider Lexium 52 used for?

Lexium 52 is a stand-alone servo-drive platform for PacDrive 3 automation solutions, particularly economical single-axis and few-axis machine architectures.

What is the power range of Lexium 52?

Schneider currently lists Lexium 52 servo drives from 0.4 kW to 7 kW. The range includes five principal drive power/current levels.

Which motors are compatible with Lexium 52?

Schneider documentation identifies SH3, MH3 and SHS servo motors for Lexium 52 and Lexium 62 servo-drive applications.

Does Lexium 52 work with PacDrive 3?

Yes. Lexium 52 is specifically designed for PacDrive 3-based automation solutions and can be controlled via Sercos with compatible PacDrive 3 LMC Eco and Pro controllers.

What is the difference between Lexium 52 and Lexium 62?

Lexium 52 is designed around stand-alone drives for economical single-axis or few-axis PacDrive applications, while Lexium 62 is Schneider's multi-axis servo system for PacDrive 3 architectures.
