SCHNEIDER LEXIUM 62 ILM

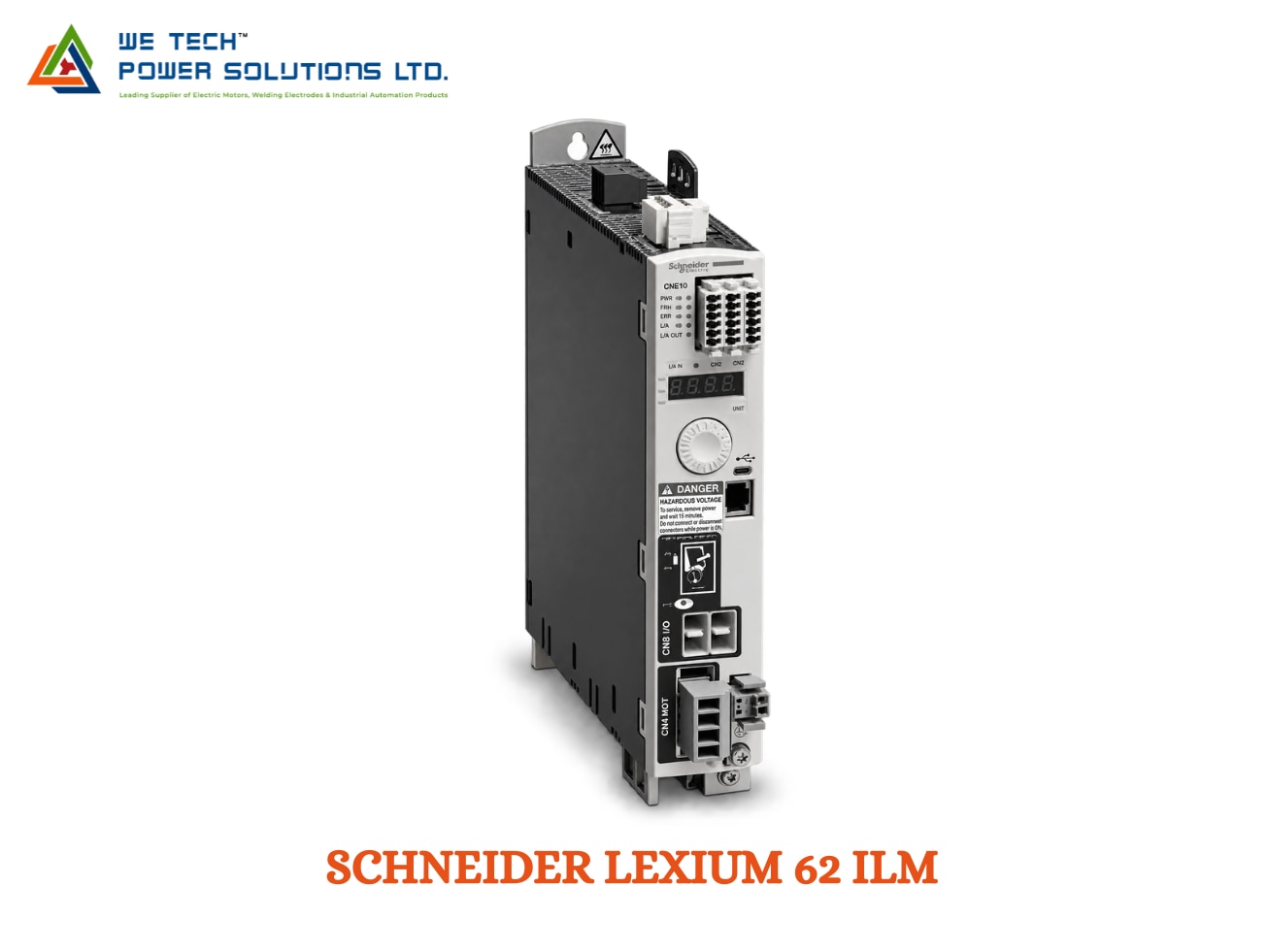

Schneider Lexium 62 ILM Integrated Servo Drive

Decentralized Multi-Axis Motion Control for PacDrive 3

The Schneider Lexium 62 ILM Integrated Servo Drive is a decentralized servo solution designed for multi-axis machine automation based on PacDrive 3. It combines the servo motor and drive electronics into an integrated unit, allowing machine builders to move servo functionality closer to the machine axis instead of installing every servo drive inside the main control cabinet.

Schneider Electric currently lists the Lexium 62 ILM range from 0.31 kW to 1.91 kW for PacDrive 3 automation solutions.

We Tech Power Solutions Ltd supplies Schneider Electric motion-control products for OEMs, machine builders, system integrators and industrial automation projects across Ahmedabad, Gujarat and India.

Why Choose an Integrated Servo Architecture?

Traditional servo systems generally place the drive electronics inside the electrical cabinet and connect them to motors installed throughout the machine.

Lexium 62 ILM takes a different approach.

The drive electronics are integrated with the servo motor, creating a decentralized motion architecture.

This can be particularly useful when a machine contains multiple servo axes distributed across different sections.

Key advantages include:

• Reduced cabinet-mounted servo hardware

• More decentralized machine architecture

• Optimized machine wiring

• Efficient multi-axis installation

• Better use of control-panel space

• Scalable servo-axis architecture

• PacDrive 3 integration

Schneider describes Lexium 62 ILM specifically as a multiaxis integrated servo-drive range for PacDrive 3.

Lexium 62 ILM: Motor + Drive in One Unit

The defining feature of the ILM platform is its integrated construction.

Instead of:

Controller → Cabinet Servo Drive → Motor

the architecture becomes:

PacDrive Controller → Communication Network → Integrated Servo Motor + Drive

This places the drive electronics at the machine axis.

For OEM machine builders, this approach can be useful when servo axes are physically distributed throughout the equipment.

Built for PacDrive 3

Lexium 62 ILM is not a general-purpose servo drive intended for every automation architecture. It is specifically positioned within the PacDrive 3 motion-control ecosystem.

A typical system can include:

• PacDrive 3 controller

• Lexium 62 ILM servo axes

• Connection modules

• Sercos III communication

• Hybrid cabling

• Machine I/O

• HMI

• Safety components

Schneider's Lexium portfolio identifies Lexium 62 as a multi-axis servo system for PacDrive 3, while Lexium 62 ILM provides the integrated-drive implementation.

Multi-Axis Motion Without Filling the Control Cabinet

As the number of servo axes increases, a conventional control cabinet can require considerable space for individual servo drives, power wiring and associated components.

With Lexium 62 ILM, the servo drive is distributed with the motor.

This can help machine builders create:

Central Control Cabinet

PacDrive Controller

Power Distribution

I/O

Network Components

↓

Distributed Servo Axes

ILM Axis 1

ILM Axis 2

ILM Axis 3

ILM Axis 4

ILM Axis 5

The result is a machine architecture where motion hardware is positioned closer to the mechanical axes.

Schneider highlights the space and wiring benefits of its integrated-drive concept, although the actual savings depend on machine design, cable routing and installation architecture.

Sercos III Communication

Communication is an important part of a decentralized motion system.

Lexium 62 ILM uses the Sercos III-based PacDrive 3 architecture for coordinated motion communication. Schneider also provides dedicated Sercos III daisy-chain cables for Lexium 62 ILM installations.

This architecture allows multiple servo axes to participate in coordinated machine movement.

It can support machine requirements such as:

• Axis synchronization

• Position control

• Speed control

• Coordinated motion

• Indexing

• Repetitive positioning

• High-speed machine sequences

The exact motion functions depend on the PacDrive controller, software and complete system configuration.

Connection Modules for Distributed Installation

Lexium 62 ILM installations can use dedicated connection modules to organize the connection between the integrated servo axes and the system power/communication architecture.

For example, Schneider documents the ILM62CMD20A000 connection module for connecting Lexium 62 ILM systems to an LXM62 power supply drive.

Dedicated Sercos III daisy-chain cables are also available in different lengths, including 5 m and 10 m references.

This makes it possible to design a more organized distributed servo network across larger machines.

Integrated Digital I/O Options

The Lexium 62 ILM ecosystem also includes digital I/O modules.

Schneider documents the VW3E702100000 Lexium 62 ILM digital I/O module with 8 digital I/O points, including configurable inputs and outputs.

This can help machine builders address selected local I/O requirements within the decentralized motion architecture.

The exact I/O requirement should be evaluated against the machine's controller, safety system and local-device architecture.

Power Range of Lexium 62 ILM

The Schneider Lexium 62 ILM range currently covers 0.31 kW to 1.91 kW.

The range is intended for distributed servo axes where integrated drive technology is beneficial.

When selecting a unit, do not select solely on kW. The machine designer should also evaluate:

• Continuous torque

• Peak torque

• Motor speed

• Acceleration

• Load inertia

• Mechanical transmission

• Duty cycle

• Encoder requirements

• Brake requirements

• Environmental conditions

Motor Configuration Matters

Lexium 62 ILM selection involves more than choosing a power rating.

Depending on the exact reference, the integrated servo solution can have different mechanical and feedback characteristics.

Before ordering, verify:

• Motor power

• Rated speed

• Torque

• Encoder configuration

• Shaft design

• Brake requirement

• Flange/mechanical configuration

• Cable requirements

• Connection architecture

The complete Schneider order number should therefore be confirmed before purchase or replacement.

Where Is Schneider Lexium 62 ILM Used?

Packaging Machinery

Suitable for distributed servo axes used in feeding, indexing, cutting, sealing and coordinated packaging movements.

Material Handling

Can be used for multi-axis handling systems where servo motors are positioned across different machine sections.

Pick-and-Place Machines

Useful for coordinated machine axes requiring precise and repeatable movement.

Filling & Processing Equipment

Can be integrated into machines requiring synchronized servo motion across multiple machine functions.

Printing & Converting

Suitable for applications where multiple axes must operate with controlled speed and synchronization.

Electronics Manufacturing

Useful for compact high-speed automation systems requiring distributed servo control.

Food & Beverage Machinery

Can be considered for packaging and processing equipment based on PacDrive 3 architecture.

OEM Special-Purpose Machines

Particularly relevant when machine builders need multiple distributed servo axes without placing every drive inside the central cabinet.

Schneider identifies packaging, material handling, material working, electronics and food & beverage among the motion-centric applications of its Lexium range.

Lexium 62 ILM vs Lexium 52

Both belong to the PacDrive 3 ecosystem, but they solve different machine-design requirements.

Feature Lexium 62 ILM Lexium 52

Product Type Integrated servo drive Stand-alone servo drive

Drive Electronics Integrated with motor Separate drive

Architecture Decentralized Cabinet-based

PacDrive 3 Yes Yes

Main Application Multi-axis integrated motion Single/few-axis servo applications

Power Range 0.31–1.91 kW 0.4–7 kW

Cabinet Requirement Reduced drive hardware in cabinet Servo drive installed in cabinet

Motor & Drive Integrated Separate components

Communication PacDrive 3 / Sercos III architecture PacDrive 3 / Sercos architecture

Schneider identifies Lexium 52 as a stand-alone servo-drive range and Lexium 62 ILM as a multiaxis integrated servo-drive range for PacDrive 3.

Technical Product Overview

Parameter Schneider Lexium 62 ILM

Brand Schneider Electric

Product Family Lexium 62 ILM

Product Type Integrated Servo Drive

Architecture Decentralized / Integrated

Automation Platform PacDrive 3

Power Range 0.31–1.91 kW

Drive & Motor Integrated

Communication Sercos III / PacDrive 3 architecture

Installation Distributed machine installation

Connection Dedicated connection modules and daisy-chain cabling available

Digital I/O Optional dedicated I/O modules available

Application Focus Multi-axis machine automation

Typical Industries Packaging, material handling, electronics, food & beverage, machine building

Exact specifications depend on the complete product reference and system architecture. Confirm the drive/motor configuration, connection modules, cables and accessories before ordering.

How to Select the Correct Lexium 62 ILM

1. Determine Axis Requirements

Identify:

• Number of servo axes

• Axis arrangement

• Required synchronization

• Machine cycle time

2. Calculate Motor Requirements

Determine:

• Required torque

• Continuous torque

• Peak torque

• Maximum speed

• Acceleration

• Deceleration

3. Define the Mechanical Configuration

Check:

• Mounting arrangement

• Shaft configuration

• Brake requirement

• Encoder requirement

• Machine dimensions

4. Confirm PacDrive 3 Compatibility

Verify the:

• PacDrive controller

• Sercos architecture

• Required axis count

• Connection modules

• Communication cables

5. Plan the Distributed Wiring

Determine the required:

• Hybrid cables

• Sercos III cables

• Connection modules

• Power distribution

• Local I/O

Schneider provides dedicated ILM connection modules and Sercos III daisy-chain cables for the platform.

6. Consider the Environment

Check:

• Ambient temperature

• Humidity

• Dust

• Vibration

• Machine installation conditions

• EMC requirements

7. Confirm the Exact Order Number

For replacement applications, provide the complete existing Lexium 62 ILM reference. This helps avoid mismatching motor, encoder, brake or mechanical configurations.

Schneider Lexium 62 ILM Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Schneider Electric Lexium motion-control products for OEMs, machine builders and industrial automation projects.

We can assist with:

• Lexium 62 ILM selection

• Integrated servo configuration

• PacDrive 3 architecture

• Servo sizing requirements

• Sercos III connectivity

• Connection-module selection

• Replacement and retrofit requirements

• Product quotation and sourcing

We support customers across Ahmedabad, Gujarat and India, with enquiry support for industrial projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric motion-control product sourcing

• Lexium integrated servo selection support

• PacDrive 3 application guidance

• Servo-axis configuration assistance

• Communication and accessory selection

• Replacement and retrofit support

• OEM automation support

• Ahmedabad-based industrial automation assistance

• Pan-India supply support

Frequently Asked Questions

What is Schneider Lexium 62 ILM?

Lexium 62 ILM is a multiaxis integrated servo-drive range designed for PacDrive 3 automation solutions. The drive electronics are integrated with the servo motor for decentralized machine installation.

What is the power range of Lexium 62 ILM?

Schneider Electric currently lists Lexium 62 ILM from 0.31 kW to 1.91 kW.

What is the main advantage of an integrated servo drive?

Integrating the drive electronics with the motor allows the servo system to be distributed closer to the machine axes. This can reduce cabinet-mounted hardware and simplify wiring in suitable multi-axis machine designs.

Does Lexium 62 ILM use Sercos III?

Yes. Schneider provides dedicated Sercos III daisy-chain cables for Lexium 62 ILM, supporting the PacDrive 3 motion architecture.

Can Lexium 62 ILM be expanded with I/O?

Yes. Schneider provides dedicated Lexium 62 ILM digital I/O modules, including the VW3E702100000 with 8 digital I/O points.

Request a Schneider Lexium 62 ILM Quote

Looking for a Schneider Lexium 62 ILM Integrated Servo Drive in Ahmedabad, Gujarat or India?

Share your ILM part number, number of axes, motor power, torque, speed, encoder/brake requirement or PacDrive 3 application details with We Tech Power Solutions Ltd. Our team can help identify the suitable integrated servo configuration.
