SCHNEIDER LEXIUM 62D

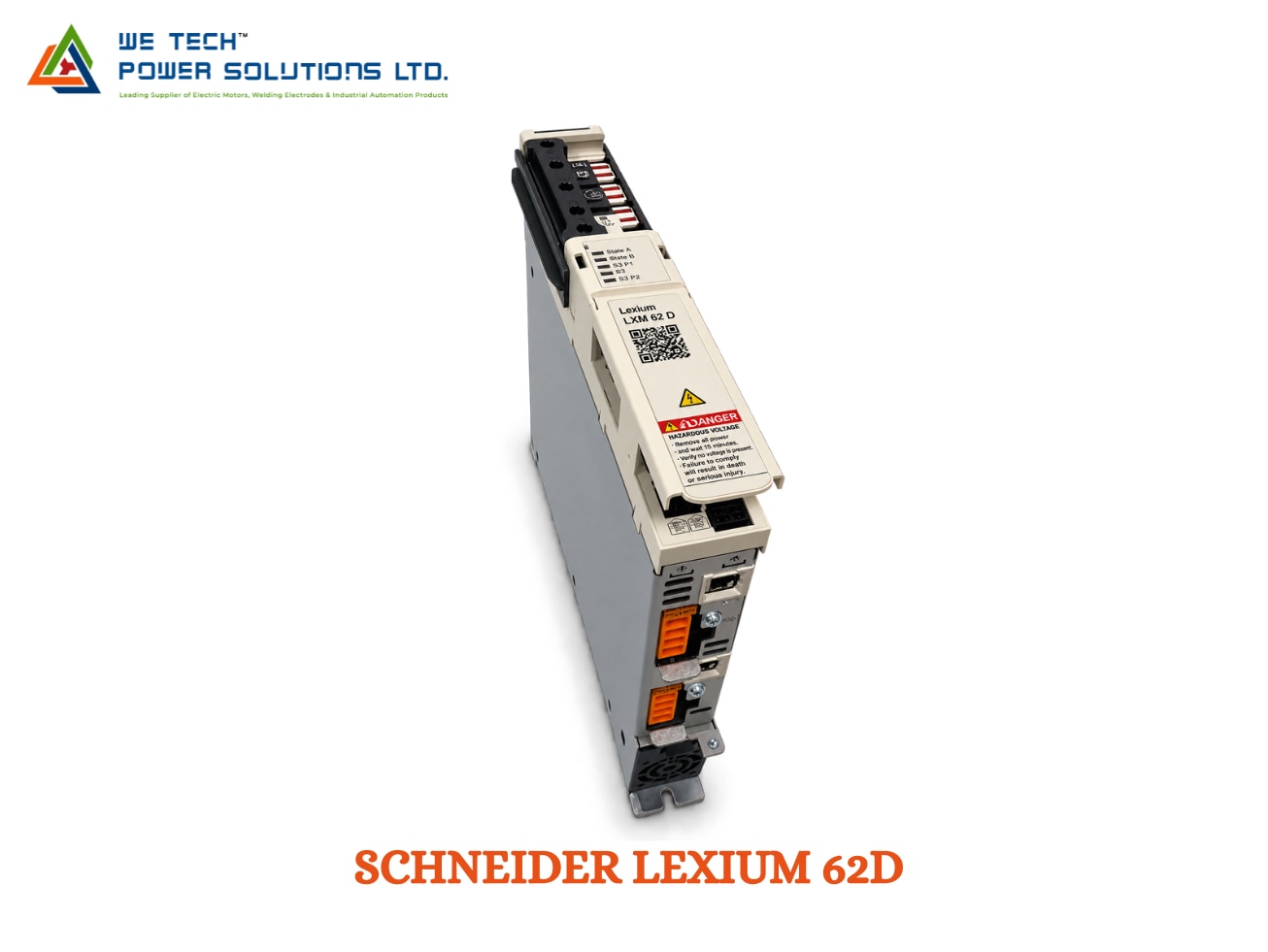

Schneider Lexium 62D Servo Drive

Schneider Lexium 62D Double Servo Drive for Multi-Axis Machine Automation

The Schneider Lexium 62D Servo Drive is designed for multi-axis machine applications where two servo channels need to be accommodated within a compact, modular drive architecture.

As part of the Lexium 62 servo system for PacDrive 3, the double-drive configuration helps machine builders manage multiple coordinated servo axes while making efficient use of control-panel space. Schneider describes Lexium 62 drives as universal, compact servo drives for multi-axis solutions, with modular construction, safety functionality and simplified installation and maintenance.

We Tech Power Solutions Ltd supplies Schneider Electric servo drives and industrial automation products for OEMs, machine builders, panel builders and automation projects across Ahmedabad, Gujarat and India.

What Is the Schneider Lexium 62D Servo Drive?

Lexium 62D refers to the double-drive configuration within the Lexium 62 family.

Instead of using two completely separate drive units, a double-drive module provides two servo-drive channels within one compact drive unit. This makes it useful for machines where multiple axes must be installed close together and coordinated through a common motion-control architecture.

The Lexium 62 family is built for PacDrive 3-based multi-axis automation, while individual Lexium 62 references are available in different current classes and single- or double-drive configurations.

Why Choose a Double Servo Drive?

When a machine has several servo axes, cabinet space, wiring and power distribution can become important design considerations.

A Lexium 62D configuration can help with:

• Two servo channels in one drive module

• Compact control-panel arrangement

• Multi-axis machine architecture

• Modular installation

• Coordinated servo motion

• Simplified cabinet organization

• PacDrive 3 integration

• Safety-oriented drive functionality

• Easier installation and maintenance

Schneider specifically describes the Lexium 62 double-drive references as compact, modular servo drives for multi-axis solutions.

Two-Axis Motion in a Compact Architecture

The main advantage of the double-drive configuration is the ability to accommodate two servo axes within one drive module.

A typical architecture can be represented as:

PacDrive 3 Motion Controller

↓

Lexium 62 Power Supply

↓

Lexium 62D Double Drive

↓

Servo Motor Axis 1 + Servo Motor Axis 2

Additional Lexium 62 single or double drives can be incorporated where the machine requires more axes.

This architecture is particularly relevant to machines containing several synchronized movements.

Lexium 62D Current Configurations

Schneider provides different Lexium 62 double-drive references to match different axis requirements.

Examples include:

• LXM62DU60D21000 – Lexium 62 Double Drive, 6 A

• LXM62DD15D21000 – Lexium 62 Double Drive, 15 A

• LXM62DD27D21000 – Lexium 62 Double Drive, 27 A

These references demonstrate why the complete order number is important when selecting a replacement or new drive. Schneider's current product documentation identifies different current classes across the Lexium 62 range.

Example: 27 A Double Drive

The LXM62DD27D21000 is a Schneider Lexium 62 Double Drive rated at 27 A.

Schneider's environmental product documentation specifies for this reference:

• Continuous output current: 9 A

• 3-second peak output current: 27 A

• Continuous power: 4.3 kW

• 4 kHz operating reference

• Double-drive configuration

These values are specific to the LXM62DD27D21000 reference and should not be applied to every Lexium 62D model.

Multi-Axis PacDrive 3 Integration

Lexium 62D is intended for integration into PacDrive 3-based machine automation systems.

The complete architecture can combine:

• Motion controller

• Lexium 62 power supply

• Single servo drives

• Double servo drives

• Servo motors

• Machine I/O

• HMI

• Safety devices

• Industrial communication

• Motion-control software

Schneider currently categorizes Lexium 62 & Motors as a multi-axis servo system and servo motor range for PacDrive 3, with the portfolio extending from 0.95 kW to 24 kW.

Compact Cabinet Design

For multi-axis machines, reducing cabinet footprint can simplify panel design.

The Lexium 62D configuration can be useful where two servo channels are required but the machine builder wants to avoid installing two independent drive modules.

Potential benefits include:

Better Space Utilization

Two drive channels are accommodated within a compact double-drive architecture.

Modular Expansion

Additional Lexium 62 drive modules can be incorporated as the number of axes increases.

Cleaner Cabinet Layout

The modular system can simplify organization of servo power and drive components.

Multi-Axis Coordination

The drives can operate as part of the broader PacDrive 3 motion architecture.

Safety-Oriented Drive Functionality

Selected Lexium 62 double-drive references include safety-related drive functionality.

For example, Schneider lists safety input inverter enable and advanced safety functionality among the features of the LXM62DD27D21000.

Safety functions must always be evaluated as part of the complete machine safety architecture. The correct safety design, risk assessment, validation and applicable standards remain the responsibility of the machine/system designer.

Applications of Lexium 62D Servo Drive

Lexium 62D is suited to machines requiring multiple coordinated servo axes.

Packaging Machinery

• Filling machines

• Cartoning machines

• Wrapping systems

• Labelling equipment

• Pick-and-place machines

Material Handling

• Automated transfer systems

• Conveyor systems

• Sorting machines

• High-speed handling equipment

Printing & Converting

• Web handling

• Feeding systems

• Positioning applications

• Coordinated roller systems

Food & Beverage

• Packaging lines

• Filling equipment

• Processing machinery

• Automated handling

Electronics Manufacturing

• Precision positioning

• Assembly equipment

• Inspection-related motion

• High-speed machine mechanisms

General OEM Machinery

• Special-purpose machines

• Automated production equipment

• Multi-axis machine platforms

• High-speed manufacturing systems

Schneider's Lexium portfolio covers motion-centric applications including packaging, material handling, material working, electronics and food & beverage.

Lexium 62D vs Lexium 62 ILM

These two products should not be presented as the same type of servo drive.

Feature Lexium 62D Lexium 62 ILM

Product type Double servo drive Integrated servo drive

Architecture Cabinet-based Integrated/decentralized

Motor + drive Separate Integrated solution

Platform PacDrive 3 PacDrive 3

Main purpose Two servo channels in multi-axis system Integrated multi-axis servo solution

Power range Model dependent 0.31–1.91 kW

Typical use Multi-axis cabinet architecture Decentralized machine architecture

Schneider separately lists Lexium 62 ILM as its multiaxis integrated servo-drive range, from 0.31 to 1.91 kW, while Lexium 62D belongs to the standard Lexium 62 multi-axis servo-drive family.

Lexium 62D vs Lexium 62 Single Drive

Feature Lexium 62 Single Drive Lexium 62D Double Drive

Servo channels One Two

Multi-axis use Yes Yes

PacDrive 3 Yes Yes

Cabinet installation Yes Yes

Main advantage Individual axis control Two-axis compact configuration

Selection Current/axis dependent Current/axis dependent

The best choice depends on the number of axes, motor requirements, cabinet layout and overall machine architecture.

Technical Product Overview

Parameter Schneider Lexium 62D

Brand Schneider Electric

Product Family Lexium 62 & Motors

Product Type Double Servo Drive

Architecture Multi-axis servo system

Automation Platform PacDrive 3

Drive Configuration Double drive

Servo Channels Two

Current Rating Model dependent

Example Ratings 6 A, 15 A, 27 A

Peak Current Model dependent; Lexium 62 family has multiple current classes

Motor Compatible Schneider servo motors

Safety Model-dependent safety functionality

Installation Industrial control cabinet

Applications Packaging, material handling, electronics, food & beverage, machine automation

Schneider's Lexium 62 documentation identifies single and double drives with different current classes, while the exact electrical characteristics depend on the selected reference.

How to Select the Correct Lexium 62D

Before ordering a Lexium 62D Servo Drive, check the following:

1. Number of Servo Axes

Confirm whether the machine requires two servo channels from the same drive module.

2. Motor Rating

Check:

• Motor power

• Continuous current

• Peak current

• Rated speed

• Required torque

3. Load Profile

Consider acceleration, deceleration, duty cycle and simultaneous operation of both axes.

4. Power Supply

Verify the compatible Lexium 62 power-supply module and total system power requirement.

5. Controller

Confirm the PacDrive 3 controller and required motion functions.

6. Safety Requirements

Check the required safety functions and machine safety architecture.

7. Existing Part Number

For replacement projects, always provide the complete existing Lexium 62D order number.

8. Installation Conditions

Review:

• Cabinet temperature

• Cooling

• Mounting

• EMC

• Cable routing

• Clearance

• Environmental conditions

Schneider's latest Lexium 62 Hardware Guide, Version 03 dated 1 February 2026, covers the technical characteristics, installation and maintenance requirements of the LXM62 servo-drive family.

Schneider Lexium 62D Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd provides Schneider Electric automation products and supports Lexium servo-drive requirements for OEMs, machine builders and industrial customers.

Our team can assist with:

• Lexium 62D model identification

• Double-drive selection

• Servo motor matching

• Power-supply selection

• Replacement requirements

• Multi-axis system enquiries

• PacDrive 3 application requirements

• Product quotation and sourcing

We support customers in Ahmedabad, Gujarat and across India, with enquiry support for projects in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric automation product sourcing

• Servo-drive selection assistance

• Multi-axis motion application support

• Motor and drive matching

• Replacement and retrofit assistance

• OEM machine automation support

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

Frequently Asked Questions

What is a Schneider Lexium 62D Servo Drive?

Lexium 62D refers to the double-drive configuration of the Schneider Lexium 62 servo system, providing two servo-drive channels within a multi-axis PacDrive 3 architecture.

What are common Lexium 62D ratings?

Schneider references include double drives such as 6 A, 15 A and 27 A configurations. The exact continuous and peak current ratings depend on the order number.

Is Lexium 62D the same as Lexium 62 ILM?

No. Lexium 62D is a double servo-drive configuration, while Lexium 62 ILM is Schneider's integrated servo-drive range for PacDrive 3.

Where is Lexium 62D used?

It is suitable for multi-axis machines such as packaging equipment, material-handling systems, electronics machinery, food & beverage equipment, printing/converting systems and other coordinated-motion OEM machines.
