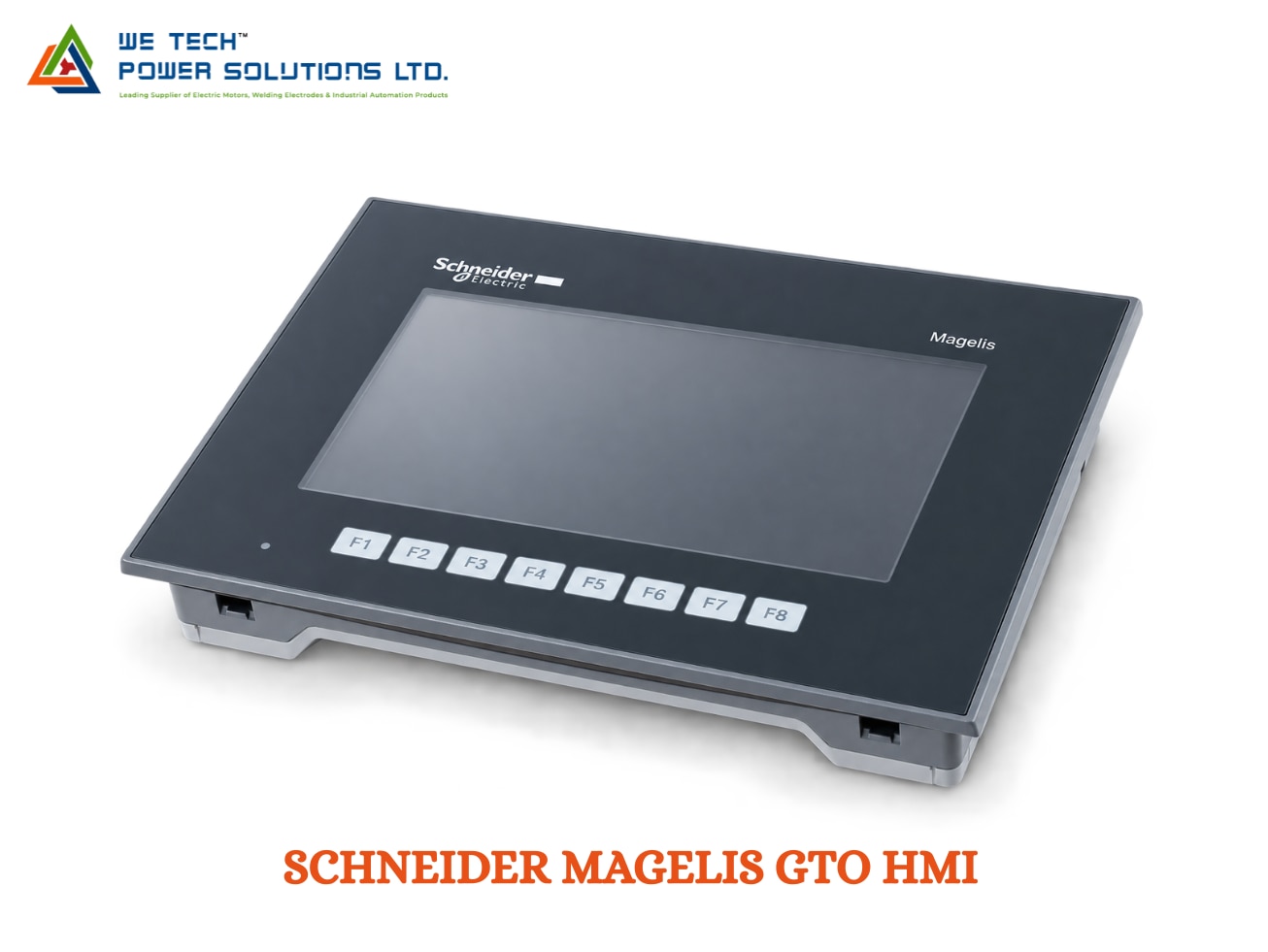

SCHNEIDER MAGELIS GTO HMI

Schneider Magelis GTO HMI

Schneider Magelis GTO HMI for Reliable Machine Visualization & Control

A good industrial HMI should make machine operation simple, visible and easy to understand. The Schneider Magelis GTO HMI is a touchscreen operator panel range developed for machine builders and industrial automation applications where clear visualization, dependable operator interaction and practical connectivity are required.

Schneider Electric now lists the range as Harmony GTO, formerly known as Magelis GTO. It is positioned as an optimized HMI range for general-purpose machine and automation applications and is designed to operate with Vijeo Designer.

We Tech Power Solutions Ltd supplies Schneider Electric HMI products for OEMs, machine builders, panel builders, system integrators and industrial customers across Ahmedabad, Gujarat and India.

What Is a Schneider Magelis GTO HMI?

The Magelis GTO is an industrial touchscreen Human Machine Interface used to connect operators with automated machines and processes.

Instead of interacting directly with PLC programs or individual field devices, operators can use the HMI to:

• View machine status

• Start and stop equipment

• Monitor operating parameters

• Display alarms

• Change machine settings

• View process information

• Access diagnostic information

• Interact with connected automation equipment

Schneider categorizes the GTO as a standard/optimized HMI panel range within its Harmony HMI portfolio.

Where Does Magelis GTO Fit in an Automation System?

A typical machine automation system may include a PLC, sensors, drives, motors and other field equipment. The GTO HMI provides the operator-facing layer of this system.

Operator → GTO HMI → PLC → Drives / I/O / Field Devices

This arrangement allows operators to interact with the machine through graphical screens while the PLC continues to handle the control logic.

The HMI can therefore act as the central interface for:

Monitoring

Machine conditions, process values and equipment status.

Control

Operator commands, machine functions and parameter settings.

Alarms

Warnings, faults and abnormal operating conditions.

Diagnostics

Information that can help maintenance personnel identify machine issues.

Designed for Practical Machine Operation

The GTO range focuses on the features required for everyday industrial HMI operation rather than unnecessary complexity.

Touchscreen Interaction

Operators can interact directly with graphical machine screens using the touchscreen interface.

Graphical Visualization

Machine conditions, process values, buttons, indicators and other graphical objects can be presented through the HMI application.

Status Indication

Selected GTO models provide status indication through panel LEDs, helping operators identify operating conditions. Schneider's HMIGTO2310, for example, specifies a multicolor status LED.

Compact Panel Integration

The GTO range includes multiple display sizes, making it possible to select a panel according to the available machine-panel space and visualization requirement.

Industrial Construction

GTO panels are designed for industrial environments, with product-specific protection and environmental specifications depending on the selected model.

GTO Display Options

The GTO family includes different screen sizes and configurations for different machine requirements.

Schneider currently lists Harmony GTO models ranging from approximately 3.5-inch to 12.1-inch screens, depending on the specific product configuration.

This allows the HMI to be selected according to:

• Machine size

• Operator viewing distance

• Available panel space

• Number of information screens

• Required graphical content

• Machine complexity

• Operator-interface requirements

For example, compact equipment may require a smaller HMI, while a larger production machine may benefit from a larger display.

HMI Programming with Vijeo Designer

The Schneider Magelis GTO range is designed to operate with Vijeo Designer, Schneider Electric's HMI configuration software for compatible Harmony and Magelis HMI products.

Vijeo Designer can be used to create HMI applications containing:

• Graphical operator screens

• Push buttons

• Status indicators

• Alarm displays

• Numeric displays

• Data-entry fields

• Trends

• Machine parameters

• Diagnostic information

• Navigation screens

This makes it possible to develop an operator interface around the actual machine sequence and control requirements.

Software compatibility should always be verified against the exact GTO model and project generation before starting a new application.

Communication with PLCs & Automation Equipment

The GTO HMI can serve as an operator interface between the user and the automation controller.

Depending on the exact model and communication configuration, the HMI can be integrated with:

• PLCs

• Industrial controllers

• Drives

• Remote I/O

• Sensors and automation devices

• Other compatible industrial equipment

Communication capabilities vary by model, so the exact HMIGTO order number should be checked when selecting the HMI for a project.

Typical HMI Functions

A Magelis GTO application can be designed around the specific needs of the machine.

Machine Monitoring

Display operating status, process values and equipment conditions.

Operator Control

Provide touchscreen commands for machine operation.

Alarm Management

Present machine faults and warning conditions to operators.

Parameter Adjustment

Allow authorized operators to modify configurable machine parameters.

Production Information

Display counts, operating values and other machine-related information.

Maintenance Support

Provide diagnostic screens and status information for maintenance personnel.

Applications of Schneider Magelis GTO HMI

The GTO is suitable for general-purpose machine and automation applications where an industrial touchscreen interface is required.

Packaging Machines

Use the HMI to monitor production cycles, machine settings, alarms, counters and operating conditions.

Conveyor Systems

Provide operator control and visualization for conveyors, sensors, motors and machine sequences.

Manufacturing Equipment

Display machine status, process parameters and production information.

Assembly Machines

Provide a central interface for machine operation, diagnostics and parameter adjustment.

Food & Beverage Machinery

Support operator visualization for processing, handling and packaging equipment.

Material Handling

Integrate the HMI with PLCs and drives for equipment monitoring and operator control.

Pump & Utility Systems

Display operating parameters, equipment status and alarms for compact automated systems.

________________________________________

Industries Using Magelis GTO HMI

The Schneider Magelis GTO can be considered for:

• Manufacturing

• Packaging

• Food & beverage

• Material handling

• Assembly automation

• Machine building

• Process equipment

• Water and utilities

• OEM machinery

• Industrial production systems

Schneider identifies GTO as a general-purpose HMI range within its HMI portfolio, while its product information highlights applications including machine and automation environments.

Schneider Magelis GTO HMI – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Magelis GTO / Harmony GTO

Product Type Industrial Touchscreen HMI

Current Schneider Name Harmony GTO

Former Name Magelis GTO

Screen Options Approx. 3.5' to 12.1', depending on model

Touch Interface Touchscreen

HMI Software Vijeo Designer

Communication Model-dependent

Ethernet Available on applicable models

Serial Interface Available on applicable models

USB Available on applicable models

Status Indication Available on selected models

Installation Panel mounting

Application Machine visualization and operator control

Selection Exact HMIGTO order number required

The exact display resolution, memory, ports, communication interfaces, power requirements and environmental specifications vary between GTO models. For example, Schneider's HMIGTO2310 is a 5.7-inch QVGA touchscreen model with 96 MB memory.

How to Choose the Right Magelis GTO HMI?

Choosing a GTO HMI should be based on the machine's actual operator-interface requirements.

1. Select the Screen Size

Consider the amount of information operators need to see and the physical dimensions of the machine control panel.

2. Check Resolution

Confirm the display resolution required for the graphical screens and process information.

3. Review Communication Ports

Check whether the selected model provides the Ethernet, serial or other interfaces required by the PLC and automation equipment.

4. Check Software Compatibility

Confirm compatibility with Vijeo Designer and the existing HMI project.

5. Consider Environmental Conditions

Review operating temperature, humidity, vibration, panel protection and other environmental requirements.

6. Verify Memory & Application Requirements

Make sure the selected HMI has adequate memory for the intended application.

7. Confirm the Complete Part Number

GTO is a product family rather than one single HMI. Always verify the complete HMIGTO reference before ordering.

Schneider Magelis GTO HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Schneider Electric automation products for industrial customers, OEMs, machine builders and system integrators.

If you are looking for a Schneider Magelis GTO HMI supplier in Ahmedabad, we can assist with product selection based on:

• HMI screen size

• Existing PLC

• Communication requirements

• Vijeo Designer compatibility

• Machine application

• Replacement requirements

• Quantity

• Project specifications

We support Schneider automation product requirements across Ahmedabad, Gujarat and India.

Schneider Magelis GTO HMI for Gulf Countries

We Tech Power Solutions Ltd can also support industrial automation product enquiries for customers and projects across the Gulf region.

Our target markets include:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For Gulf enquiries, share the complete GTO model number, quantity, application and delivery location for product and quotation evaluation.

Why Choose We Tech Power Solutions Ltd?

Selecting an HMI involves more than choosing a screen size. The display, communication interfaces, software compatibility and PLC architecture should all work together.

We Tech Power Solutions Ltd supports customers with:

• Schneider HMI product sourcing

• Magelis GTO identification

• HMI model selection

• PLC-HMI compatibility checks

• Communication requirement review

• Replacement and upgrade enquiries

• Industrial automation product sourcing

• India and Gulf project support

Frequently Asked Questions

1. Is Magelis GTO still called Magelis GTO?

Schneider Electric currently presents the range as Harmony GTO, formerly known as Magelis GTO. Therefore, both names may appear when searching for the product.

2. Which software is used for Schneider Magelis GTO HMI?

The GTO range is designed to operate with Vijeo Designer. Schneider also lists Vijeo Designer as configuration software compatible with Harmony and Magelis HMI products.

3. What screen sizes are available in the GTO range?

The GTO family includes several display sizes. Schneider's current range information lists approximately 3.5-inch to 12.1-inch options depending on the specific model.

Get the Right Schneider Magelis GTO HMI

Looking for a Schneider Magelis GTO HMI supplier in Ahmedabad, Gujarat or India?

Share your complete HMIGTO part number, required screen size, PLC model, communication requirement and quantity with We Tech Power Solutions Ltd.

Our team can help you identify the appropriate GTO HMI configuration for your machine automation project.

Contact We Tech Power Solutions Ltd for Schneider Magelis GTO HMI enquiry and quotation support.
