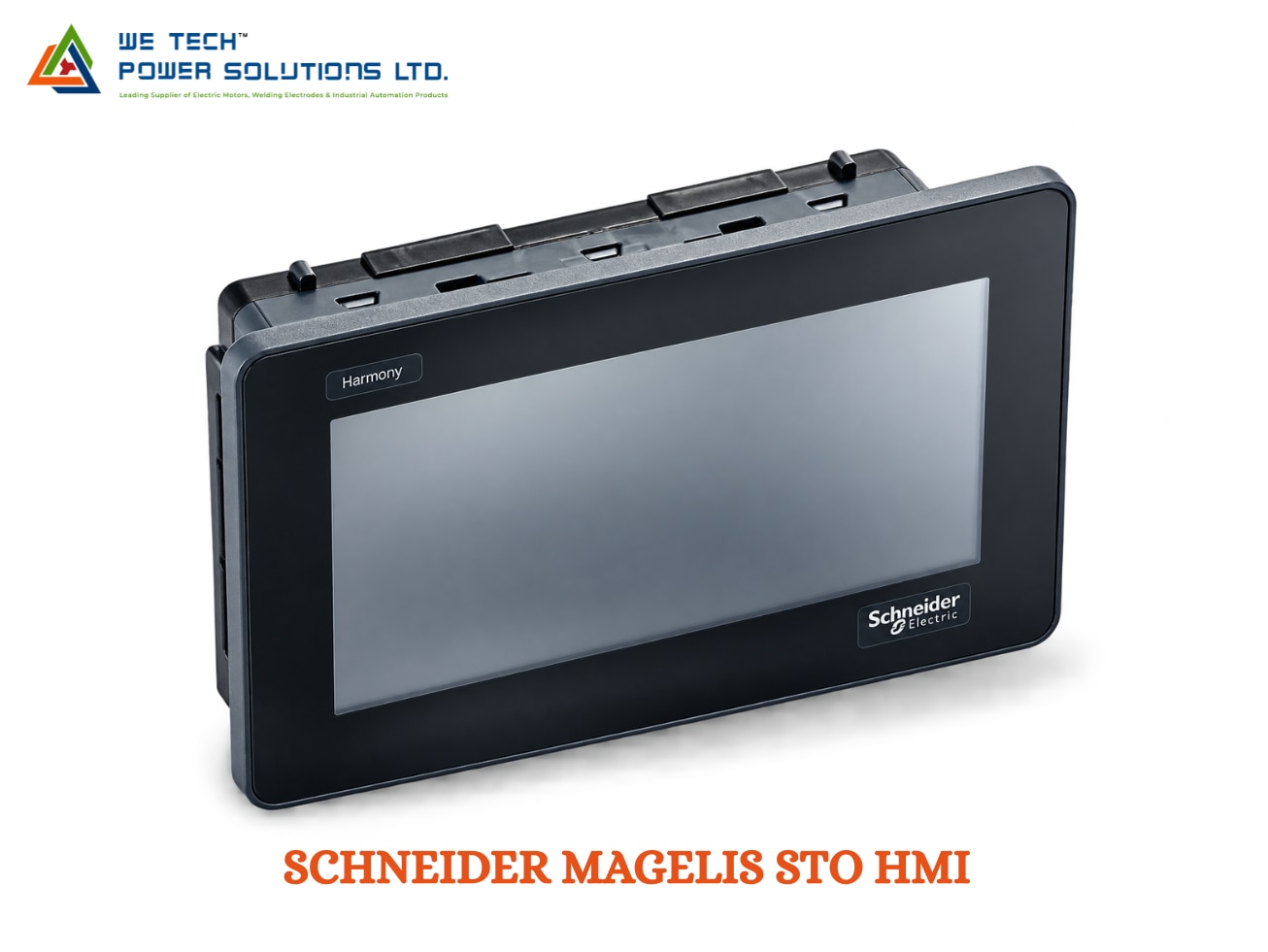

Schneider Magelis STO HMI for Compact Machine Monitoring & Operator Control

A compact machine does not always need a large industrial HMI. In many applications, operators simply need a clear interface for viewing machine status, adjusting settings, checking alarms and controlling basic functions.

The Schneider Magelis STO HMI is a compact touchscreen operator interface developed for machine builders and industrial automation applications where limited panel space, straightforward operation and easy installation are important.

Schneider Electric currently presents the range as Harmony STO, formerly known as Magelis STO. The current Harmony STO platform is configured using EcoStruxure Operator Terminal Expert.

We Tech Power Solutions Ltd supplies Schneider Electric HMI and industrial automation products for OEMs, machine builders, panel builders and system integrators across Ahmedabad, Gujarat and India.

What Is Schneider Magelis STO HMI?

The Magelis STO is a small-format industrial touchscreen HMI designed to provide an operator interface for machines and compact automation systems.

It can connect the operator with the machine controller, allowing users to interact with configured screens for:

• Machine status

• Process values

• Operator commands

• Alarm information

• Machine parameters

• Diagnostic information

• Production data

• Equipment monitoring

The STO belongs to Schneider's small HMI panel range, which is intended for diagnostics, machine control and system-setting functions in compact applications.

Why Use a Magelis STO HMI?

For compact machinery, the HMI needs to provide useful information without occupying unnecessary control-panel space.

Compact Installation

The small-panel format makes STO suitable for machines where control-panel space is restricted.

Touchscreen Operation

Operators can access configured machine functions directly through the touchscreen interface.

Easy Machine Visualization

Important machine information such as status, values, alarms and controls can be organized into graphical operator screens.

Practical Machine Diagnostics

The HMI can provide operators and maintenance personnel with alarm and status information for easier machine troubleshooting.

Flexible Machine Integration

Depending on the exact STO model and configuration, the HMI can be connected to industrial automation equipment through supported communication interfaces.

A Compact HMI for Everyday Machine Operation

The STO is designed around the functions operators commonly need at the machine level.

Monitor Machine Status

Display whether equipment is running, stopped, in fault condition or waiting for an operator command.

View Process Values

Show values such as temperature, pressure, speed, counters or other PLC data.

Control Machine Functions

Configured touchscreen buttons can provide operator commands such as start, stop, reset or mode selection.

Manage Alarms

Display machine warnings and fault information to help operators understand abnormal conditions.

Adjust Parameters

Authorized users can access configurable machine settings through dedicated HMI screens.

Support Maintenance

Diagnostic pages can be developed to display relevant equipment and controller information.

STO Display & Panel Design

The Harmony STO/STU family is positioned by Schneider as a compact colour HMI range from 3.5-inch to 5.7-inch screens.

This makes the STO suitable when a machine needs a compact operator interface rather than a large-format visualization panel.

When choosing the display, consider:

• Available panel space

• Operator viewing distance

• Amount of information displayed

• Number of HMI screens

• Required graphical detail

• Existing panel cut-out

• Retrofit requirements

For compact OEM machinery, selecting the right screen size can help maintain a clean and practical control-panel layout.

EcoStruxure Operator Terminal Expert for Harmony STO

One important distinction between STO and STU is the engineering software.

Schneider currently identifies EcoStruxure Operator Terminal Expert for Harmony STO.

The software is designed for developing HMI runtime applications and provides tools for creating operator interfaces with graphical objects, navigation, controls and visualization functions.

Depending on the application, an STO HMI project can include:

• Machine overview screens

• Operator buttons

• Status indicators

• Alarm displays

• Numerical values

• Parameter screens

• Diagnostic pages

• Navigation menus

• Process visualization

• Data monitoring

For legacy Magelis STO projects, always verify the exact HMI reference and existing project/software compatibility before planning a replacement or migration.

Communication with PLC & Automation Systems

The HMI operates as the operator-facing layer of the automation system.

A typical arrangement is:

Operator → STO HMI → PLC → I/O / Drives / Field Devices

The HMI reads information from the control system and presents it to the operator in an easy-to-understand format.

Depending on the exact STO model, communication capabilities can vary. Schneider documentation for older STO models, for example, identifies Ethernet availability on selected STO 53xx configurations.

Potential integration requirements include:

• PLC communication

• Ethernet connectivity on applicable models

• Serial communication

• USB connectivity

• Machine controller integration

• Automation-device communication

Always verify the communication ports and supported protocols against the exact HMISTO model.

Magelis STO HMI Applications

The compact form factor makes STO suitable for machine-level applications where a straightforward operator interface is required.

Packaging Machines

Monitor machine cycles, production counts, alarms and operating parameters.

Assembly Equipment

Provide operators with machine controls, status information and diagnostic screens.

Conveyor Systems

Display conveyor status and provide operator commands for automated material movement.

Pumping Systems

Monitor pump status, process values and alarm conditions.

Food & Beverage Machinery

Provide a compact interface for machine monitoring and operator control.

Material Handling

Connect the operator interface with PLC-controlled handling equipment.

OEM Machines

Use the HMI as a standardized operator interface across compact machine designs.

________________________________________

Industries & Application Areas

Schneider Magelis STO / Harmony STO can be considered for:

• Machine building

• Manufacturing

• Packaging

• Food & beverage

• Material handling

• Assembly automation

• Industrial utilities

• Pumping equipment

• OEM machinery

• Compact production systems

Schneider describes its small HMI panels as suitable for diagnostics, control and system-setting functions on basic or compact applications.

Schneider Magelis STO HMI – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Magelis STO / Harmony STO

Product Type Compact touchscreen HMI

Current Schneider Name Harmony STO

Former Name Magelis STO

Display Range Approx. 3.5' to 5.7', depending on model

Touchscreen Yes

Current Engineering Software EcoStruxure Operator Terminal Expert

Communication Model-dependent

Ethernet Available on selected models

Serial Communication Model-dependent

USB Available on applicable models

Installation Panel / machine mounting

Application Machine monitoring and operator control

Selection Exact HMISTO reference required

Important: Specifications such as display resolution, memory, communication ports, power supply and mounting details vary by exact STO model. The complete HMISTO order number should be confirmed before purchase.

What Should You Check Before Selecting an STO HMI?

Choosing a Magelis STO should be based on the complete machine requirement rather than screen size alone.

Screen Size

Select a display that provides enough space for the required operator information while fitting the machine panel.

Panel Installation

For replacement projects, compare the existing panel cut-out and mounting arrangement with the proposed STO model.

PLC Communication

Identify the PLC brand, model and communication protocol before selecting the HMI.

Software Compatibility

For current Harmony STO products, verify compatibility with EcoStruxure Operator Terminal Expert.

Existing Project

If the HMI is replacing an older Magelis unit, review the existing application, communication drivers and project-generation requirements.

Environmental Conditions

Check operating temperature, humidity, vibration, dust exposure and required front-panel protection.

Exact Part Number

Different STO references can have different interfaces and specifications. Always confirm the complete HMISTO model number.

Magelis STO for Replacement & Retrofit Applications

The Magelis STO name is particularly relevant when searching for an HMI replacement for an existing machine.

Before selecting a replacement, compare:

• Existing HMISTO model

• Screen size

• Resolution

• Panel cut-out

• Power supply

• Communication ports

• PLC protocol

• Existing HMI project

• Software compatibility

• Environmental requirements

This approach helps avoid selecting a replacement based only on display size while overlooking communication or mechanical compatibility.

Schneider Magelis STO HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies Schneider Electric HMI and industrial automation products for OEMs, machine builders, control-panel manufacturers and system integrators.

If you are looking for a Schneider Magelis STO HMI supplier in Ahmedabad, we can assist with:

• STO model identification

• HMI selection

• Replacement HMI requirements

• Screen-size selection

• PLC-HMI compatibility

• Communication-interface review

• Retrofit requirements

• Industrial automation product sourcing

We support Schneider Electric automation requirements across Ahmedabad, Gujarat and India.

Schneider Magelis STO HMI for Gulf Countries

We Tech Power Solutions Ltd can also support industrial automation product enquiries for Gulf-region projects and customers.

Our target markets include:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For Gulf enquiries, share the complete HMISTO part number, quantity, application and delivery location for product evaluation and quotation support.

Why Choose We Tech Power Solutions Ltd?

Selecting the correct HMI requires attention to display, communication, software and installation compatibility.

We Tech Power Solutions Ltd supports customers with:

• Schneider HMI sourcing

• Magelis STO identification

• Harmony STO selection

• HMI replacement support

• PLC-HMI compatibility checks

• Communication requirement review

• OEM machine requirements

• Industrial automation sourcing

• India and Gulf project support
