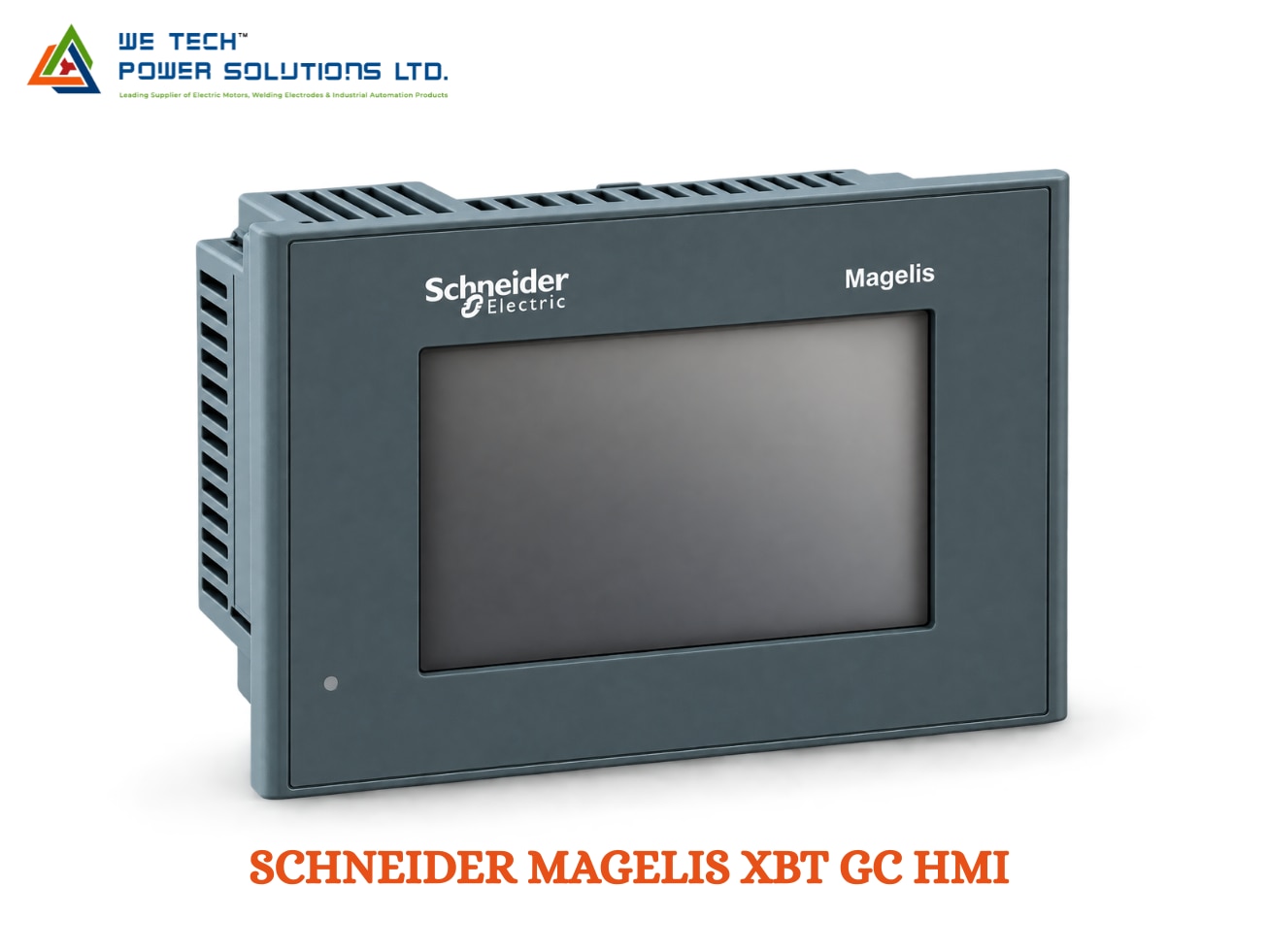

Schneider Magelis XBT GC HMI Controller for Compact Machine Automation

When a machine requires both an operator interface and local control, combining these functions into a single device can simplify the overall automation architecture. The Schneider Magelis XBT GC HMI is an integrated HMI controller that combines touchscreen visualization with PLC/control functionality and expandable I/O.

Schneider describes the XBT GC as a compact HMI and controller in a single unit with expandable I/O. The range includes colour touchscreen models and was designed for compact machine-control applications.

We Tech Power Solutions Ltd supplies Schneider Electric automation products and supports customers with HMI controller identification, replacement requirements and industrial automation product selection across Ahmedabad, Gujarat and India.

What Is the Schneider Magelis XBT GC?

The Magelis XBT GC is different from a conventional HMI because it combines two important automation functions:

HMI + Controller

Instead of using a separate HMI panel and PLC for certain compact machine applications, the XBT GC integrates control and operator-interface functions into one platform.

This architecture can help simplify:

• Machine control

• Operator visualization

• Local I/O management

• Machine diagnostics

• Control-panel architecture

• HMI/controller integration

Schneider's product information describes XBT GC as a small touchscreen HMI with controller and expandable I/O.

Why Use an HMI Controller?

Traditional machine automation may use separate devices:

HMI → PLC → I/O → Field Devices

An HBT GC-based architecture combines the HMI and controller functions:

Operator → XBT GC → I/O / Machine Devices

For suitable compact machines, this can reduce the number of separate control components and simplify the machine architecture.

Schneider positions HMI controllers as products that combine Human Machine Interface and control functions within a single product.

Main Functions of Magelis XBT GC

Operator Visualization

The touchscreen interface allows operators to view machine information and interact with configured control screens.

Integrated Control

The controller functionality allows the unit to execute machine-control logic without requiring a separate PLC for suitable applications.

Expandable I/O

The XBT GC platform supports I/O expansion, allowing the controller to interface with additional machine inputs and outputs according to the application.

Machine Diagnostics

Operators and maintenance personnel can use the HMI interface to display machine status, alarms and diagnostic information.

Compact Architecture

Combining control and visualization in one device can be useful where control-panel space and component count need to be minimized.

5.7-Inch Colour HMI Controller

Schneider's XBT GC range is identified with 5.7-inch colour touchscreen displays and up to 32 I/Os, with standard panel mounting depending on the configuration.

The display provides the operator interface while the integrated controller handles the machine-control functions.

This makes the platform particularly relevant to applications where:

• Panel space is limited

• A dedicated operator interface is required

• Local control is needed

• I/O requirements are moderate

• A compact machine architecture is preferred

Integrated Control & Visualization

One of the main characteristics of the XBT GC is the combination of visualization and control.

Operator Layer

The HMI screen can be configured to show:

• Machine status

• Process values

• Alarms

• Parameters

• Production information

• Diagnostic messages

• Operator commands

Control Layer

The integrated controller can handle appropriate machine-control functions and interact with connected I/O and automation equipment.

This arrangement can be useful for compact standalone machines where a separate PLC and HMI combination may add unnecessary hardware.

I/O Expansion for Machine Requirements

The XBT GC is not limited to its basic integrated I/O capability. Schneider identifies the platform as having expandable I/O, allowing the control system to be adapted to the machine requirements.

I/O requirements may include:

• Digital inputs

• Digital outputs

• Analogue signals

• Machine sensors

• Actuators

• Control devices

• Application-specific I/O

The exact available I/O and expansion architecture depends on the selected XBT GC model and configuration.

Programming & Engineering

The Magelis XBT GC is associated with EcoStruxure Machine Expert, formerly known in earlier documentation as SoMachine. Schneider's programming documentation specifically covers programming and operating the XBT GC HMI Controller, while Schneider's current product information identifies EcoStruxure Machine Expert as the software platform for the range.

The engineering environment can be used for developing and configuring:

• Controller logic

• HMI screens

• I/O configuration

• Machine functions

• Operator controls

• Alarms

• Diagnostics

• Communication

This integrated engineering approach is particularly relevant when the HMI and controller are treated as one machine-control platform.

Communication & Machine Integration

The XBT GC can form part of a compact automation architecture connecting the integrated controller with machine devices and other automation equipment.

Depending on the exact model and configuration, integration requirements can include:

• Local I/O

• Expansion I/O

• HMI communication

• Industrial devices

• Sensors and actuators

• Machine-control equipment

• CANopen-based applications on applicable configurations

The exact communication interfaces should always be checked against the complete XBT GC order number.

Applications of Schneider Magelis XBT GC

The integrated HMI-controller architecture can be considered for machines where control and visualization need to be combined.

Packaging Machinery

Control machine sequences while providing operators with production settings, alarms and status information.

Assembly Machines

Combine machine logic and operator controls in a compact automation platform.

Material Handling

Control sensors, actuators and handling sequences while providing an operator interface.

Conveyors

Monitor conveyor operation and provide local machine-control functions.

Small Production Machines

Use integrated control and visualization for standalone or semi-standalone production equipment.

OEM Machinery

Suitable for machine builders looking to reduce the number of separate automation components.

Compact Process Equipment

Can be considered where moderate control requirements and local operator visualization are needed.

________________________________________

Industries & Application Areas

Magelis XBT GC can be considered for:

• Machine building

• Packaging

• Manufacturing

• Assembly

• Material handling

• Food & beverage equipment

• OEM machinery

• Production equipment

• Industrial utilities

• Compact automation systems

The exact suitability depends on the required I/O, controller functionality, communication architecture and lifecycle status of the selected model.

Schneider Magelis XBT GC – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Magelis XBT GC

Product Type HMI Controller

Architecture HMI + Controller

Display 5.7-inch colour touchscreen range

Integrated I/O Up to 32 I/Os depending on model

I/O Expansion Supported

Engineering Software EcoStruxure Machine Expert

Controller Function Integrated machine control

HMI Function Operator visualization and control

Communication Model/configuration dependent

Installation Standard panel mounting

Application Compact machine automation

Lifecycle Legacy / obsolete range

Replacement Harmony SCU identified by Schneider for remaining XBT GC products

Schneider issued a product-change notification stating that the last two remaining XBT GC HMI controllers and the CANopen module became obsolete on June 30, 2023, with Harmony SCU identified as the recommended replacement.

Magelis XBT GC: Replacement & Retrofit Considerations

Because the XBT GC is now a legacy/obsolete product range, replacement planning is an important part of any current enquiry.

Schneider's 2023 product-change notification identifies Harmony SCU as the recommended replacement for the remaining XBT GC HMI controllers. Schneider also notes that the SCU uses a 22 mm push-button-hole mounting arrangement, meaning some existing XBT GC installations may require control-panel modifications during replacement.

Before replacing an existing XBT GC, compare:

• Existing XBT GC part number

• Display size

• Integrated I/O

• Expansion I/O

• Communication interfaces

• CANopen requirements

• Existing application

• Machine-control logic

• HMI project

• Panel mounting arrangement

• Replacement software requirements

For an operating legacy machine, the exact existing reference should be identified before selecting a replacement.

Why Consider XBT GC for Legacy Machine Support?

Although the XBT GC is no longer a current product family, it can remain relevant when maintaining older automation equipment.

For legacy systems, the priority may be:

• Identifying the installed part

• Understanding the existing architecture

• Maintaining machine operation

• Finding compatible replacement options

• Evaluating migration requirements

• Preserving required machine functions

This makes accurate part-number identification especially important for XBT GC enquiries.

Schneider Magelis XBT GC HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supports customers looking for Schneider Electric automation products, including legacy Magelis HMI controllers and replacement solutions.

If you are searching for a Schneider Magelis XBT GC HMI supplier in Ahmedabad, we can assist with:

• XBT GC model identification

• Legacy HMI requirements

• Replacement product evaluation

• HMI-controller selection

• I/O requirement review

• Communication requirement analysis

• Retrofit planning

• Schneider automation product sourcing

We support industrial automation requirements across Ahmedabad, Gujarat and India.

Schneider Magelis XBT GC Support for Gulf Projects

We Tech Power Solutions Ltd can also support enquiries from customers and industrial projects across:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For legacy XBT GC requirements, provide the complete part number, quantity, existing application details and project location so the available replacement or sourcing options can be evaluated.

Why Choose We Tech Power Solutions Ltd?

Legacy automation products require careful identification before replacement or sourcing.

We Tech Power Solutions Ltd supports customers with:

• Schneider automation product sourcing

• Magelis product identification

• XBT GC legacy product enquiries

• Replacement evaluation

• HMI and PLC compatibility review

• I/O requirement assessment

• Communication requirement review

• India and Gulf project support

Frequently Asked Questions

1. Is Schneider Magelis XBT GC still available as a current product?

Schneider identifies the XBT GC range as an older HMI-controller family. Its 2023 product-change notification states that the last remaining XBT GC HMI controllers became obsolete on June 30, 2023.

2. What is the recommended replacement for Magelis XBT GC?

Schneider's product-change notification identifies the Harmony SCU as the recommended replacement for the remaining XBT GC products. However, the exact replacement should be checked against the existing machine's I/O, communication and mounting requirements.

3. What software was used with the XBT GC?

Schneider's XBT GC programming documentation is associated with EcoStruxure Machine Expert / SoMachine. The exact software version should be checked against the installed controller and existing project.

Get Support for Schneider Magelis XBT GC HMI

Looking for a Schneider Magelis XBT GC HMI supplier in Ahmedabad, Gujarat or India?

Share your complete XBT GC part number, quantity, existing PLC/I/O configuration, communication requirements and application details with We Tech Power Solutions Ltd.

Our team can help evaluate the product requirement and identify the appropriate sourcing, replacement or migration path.

Contact We Tech Power Solutions Ltd for Schneider Magelis XBT GC HMI enquiry and replacement support.
