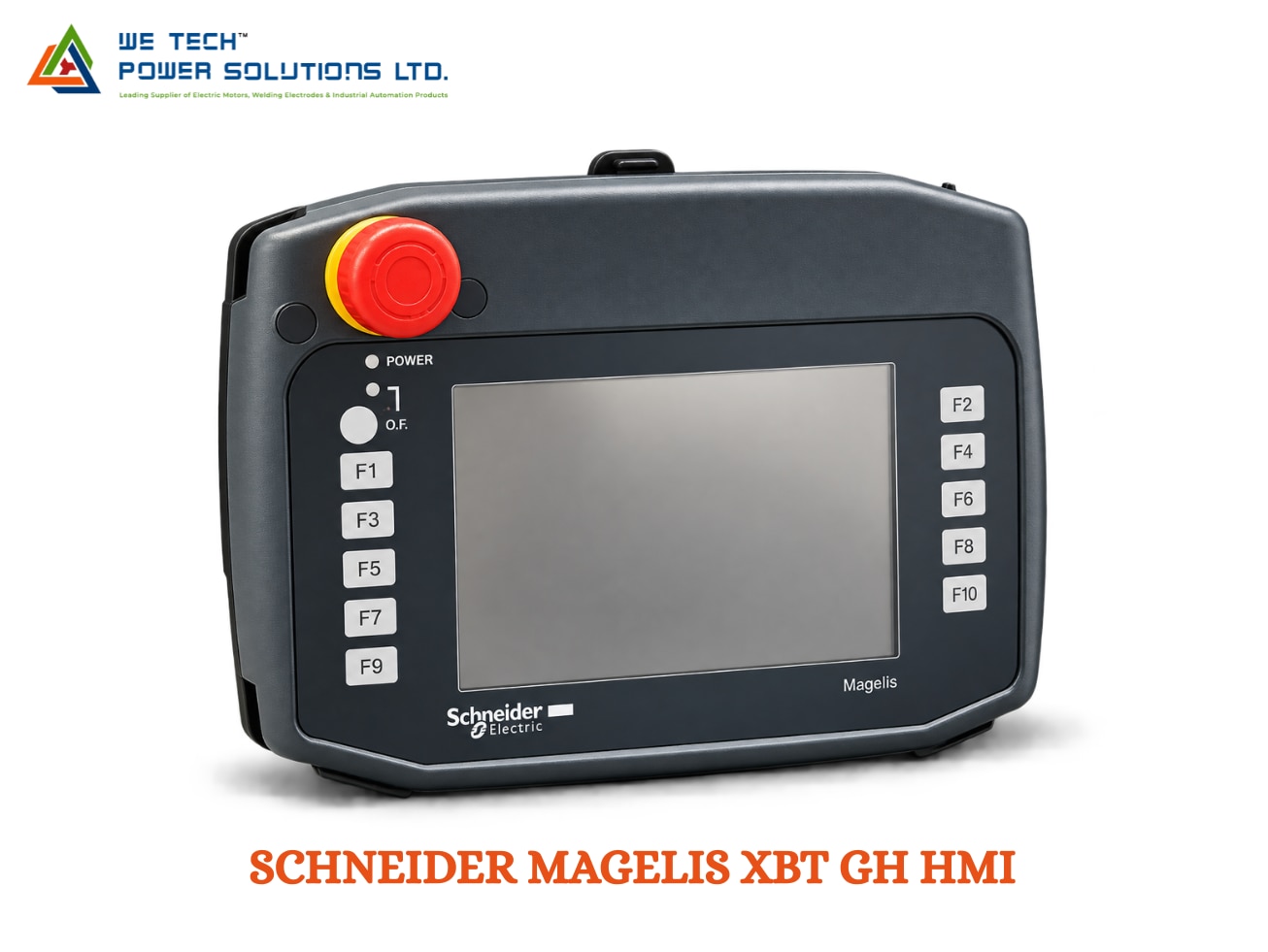

SCHNEIDER MAGELIS XBT GH HMI

Schneider Magelis XBT GH HMI

Schneider Magelis XBT GH HMI for Mobile Machine Operation & Maintenance

Some industrial machines require operators and maintenance personnel to move around the equipment while still having access to machine controls and diagnostic information. A fixed HMI may not always provide the required flexibility.

The Schneider Magelis XBT GH HMI is a handheld industrial operator panel designed to provide mobile machine control, visualization and maintenance access. Unlike conventional fixed HMIs, the XBT GH can be carried by the operator and connected to the machine through a dedicated cable and junction box.

Schneider describes the XBT GH as a handheld panel focused on mobility, operability and safety, with a 5.7-inch colour touchscreen and integrated safety functions.

We Tech Power Solutions Ltd supplies Schneider Electric automation products and supports industrial customers with Magelis HMI identification, legacy product requirements, replacement evaluation and automation sourcing across Ahmedabad, Gujarat and India.

What Is Schneider Magelis XBT GH HMI?

The XBT GH is a handheld Human Machine Interface designed for industrial machines where operators need to control or monitor equipment from different physical locations.

Instead of standing in front of a permanently mounted HMI, an operator can carry the XBT GH around the machine while maintaining access to the HMI application.

This can be useful for:

• Machine commissioning

• Maintenance

• Equipment setup

• Troubleshooting

• Manual operation

• Machine inspection

• Production monitoring

• Service activities

Schneider places XBT GH within its advanced HMI portfolio as a handheld panel based on the technology of the XBT GT family and configured using Vijeo Designer.

Why Use a Handheld HMI?

Large machines and production systems can have multiple access points where operators need to observe equipment or perform maintenance.

A handheld HMI can provide greater freedom of movement.

Mobile Machine Control

Operators can move around the machine while maintaining access to configured HMI screens.

Maintenance Access

Technicians can use the portable terminal while inspecting different sections of equipment.

Machine Commissioning

During installation and commissioning, operators can monitor machine responses from locations closer to the equipment being tested.

Troubleshooting

The HMI can provide machine status, alarms and diagnostic information while the technician is physically inspecting the equipment.

Safety-Oriented Operation

The XBT GH includes dedicated safety features designed for handheld industrial operation.

Built for Industrial Handheld Operation

The XBT GH is designed differently from a standard panel-mounted HMI.

Schneider specifies several features intended for industrial mobile use.

5.7-Inch Colour Touchscreen

The XBT GH features a 5.7-inch VGA TFT analogue colour touchscreen with 65,000 colours, providing a graphical interface for machine operation.

IP65 Body

The handheld enclosure is specified with IP65 protection, supporting use in demanding industrial environments when installed and operated according to the manufacturer's requirements.

Drop Resistance

Schneider identifies drop resistance according to IEC 1131-2 for the handheld panel.

Lightweight Construction

The unit weighs approximately 1 kg maximum, supporting handheld operation around industrial equipment.

One-Hand Operation

The design supports carrying and operation with either the left or right hand.

Integrated Safety Features

Safety is one of the major characteristics that separates XBT GH from conventional fixed HMIs.

The Schneider XBT GH incorporates several dedicated operator-safety functions.

Emergency Stop Button

The terminal includes an emergency stop button designed for machine applications requiring the applicable safety level, with Schneider documentation referencing applications up to SIL3 subject to the complete safety-system design.

Three-Position Dead-Man Switch

A three-position dead-man switch provides an additional operator-protection function for handheld machine operation.

Key Switch

The key switch can be used to help secure terminal start-up and control access to machine operation.

Safety System Integration

The emergency-stop and enabling functions must be incorporated into the overall machine safety architecture. The HMI itself should not be treated as the complete safety system.

Operator Interface & Function Keys

The XBT GH combines touchscreen operation with physical function keys.

Schneider specifies:

• 11 function keys

• Insertable labels

• Colour touchscreen

• Graphic operator interface

• Dedicated safety controls

This combination allows machine builders to use touchscreen graphics for visualization while keeping frequently used functions accessible through physical keys.

Communication & Connectivity

The XBT GH provides communication interfaces for connection with industrial automation systems.

Depending on the configuration, Schneider identifies:

• Serial line

• Ethernet

• USB

• CompactFlash slot

The dedicated soft cable is available in 3 m or 10 m versions with a junction box, allowing the handheld terminal to connect to the machine-control system.

The exact communication configuration should be checked against the complete XBT GH product reference before ordering.

Vijeo Designer for XBT GH

The Magelis XBT GH is designed to operate with Vijeo Designer.

Schneider documentation identifies Vijeo Designer as the engineering environment for XBT GH and other compatible Magelis HMI platforms.

An XBT GH application can include:

• Machine overview screens

• Operator controls

• Alarm displays

• Diagnostic pages

• Process values

• Parameter settings

• Equipment status

• Maintenance information

• Navigation menus

This allows the handheld HMI to provide the same type of graphical machine information expected from a conventional industrial HMI, while adding mobility.

Where Is Magelis XBT GH Used?

The handheld design is particularly useful when the operator needs to move around the machine.

Large Industrial Machines

Operators can access machine information from different sides or working areas.

Machine Commissioning

Technicians can monitor machine operation while working close to motors, actuators, sensors and other equipment.

Maintenance & Troubleshooting

Maintenance teams can view alarms and machine status while physically inspecting equipment.

Material Handling

Portable operator access can be useful around conveyors and automated handling equipment.

Manufacturing Equipment

Operators can use the terminal for machine monitoring and setup activities.

Industrial Infrastructure

The handheld format can provide mobile access to control and diagnostic functions in suitable infrastructure applications.

Schneider identifies industrial machines and infrastructure among the applications for XBT GH.

________________________________________

Industries & Application Areas

Schneider Magelis XBT GH can be considered for:

• Manufacturing

• Machine building

• Material handling

• Packaging

• Industrial infrastructure

• Production equipment

• Maintenance-intensive machinery

• OEM automation

• Large machine systems

• Industrial service applications

The exact suitability depends on the machine architecture and the required safety and communication functions.

________________________________________

Schneider Magelis XBT GH HMI – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Magelis XBT GH / Harmony XBT GH

Product Type Handheld industrial HMI

Display 5.7-inch colour TFT touchscreen

Display Resolution VGA

Colours 65,000

Function Keys 11

Safety Features Emergency stop, 3-position dead-man switch, key switch

Body Protection IP65

Drop Resistance IEC 1131-2 referenced

Communication Serial, Ethernet, USB, CompactFlash depending on configuration

Cable Dedicated 3 m or 10 m options

Software Vijeo Designer

Installation Handheld / portable

Weight Up to approximately 1 kg

Applications Industrial machines and infrastructure

Lifecycle Legacy / discontinued range

Specifications can vary by exact XBT GH reference. Confirm the complete part number and required accessories before quotation or replacement.

Magelis XBT GH for Machine Maintenance

The XBT GH is particularly relevant when an operator or technician needs to interact with a machine from different locations.

A typical maintenance workflow can involve:

1. Connect

Connect the handheld terminal through the appropriate cable and junction box.

2. Inspect

Move around the machine while monitoring HMI information.

3. Diagnose

Review alarms, machine status and diagnostic screens.

4. Adjust

Modify permitted machine parameters or operating settings.

5. Test

Observe machine responses while performing commissioning or maintenance activities.

This portable approach can be useful for machines where a fixed HMI cannot provide convenient visibility from every working position.

Important: XBT GH Is a Legacy HMI

For current projects, the lifecycle status of the XBT GH should be considered before specifying it.

Schneider's product-change documentation states that the XBT GH range was launched in 2009 and that components were becoming increasingly difficult to source. Schneider also announced the end of commercialization of the XBTGH2460, with the effective date eventually extended to October 5, 2022. Schneider indicated that a new Harmony handheld GTH6 solution was being prepared as a migration path.

Therefore, this page should serve both customers looking for:

• Existing XBT GH units

• Replacement parts

• Legacy machine support

• HMI identification

• Retrofit planning

• Migration options

For a new machine project, the current Schneider handheld HMI range should be evaluated rather than assuming XBT GH is a new-generation product.

XBT GH Replacement & Retrofit Considerations

Before replacing an existing Magelis XBT GH, check:

Existing HMI Reference

Identify the exact XBT GH model.

Display Requirements

Confirm the required screen size and resolution.

Communication

Check Ethernet, serial and other communication requirements.

Safety Functions

Identify how the emergency-stop and dead-man functions are integrated into the existing machine safety circuit.

Cable & Junction Box

Check the existing cable length and junction-box arrangement.

HMI Application

Review the existing Vijeo Designer project and compatibility requirements.

Mechanical & Ergonomic Requirements

The replacement handheld terminal should be evaluated for mounting, cable routing, operator handling and machine access.
