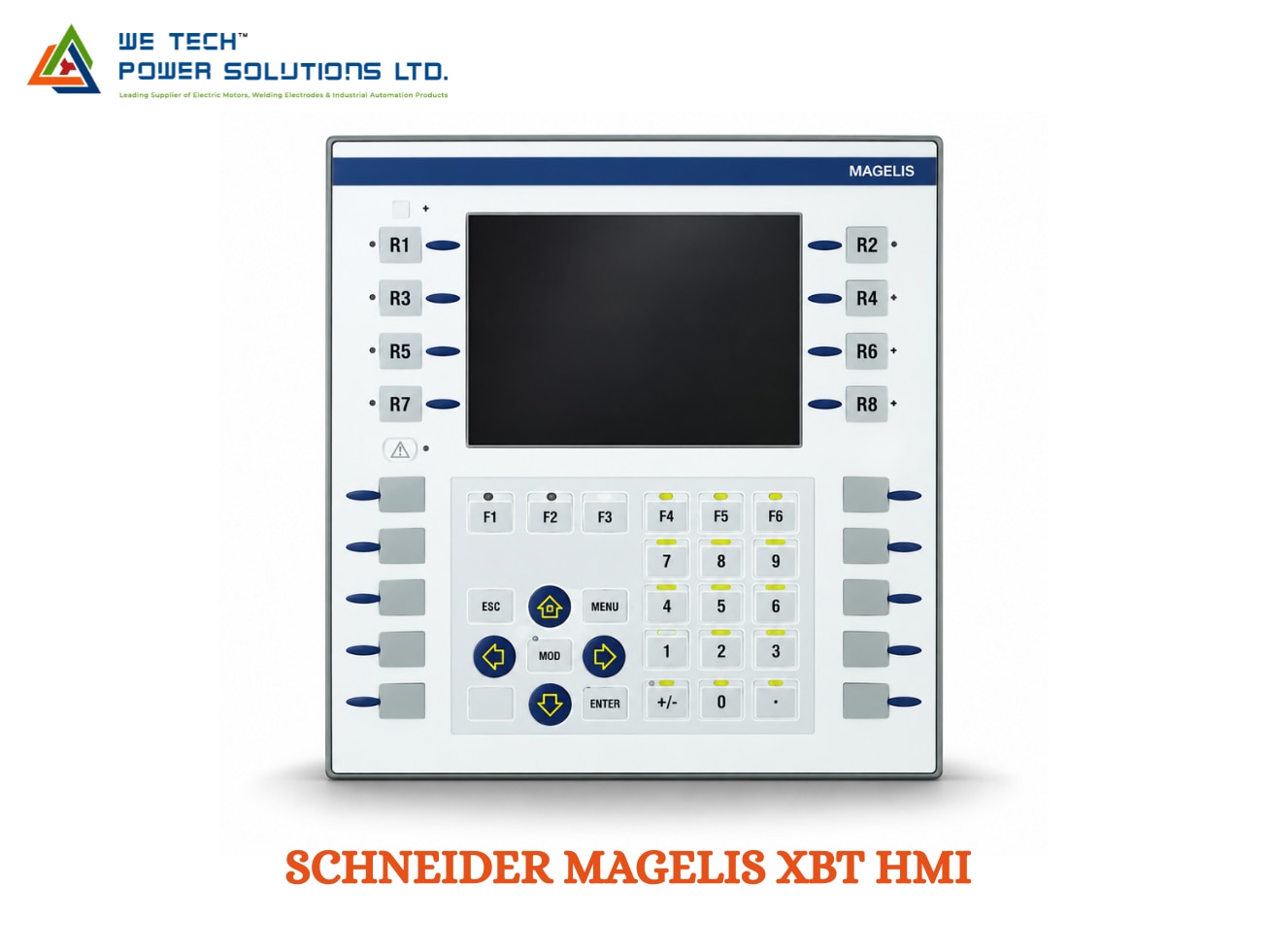

Schneider Magelis XBT HMI for Advanced Industrial Visualization & Machine Control

Industrial machines often require an operator interface that can do more than display a few basic parameters. Operators may need to monitor production data, respond to alarms, adjust settings, review machine conditions and interact with connected automation equipment from one centralized interface.

The Schneider Magelis XBT HMI family was developed for industrial machine and process visualization, offering touchscreen-based operator interfaces with communication and visualization capabilities suited to demanding automation applications.

Schneider Electric's current product portfolio identifies Magelis XBT GT as an advanced touchscreen HMI family, while the broader Magelis XBT portfolio also includes specialized ranges such as XBT GC HMI controllers and XBT GH handheld HMIs.

We Tech Power Solutions Ltd supports Schneider Electric HMI requirements for OEMs, machine builders, system integrators and industrial customers across Ahmedabad, Gujarat and India.

What Is Schneider Magelis XBT HMI?

Magelis XBT refers to a family of industrial Human Machine Interfaces designed to provide a graphical connection between operators and automation systems.

An XBT HMI can act as the operator-facing layer of a machine automation system:

Operator → Magelis XBT HMI → PLC / Controller → Drives, I/O & Field Devices

Through the HMI, operators can interact with configured screens for:

• Machine monitoring

• Equipment control

• Alarm management

• Parameter adjustment

• Process visualization

• Production information

• Machine diagnostics

• Maintenance support

Schneider's advanced HMI portfolio describes Magelis XBT GT as touchscreen HMI panels with advanced features including multimedia and fieldbus connectivity.

Understanding the Magelis XBT Family

The term Magelis XBT HMI can refer to different product families, so the exact model should always be identified before quotation or replacement.

XBT GT – Advanced Touchscreen HMI

The XBT GT family provides touchscreen-based industrial visualization and is intended for advanced machine and process applications. Schneider describes it as an advanced touchscreen HMI range with features such as multimedia and fieldbus connectivity.

XBT GC – HMI Controller

XBT GC combines HMI functionality with controller capabilities and expandable I/O, allowing visualization and machine control to be integrated into one platform.

XBT GH – Handheld HMI

XBT GH is a portable handheld HMI designed for mobile machine setup, maintenance and operation, adding mobility and safety-oriented controls to the Magelis platform.

Therefore, customers searching for Magelis XBT HMI should provide the complete product reference whenever possible.

Why Magelis XBT HMI Was Used in Industrial Automation

Centralized Machine Visualization

The HMI brings important machine information into a graphical operator interface rather than requiring operators to interpret individual indicators and control devices.

Touchscreen-Based Operation

Compatible XBT touchscreen panels allow operators to access machine functions through configurable graphical screens.

Automation Connectivity

Depending on the exact XBT model, communication capabilities can connect the HMI with PLCs, controllers, drives and other industrial automation equipment.

Alarm & Diagnostic Information

HMI applications can be designed to show machine faults, warnings, status information and diagnostic data.

Parameter Management

Operators can access permitted machine settings and process parameters through configured HMI screens.

Maintenance Support

Diagnostic and status screens can provide useful information to maintenance personnel during machine servicing and troubleshooting.

What Can Operators View on a Magelis XBT HMI?

A properly configured Magelis application can provide a complete machine overview.

Machine Status

Display running, stopped, idle and fault conditions.

Process Values

Show values such as temperature, pressure, speed, flow, counters and other PLC data.

Production Information

Display production counts, operating time, machine status and other relevant production information.

Alarms

Present warnings and machine faults in an organized interface.

Parameters

Allow authorized operators to view or adjust machine settings.

Diagnostics

Provide maintenance personnel with equipment status and troubleshooting information.

Communication & Automation Integration

Magelis XBT systems were designed to communicate with industrial automation equipment, with capabilities depending on the exact product family and reference.

Possible integration requirements can include:

• PLC communication

• Ethernet connectivity

• Serial communication

• Fieldbus connectivity

• Drive communication

• Remote I/O

• Industrial controllers

• Machine networks

Schneider specifically identifies fieldbus connectivity as one of the advanced features associated with Magelis XBT GT.

Because interfaces differ across XBT models, the complete product reference should be checked before specifying communication hardware.

HMI Software & Application Development

Magelis XBT products belong to different generations, so software compatibility depends on the exact model.

Schneider's portfolio includes Vijeo Designer for classic Magelis HMI configuration, while other Schneider HMI families use newer engineering platforms. Schneider's current HMI software information distinguishes classic Vijeo Designer configuration from EcoStruxure Operator Terminal Expert used by newer Harmony ranges.

For an existing XBT installation, verify:

• HMI model

• Firmware version

• Existing project software

• Communication drivers

• PLC protocol

• Application backup

• Replacement compatibility

This is particularly important when maintaining a legacy machine.

Magelis XBT HMI Applications

The XBT platform can be found in a variety of industrial automation environments.

Manufacturing Machines

Monitor machine status, production information, alarms and operating parameters.

Packaging Equipment

Display machine sequences, counters, settings and fault information.

Material Handling

Provide operator visualization for conveyors, sensors, motors and automated handling systems.

Assembly Machines

Allow operators to control machine functions and monitor production conditions.

Process Equipment

Display process parameters, equipment status and alarms.

Food & Beverage Machinery

Provide visualization and operator control for automated processing and packaging equipment.

Industrial Upgrades

Existing Magelis XBT systems can be relevant when supporting older machines and evaluating HMI replacement requirements.

________________________________________

Industries Using Magelis XBT HMI

Typical application areas include:

• Manufacturing

• Packaging

• Food & beverage

• Material handling

• Assembly automation

• Machine building

• Process automation

• Industrial utilities

• OEM machinery

• Production equipment

• Industrial retrofit projects

________________________________________

Schneider Magelis XBT HMI – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Magelis XBT

Main HMI Family XBT GT

Other XBT Families XBT GC, XBT GH and others

Product Type Industrial HMI / HMI controller depending on model

Display Model-dependent

Touchscreen Available on applicable models

Communication Model-specific

Ethernet Available on selected models

Serial Communication Model-dependent

Fieldbus Available on applicable models

HMI Software Model/generation dependent

Installation Panel-mounted or handheld depending on family

Application Machine visualization, control and diagnostics

Lifecycle Several XBT families are legacy/discontinued

Selection Exact order number required

Important: “Magelis XBT HMI” is a family-level term. Display size, resolution, memory, communication interfaces, software compatibility and mounting requirements vary significantly between individual XBT references.

________________________________________

How to Select the Right Magelis XBT HMI?

Before selecting an XBT HMI, review the complete machine architecture.

1. Identify the Existing or Required Model

Check whether the requirement is for XBT GT, XBT GC, XBT GH or another XBT family.

2. Determine the Display Requirement

Consider screen size, resolution, viewing distance and amount of process information.

3. Check PLC Compatibility

Identify the PLC or controller that the HMI must communicate with.

4. Verify Communication Interfaces

Review Ethernet, serial, fieldbus and other communication requirements.

5. Check Software Compatibility

For an existing machine, identify the software used to create the current HMI project before selecting a replacement.

6. Review Panel Installation

Compare dimensions, mounting arrangements and existing panel cut-outs.

7. Check Environmental Conditions

Consider temperature, humidity, vibration, dust and required protection rating.

8. Confirm Lifecycle Status

Many Magelis XBT products are legacy products. Schneider's current portfolio identifies XBT GT as discontinued, so availability and replacement options should be checked against the exact reference.

Magelis XBT HMI for Replacement & Retrofit Projects

The XBT name remains important for customers maintaining existing industrial equipment.

If an existing machine uses a Magelis XBT HMI, replacement should not be based only on screen size.

Check:

• Existing XBT model

• Complete order number

• Display resolution

• PLC model

• Communication protocol

• Cable and accessories

• HMI project

• Software version

• Panel cut-out

• Power supply

• Environmental requirements

For discontinued models, the replacement may require changes to software, communication, mounting or machine architecture.

Schneider Magelis XBT HMI Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd supplies and supports Schneider Electric automation products for industrial customers, OEMs, machine builders and system integrators.

If you are searching for a Schneider Magelis XBT HMI supplier in Ahmedabad, we can assist with:

• XBT model identification

• HMI selection

• Legacy HMI requirements

• Replacement evaluation

• PLC-HMI compatibility

• Communication requirement review

• Retrofit requirements

• Industrial automation product sourcing

We support automation requirements across Ahmedabad, Gujarat and India.

Schneider Magelis XBT HMI for Gulf Countries

We Tech Power Solutions Ltd can also support industrial automation enquiries for customers and projects across the Gulf region.

Our target markets include:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For Gulf enquiries, provide the complete XBT part number, quantity, application, PLC model and delivery location for accurate product evaluation.

Why Choose We Tech Power Solutions Ltd?

Selecting a legacy HMI requires accurate identification of both hardware and software requirements.

We Tech Power Solutions Ltd supports customers with:

• Schneider HMI sourcing

• Magelis XBT identification

• Legacy product enquiries

• HMI replacement evaluation

• PLC-HMI compatibility checks

• Communication analysis

• Retrofit support

• Industrial automation sourcing

• India and Gulf project support

Frequently Asked Questions

1. What is Schneider Magelis XBT HMI?

Magelis XBT is a family of Schneider Electric industrial HMI products used for machine visualization, operator control, diagnostics and automation-system interaction. The XBT portfolio includes different product families with different functions and architectures.

2. Is Magelis XBT GT still a current product?

Schneider currently lists Magelis XBT GT as discontinued. Therefore, enquiries for existing XBT GT installations should include the exact model number so availability or replacement options can be evaluated.

3. Is XBT GC the same as a standard XBT HMI?

No. XBT GC is an HMI controller that combines HMI and controller functionality with expandable I/O, whereas XBT GT is an advanced touchscreen HMI family.

4. How do I select a replacement for an existing Magelis XBT?

Start with the complete XBT order number, display size, PLC model, communication protocol, software/project information, mounting dimensions and environmental requirements. These details are needed to determine whether a direct replacement or migration solution is appropriate.

Get the Right Schneider Magelis XBT HMI

Looking for a Schneider Magelis XBT HMI supplier in Ahmedabad, Gujarat or India?

Share your complete XBT part number, PLC model, communication requirement, quantity and application details with We Tech Power Solutions Ltd.

Our team can help evaluate your requirement for Magelis XBT sourcing, replacement, retrofit or migration support.

Contact We Tech Power Solutions Ltd for Schneider Magelis XBT HMI enquiry and automation support.
