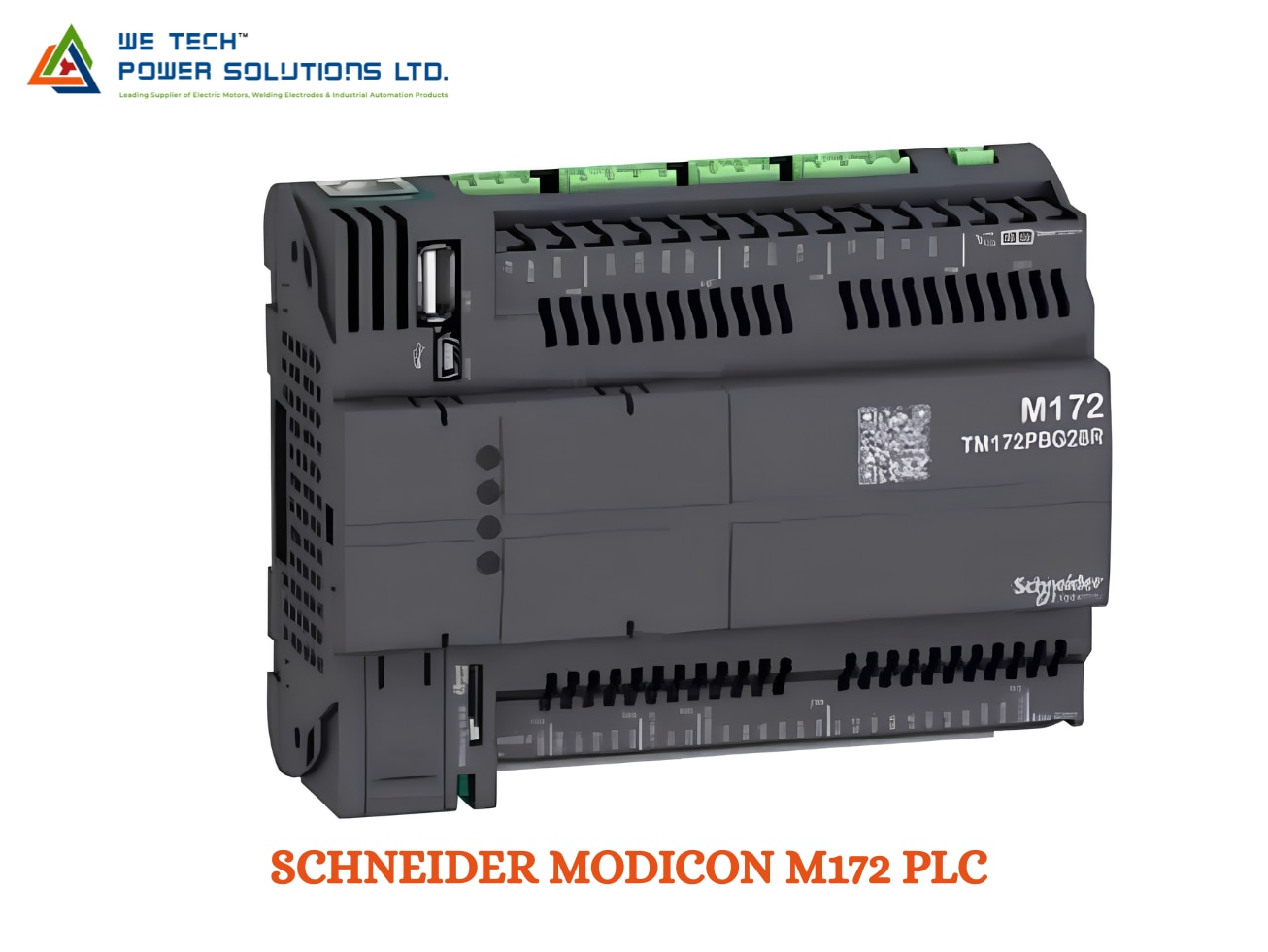

Schneider Modicon M172 PLC

Schneider Modicon M172 PLC for HVAC & Commercial Machine Automation

The Schneider Modicon M172 PLC is a dedicated logic controller designed for HVAC and commercial-machine applications where reliable control, connectivity and energy-efficient operation are important.

Unlike general-purpose Modicon PLC families used across broad industrial automation environments, the M172 belongs to Schneider Electric's M171/M172/M173 controller family for HVAC solutions. Schneider describes these controllers as helping HVAC OEMs improve energy efficiency and simplify machine development through integrated functions and EcoStruxure Machine Expert – HVAC.

We Tech Power Solutions Ltd supplies Schneider automation products from Ahmedabad, Gujarat and assists customers with M172 controller selection, accessories, expansion requirements and application-based enquiries.

What Is the Schneider Modicon M172 PLC?

The Modicon M172 is a programmable logic controller designed for HVAC equipment and commercial machines.

It can coordinate inputs, outputs, control logic, communication and application functions within equipment such as HVAC systems and other commercial-machine applications.

The M172 family includes different controller configurations, including optimized and performance versions, with options for different I/O counts, Ethernet connectivity and isolated I/O configurations. Schneider's current documentation covers M172 controllers, expansion modules, remote displays and accessories.

Where Is Modicon M172 Used?

The M172 is particularly suited to equipment where HVAC control, energy management and connected-machine functionality are central to the application.

Typical Applications

• HVAC control systems

• Air-conditioning equipment

• Chillers and cooling systems

• Air-handling equipment

• Heat-pump applications

• Commercial building equipment

• Refrigeration-related machinery

• Ventilation systems

• OEM HVAC machines

• Energy-management applications

The controller family is specifically positioned by Schneider for HVAC OEM applications rather than as a general-purpose plant PLC.

Key Capabilities of Modicon M172

HVAC-Oriented Control

The M172 is designed around the requirements of HVAC equipment, allowing OEMs to integrate control logic and application-specific functions into their machines.

Integrated Application Functions

Schneider highlights embedded features and application function blocks designed to support HVAC control and improve system efficiency.

Ethernet Connectivity

Selected M172 configurations provide Ethernet connectivity for integration with connected systems and building-management environments.

For example, the TM172PBG28RI is a performance M172 controller with 28 I/O and Ethernet connectivity.

Modbus Communication

M172 controllers can communicate with external equipment through supported communication interfaces. Schneider documentation also describes connecting HMIs to M171/M172 controllers through Modbus serial communication.

Remote Display Support

The M172 platform supports remote-display options, allowing equipment manufacturers to provide an operator interface for monitoring and control. Schneider's M172 hardware documentation includes remote displays among the supported system components.

M172 Controller Configurations

The M172 range includes different configurations depending on the required I/O, performance and connectivity.

Optimized Controllers

Designed for applications where a compact controller with the required HVAC functions is sufficient.

Performance Controllers

Performance versions provide a broader set of capabilities for more demanding HVAC equipment.

Schneider documentation identifies performance M172 references with configurations such as 28 I/O and 42 I/O, along with isolated and Ethernet-equipped variants.

Expansion Modules

The M172 platform can be extended using compatible expansion modules when the base controller's I/O is not sufficient for the application.

The official M172 hardware guide specifically covers expansion modules, remote displays and accessories.

M172 PLC Programming Software

M172 controllers are programmed using EcoStruxure Machine Expert – HVAC, Schneider Electric's engineering software developed specifically for the M171/M172/M173 HVAC controller family.

The software environment is designed to help HVAC OEMs develop and configure applications using the controller's integrated functions. Schneider identifies EcoStruxure Machine Expert – HVAC as the programming environment for the M171/M172/M173 range.

This makes software compatibility an important consideration when replacing or maintaining an existing M172 controller.

M172 PLC Communication & Connectivity

Connectivity is an important part of modern HVAC automation.

Depending on the exact controller configuration, M172 systems can provide communication capabilities for integration with:

• HMIs

• Building Management Systems

• HVAC equipment

• Sensors and field devices

• Remote monitoring systems

• Other automation controllers

• Energy-management systems

Schneider documents ModbusTCP access to M171/M172 system words and status variables and notes that the Ethernet port must be enabled in the PLC BIOS settings for this functionality.

Technical Product Overview

Parameter Modicon M172

Brand Schneider Electric

Product Family Modicon M171/M172/M173

Product Type HVAC Logic Controller

Primary Application HVAC & commercial machines

Controller Variants Optimized / Performance

I/O Model dependent

Ethernet Available on selected models

Serial Communication Model/configuration dependent

Modbus Supported according to selected interface/configuration

Expansion Compatible M172 expansion modules

Display Remote display options available

Programming EcoStruxure Machine Expert – HVAC

Application Focus HVAC OEM and commercial-machine automation

Important: M172 specifications vary by exact reference. Confirm the complete TM172 part number before quotation, replacement or system configuration.

Example M172 Product Reference

TM172PBG28RI

The TM172PBG28RI is a Schneider Modicon M172 performance controller described as a 28-I/O, Ethernet, isolatedconfiguration. Schneider currently lists this reference as normally stocked in its distribution network.

For an accurate quotation, the complete part number should always be provided because different M172 configurations can have different I/O, communication and electrical characteristics.

Why M172 Can Be Useful for HVAC OEMs

HVAC equipment manufacturers often need a controller that combines automation with application-specific functions rather than building every function from the ground up.

The M172 approach provides:

• HVAC-focused control functionality

• Application-specific function blocks

• Integrated communication options

• Expandable I/O

• Remote-display support

• Energy-efficiency-oriented functions

• Dedicated HVAC engineering software

• Connectivity for modern building-management environments

Schneider specifically highlights application function blocks, energy efficiency and BMS connectivity within the M171/M172/M173 family.

Industries & Applications

HVAC Manufacturing

For OEMs developing air-conditioning, ventilation and temperature-control equipment.

Commercial Buildings

For HVAC equipment integrated into offices, retail spaces, hotels and commercial facilities.

Refrigeration

For equipment requiring coordinated control of cooling-related functions.

Building Management

For systems where HVAC controllers need to exchange information with building-management systems.

Industrial HVAC

For specialized heating, ventilation and cooling equipment used in industrial environments.

Energy Management

For equipment where optimized HVAC operation and energy consumption are important design considerations.

M172 PLC Selection Guide

Selecting an M172 controller should begin with the equipment requirements rather than only the number of I/O points.

Check the following:

1. Application type – HVAC, refrigeration, air handling or another commercial machine.

2. I/O requirement – Determine the required digital and analogue signals.

3. Controller performance – Select the appropriate optimized or performance configuration.

4. Ethernet requirement – Confirm whether Ethernet connectivity is required.

5. Communication – Check Modbus and other required interfaces.

6. Expansion requirement – Determine whether additional I/O modules are needed.

7. Display requirement – Check whether a remote display is required.

8. Software compatibility – Confirm the engineering environment and existing project compatibility.

9. Electrical requirements – Verify the exact power and wiring requirements of the selected reference.

10. Environmental conditions – Confirm the installation environment before final selection.

M172 Maintenance & Programming Support

For an existing M172 installation, accurate identification is important before making changes.

Schneider provides current documentation for the M172 hardware, including installation, wiring, expansion modules, remote displays and accessories.

For programming or maintenance requirements, check:

• Exact TM172 part number

• Firmware/software version

• Existing application project

• I/O expansion

• Communication configuration

• HMI connection

• Ethernet settings

• Modbus configuration

• Connected HVAC equipment

Schneider also documents a USB-based project-loading procedure for M172 controllers, showing that project transfer can be performed using a USB memory stick under the specified procedure.
