SCHNEIDER MODICON M241 PLC

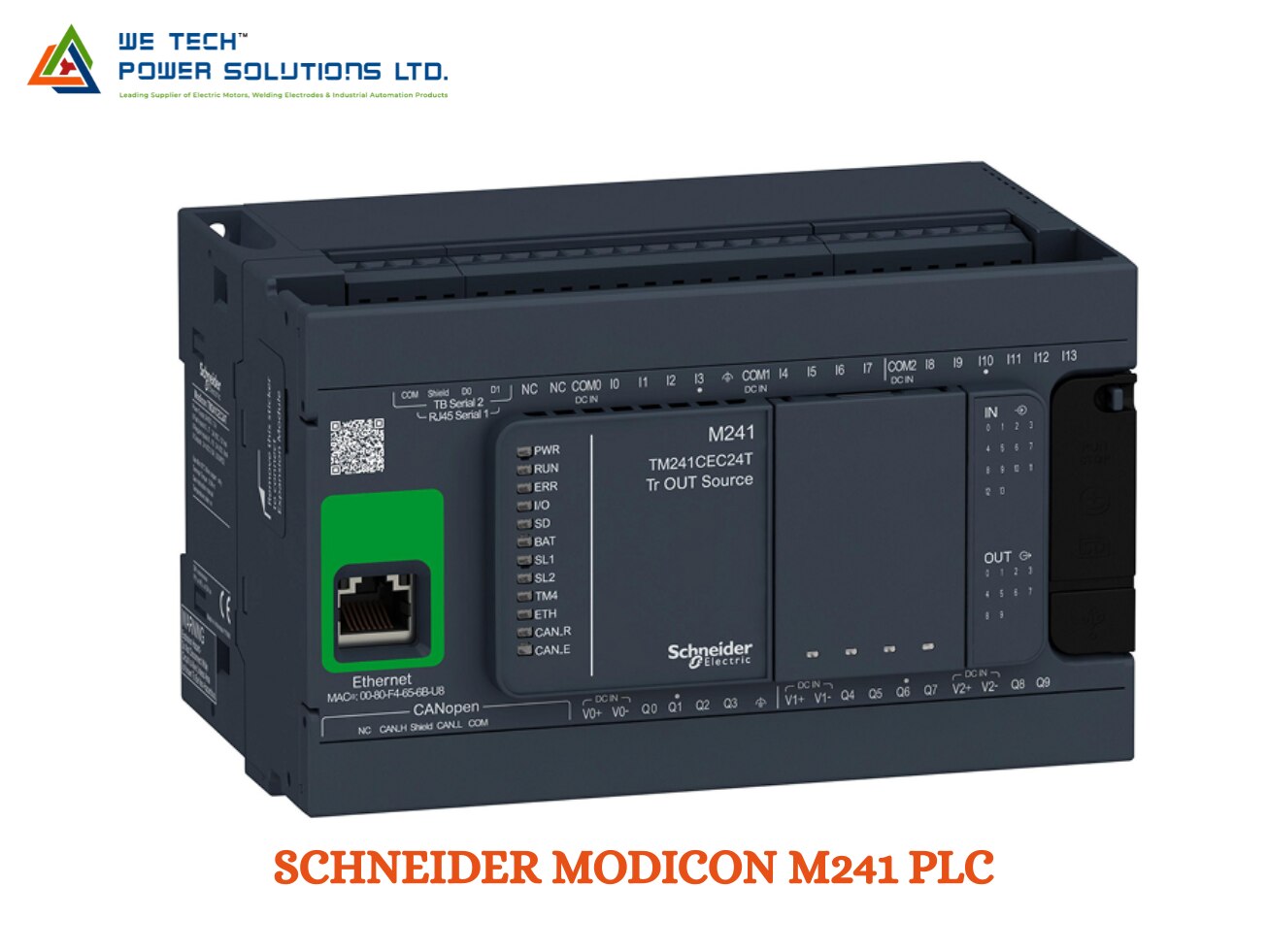

Schneider Modicon M241 PLC

Schneider Modicon M241 PLC for Advanced Machine Automation

When a machine requires more than basic PLC control, the Schneider Modicon M241 PLC provides a flexible platform for managing complex and modular automation systems.

The M241 is a Micro PLC designed for advanced machine automation, combining local I/O with communication capabilities for drives, motion equipment, remote I/O, HMIs and other industrial devices. Schneider offers M241 controllers with 24 or 40 I/O points, with the system expandable through compatible Modicon TM3 I/O modules.

We Tech Power Solutions Ltd supplies Schneider Modicon automation products for OEMs, machine builders, system integrators and industrial users across Ahmedabad, Gujarat and India.

What Is the Schneider Modicon M241 PLC?

The Modicon M241 is designed for applications where a compact controller needs to handle a broader range of machine-control functions and connected devices.

Compared with entry-level machine controllers, the M241 is intended for complex and modular machines where communication, expansion and integration are important parts of the control architecture.

Its architecture can combine:

• Local digital and analogue I/O

• TM3 expansion modules

• Ethernet communication

• Serial communication

• CANopen connectivity

• HMI integration

• Drive and motion-device communication

• Remote I/O

• Machine-level networking

This makes the M241 suitable for building scalable control systems without moving immediately to a larger PLC platform.

Built for Machines That Need More Connectivity

A key reason to consider the M241 is its communication architecture.

Depending on the selected controller reference, the platform provides combinations of Ethernet, Serial and CANopen communication, along with USB and SD-card provisions. These interfaces allow the PLC to interact with devices used throughout the machine.

Typical Connected Devices

The M241 can be integrated with:

HMIs

For operator control, machine status and parameter display.

Drives

For motor-speed and machine-motion applications.

Motion Equipment

For applications requiring coordinated machine movements.

Remote I/O

For extending control signals beyond the main PLC cabinet.

Sensors & Actuators

For collecting machine inputs and controlling field devices.

Expand the Control System with TM3 I/O

Machine requirements can change as the design develops. The M241 supports Modicon TM3 expansion I/O, allowing additional digital and analogue I/O to be incorporated into the control architecture. Schneider's TM3 range is designed for use with M221, M241, M251 and M262 controllers.

Depending on the application, TM3 modules can provide functions such as:

• Digital inputs

• Digital outputs

• Analogue inputs

• Analogue outputs

• Special-purpose I/O

• Other application-specific expansion functions

This modular approach helps machine builders adapt the PLC configuration to the actual I/O requirement rather than selecting an oversized controller from the beginning.

M241 PLC Programming & Engineering

The Modicon M241 is programmed using EcoStruxure Machine Expert, Schneider Electric's engineering software for the controller. Schneider's current programming guide specifically covers programming and operation of the M241 using EcoStruxure Machine Expert.

The engineering environment can be used for:

• PLC programming

• Controller configuration

• I/O configuration

• Communication setup

• HMI and device integration

• Machine commissioning

• Troubleshooting

• Application management

Schneider's current hardware documentation also covers connecting the M241 to the programming environment and interfacing it with I/O expansion modules, HMIs and other devices.

Where Is Schneider M241 PLC Used?

The M241 can be considered for machines where control requirements extend beyond simple sequencing.

Packaging Machinery

Suitable for coordinated machine sequences, sensors, actuators, conveyors and operator interfaces.

Material Handling

Can be integrated with conveyors, drives, sensors and remote I/O for automated handling systems.

Assembly Machines

Useful for machines combining multiple sensors, actuators, HMI functions and interconnected automation devices.

Food & Beverage Equipment

Can support machine control, monitoring and communication requirements in automated processing and packaging equipment.

Printing & Converting

Suitable for machine architectures requiring connected drives, I/O and operator interfaces.

Special-Purpose Machines

A practical option for OEM machines requiring a compact but expandable control platform.

Production Equipment

Can be used for automated workstations, production machines and equipment requiring centralized machine control.

Industries & Applications

The Schneider Modicon M241 PLC can be used across:

• Packaging

• Manufacturing

• Food & beverage

• Material handling

• Assembly automation

• Printing and converting

• Machine building

• Process equipment

• Industrial production

• OEM automation

Schneider Modicon M241 PLC – Technical Overview

Parameter Details

Brand Schneider Electric

Product Family Modicon M241

Product Type Micro PLC / Logic Controller

Application Advanced machine automation

Base I/O Options 24 I/O and 40 I/O variants

Programming Software EcoStruxure Machine Expert

Expansion Modicon TM3 I/O

Ethernet Available on applicable models

Serial Communication Available depending on model

CANopen Available on applicable models

HMI Integration Supported

Drive Integration Supported according to configuration

Motion Integration Supported according to application/configuration

Installation Machine/control cabinet

Controller Selection Exact TM241 order number required

The actual number and type of I/O, communication interfaces and other functions depend on the selected M241 reference. Schneider's current product documentation should be checked before final selection.

M241 PLC Selection: What Should You Check?

Selecting an M241 should be based on the complete machine architecture.

1. I/O Requirement

Calculate the required digital and analogue inputs and outputs, including spare capacity for future modifications.

2. Communication

Determine whether the machine needs Ethernet, CANopen, serial communication or multiple communication channels.

3. Drive & Motion Requirements

If the application includes motor drives or motion equipment, verify the required communication method and controller capabilities.

4. Expansion Requirement

Check whether local TM3 I/O expansion or other compatible expansion architecture is required.

5. HMI Integration

Confirm the communication interface needed between the PLC and operator panel.

6. Programming Environment

M241 projects require EcoStruxure Machine Expert.

7. Exact Order Number

Always confirm the complete TM241 reference because different M241 models have different I/O and communication configurations.

Schneider Modicon M241 PLC Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd provides Schneider Electric automation products for machine builders, OEMs, system integrators and industrial customers.

For Schneider Modicon M241 PLC in Ahmedabad, we can assist with product enquiries based on:

• Required I/O

• PLC model

• Communication requirements

• Machine application

• HMI requirements

• Drive integration

• Expansion requirements

• Quantity and project requirements

Our automation product portfolio includes Schneider Modicon PLCs, HMIs, drives and other industrial automation solutions.

M241 PLC Supply Support for Gulf Projects

We Tech Power Solutions Ltd can also support industrial automation product requirements for customers and projects across the Gulf region.

Relevant markets include:

• UAE

• Dubai

• Abu Dhabi

• Saudi Arabia

• Qatar

• Oman

• Kuwait

• Bahrain

For international requirements, customers can share the complete Schneider part number, quantity, application and delivery location for configuration and quotation support.

Why Choose We Tech Power Solutions Ltd?

Choosing the correct PLC configuration is important for both machine performance and future expansion.

We Tech Power Solutions Ltd supports customers with:

• Schneider Electric PLC sourcing

• M241 model identification

• Application-based product selection

• I/O requirement assessment

• Communication requirement review

• Industrial automation product enquiries

• Machine automation projects

• Replacement and upgrade requirements

• India and Gulf project support

Frequently Asked Questions

1. What software is used for Schneider Modicon M241 PLC?

The Modicon M241 is programmed using EcoStruxure Machine Expert. Schneider confirms this in its current M241 programming documentation.

2. Can the M241 PLC be expanded?

Yes. M241 controllers can be expanded using compatible Modicon TM3 I/O modules, allowing the control system to accommodate additional I/O requirements.

3. Is the M241 suitable for complex machines?

Yes. Schneider positions the M241 for more advanced automation of complex and modular machines, including applications involving drives, motion, remote I/O and HMIs.

Get the Right Modicon M241 PLC for Your Machine

Looking for a Schneider Modicon M241 PLC supplier in Ahmedabad, Gujarat or India?

Share your PLC part number, I/O requirement, communication requirements, machine application and quantitywith We Tech Power Solutions Ltd.

Our team can help you identify the appropriate M241 configuration for your industrial automation requirement.

Contact We Tech Power Solutions Ltd for Schneider Modicon M241 PLC enquiry and quotation support.
