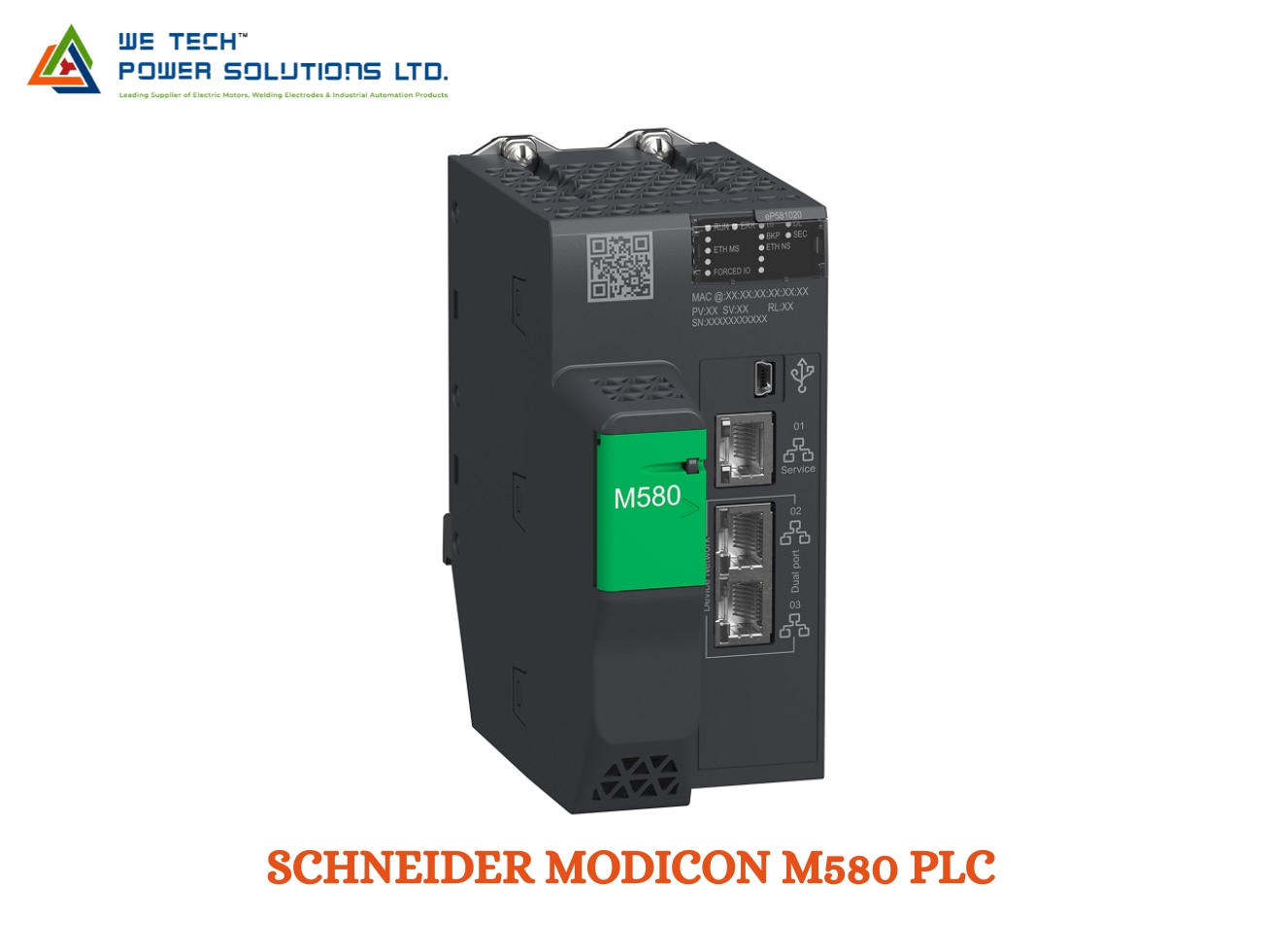

SCHNEIDER MODICON M580 PLC

Schneider Modicon M580 PLC

Schneider Modicon M580 PLC for Advanced Industrial Automation

The Schneider Modicon M580 PLC is an advanced Ethernet-based Programmable Automation Controller (ePAC) designed for demanding industrial, process and infrastructure applications. It combines high-performance control with Ethernet communication, scalable I/O architectures and options for high availability.

Unlike compact machine PLCs, the M580 is intended for automation systems where controllers, remote I/O, distributed equipment, communication networks and plant-level systems need to work together as one scalable architecture.

We Tech Power Solutions Ltd supplies Schneider Electric automation products from Ahmedabad, Gujarat, helping industries, OEMs and system integrators with M580 PLC selection, CPU identification, I/O configuration and automation product sourcing.

What Is Schneider Modicon M580 PLC?

The Modicon M580 is a Programmable Automation Controller (PAC) designed for industrial process and infrastructure control.

The platform uses Ethernet as a major communication backbone and can connect a local controller rack with remote I/O drops and distributed equipment. Schneider's current M580 architecture documentation covers Ethernet I/O networks, RIO and DIO configurations, network option modules, diagnostics and system commissioning.

This architecture allows automation systems to be expanded without placing every I/O module beside the main controller.

Why Choose an M580 Architecture?

Large automation systems often have field equipment distributed across different plant areas. Bringing every signal back to one central cabinet can increase cabling, infrastructure and maintenance requirements.

M580 supports an architecture where:

• The main controller operates from a local rack

• Remote I/O can be installed closer to field equipment

• Distributed Ethernet equipment can be integrated into the automation network

• X80 I/O modules can be used across supported configurations

• Communication networks can be expanded according to the system design

• Redundant configurations can be used for high-availability applications

Schneider's current system guide specifically describes M580 architectures combining a local rack, RIO drops and distributed equipment on an Ethernet-based network.

Main Building Blocks of a Modicon M580 System

1. M580 Controller

The CPU is responsible for executing the automation application, managing configured modules and coordinating communication with I/O and connected devices.

Schneider's hardware documentation describes the M580 controller as the component that processes the application, manages configured modules and handles explicit and implicit communication.

2. Local Rack

The local backplane houses the controller along with the required power supply and compatible communication, I/O or application modules.

3. X80 I/O

The M580 platform uses the Modicon X80 I/O ecosystem for digital, analogue and specialized automation requirements.

Schneider describes X80 as a common module platform used with M580, Quantum Ethernet I/O and M340 PAC architectures.

4. Remote I/O

Remote I/O drops allow field signals to be located away from the main controller cabinet.

This can be useful for large production plants where machines, sensors and actuators are physically distributed.

5. Distributed Equipment

Ethernet-based distributed devices can be incorporated into the M580 network architecture according to the application and network design.

6. Communication Modules

Additional communication modules can be used where the automation system requires specific network interfaces or communication services.

M580 Ethernet Architecture

Ethernet is a central element of the M580 platform.

A typical architecture can include:

M580 Controller → Ethernet Network → Remote I/O → Distributed Equipment → Field Devices

Schneider's current architecture documentation covers both frequently used and complex Ethernet topologies, including RIO/DIO networks, sub-rings and dual-ring switch architectures.

This makes M580 suitable for automation projects where communication architecture is as important as controller performance.

M580 Remote I/O & Distributed I/O

One of the major advantages of the M580 platform is its ability to support distributed field architectures.

Remote I/O can be installed in locations closer to machines or process equipment, while the controller remains in the main automation cabinet.

This can help with:

• Distributed plant layouts

• Long-distance field connections

• Machine-area automation

• Process-area control

• Reduced central-panel wiring

• Easier expansion of field I/O

Schneider's documentation describes M580 architectures supporting RIO and distributed equipment on the same physical Ethernet network.

M580 Control & Communication Capabilities

The M580 controller performs more than basic PLC logic execution.

Depending on the selected configuration, the system can manage:

• Application processing

• Digital I/O

• Analogue I/O

• Remote I/O

• Distributed Ethernet devices

• Explicit communications

• Implicit communications

• Network diagnostics

• System diagnostics

• Application monitoring

Schneider's hardware documentation identifies controller responsibilities including module configuration, application processing, I/O processing and communication management.

M580 Hot Standby for High Availability

For applications where production downtime has a major operational impact, M580 can be configured in a Hot Standby architecture.

An M580 Hot Standby system uses two controller configurations:

Primary Controller ↔ Standby Controller

The primary controller executes the application while the standby controller maintains synchronized information and is ready to assume control if the primary controller stops operating.

Schneider's current Hot Standby guide describes the system as a redundant architecture with identical hardware/software configurations, allowing the standby controller to assume control within one scan when the primary controller stops communications.

Suitable Applications for Hot Standby

• Continuous process plants

• Water treatment

• Infrastructure systems

• Power-related automation

• Large production facilities

• Critical material-handling systems

• Applications where unplanned downtime must be minimized

M580 Programming Software

M580 PLC systems configured under the conventional M580 controller architecture are programmed using EcoStruxure Control Expert, formerly known as Unity Pro.

Schneider's current Control Expert documentation states that the software supports Modicon platforms including M340, M580, Momentum, Premium and Quantum and provides IEC 61131-3 programming languages such as Ladder Diagram, Function Block Diagram, Sequential Function Chart and Structured Text.

The engineering environment can be used for:

• PLC programming

• Hardware configuration

• I/O configuration

• Network configuration

• Diagnostics

• Application management

• Controller commissioning

• Maintenance

Important Software Note

Schneider also offers M580 controllers configured as distributed PACs using EcoStruxure Automation Expert. These BMED581020/BMED581020C controllers are different from the BMEP58/BMEH58 controller families configured with Control Expert.

Therefore, the exact controller reference should be checked before selecting the engineering software.

Technical Product Overview

Parameter Modicon M580 PLC

Brand Schneider Electric

Product Family Modicon M580

Product Type Ethernet Programmable Automation Controller

Architecture Modular / distributed automation

Controller M580 CPU, model dependent

I/O Modicon X80 and compatible system I/O

Network Ethernet-based architecture

Remote I/O Supported

Distributed Equipment Supported

Hot Standby Available for supported configurations

Programming EcoStruxure Control Expert

Programming Languages IEC 61131-3 languages, configuration dependent

Diagnostics Controller, I/O and network diagnostics

Applications Process, infrastructure and industrial automation

Safety Dedicated M580 Safety variants available

Technical characteristics vary by CPU, rack, I/O, communication modules and network architecture. Always confirm the complete M580 order number before quotation or engineering.

M580 PLC Applications

Process Automation

M580 can be used for large process-control systems requiring distributed I/O, Ethernet communication and coordinated plant automation.

Water & Wastewater

Applications can include pumping, treatment processes, monitoring, remote I/O and plant-level control.

Manufacturing

Suitable for production systems requiring coordinated control of machines, process equipment and distributed I/O.

Energy & Infrastructure

M580 architectures can be applied to large infrastructure systems where availability and communication are important.

Material Handling

Large conveyor and material-handling systems can use distributed I/O and Ethernet architectures to connect equipment across different areas.

Mining & Heavy Industry

The scalable architecture can support automation systems spread across large industrial installations.

Building & Utility Infrastructure

M580 can be considered where multiple field systems need to communicate with a central automation platform.

Industries Using Modicon M580 PLC

The M580 platform can be relevant to:

• Manufacturing

• Water & wastewater

• Oil & gas

• Chemical processing

• Energy

• Mining

• Infrastructure

• Material handling

• Food & beverage

• Pharmaceutical manufacturing

• Utilities

• Large process plants

The appropriate architecture depends on the required control functions, network design, I/O distribution and availability requirements.

M580 PLC Selection Guide

Selecting an M580 system should begin with the complete automation architecture rather than only the CPU.

1. Define the Application

Identify whether the system is for process automation, infrastructure, manufacturing, utilities or another industrial application.

2. Determine I/O Requirements

Calculate the required:

• Digital inputs

• Digital outputs

• Analogue inputs

• Analogue outputs

• Specialty I/O

• Remote I/O

3. Select the Controller

Choose the M580 CPU according to application size, processing requirements, memory and system architecture.

4. Plan the Network

Determine whether the application requires:

• Local Ethernet

• Remote I/O

• Distributed I/O

• DIO equipment

• RIO architecture

• Network redundancy

5. Check Availability Requirements

If downtime must be minimized, evaluate whether an M580 Hot Standby architecture is appropriate.

6. Select Communication Modules

Determine the required communication interfaces based on field devices, supervisory systems and plant networks.

7. Verify Software

Confirm whether the selected controller uses EcoStruxure Control Expert or another supported Schneider engineering environment.

8. Consider Future Expansion

Leave adequate capacity for additional I/O, communication and automation functions where future expansion is expected.

M580 PLC Diagnostics & Maintenance

M580 provides system-level diagnostics to help maintenance teams identify controller, communication and network-related issues.

Schneider's current M580 architecture guides cover system diagnostics, commissioning and maintenance procedures.

For maintenance and troubleshooting, engineers should maintain records of:

• CPU model

• Firmware version

• Control Expert version

• Application backup

• I/O configuration

• Network topology

• Communication module references

• IP addressing

• Remote I/O configuration

• Hot Standby configuration, where applicable

M580 PLC vs M580 Safety

The standard M580 PLC and M580 Safety should not be treated as identical products.

M580 Standard

Designed primarily for industrial process, infrastructure and automation control.

M580 Safety

Designed for safety-related applications using dedicated safety components and safety engineering requirements.

Schneider's M580 Safety documentation specifically addresses IEC 61508 requirements and safety-system operation, installation and maintenance.

The correct platform should therefore be selected according to whether the application requires standard automation, functional safety, or both.

Schneider Modicon M580 PLC Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd provides Schneider Electric automation product sourcing and selection support from Ahmedabad, Gujarat.

For an M580 PLC requirement, share the complete CPU part number, I/O requirement or automation applicationwith our team.

We can assist with:

• M580 CPU enquiries

• X80 I/O requirements

• Remote I/O configuration

• Communication modules

• Hot Standby requirements

• Network architecture enquiries

• Replacement and upgrade requirements

• Industrial automation product sourcing

For an existing system, a clear photograph of the CPU and module labels can help identify the exact configuration.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric automation product sourcing

• M580 PLC identification support

• CPU and I/O selection assistance

• Distributed I/O configuration support

• Communication architecture enquiry assistance

• Hot Standby product enquiry support

• Replacement and modernization requirements

• Industrial automation sourcing from Ahmedabad

We support automation requirements across Ahmedabad, Gujarat and India, including enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Frequently Asked Questions

1. What is Schneider Modicon M580 PLC used for?

The Modicon M580 is an Ethernet-based Programmable Automation Controller designed for industrial process, infrastructure and large-scale automation applications. It supports local control, remote I/O and distributed Ethernet equipment.

2. Which software is used to program Modicon M580 PLC?

M580 controller families configured with the conventional M580 architecture are programmed using EcoStruxure Control Expert, formerly known as Unity Pro. Schneider's current documentation supports M580 programming using IEC 61131-3 languages.

3. Does M580 support Hot Standby?

Yes. Supported M580 configurations can be deployed in a Hot Standby architecture using primary and standby controllers for high-availability applications. Schneider documents synchronization and automatic transfer between the primary and standby controllers.
