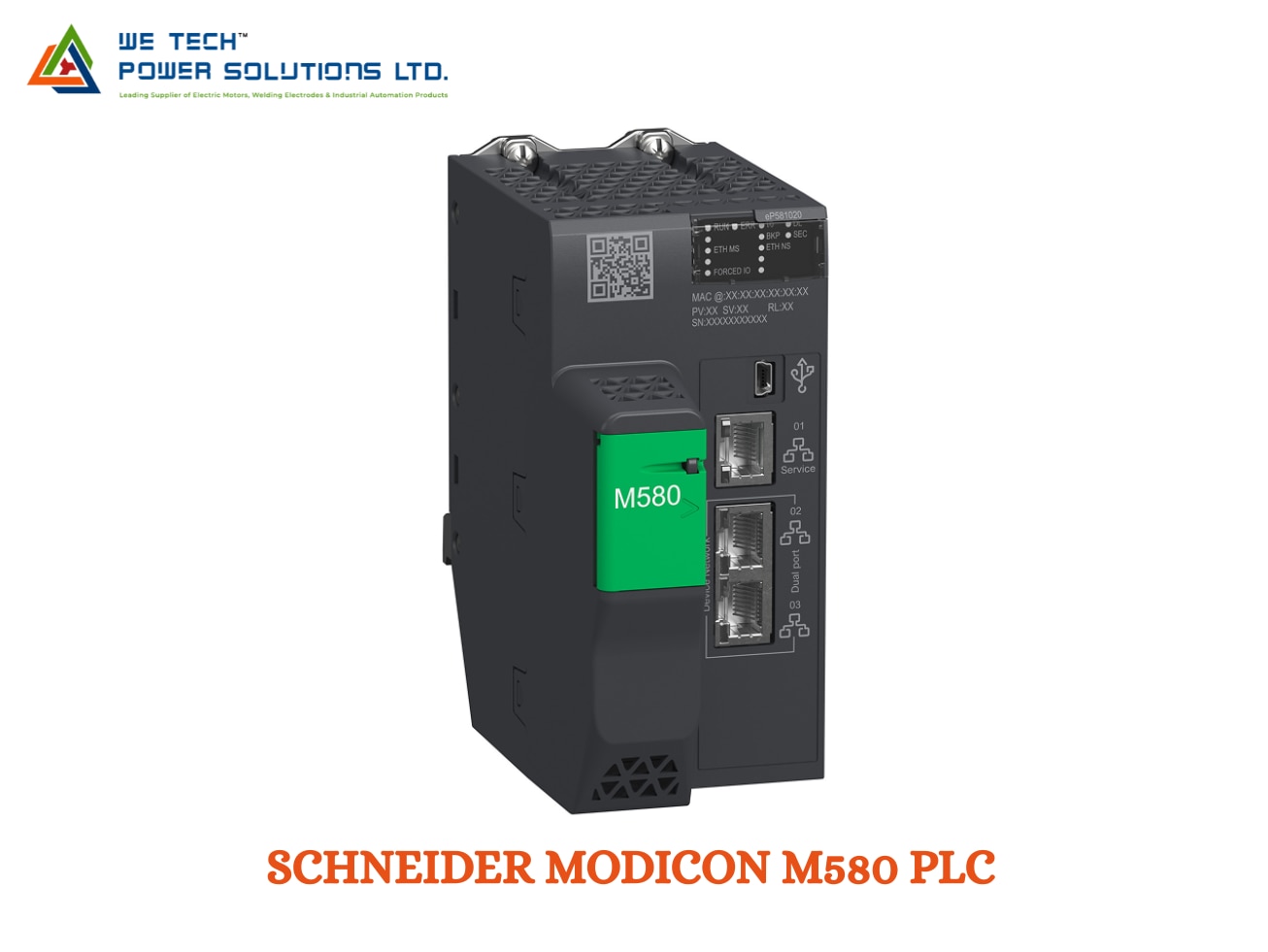

Schneider Modicon M580 Safety PLC

Schneider Modicon M580 Safety PLC for Functional Safety & Critical Automation

The Schneider Modicon M580 Safety PLC is a high-performance programmable automation platform designed for industrial applications where standard automation control needs to be combined with functional safety.

The M580 Safety architecture is designed to support safety-related applications using dedicated safety processors, safety I/O and safety system components. Schneider Electric's current system documentation specifically addresses compliance with IEC 61508 requirements and provides guidance for installation, commissioning, operation and maintenance.

We Tech Power Solutions Ltd supplies Schneider Electric automation products from Ahmedabad, Gujarat and supports customers with M580 Safety PLC identification, configuration requirements, safety-system enquiries and industrial automation sourcing.

What Is Schneider Modicon M580 Safety PLC?

The Modicon M580 Safety PLC is a safety-rated automation controller designed for applications where the control system must perform defined safety functions in addition to standard automation tasks.

A safety system continuously monitors safety-related inputs, executes the configured safety logic and controls safety outputs. Schneider's M580 Safety documentation explains that when a controller or I/O diagnostic detects an error, the affected portion of the safety system can be placed into its defined safe state.

This architecture makes the M580 Safety suitable for industrial processes where protection of people, equipment and the production environment is an important part of the automation design.

How Does M580 Safety Work?

A typical M580 Safety application can be understood through four main stages:

1. Safety Inputs

Safety-related signals are received from devices such as emergency-stop circuits, safety switches, protective devices and other safety instrumentation.

2. Safety Logic

The safety processor evaluates the configured safety application and determines the required response according to the programmed safety logic.

3. Safety Outputs

The resulting safety commands are transmitted to the relevant safety outputs and connected equipment.

4. Diagnostics

The system performs diagnostics during operation. If a relevant fault is detected, the safety architecture responds according to the defined safe-state behavior.

Standard Automation + Safety Architecture

One of the important considerations with M580 Safety is the separation between standard automation functions and safety-related functions.

Schneider's safety documentation states that safety functions should be applied only to components belonging to the safety loop and that the safety loop should contain the applicable safety modules, configuration settings and safety data.

This makes correct system architecture and configuration essential when designing an M580 Safety application.

Main Components of an M580 Safety System

Safety Processor

The safety CPU executes the safety application and manages the safety-related control functions.

Schneider identifies M580 Safety processor references within the BMEP58S and BMEH58S families.

Safety I/O

Safety I/O modules provide the interface between the safety controller and field safety devices.

The selected I/O configuration depends on:

• Safety input requirements

• Safety output requirements

• Signal type

• Required diagnostics

• Application architecture

• System design

X80 I/O Architecture

M580 Safety systems use the Schneider X80 ecosystem for compatible I/O and system components. The exact combination depends on whether the module is part of the standard automation section or safety-related architecture.

Communication Components

Depending on the architecture, M580 systems can incorporate communication modules and networks for integration with other automation equipment.

Communication selection should be based on the exact system design and safety requirements.

M580 Safety Programming Software

M580 Safety applications are configured and maintained using EcoStruxure Control Expert with Safety.

Schneider's current M580 Safety user guide states that Control Expert with Safety can be used to program, configure and maintain a safety application.

The engineering environment is used for tasks such as:

• Safety application development

• Controller configuration

• Safety I/O configuration

• Application diagnostics

• System maintenance

• Safety project management

• Commissioning support

For existing systems, the Control Expert version, processor firmware and safety project version should be checked before making changes.

Functional Safety & IEC 61508

Functional safety is a central part of the M580 Safety architecture.

Schneider's M580 Safety System Guide specifically describes the system's modules with regard to IEC 61508 safety requirements and provides installation, operation and maintenance guidance intended to help protect people, the environment, equipment and production.

However, installing a safety PLC alone does not make an entire machine or process safety compliant.

The complete safety system must be designed, verified and validated according to the applicable machinery/process safety requirements and the relevant safety standards.

Applications of Schneider M580 Safety PLC

M580 Safety can be considered for industrial applications where safety functions need to be integrated with a larger automation architecture.

Process Industries

For critical process-control environments where safety-related functions need to work alongside process automation.

Manufacturing Plants

For production systems requiring coordinated machine control and safety functions.

Material Handling

For large conveyor, transfer and material-handling systems where emergency and protective functions are required.

Chemical & Process Plants

For applications involving safety-related shutdowns, monitoring and controlled responses.

Energy & Infrastructure

For automation systems where defined safety functions are required for equipment and personnel protection.

Large Machine Systems

For complex machinery requiring coordinated standard and safety automation.

Typical Safety Functions

Depending on the application and properly designed safety architecture, safety systems may be used to implement functions such as:

• Emergency-stop monitoring

• Guard-door monitoring

• Protective-device monitoring

• Safety shutdown

• Safe machine stopping

• Interlock monitoring

• Safety-related process trips

• Hazard-zone protection

• Safety alarm handling

The actual safety function, required safety level and architecture must be determined through the application's formal risk assessment and safety design.

Technical Product Overview

Parameter Modicon M580 Safety PLC

Brand Schneider Electric

Product Family Modicon M580 Safety

Product Type Safety PLC / Safety Automation Platform

Safety Architecture Functional safety automation

Safety Processor BMEP58S / BMEH58S family, model dependent

I/O Safety and standard I/O, configuration dependent

Engineering Software EcoStruxure Control Expert with Safety

Safety Standard IEC 61508-related system requirements

Diagnostics Safety system and module diagnostics

Communication Model/system architecture dependent

Application Safety-related industrial automation

Installation Control cabinet / industrial automation architecture

Configuration Application and safety requirements dependent

Important: Safety PLC specifications depend on the exact CPU, I/O modules, firmware, safety configuration and system architecture. Always confirm the complete order number before quotation or engineering.

M580 Safety Selection Checklist

Selecting a safety PLC requires more than checking CPU performance.

1. Define the Safety Application

Identify exactly which machine, process or hazardous function needs safety control.

2. Determine Required Safety Functions

List emergency stops, guards, safety switches, shutdowns and other safety-related functions.

3. Identify Safety I/O

Determine the number and type of safety inputs and outputs required.

4. Select the Safety CPU

Choose the appropriate M580 Safety processor according to application requirements.

5. Review Standard Automation

Determine how the safety system will interact with the standard M580 automation architecture.

6. Check Communication

Identify the required communication interfaces and network architecture.

7. Confirm Engineering Software

Verify the required Control Expert with Safety version and compatibility with the selected hardware.

8. Complete Verification & Validation

The safety application must be properly verified and validated according to the applicable safety requirements.

M580 Safety Diagnostics & Safe-State Operation

Diagnostics are an important part of a functional safety system.

Schneider states that while an M580 Safety system is operating in safety mode, the system periodically:

• Reads safety inputs

• Processes the safety application logic

• Performs diagnostics

• Applies the logic results to safety outputs

If a relevant controller or I/O diagnostic detects an error, the affected part of the system is placed into its defined safe state according to the system response.

This diagnostic behavior helps support the safety architecture but must be considered as part of the complete engineered safety system.

M580 Safety Cybersecurity Considerations

Safety systems also need appropriate cybersecurity management.

Schneider currently publishes security notifications affecting M580 Safety CPUs, including processor families identified as BMEP58S and BMEH58S. Therefore, firmware/software versions should be checked against Schneider's current security advisories before commissioning or maintaining a connected safety system.

For new installations and upgrades, it is good practice to verify:

• CPU firmware

• Control Expert version

• Security advisories

• Network configuration

• Access control

• Backup procedures

• Change-management process

Industries Using Safety PLC Systems

Manufacturing

Machine and production-line safety.

Automotive

Safety control for automated manufacturing and assembly equipment.

Chemical & Process

Safety-related process monitoring and shutdown functions.

Oil & Gas

Critical process and equipment protection applications.

Energy

Safety functions in complex power and infrastructure automation.

Material Handling

Protection for conveyors, transfer systems and automated equipment.

Industrial Machinery

Integrated safety control for complex machine architectures.

Schneider Modicon M580 Safety PLC Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd provides Schneider Electric automation product sourcing and selection assistance from Ahmedabad, Gujarat.

For M580 Safety requirements, share the exact CPU/order number, safety I/O requirement and application detailswith our team.

We can assist with enquiries related to:

• M580 Safety CPUs

• Safety I/O requirements

• Standard M580 components

• Communication modules

• Safety-system accessories

• Replacement requirements

• Industrial automation sourcing

For an existing installation, a clear photograph of the processor and module labels can help identify the exact configuration.

Why Choose We Tech Power Solutions Ltd?

• Schneider Electric automation product sourcing

• M580 Safety product identification support

• Safety PLC configuration enquiry assistance

• CPU and I/O reference checking

• Industrial automation component sourcing

• Replacement and upgrade enquiries

• Application-based product selection

• Support from Ahmedabad, Gujarat

We support automation requirements across Ahmedabad, Gujarat and India, including enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Frequently Asked Questions

1. What is Schneider Modicon M580 Safety PLC used for?

The M580 Safety PLC is designed for safety-related industrial automation applications where functional safety needs to be integrated with a larger automation system. Schneider's documentation addresses its use in safety applications designed around IEC 61508 requirements.

2. Which software is used to program M580 Safety PLC?

M580 Safety applications are programmed, configured and maintained using EcoStruxure Control Expert with Safety.

3. Is M580 Safety the same as a standard M580 PLC?

No. M580 Safety uses dedicated safety-related processors and system components and has additional requirements for safety application design, configuration, diagnostics and validation. Schneider's documentation specifically distinguishes the safety architecture and safety-related components from standard automation functions.

Get Assistance for Your M580 Safety PLC Requirement

Looking for a Schneider Modicon M580 Safety PLC Supplier in Ahmedabad, Gujarat or India?

Contact We Tech Power Solutions Ltd for M580 Safety PLC product identification, configuration enquiries and industrial automation sourcing.
