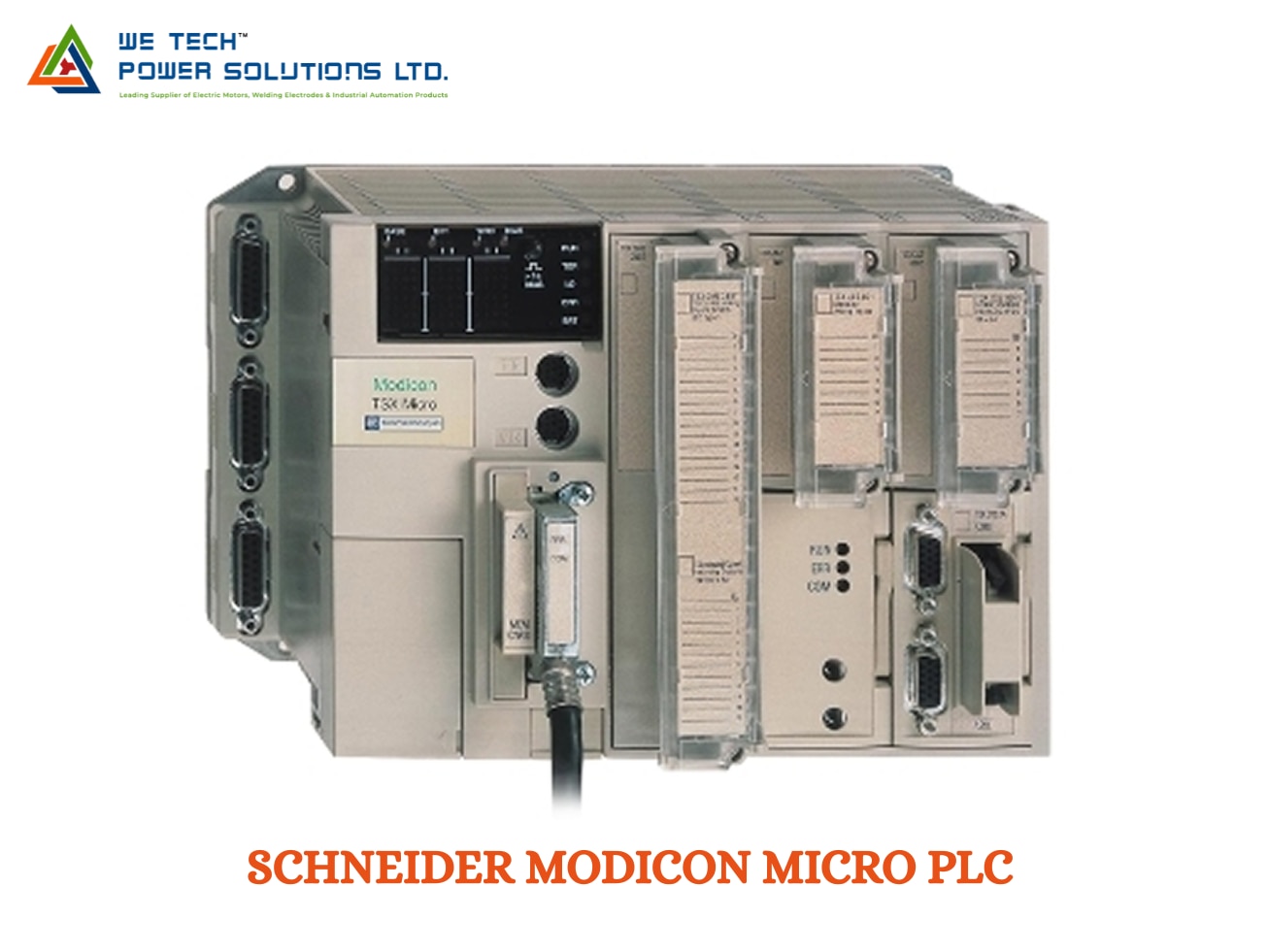

SCHNEIDER MODICON MICRO PLC

Schneider Modicon Micro PLC

Schneider Modicon Micro PLC for Compact Industrial Automation

The Schneider Modicon Micro PLC is a compact, modular programmable logic controller platform developed for machine control, manufacturing automation, infrastructure systems, and industrial control applications. The platform was designed to provide flexible I/O expansion, control functions, communication capabilities, and application-specific automation features.

We Tech Power Solutions Ltd supplies Schneider Modicon Micro PLC products and supports customers with product identification, legacy-system replacement requirements, technical selection, and quotation assistance.

Product status: Schneider Electric currently lists the Modicon TSX Micro range as discontinued. Availability and replacement options should therefore be checked against the exact TSX Micro order number.

Why Was Modicon TSX Micro Used in Industrial Automation?

Industrial machines often require a controller capable of receiving signals from sensors, processing programmed logic, and controlling outputs such as motors, valves, relays, and other equipment.

The Modicon TSX Micro platform was designed for this type of automation. Schneider describes it as a compact, modular PLC for OEM machine builders and infrastructure applications, with configurations supporting up to 484 I/O.

Depending on the selected TSX Micro model, the platform could support discrete and analog I/O, counting, positioning, process-control functions, communication networks, and memory expansion.

Modicon Micro PLC Series

The TSX Micro family includes several PLC configurations designed for different levels of machine-control requirements.

TSX 37-05 / 37-08 / 37-10

These compact PLC configurations integrate I/O and provide expansion capability for machine-control applications.

TSX 37-21 / 37-22

These modular PLC configurations provide greater flexibility for applications requiring additional I/O, communication, memory, and application-specific functions. Schneider documentation covers these controller variants and their associated modules.

Automation Functions

Depending on the selected configuration, Modicon TSX Micro systems can support:

• Discrete input and output control

• Analog signal processing

• Counting functions

• Positioning applications

• Process-control functions

• PID-related applications

• Mathematical functions

• Event-triggered tasks

• Multi-task application structures

• Modbus communication

• Uni-Telway communication

• Ethernet TCP/IP options

• CANopen-based machine communication

Schneider's documentation identifies application-specific functions such as counting, positioning, analog/PID functions, mathematics, fuzzy logic, and multiple communication options within the TSX Micro platform.

Where Can Modicon Micro PLC Be Used?

Machine Control

The PLC can be used in machine-control architectures where programmed logic is required to coordinate sensors, actuators, motors, and other equipment.

Manufacturing Automation

TSX Micro systems were designed for OEM and manufacturing applications where compact PLC control and modular expansion were required.

Production Equipment

The controller can be incorporated into production machinery for sequence control, monitoring, and equipment operation.

Material Handling

Suitable configurations can be used in conveyor and material-handling systems requiring programmed control of motors, sensors, and actuators.

Process Applications

Configurations with analog and process-control capabilities can be applied to selected industrial process-control requirements.

Infrastructure Systems

Schneider identifies infrastructure applications among the intended uses of the Modicon TSX Micro platform.

Industries & Applications

The Modicon Micro PLC platform can be relevant to legacy automation systems in industries such as:

• Manufacturing

• Machine Building

• Packaging

• Material Handling

• Food & Beverage

• Textile Machinery

• Process Automation

• Water & Infrastructure

• Industrial Equipment

• Production Automation

Technical Product Overview

• Brand: Schneider Electric

• Product Family: Modicon TSX Micro

• Product Type: Compact / modular PLC

• PLC Models: TSX 37-05, TSX 37-08, TSX 37-10, TSX 37-21 and TSX 37-22

• Maximum I/O: Up to 484 I/O, depending on system configuration

• Power Supply: Model-dependent

• Digital I/O: Model-dependent

• Analog I/O: Available on selected configurations

• Communication: Modbus RTU, Uni-Telway and other options depending on model

• Ethernet: Available through applicable communication configurations

• CANopen: Available through selected communication modules

• Memory: Model and expansion dependent

• Expansion: Modular I/O and communication modules

• Application: Machine control, manufacturing automation, infrastructure and legacy automation systems

Individual TSX Micro models have different power supplies, I/O counts, memory, communication interfaces, execution performance, and expansion capabilities. For example, documented TSX 37-21/22 configurations include 24 V DC or 100–240 V AC variants, three slots, Modbus RTU, Uni-Telway, and model-specific analog/counting capabilities.

Technical specifications depend on the exact Modicon TSX Micro model and configuration. Confirm the complete Schneider Electric order number before purchase or replacement.

Replacing an Existing Modicon Micro PLC?

Because the Modicon TSX Micro range is discontinued, replacement projects require additional attention.

A replacement should not be selected only by matching the PLC name. The existing system should be reviewed for:

• PLC model and order number

• Number of digital inputs

• Number of digital outputs

• Analog I/O requirements

• Communication protocol

• Existing expansion modules

• Memory requirements

• Program compatibility

• Power-supply arrangement

• Machine application

• Available panel space

• Required replacement platform

If you have an existing TSX Micro PLC, share the complete part number and photographs of the controller/modules with our team for identification and replacement-support requirements.

Schneider Modicon Micro PLC Supplier in India & Gulf Countries

We Tech Power Solutions Ltd supports customers requiring Schneider Electric automation products and legacy PLC identification across India and Gulf markets.

Our SEO and service coverage includes:

• Schneider Modicon Micro PLC Supplier in Ahmedabad

• Schneider Modicon Micro PLC Supplier in Gujarat

• Schneider Modicon Micro PLC Supplier in India

• Schneider Modicon Micro PLC Supplier in UAE

• Schneider Modicon Micro PLC Supplier in Dubai

• Schneider Modicon Micro PLC Supplier in Abu Dhabi

• Schneider Modicon Micro PLC Supplier in Saudi Arabia

• Schneider Modicon Micro PLC Supplier in Qatar

• Schneider Modicon Micro PLC Supplier in Oman

• Schneider Modicon Micro PLC Supplier in Kuwait

• Schneider Modicon Micro PLC Supplier in Bahrain

Why Choose We Tech Power Solutions Ltd?

Legacy PLC requirements often involve more than simply finding a product with a similar name. Existing I/O modules, communication networks, power supplies, programming requirements, and machine architecture all need to be considered.

We Tech Power Solutions Ltd assists industrial customers with Schneider automation product identification, legacy PLC requirements, replacement enquiries, configuration checking, availability enquiries, and quotation support.

Whether you are maintaining an existing machine or planning an automation upgrade, our team can review the available product information and help identify the appropriate requirement.

Frequently Asked Questions

1. What is Schneider Modicon Micro PLC used for?

The Modicon TSX Micro platform was designed for machine control, manufacturing automation, infrastructure applications, process-related functions, and industrial control systems.

2. Is Schneider Modicon TSX Micro PLC still available?

Schneider Electric currently lists the Modicon TSX Micro range as discontinued. Therefore, availability and suitable replacement options should be checked against the exact PLC model and order number.

3. How can I identify a replacement for my Modicon Micro PLC?

Provide the complete Schneider order number, PLC model, installed I/O modules, communication modules, power supply, and application details. We Tech Power Solutions Ltd can use this information to review the existing configuration and assist with replacement or upgrade requirements.

Need Modicon Micro PLC Replacement Support?

Have an existing Schneider Modicon Micro PLC installed in your machine or plant?

Send We Tech Power Solutions Ltd the PLC part number, module details, application, quantity, and delivery location.

Contact our automation team for product identification, legacy PLC replacement support, technical selection, availability, and quotation assistance.
