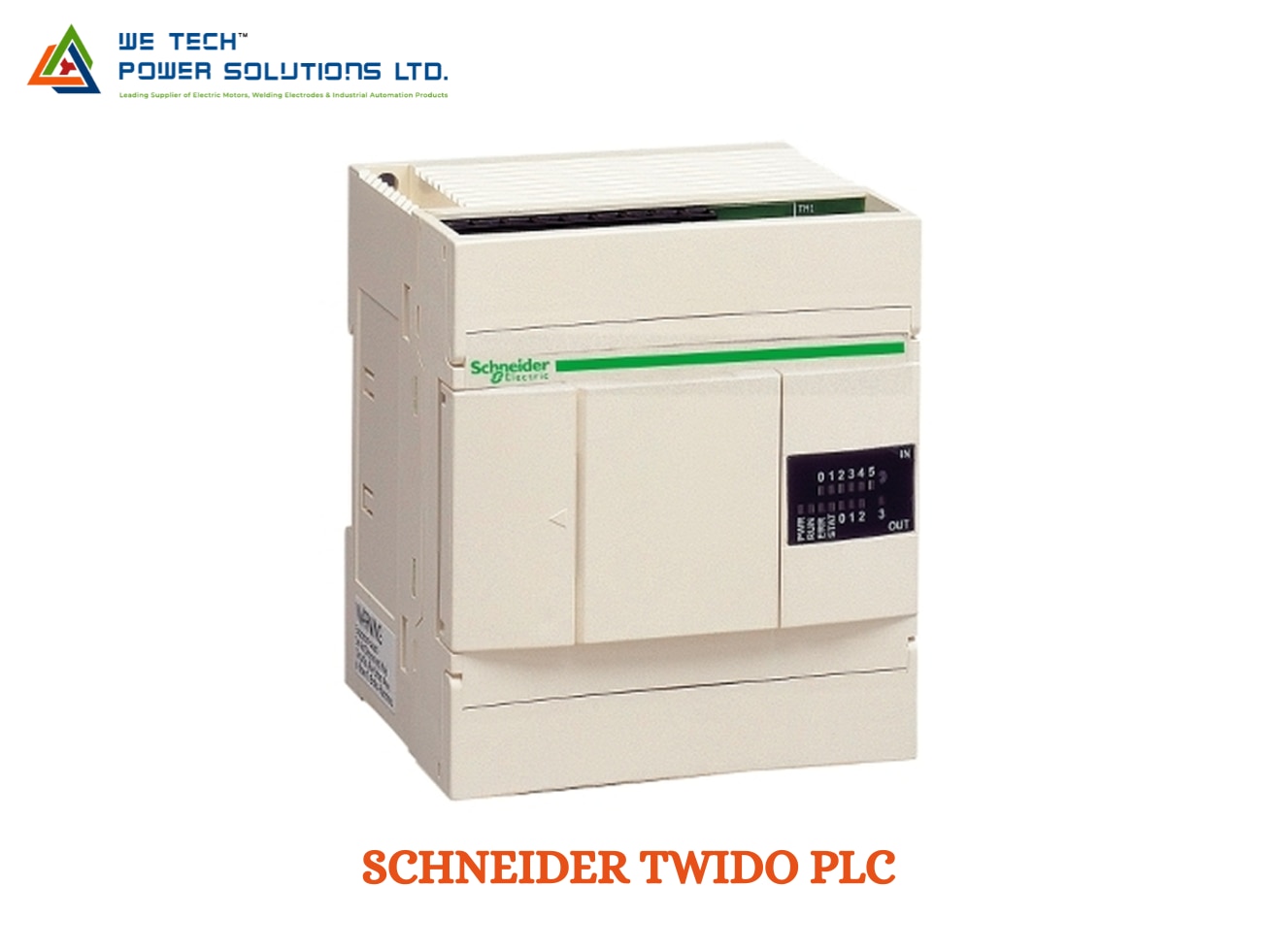

SCHNEIDER TWIDO PLC

Schneider Modicon Twido PLC

Schneider Modicon Twido PLC for Compact Machine Automation

The Schneider Modicon Twido PLC was developed as a compact automation controller for machine builders and small industrial control applications. Its range included compact and modular controllers, expansion I/O and communication options for applications requiring straightforward machine control.

Today, Modicon Twido is a discontinued product family. Schneider Electric identifies the Modicon M221 as a possible replacement, although the appropriate replacement depends on the existing Twido controller, I/O configuration and application architecture.

We Tech Power Solutions Ltd supports Schneider Modicon Twido enquiries from Ahmedabad, Gujarat, including legacy part identification, spare requirements and replacement or migration assessment.

What Was Schneider Modicon Twido PLC Used For?

Twido was designed for compact automation applications where a dedicated PLC was required to control machines, equipment and basic production processes.

Depending on the selected controller and expansion configuration, Twido systems could handle:

• Digital input and output control

• Machine sequencing

• Sensor and actuator interfacing

• Basic analogue signal handling

• Timer and counter functions

• Communication with automation equipment

• Expansion I/O requirements

• Compact machine-control applications

Twido controllers were available in both compact and modular formats, allowing the system to be configured according to the application.

Twido Compact vs Modular Controllers

Compact Twido Controllers

Compact models integrated the controller and a defined number of I/O points into one base unit.

Schneider's documented Twido compact references include configurations such as the TWDLCDA16DRF, with 24 V DC supply, 9 digital inputs and 7 relay outputs. Other compact references provided different I/O arrangements and supply configurations.

Modular Twido Controllers

Modular controllers allowed the base controller to be combined with expansion modules for applications requiring additional I/O.

For example, Schneider documents the TWDLMDA20DUK as a 24 V DC modular base controller with 20 discrete I/O, while the TWDLMDA40DTK provides a larger 40-I/O configuration.

The exact I/O arrangement, output type and electrical characteristics depend on the individual Twido reference.

Twido PLC Expansion & I/O

Twido systems could be expanded using additional I/O modules and associated accessories.

Expansion requirements could include:

• Additional digital inputs

• Additional digital outputs

• Analogue inputs

• Analogue outputs

• Mixed analogue/discrete requirements

• Communication interfaces

Schneider documentation also identifies TM2 modules as replacements for earlier TWD analogue and discrete I/O modules. Schneider subsequently identifies the TM3 family as the newer replacement for TM2, with compatibility depending on the overall automation architecture.

Twido PLC Communication

Twido installations could use serial communication and optional communication interfaces depending on the controller and configuration.

Schneider documentation identifies programming and communication accessories including the TSXCUSB485 USB-to-RS485 converter and TSXCRJMD25 cable for connecting to Twido controllers.

Some Twido configurations also supported Ethernet connectivity through dedicated interfaces. For example, Schneider's 499TWD01100 is documented as a Twido ConneXium interface with one 10BASE-T/100BASE-TX Ethernet port.

Twido PLC Programming Software

Twido systems were programmed using TwidoSoft or TwidoSuite, depending on the installation and software environment.

Schneider confirms that TwidoSoft application files can be opened through TwidoSuite. Schneider also states that the Twido range is discontinued and identifies EcoStruxure Machine Expert Basic for the Modicon M221 replacement platform.

When maintaining an existing Twido installation, check:

• PLC model

• Firmware/version

• TwidoSoft or TwidoSuite project

• Existing PLC program backup

• I/O configuration

• Communication modules

• Connected HMI

• Machine wiring

• Required replacement architecture

Technical Product Overview

Parameter Modicon Twido PLC

Brand Schneider Electric

Product Family Modicon Twido

Product Type Compact / Modular PLC

Controller Format Compact and modular

Power Supply Model dependent

Digital I/O Model dependent

Analogue I/O Expansion/configuration dependent

Communication Model/module dependent

Programming Software TwidoSoft / TwidoSuite

Expansion Twido-compatible expansion modules

Typical Application Compact machine and equipment automation

Current Lifecycle Discontinued

Technical specifications vary by exact Twido order number. Confirm the complete reference before purchasing, replacing or migrating an existing controller.

Typical Applications of Twido PLC

Twido controllers were commonly suited to smaller automation systems and machine-control applications.

Packaging Machines

Control of sensors, actuators, motors and machine sequences.

Conveyor Systems

Monitoring sensors and controlling conveyor-related equipment.

Material Handling

Basic automation of compact handling and transfer equipment.

Pump & Utility Systems

Control and monitoring of pumps, switches and associated equipment.

OEM Machines

Compact PLC control for dedicated machines and equipment.

Production Equipment

Sequencing, interlocking and monitoring of machine operations.

Industries Where Existing Twido Systems May Be Found

Twido-based automation systems can be encountered in:

• Manufacturing

• Packaging

• Material handling

• Food processing

• Machinery manufacturing

• Water and utility systems

• Building equipment

• Industrial OEM applications

For an existing installation, the important consideration is not simply the industry but the exact Twido controller and connected architecture.

Schneider Modicon Twido PLC Replacement

Because the Twido range is discontinued, replacement planning is increasingly important for customers maintaining older machines.

Schneider identifies Modicon M221 as a possible replacement platform for Twido, but the replacement is configuration-dependent. For example, Schneider lists specific M221 replacement options for several Twido compact and modular controllers.

A replacement assessment should compare:

Existing Twido CPU → I/O requirements → Output type → Communication → Program → HMI → Machine wiring → M221 configuration

The replacement may require additional I/O or other devices rather than being a direct one-for-one controller swap.

Twido PLC Legacy Support & Migration

For an existing Twido machine, migration should be planned carefully to reduce downtime and avoid compatibility issues.

Before selecting a replacement, review:

1. Existing Twido part number

2. Number of digital inputs

3. Number of digital outputs

4. Relay or transistor output type

5. Analogue I/O requirements

6. Expansion modules

7. Serial/Ethernet communication

8. Existing PLC program

9. HMI communication

10. Available panel space

11. Machine wiring

12. Required future expansion

Schneider states that Twido applications can potentially be migrated toward the M221 platform, but the architecture should be validated before migration.

Schneider Modicon Twido PLC Supplier in Ahmedabad, Gujarat & India

We Tech Power Solutions Ltd assists customers with Schneider automation product enquiries from Ahmedabad, Gujarat.

If you have an existing Twido PLC that needs a spare, replacement or modernization assessment, share the complete TWD part number with our team.

We can help with enquiries involving:

• Twido PLC controllers

• Twido expansion I/O

• Communication modules

• Legacy PLC identification

• Replacement assessment

• M221 migration requirements

• Industrial automation product sourcing

For legacy equipment, providing the exact part number or a clear photograph of the PLC label helps identify the requirement more accurately.

Why Choose We Tech Power Solutions Ltd?

• Schneider PLC product identification support

• Twido legacy-system enquiry assistance

• PLC and I/O reference checking

• Replacement and migration assessment

• Application-based product selection

• Industrial automation sourcing

• Support from Ahmedabad, Gujarat

• Assistance for customers across India and Gulf markets

We support automation enquiries across Ahmedabad, Gujarat and India, including requirements related to UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Frequently Asked Questions

1. Is Schneider Modicon Twido PLC still available?

The Twido range is discontinued according to Schneider Electric. Some individual Twido references have specific end-of-sale dates and replacement recommendations, so the exact part number should be checked for any existing-system requirement.

2. What is the replacement for Schneider Twido PLC?

Schneider identifies Modicon M221 as a possible replacement for Twido. The correct M221 configuration depends on the existing Twido model, I/O requirements, communication and application architecture.

3. Which software was used to program Twido PLC?

Twido PLCs were programmed using TwidoSoft or TwidoSuite. Schneider also provides information about opening TwidoSoft project files in TwidoSuite and migrating toward the M221 platform using EcoStruxure Machine Expert Basic.
