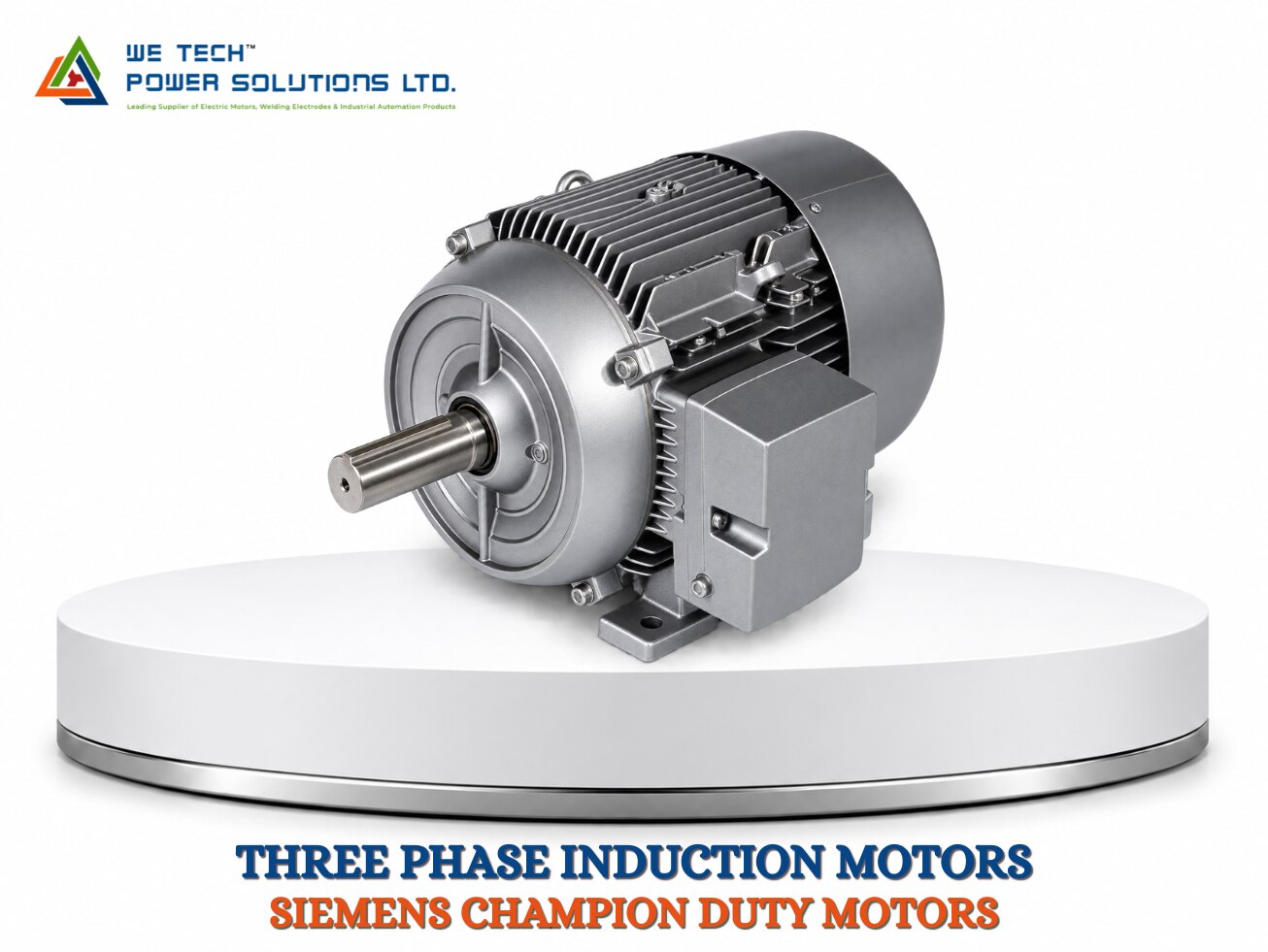

SIEMENS CHAMPION DUTY MOTORS

8.2 Siemens Champion Series Motors

Siemens Champion Series Motors for Industrial Applications

Meta Title: Siemens Champion Series Motors | 250–315 kW

Meta Description: Explore Siemens Champion Series Motors from 250–315 kW for pumps, fans, compressors and industrial machinery with expert selection support.

About Siemens Champion Series Motors

For industrial equipment operating under continuous loads, motor selection has a direct impact on reliability, energy consumption and overall plant performance. Siemens Champion Series Motors are designed for demanding industrial applications where dependable three-phase motor operation is essential.

We Tech Power Solutions Ltd is an authorised dealer of Siemens Champion Series Motors, offering models in the 250 kW to 315 kW range, equivalent to approximately 335 HP to 425 HP. These motors operate at 415 V and 50 Hz and are available in different speed configurations to suit various driven equipment.

Siemens Champion Series Motors – Technical Specifications

Key specifications include:

• Power range: 250 kW to 315 kW / 335 HP to 425 HP

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Phase: Three phase

• Speed options: 3000 RPM and 1500 RPM

• Pole options: 2 and 4 pole configurations

• Frame: 355L

• Body: Cast iron

• Duty: S1 continuous duty

• Efficiency: IE2 / IE3

• Insulation: Class F

• Temperature rise: Limited according to the specified design

• Protection: IP55

• Enclosure: TEFC

• Mounting: B3 foot, B5 flange and B35 foot-cum-flange

• Ambient temperature: Up to 50°C

• Terminal box: TOP, with other locations available as required

For specialized installations, options can include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, forced cooling, double-shaft configurations and alternative terminal-box positions.

Where Are Siemens Champion Series Motors Used?

The Champion Series is suitable for a wide range of industrial equipment where continuous-duty operation and appropriate motor sizing are important. Typical applications include pumps, fans, compressors, paper machinery, dairy equipment, hydraulic presses, HVAC systems, grinding machines, chilling plants, blenders, pulverizers, condensers, agitators, air compressors, centrifuges, ID and FD fans, cooling towers and machine tools.

Industries such as manufacturing, paper, dairy, textiles, plastics, process engineering, refrigeration and heavy industrial production can use these motors across different types of machinery.

For instance, a production plant running large pumps continuously needs a motor that is properly matched to the pump's load and operating speed. Selecting the correct frame, mounting and electrical configuration helps support dependable operation.

Why Choose We Tech Power Solutions Ltd?

Buying a high-power industrial motor requires more than comparing prices. Application load, RPM, mounting arrangement, operating temperature, starting conditions and required motor features all need to be considered.

We Tech Power Solutions Ltd provides product guidance and application-oriented motor selection support for industrial customers. Companies looking for Siemens (Innomotics) Motors Exporters in India, a Siemens (Innomotics) Champion Series Motors dealer in Ahmedabad, or Siemens (Innomotics) Champion Series Motors Suppliers in Gujarat can contact the company for assistance with selecting a suitable configuration.

The supplied warranty terms cover faulty material or workmanship under proper use for 12 months from commissioning or 18 months from dispatch, whichever occurs earlier.

Frequently Asked Questions

1. What is the power range of Siemens Champion Series Motors?

The specified Champion Series range covers 250 kW to 315 kW, equivalent to approximately 335 HP to 425 HP.

2. Which mounting options are available?

The motors are available with B3 foot mounting, B5 flange mounting and B35 foot-cum-flange mounting, allowing the motor to be matched to different equipment installation requirements.

Get the Right Siemens Champion Series Motor

Contact We Tech Power Solutions Ltd today for Siemens Champion Series Motors and get expert assistance in selecting the right motor configuration for your industrial application.
