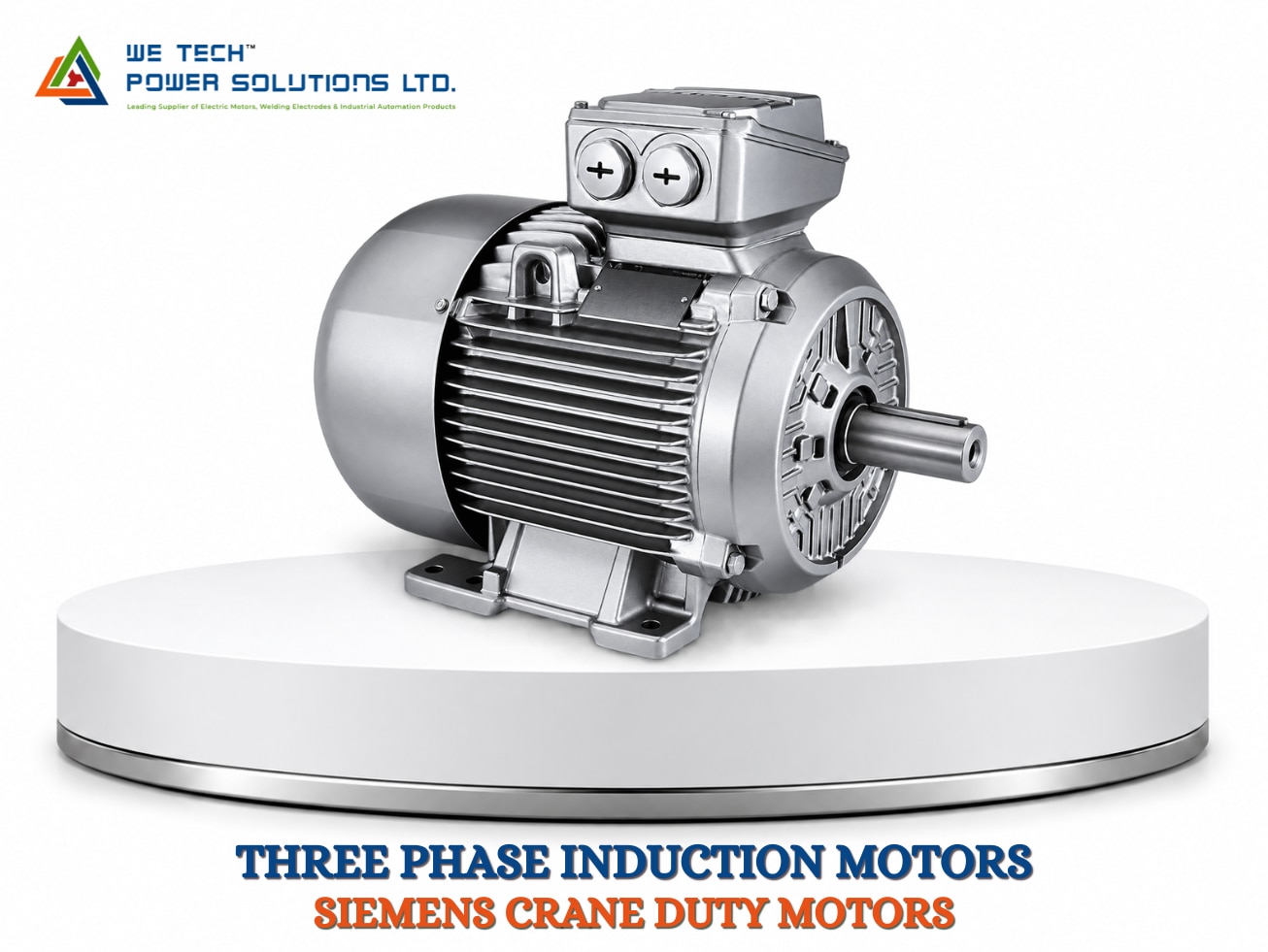

SIEMENS CRANE DUTY MOTORS

4.2 Siemens Crane Duty Motors

Siemens Crane Duty Motors for Heavy-Duty Handling

Meta Title: Siemens Crane Duty Motors | Squirrel Cage Motors

Meta Description: Siemens Crane Duty Motors from 0.18–200 kW for cranes, hoists, conveyors and material handling, with S3/S4/S5 duty and flexible mounting options.

About Siemens Crane Duty Motors

Crane and hoisting equipment requires motors that can handle frequent starting, stopping, reversing, and acceleration without compromising dependable operation. Siemens Crane Duty Motors are designed for applications where these demanding operating cycles are part of everyday work.

We Tech Power Solutions Ltd is an authorised dealer of Siemens Crane Duty Squirrel Cage Motors, offering a range from 0.18 kW to 200 kW, equivalent to 0.25 HP to 270 HP. These three-phase motors operate at 415 V and 50 Hz and are available in 1500 RPM and 1000 RPM configurations.

Designed with a robust cast-iron body, these motors support S3, S4, and S5 duty classifications. Depending on the application, CDF ratings of 25, 40, and 60 are available, along with configurations designed for frequent starts per hour.

Siemens Crane Duty Motor Technical Specifications

Important specifications include:

• Power range: 0.18 to 200 kW / 0.25 to 270 HP

• Phase: Three phase

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 1500 RPM and 1000 RPM

• Poles: 4 Pole and 6 Pole

• Frame size: 71 to 355

• Duty: S3 / S4 / S5

• CDF: 25 / 40 / 60

• Body: Cast iron

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Mounting: B3, B5, B35, B14, and B34

• Terminal box: TOP position

• Ambient temperature: Up to 50°C

Special configurations include VPI/VFD suitability, IGT, double shaft extension, and alternative terminal-box locations such as LHS or RHS, depending on the required configuration.

Built for Frequent Starts, Stops and Reversals

Crane motors work differently from standard continuous-duty motors. Lifting and travelling mechanisms may repeatedly accelerate, stop, reverse, and restart during a single operating cycle.

These motors are designed for applications requiring high starting torque with controlled starting current. Their operating characteristics support rapid acceleration and the stresses associated with frequent switching and reversals.

The appropriate duty classification and CDF rating should be selected according to the actual operating cycle, number of starts, load characteristics, and mechanical requirements of the crane or hoisting system.

Where Are Siemens Crane Duty Motors Used?

Typical applications include:

• EOT and overhead cranes

• Hoists and lifting systems

• LT and CT crane drives

• Material-handling equipment

• Conveyors

• Winches

• Loaders and unloaders

• Weirs and sluices

• Lift-duty machinery

• Auxiliary drives in rolling mills

These motors can be used across industries such as steel and metal processing, manufacturing, warehouses, ports, infrastructure, engineering, and material-handling operations.

Why Choose We Tech Power Solutions Ltd?

Selecting a crane motor requires more than matching the required horsepower. Duty type, CDF, starts per hour, speed, mounting, load characteristics, and mechanical arrangement all influence the selection.

Customers searching for a Siemens (Innomotics) IE2 Motors dealer in Maharashtra can contact We Tech Power Solutions Ltd for motor selection and supply assistance. Customers looking for Siemens (Innomotics) IE2 Motors Suppliers in Gujarat can also discuss their crane and industrial motor requirements with the company.

For international requirements, the company supports enquiries associated with Siemens (Innomotics) Motors Exporters in Oman.

Motors are covered by warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to applicable warranty conditions.

Frequently Asked Questions

1. What makes Siemens Crane Duty Motors suitable for crane applications?

They are designed for operating conditions involving frequent starts, stops, reversals, and acceleration. S3, S4, and S5 duty options allow selection according to the crane's operating cycle.

2. What should be considered when selecting a crane duty motor?

Consider the required kW/HP, RPM, duty type, CDF, starts per hour, load characteristics, mounting arrangement, and operating environment before selecting the motor.

Get the Right Siemens Crane Duty Motor

Contact We Tech Power Solutions Ltd today for Siemens Crane Duty Motor specifications, pricing, availability, and application-based selection support.
