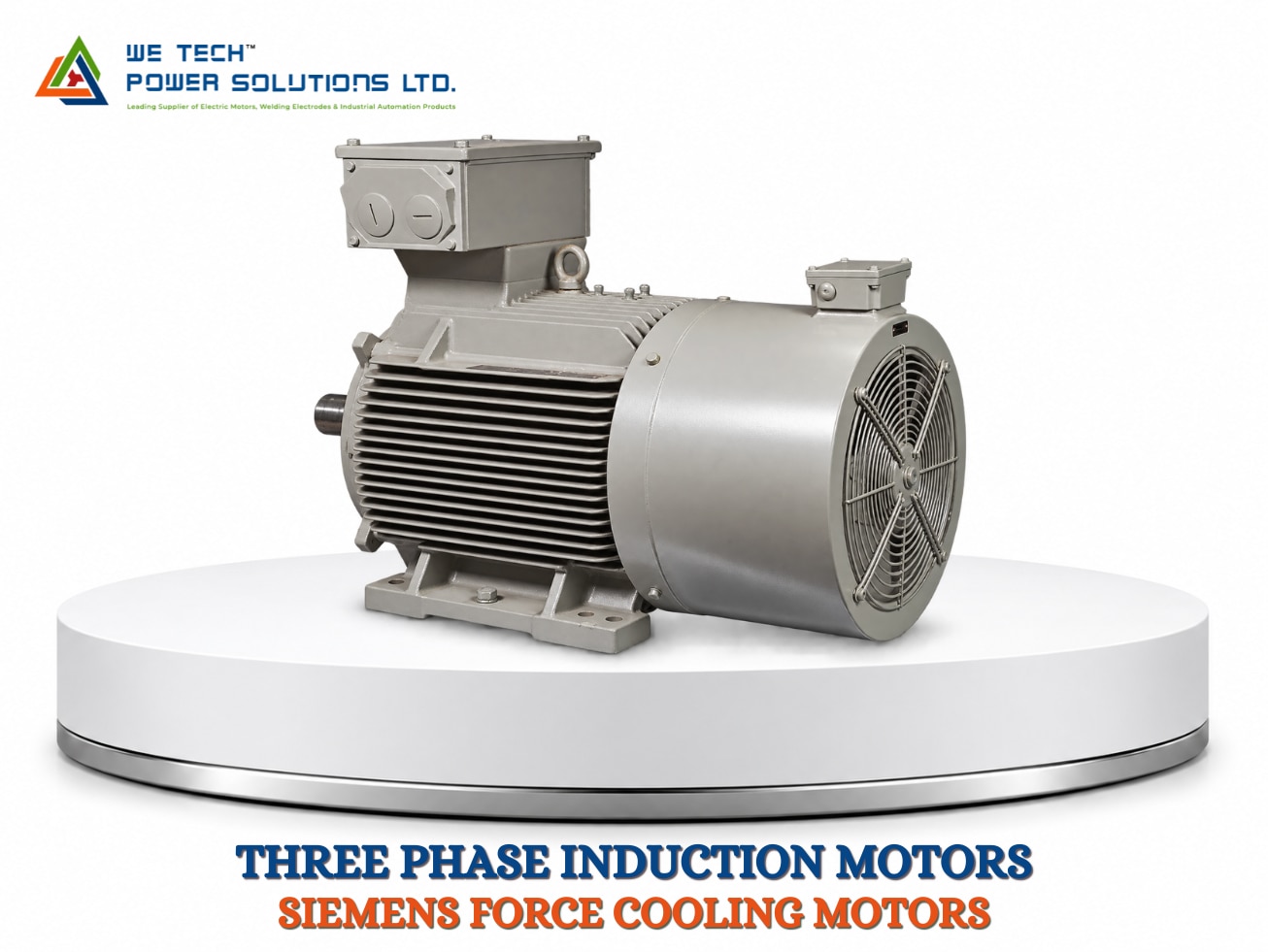

Siemens Force Cooling Motors for Industrial Applications

Meta Title: Siemens Force Cooling Motors | 355–1250 kW

Meta Description: Explore Siemens Force Cooling Motors from 355–1250 kW for compressors, conveyors, pumps and industrial machinery. Get expert selection support.

About Siemens Force Cooling Motors

For heavy-duty machinery that operates continuously or at varying speeds, effective motor cooling is essential for maintaining dependable performance. Siemens Force Cooling Motors are designed for applications where controlled ventilation and reliable operation are important, particularly in converter-duty installations.

We Tech Power Solutions Ltd is an Authorised Dealer of Siemens Force Cooling Motors, offering high-power motor solutions for demanding industrial applications. The Siemens 1PQ8 Force Cooling Converter Duty Motors are available from 355 kW to 1250 kW, equivalent to approximately 475 HP to 1675 HP.

These three-phase motors are available with 415 V, 50 Hz supply and different speed configurations, allowing selection according to the mechanical requirements of the driven equipment.

Siemens Force Cooling Motors – Technical Specifications

Key specifications include:

• Power range: 355 kW to 1250 kW

• Horsepower: Approximately 475 HP to 1675 HP

• Phase: Three phase

• Voltage: 415 V

• Frequency: 50 Hz

• Speed options: 3000, 1500, 1000 and 750 RPM

• Pole options: 2, 4, 6 and 8 pole

• Frame size: 355 to 500

• Motor body: Cast iron

• Duty: S1 continuous duty

• Efficiency: IE2 and IE3

• Insulation: Class F

• Temperature rise: Limited to Class B

• Protection: IP55

• Enclosure: TEFC

• Mounting: B3 foot, B5 flange and B35 foot-cum-flange

• Terminal box: Available in different positions as required

Depending on the project, options such as VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, double-shaft arrangements and 690 V grid-supplied configurations can also be considered.

Applications and Industries

Siemens Force Cooling Motors are particularly suitable for machinery where controlled cooling is important during continuous or variable-speed operation. Typical applications include compressors, conveyors, positive displacement pumps, mixers and hoists.

They can be used across industries such as cement, steel, manufacturing, chemical processing, paper, textiles, plastics, power generation and heavy engineering. For example, a compressor running for extended periods may require consistent heat management, while a conveyor system may need reliable motor performance under changing loads.

Why Choose We Tech Power Solutions Ltd?

Selecting a high-power motor requires more than matching the motor's kW rating with the machine. Application load, operating speed, mounting arrangement, cooling requirements, voltage, environmental conditions and drive compatibility should all be evaluated.

We Tech Power Solutions Ltd provides application-oriented assistance to help customers identify an appropriate Siemens motor configuration. Businesses searching for Siemens (Innomotics) Motors Exporters in India, a Siemens (Innomotics) Force Cooling Motors dealer in Ahmedabad, or Siemens (Innomotics) Force Cooling Motors Suppliers in Gujarat can contact the company for product guidance and sourcing support.

The stated warranty covers faulty material or workmanship under proper use for 12 months from commissioning or 18 months from dispatch, whichever occurs earlier.

Frequently Asked Questions

1. What are Siemens Force Cooling Motors used for?

They are designed for demanding industrial applications where reliable cooling is required, including compressors, conveyors, pumps, mixers and hoisting equipment.

2. Which mounting arrangements are available?

The motors can be supplied in B3 foot-mounted, B5 flange-mounted and B35 foot-cum-flange-mounted configurations, depending on the installation requirement.

Get Siemens Force Cooling Motors for Your Application

Contact We Tech Power Solutions Ltd today for Siemens Force Cooling Motors and get application-based assistance in selecting the right motor for your industrial equipment.
